PINPOINT TEST DR: Camshaft Position (CMP) Sensor: Introduction

This pinpoint test is intended to diagnose the following:

Fig 1: Camshaft Position Bank 1 Sensor 1 (CMP11) Sensor Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
CMP11 (Camshaft Position Bank 1 Sensor 1)	3
SIGRTN (Signal Return)	2
VREF (Reference Voltage)	1

Fig 2: Camshaft Position Bank 1 Sensor 2 (CMP12) Sensor Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
CMP12 (Camshaft Position Bank 1 Sensor 2)	3
SIGRTN (Signal Return)	2
VREF (Reference Voltage)	1

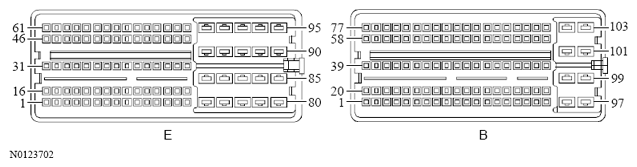

Fig 3: Powertrain Control Module (PCM) Connector - For PCM Connector Views

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
CMP11 (Camshaft Position Bank 1 Sensor 1)	E27
CMP12 (Camshaft Position Bank 1 Sensor 2)	E28
SIGRTN (Signal Return)	E14
VREF (Reference Voltage)	E19
