PINPOINT TEST FD: Brake Pedal Inputs: Introduction

This pinpoint test is intended to diagnose the following:

Fig 1: Brake Pedal Position (BPP) Switch Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
BPS (Brake Pressure Switch)	2
GND (Ground)	3

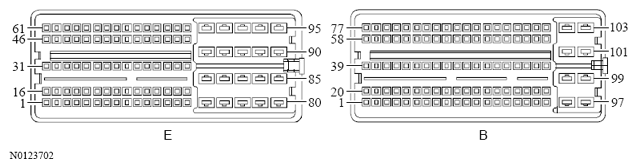

Fig 2: Powertrain Control Module (PCM) Connector - For PCM Connector Views

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
BPP (Brake Pedal Position)	B10
BPS (Brake Pressure Switch)	B11
