Powertrain Control Module (PCM): Installation

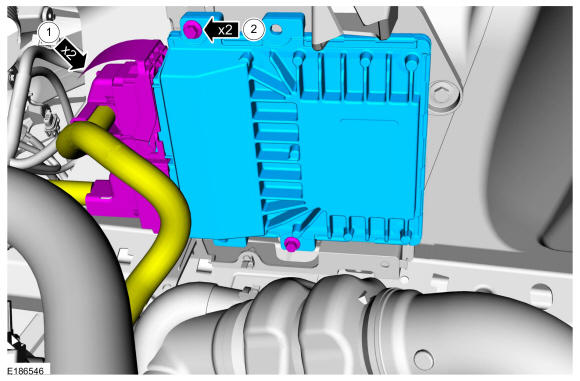

1. Connect the PCM electrical connectors.
2. Install the PCM and the retainers.
  Torque

  : 62 lb.in (7 Nm)
Courtesy of FORD MOTOR COMPANY

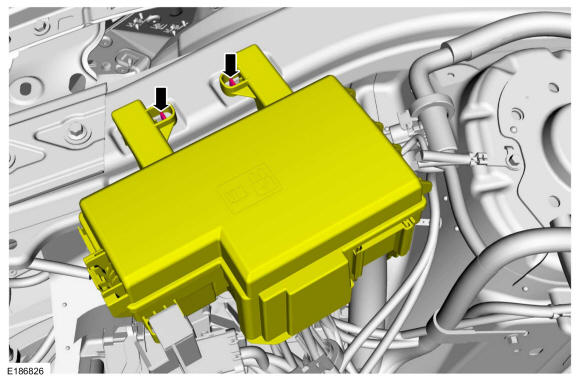

Position back the BJB.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Upload the module information from the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Configuration - System Operation and Component Description .
Carry out the Parameter Reset procedure. Refer to: Anti-Theft Key Programming - Scan Tool .
Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
