Powertrain Control Module (PCM): Removal

  1. NOTE: PCM installation DOES NOT require new keys or programming of keys, only a Parameter Reset of the PATS.
    NOTE: This step is only necessary when installing a new component.

    Download the module information to the diagnostic tool using the PMI routine. Refer to: Module Configuration - System Operation and Component Description .

  2. Unclip and position aside the BJB.

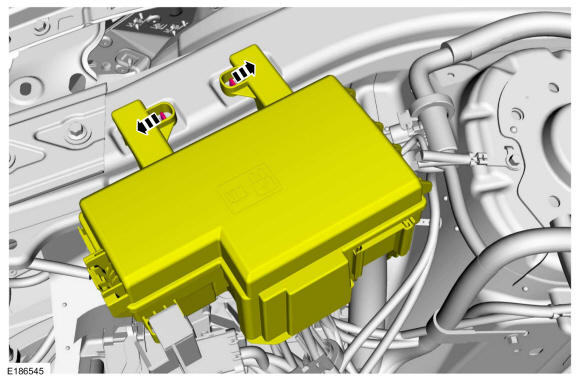

    GFD389428Courtesy of FORD MOTOR COMPANY
    1. Disconnect the PCM electrical connectors.
    2. Remove the retainers and the PCM.
GFD389429Courtesy of FORD MOTOR COMPANY
