PINPOINT TEST JD: Crankshaft Position (CKP) Sensor: Introduction

This pinpoint test is intended to diagnose the following:

Fig 1: Crankshaft Position (CKP) Sensor Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
VREF (Reference Voltage)	1
CKP (Crankshaft Position Sensor)	2
SIGRTN (Signal Return)	3

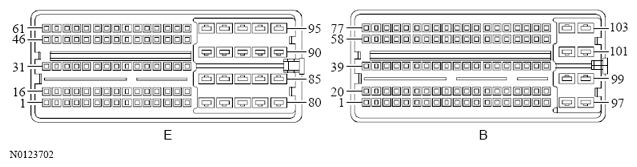

Fig 2: Powertrain Control Module (PCM) Connector - For PCM Connector Views

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
CKP (Crankshaft Position Sensor)	E23
