Connector Repair Procedures

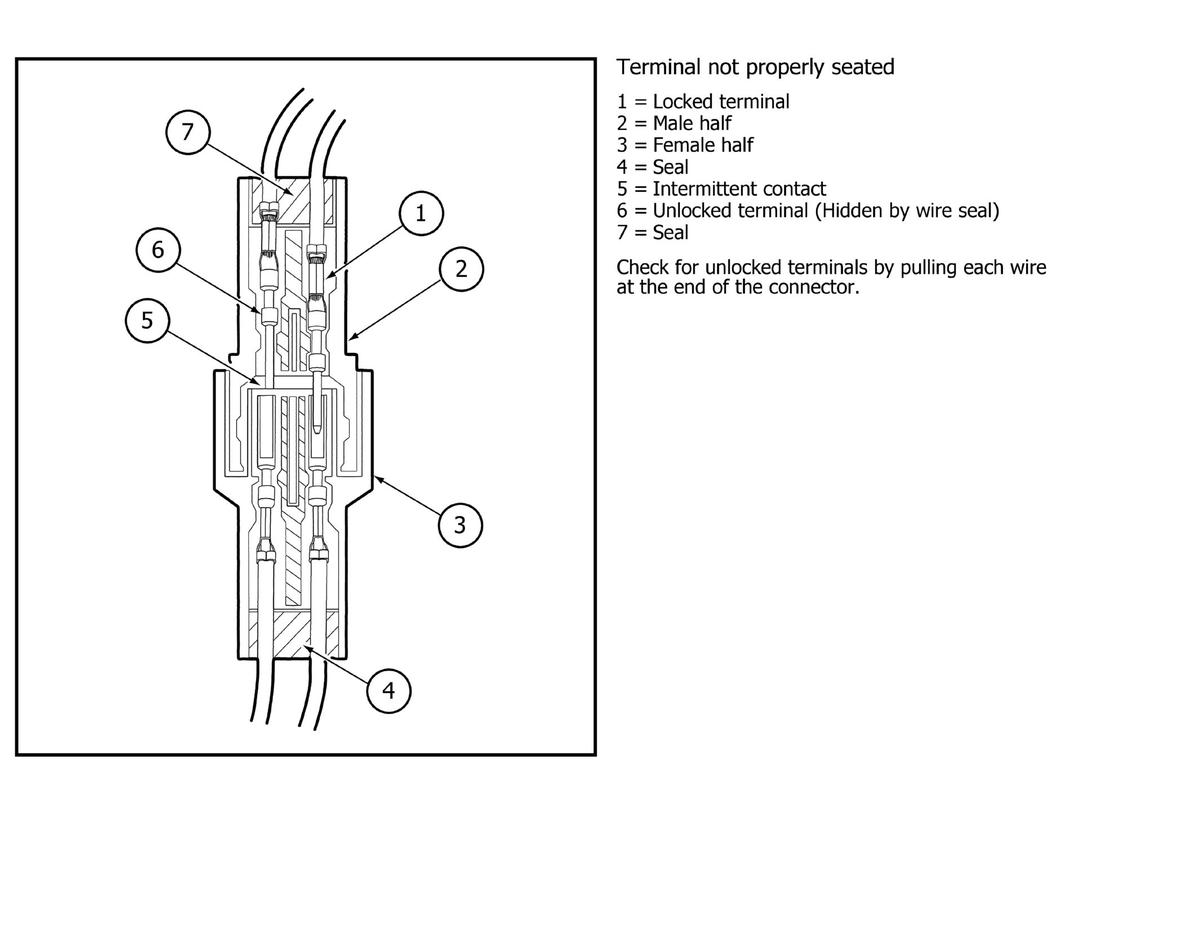

GFDWR54399Courtesy of FORD MOTOR COMPANY

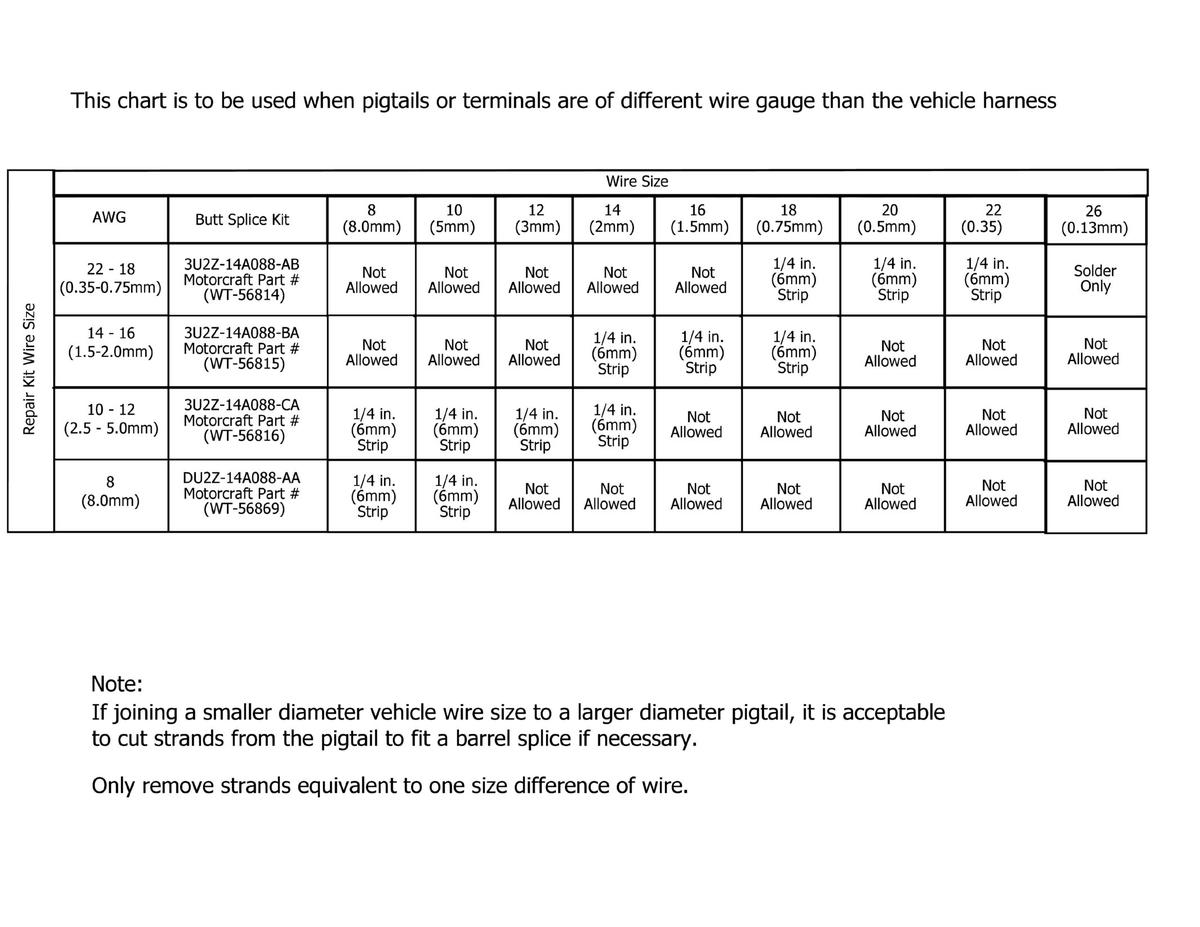

GFDWR54400Courtesy of FORD MOTOR COMPANY

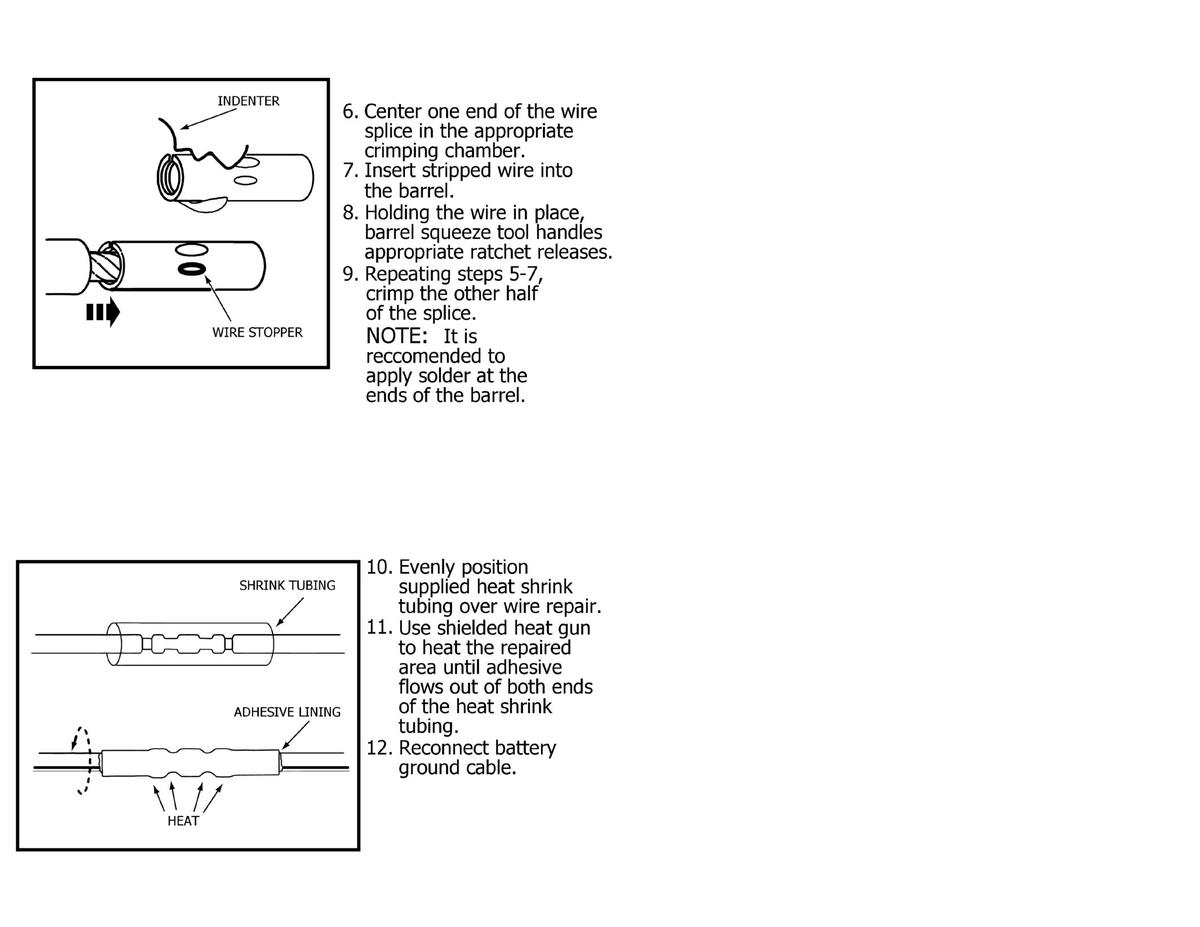

GFDWR54401Courtesy of FORD MOTOR COMPANY

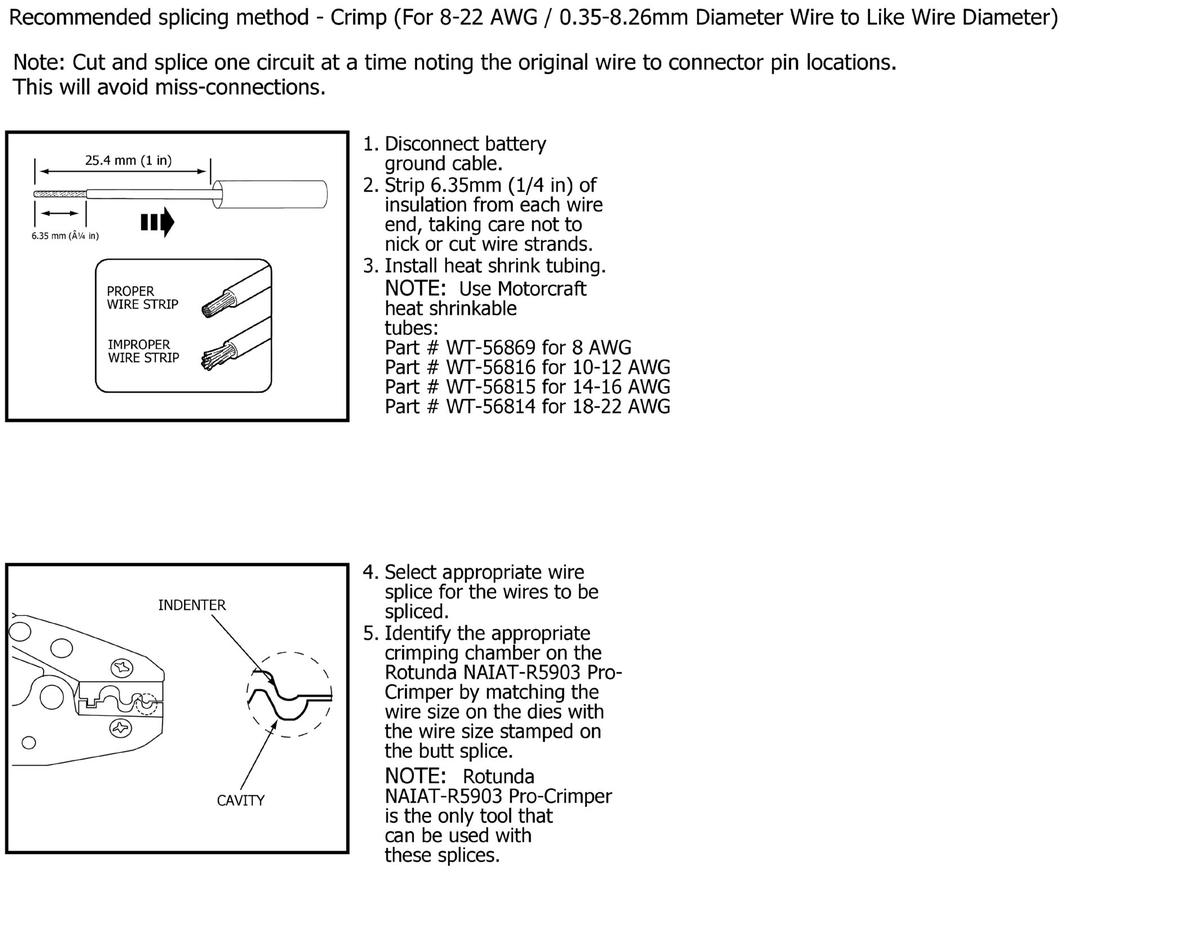

GFDWR54402Courtesy of FORD MOTOR COMPANY

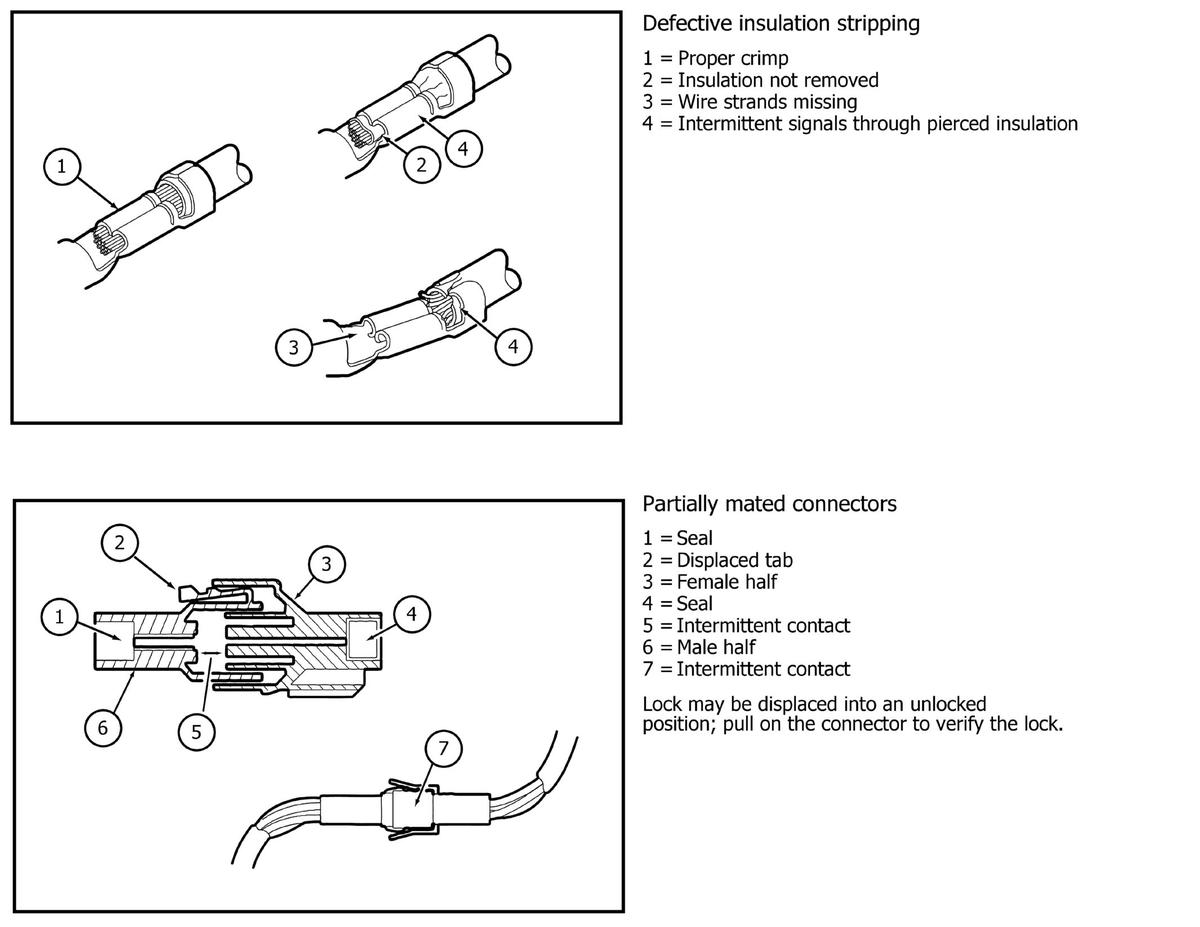

GFDWR54403Courtesy of FORD MOTOR COMPANY

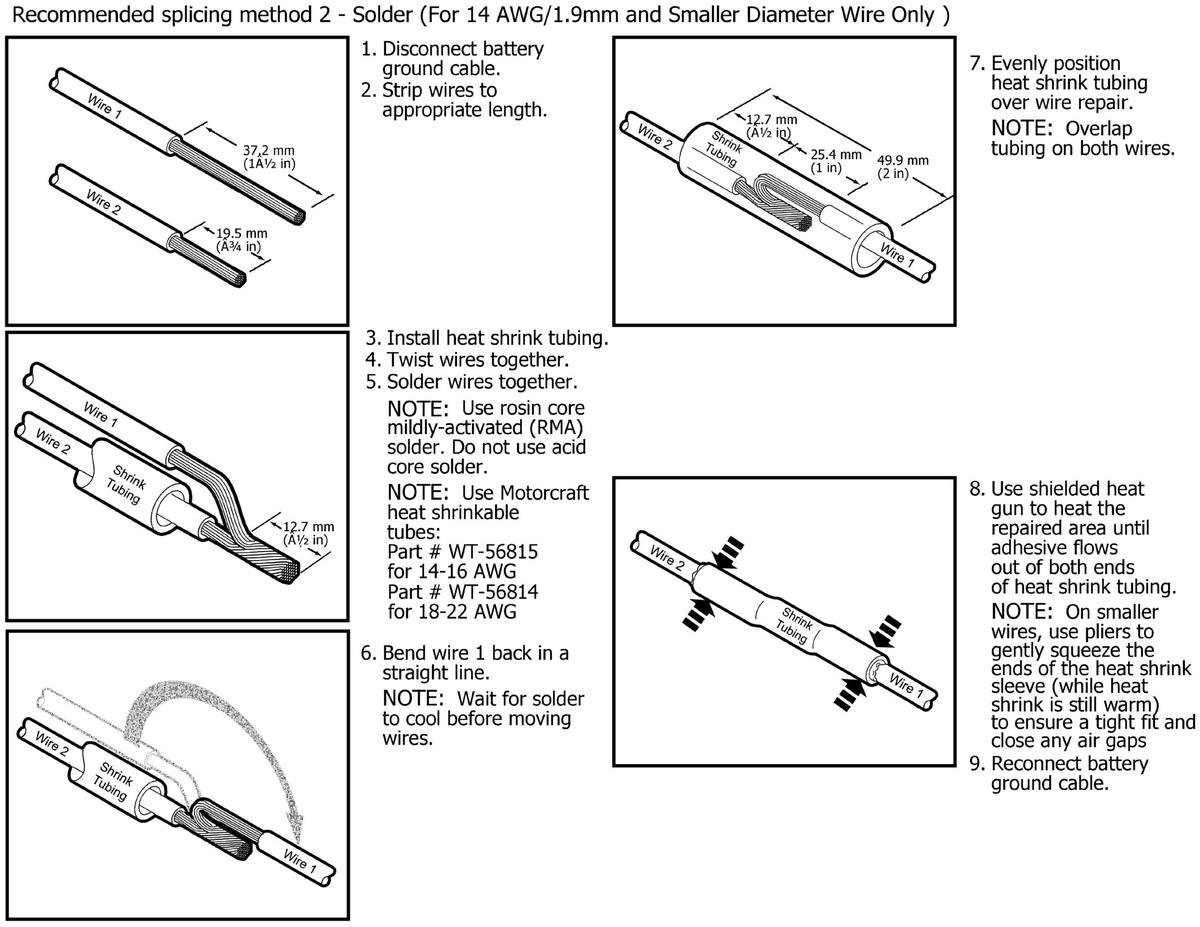

GFDWR54404Courtesy of FORD MOTOR COMPANY

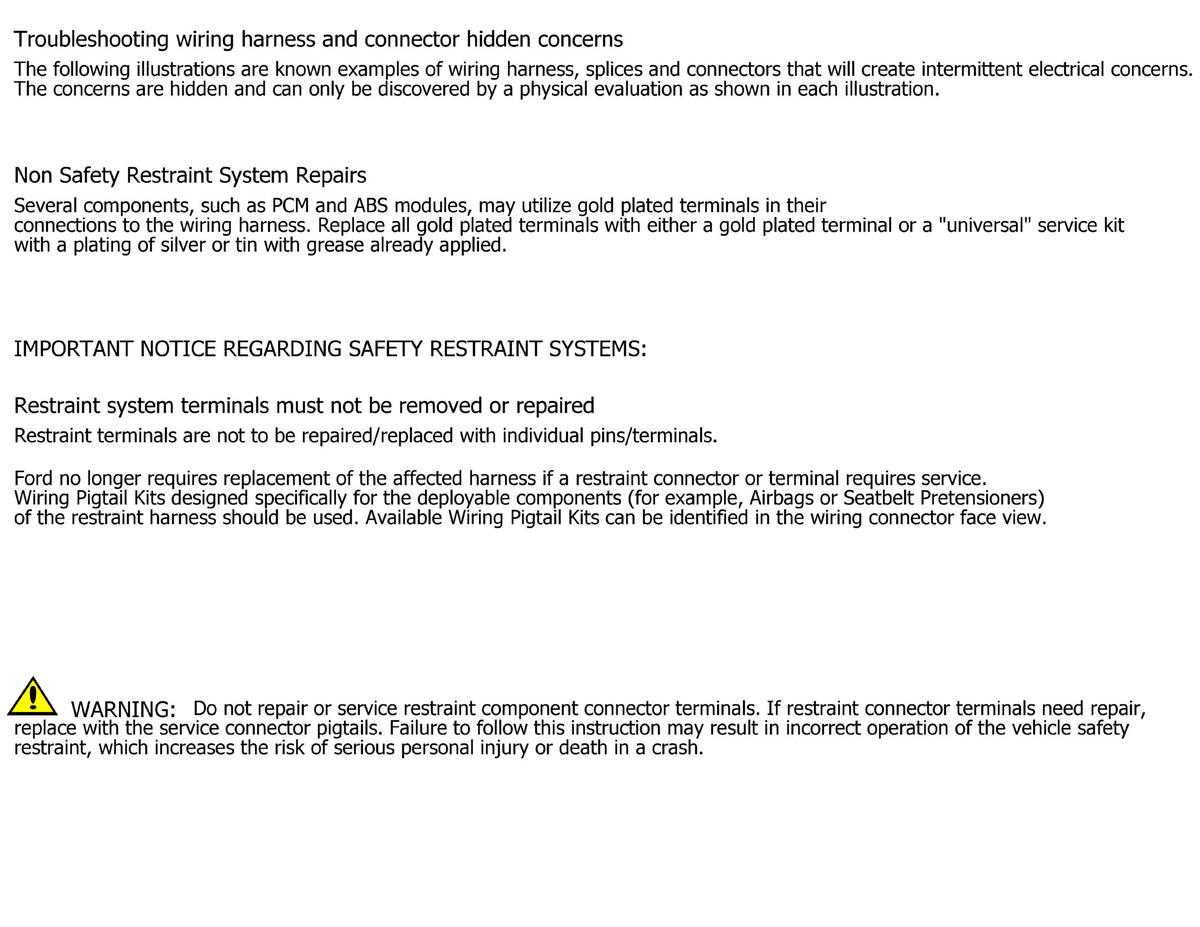

GFDWR54405Courtesy of FORD MOTOR COMPANY

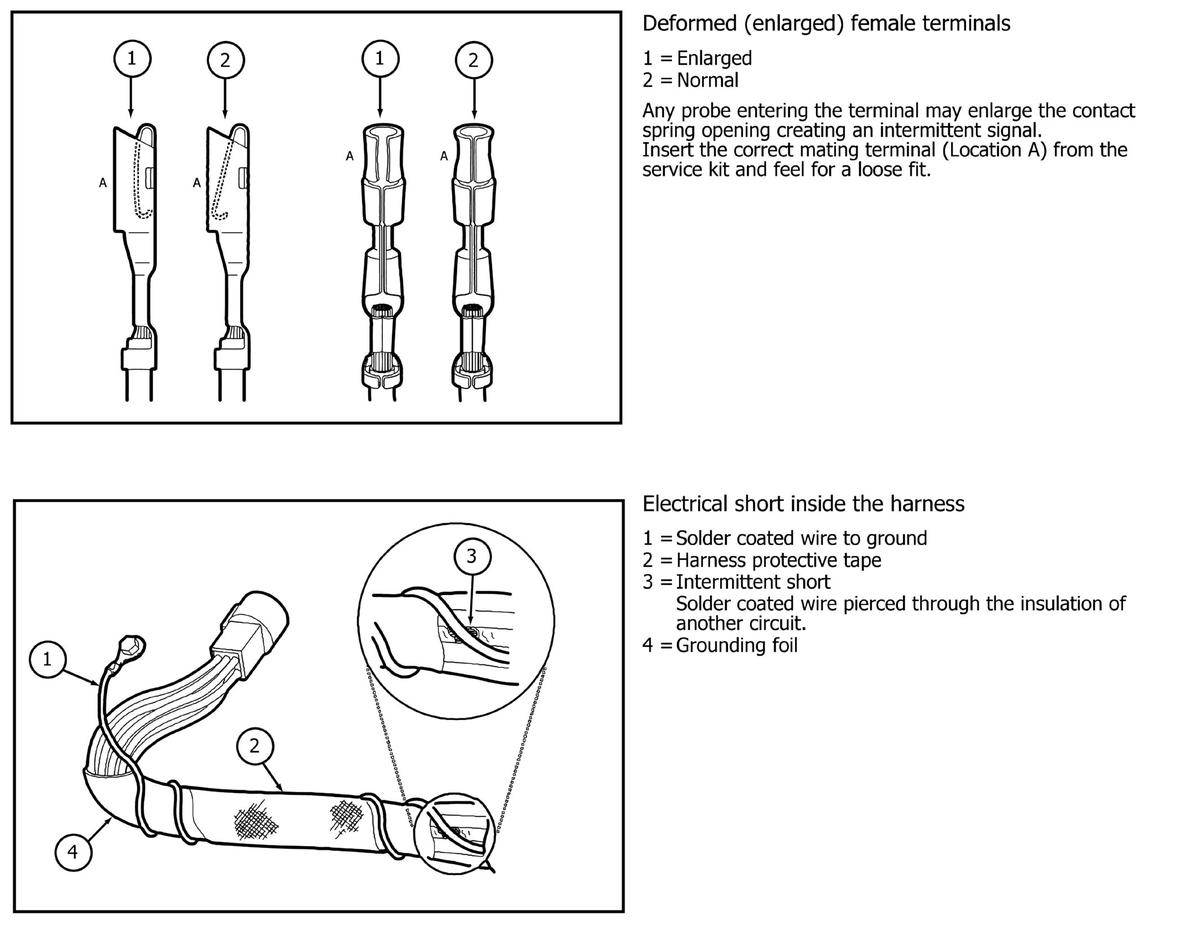

GFDWR54406Courtesy of FORD MOTOR COMPANY

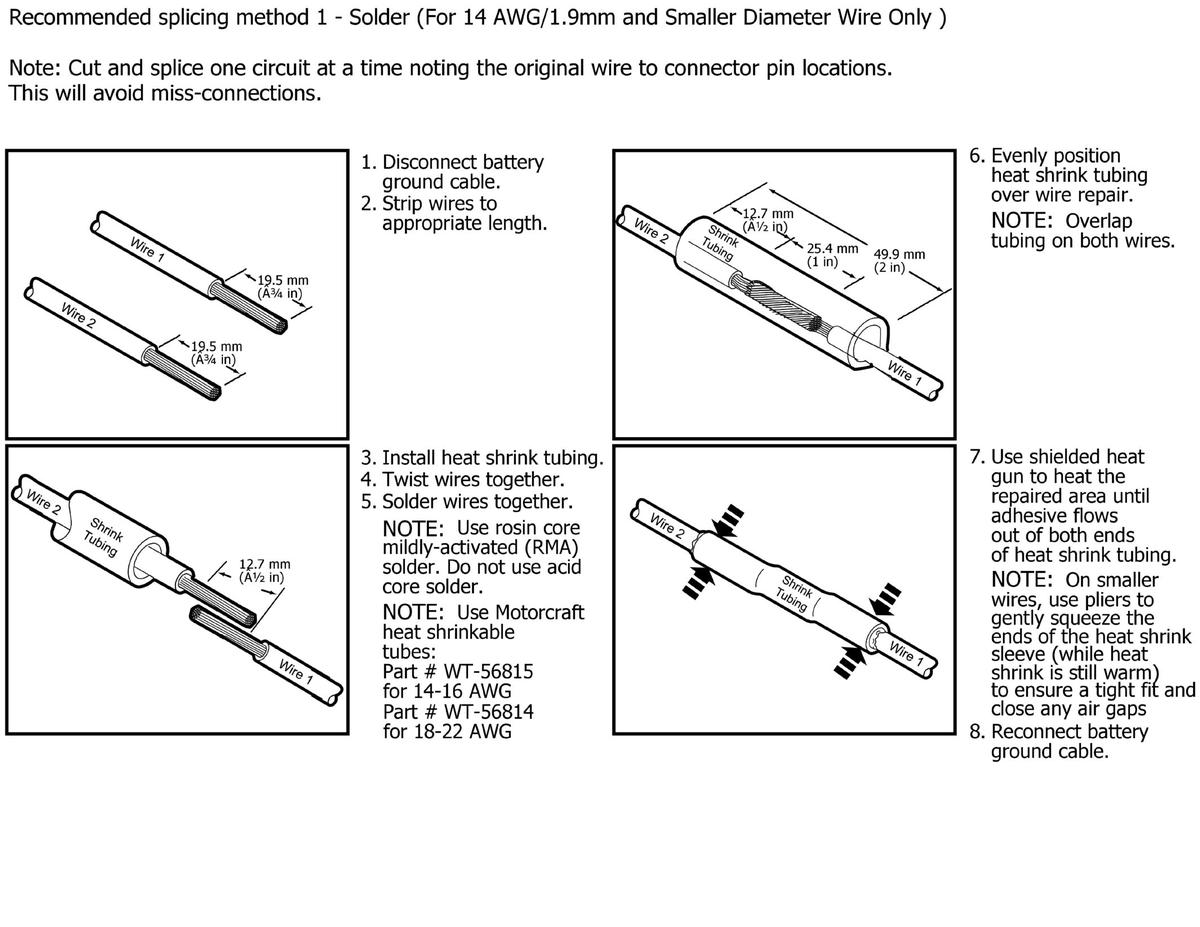

GFDWR54407Courtesy of FORD MOTOR COMPANY
