Component Testing

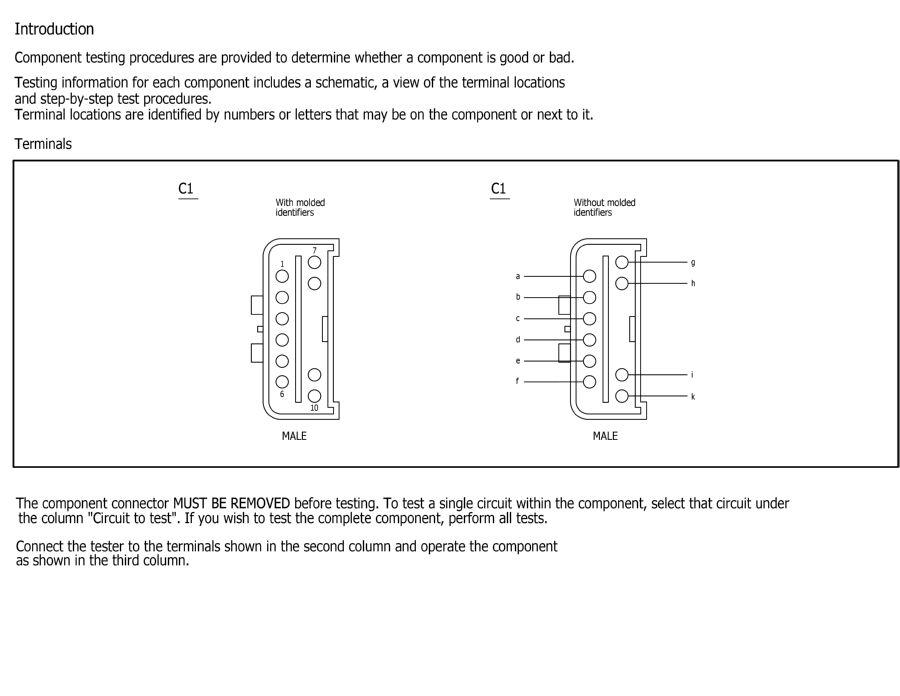

Fig 1: Introduction
GFDWR31287Courtesy of FORD MOTOR COMPANY

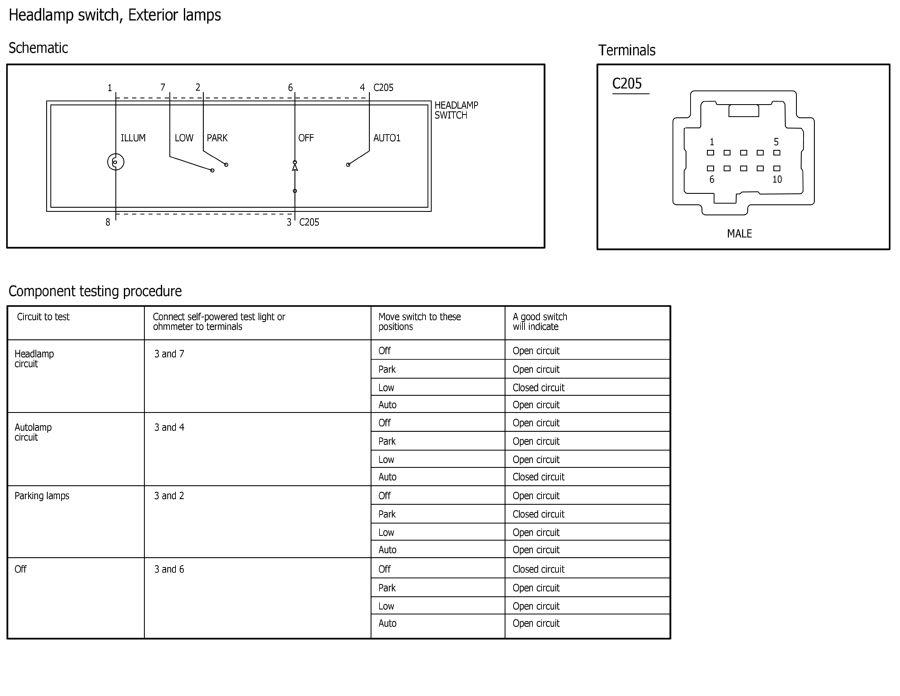

Fig 2: Headlamp Switch, Exterior Lamp Component Testing
GFDWR31274Courtesy of FORD MOTOR COMPANY

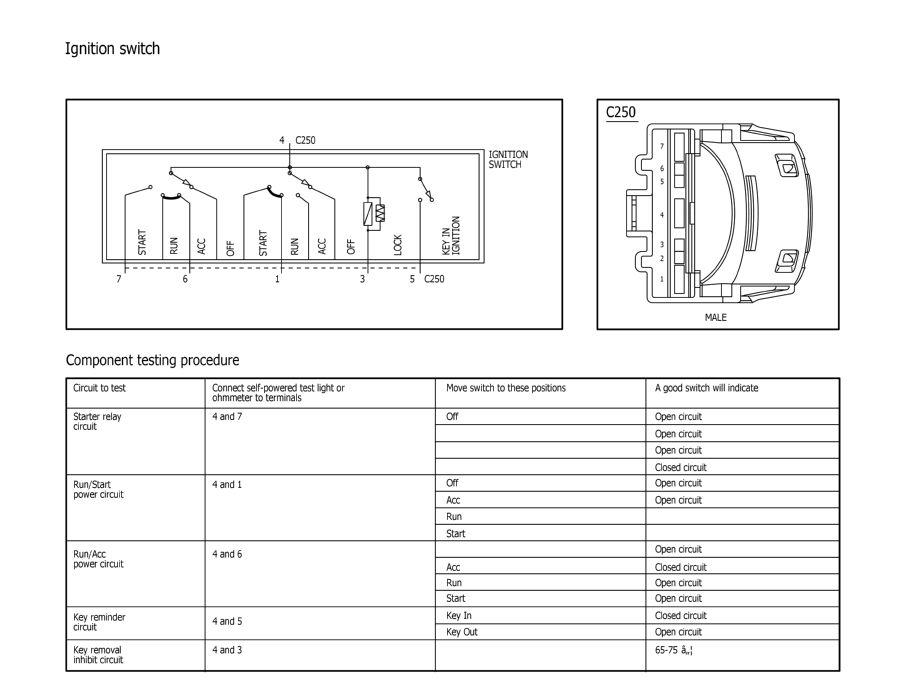

Fig 3: Ignition Switch Component Testing
GFDWR31284Courtesy of FORD MOTOR COMPANY

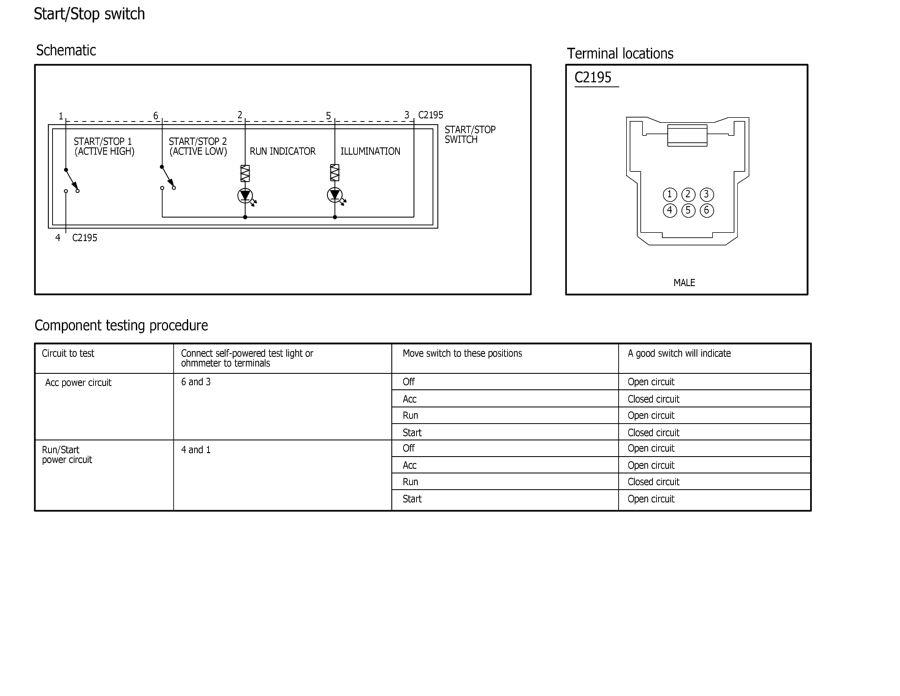

Fig 4: Start/Stop Switch Component Testing
GFDWR31289Courtesy of FORD MOTOR COMPANY

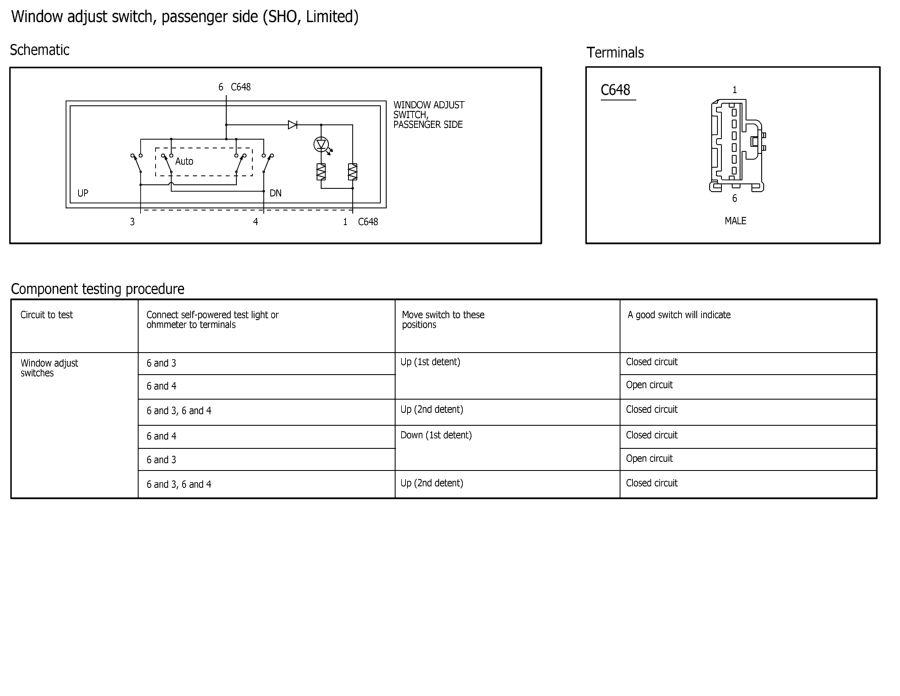

Fig 5: Window Adjust Switch, Passenger Side (SHO, Limited) Component Testing
GFDWR31294Courtesy of FORD MOTOR COMPANY

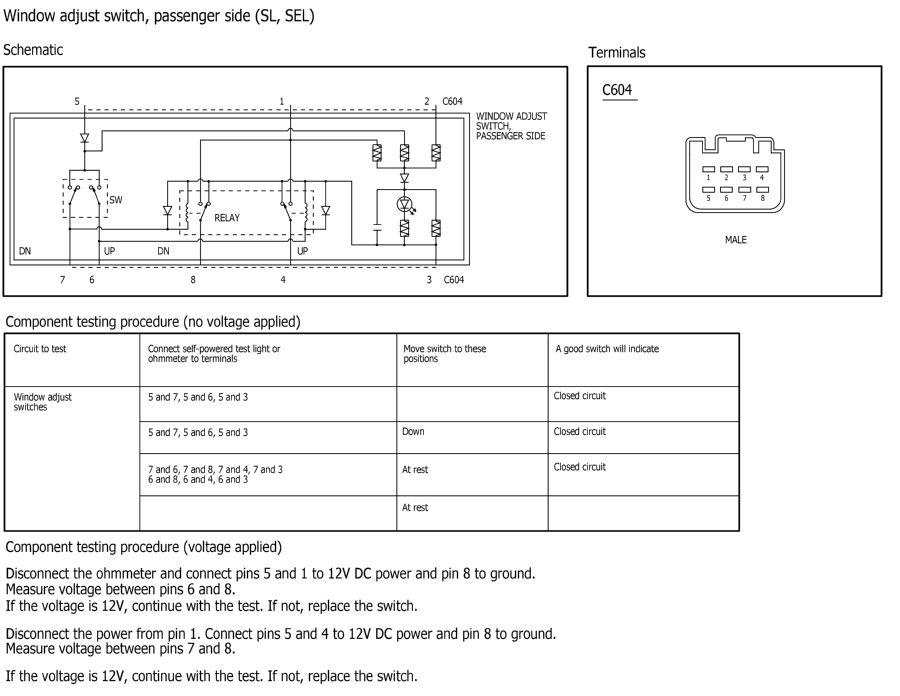

Fig 6: Window Adjust Switch, Passenger Side (SL, SEL) Component Testing
GFDWR31285Courtesy of FORD MOTOR COMPANY

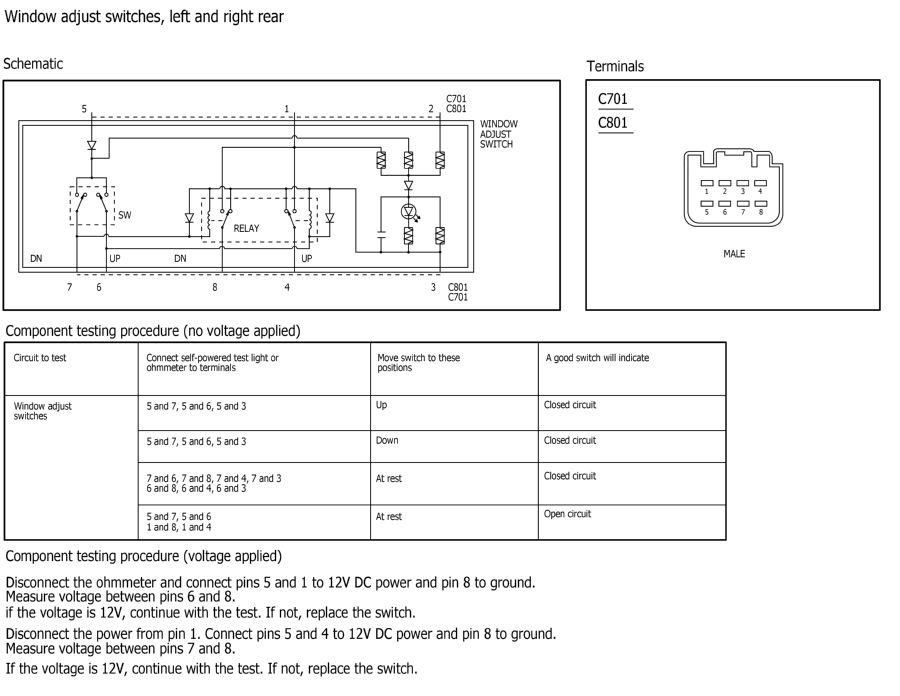

Fig 7: Window Adjust Switches, Left And Right Rear Component Testing
GFDWR31282Courtesy of FORD MOTOR COMPANY

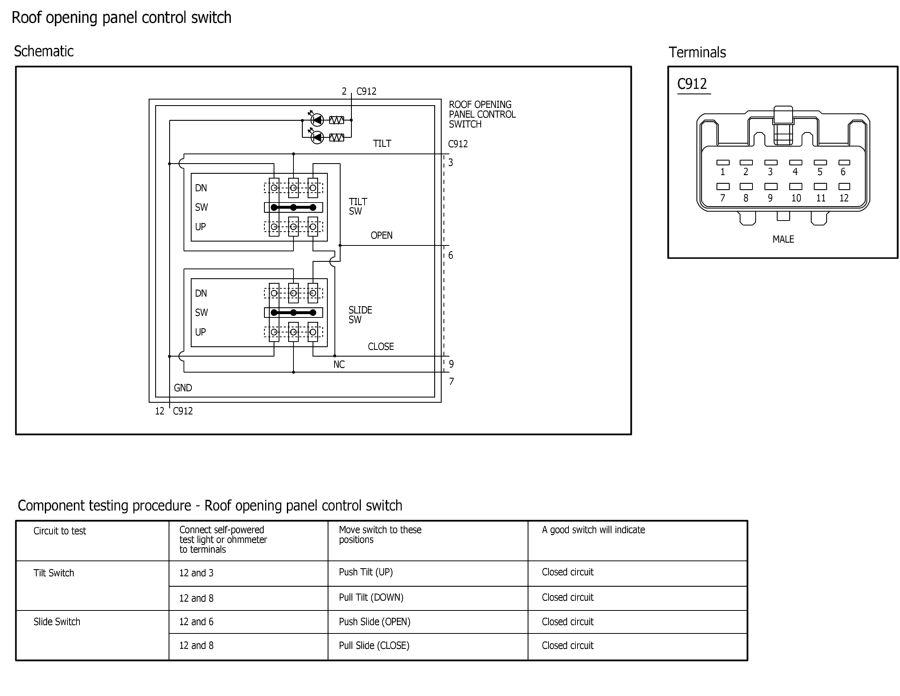

Fig 8: Roof Opening Panel Switch Component Testing
GFDWR31279Courtesy of FORD MOTOR COMPANY

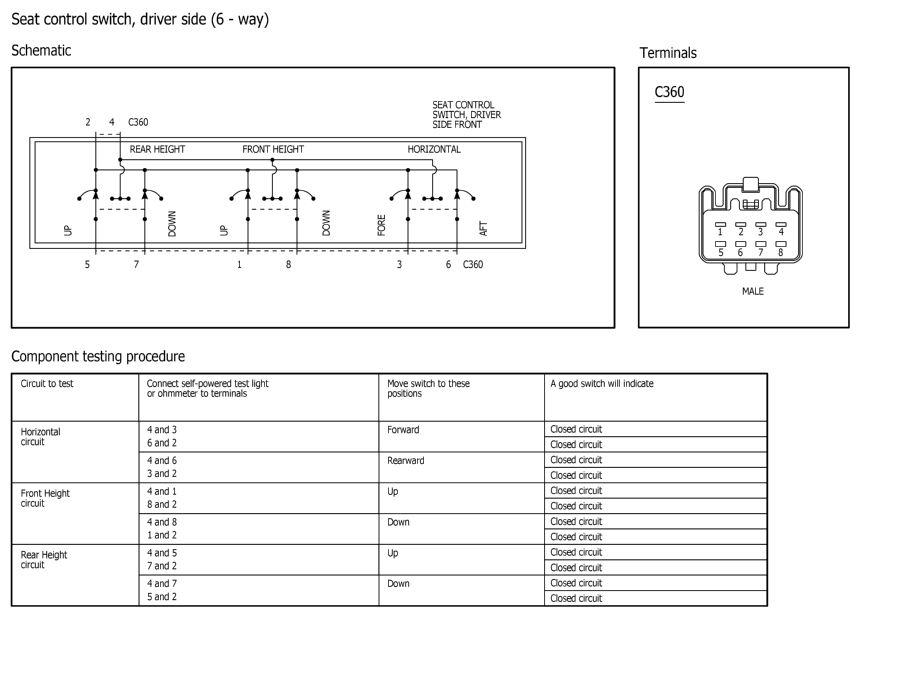

Fig 9: Seat Control Switch, Driver Side (6 - Way) Component Testing
GFDWR31277Courtesy of FORD MOTOR COMPANY

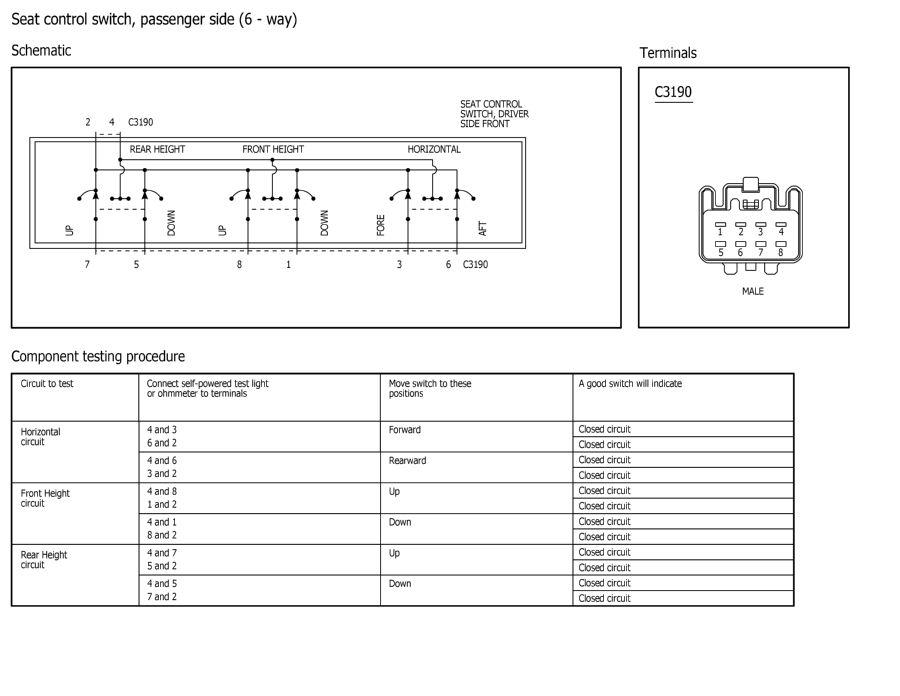

Fig 10: Seat Control Switch, Passenger Side (6 - Way) Component Testing
GFDWR31295Courtesy of FORD MOTOR COMPANY

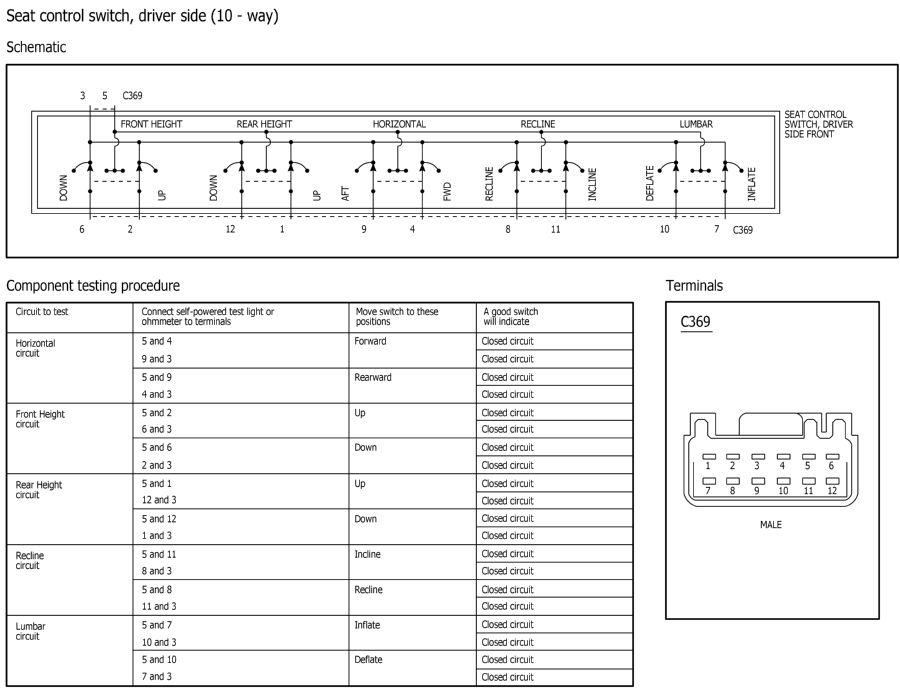

Fig 11: Seat Control Switch, Driver Side (10 - Way) Component Testing
GFDWR31291Courtesy of FORD MOTOR COMPANY

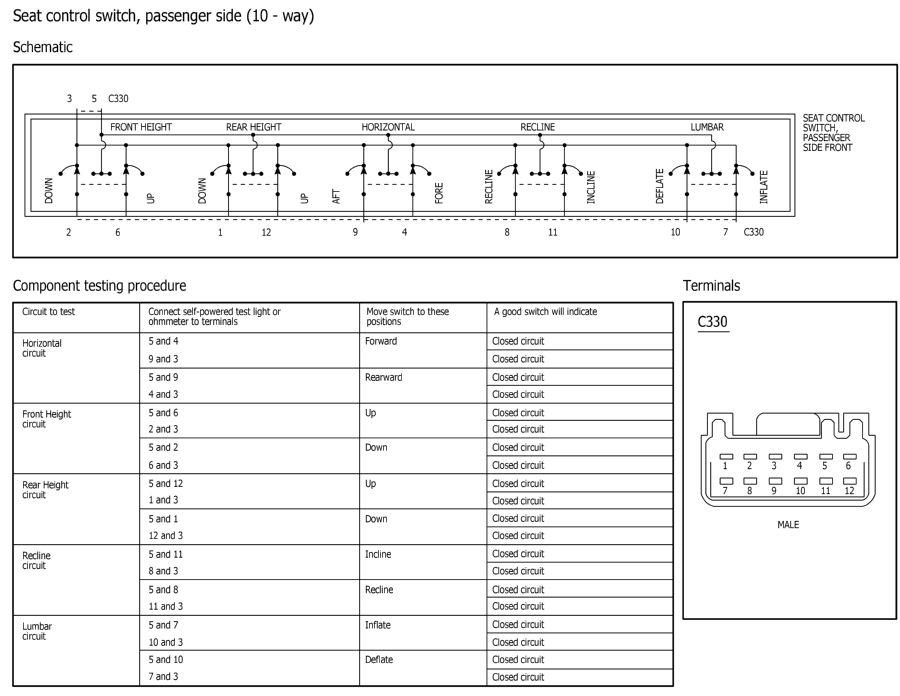

Fig 12: Seat Control Switch, Passenger Side (10 - Way) Component Testing
GFDWR31280Courtesy of FORD MOTOR COMPANY

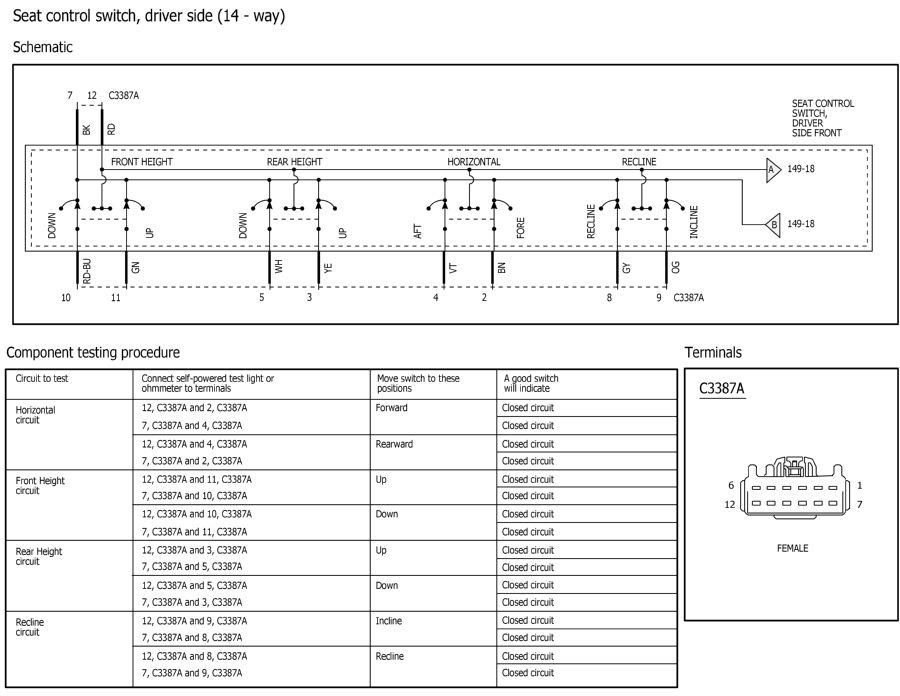

Fig 13: Seat Control Switch, Driver Side (14 - Way) Component Testing (1 Of 2)
GFDWR31276Courtesy of FORD MOTOR COMPANY

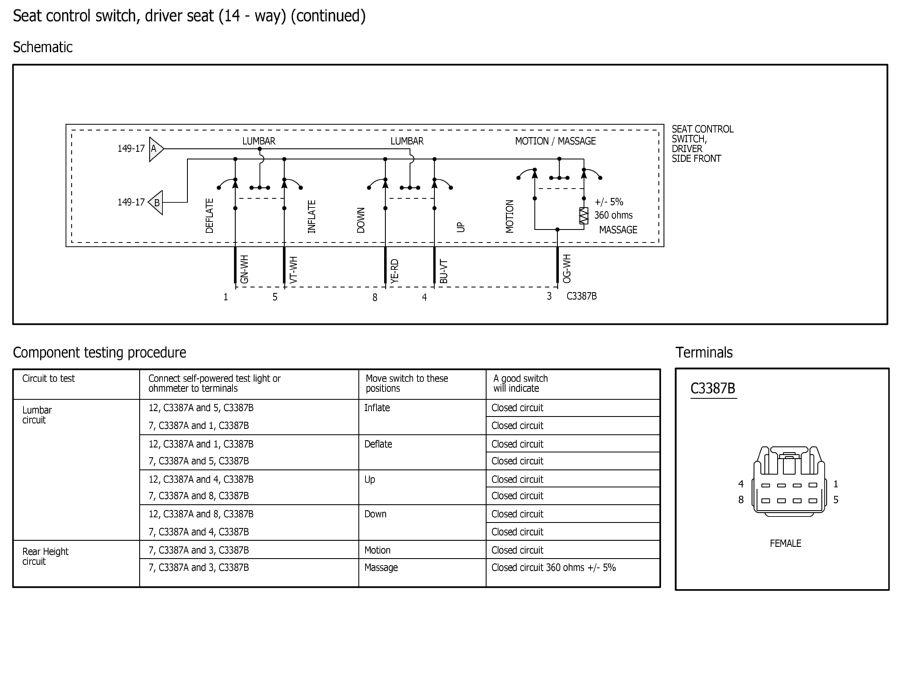

Fig 14: Seat Control Switch, Driver Seat (14 - Way) Component Testing (2 Of 2)
GFDWR31293Courtesy of FORD MOTOR COMPANY

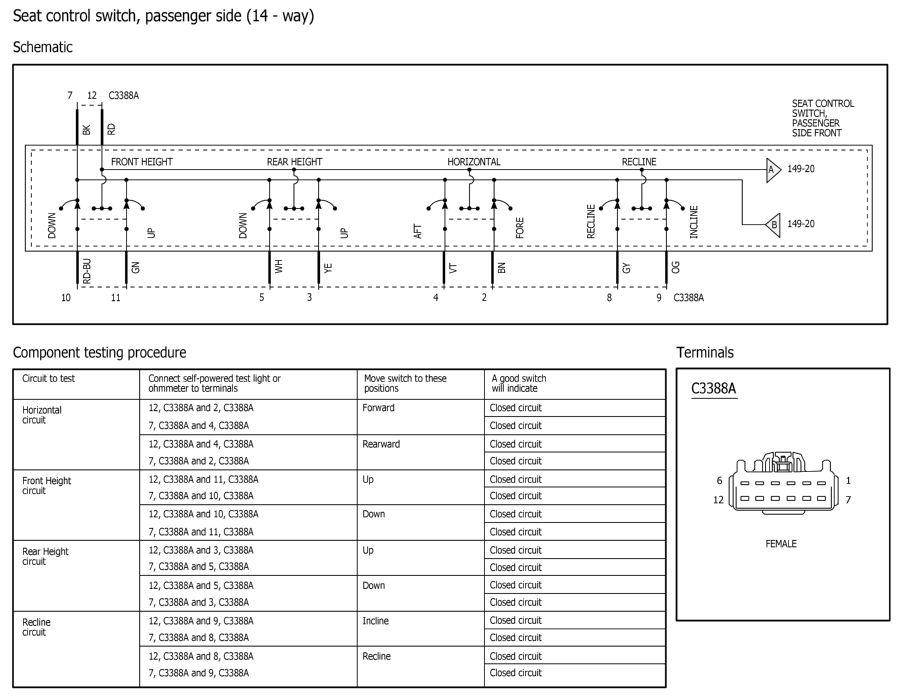

Fig 15: Seat Control Switch, Passenger Side (14 - Way) Component Testing (1 Of 2)
GFDWR31286Courtesy of FORD MOTOR COMPANY

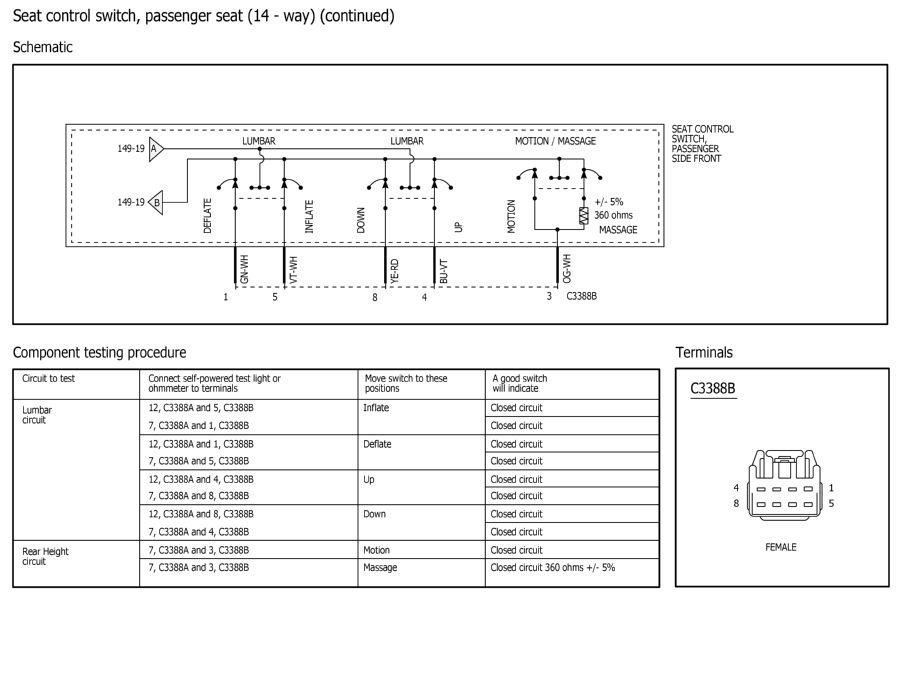

Fig 16: Seat Control Switch, Passenger Seat (14 - Way) Component Testing (2 Of 2)
GFDWR31278Courtesy of FORD MOTOR COMPANY

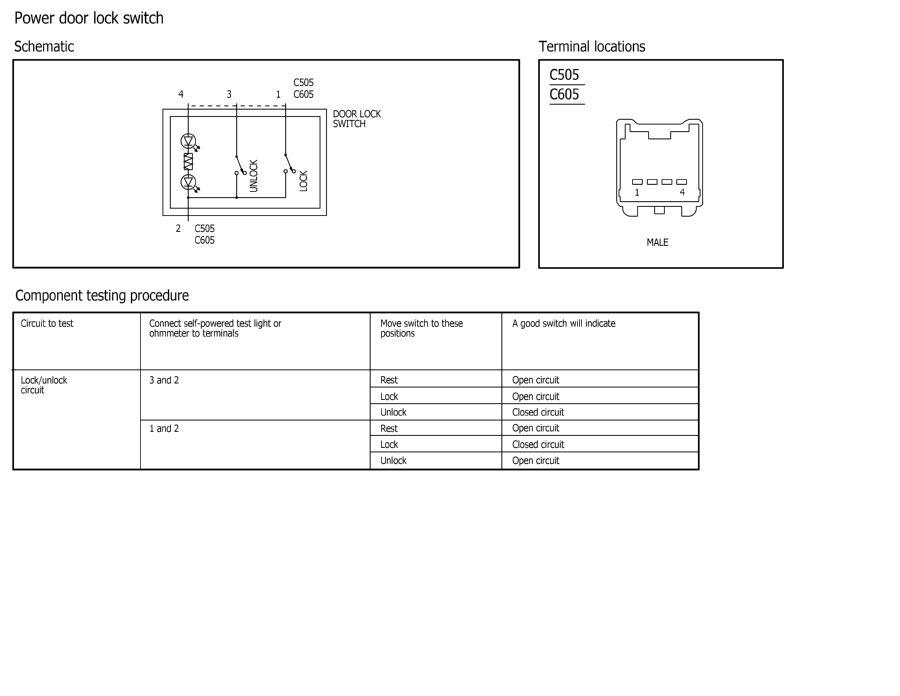

Fig 17: Power Door Lock Switch Component Testing
GFDWR31290Courtesy of FORD MOTOR COMPANY

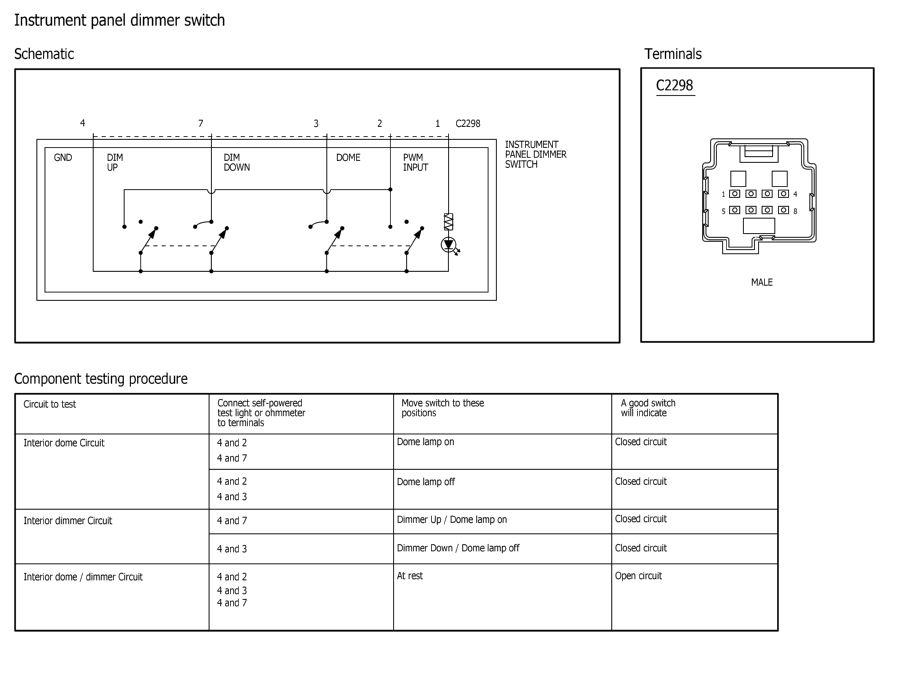

Fig 18: Instrument Panel Dimmer Switch Component Testing
GFDWR31292Courtesy of FORD MOTOR COMPANY

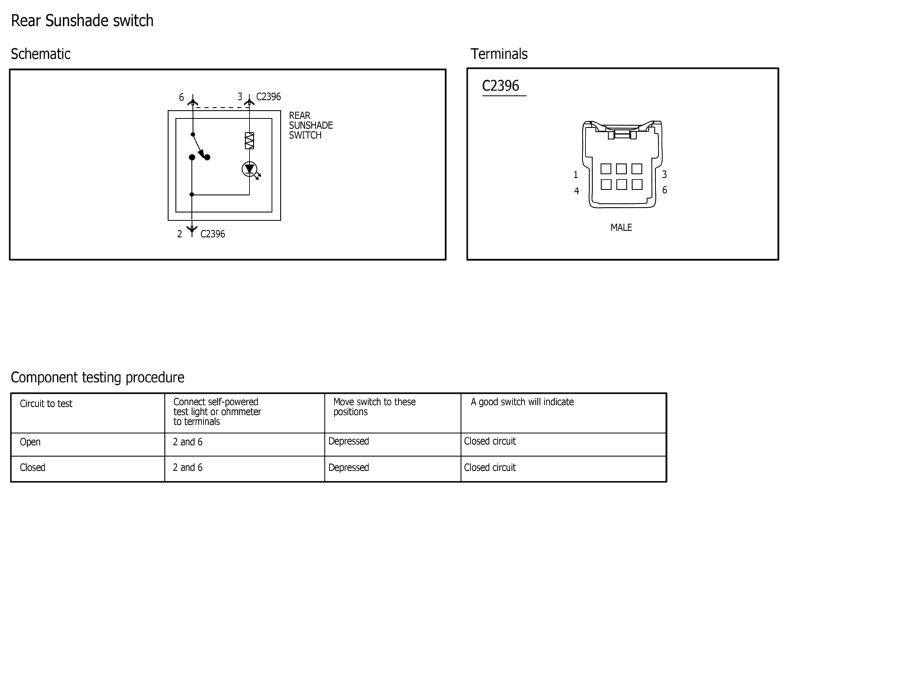

Fig 19: Rear Sunshade Switch Component Testing
GFDWR31281Courtesy of FORD MOTOR COMPANY

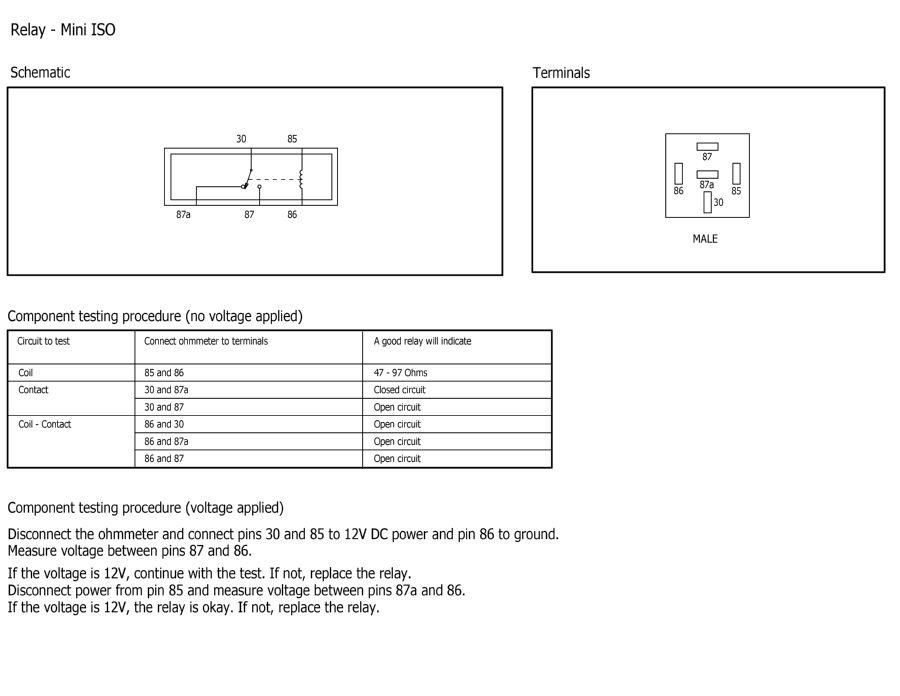

Fig 20: Relay - Mini ISO Component Testing
GFDWR31283Courtesy of FORD MOTOR COMPANY

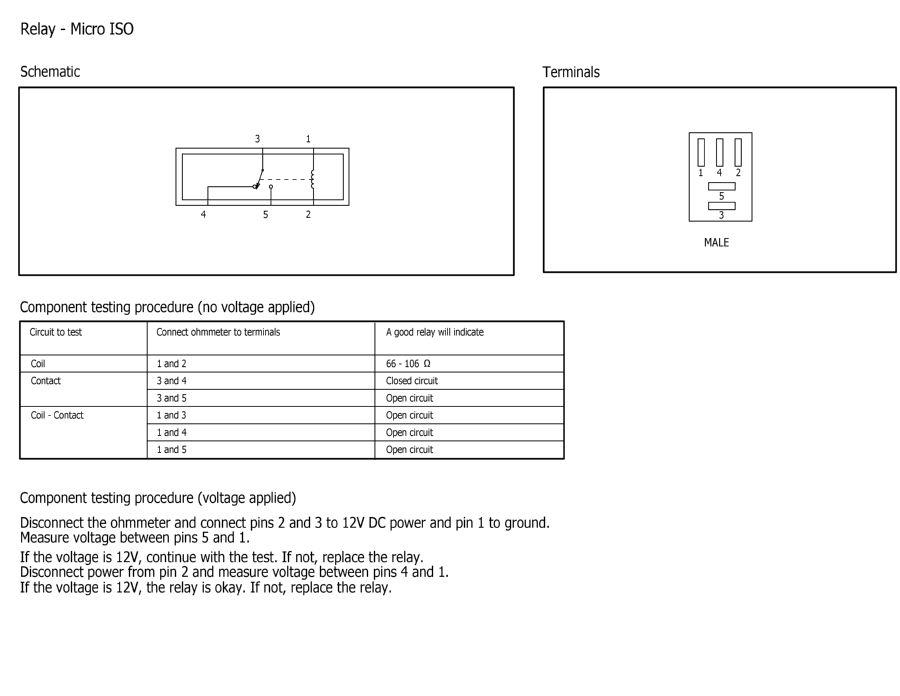

Fig 21: Relay - Micro ISO Component Testing
GFDWR31275Courtesy of FORD MOTOR COMPANY

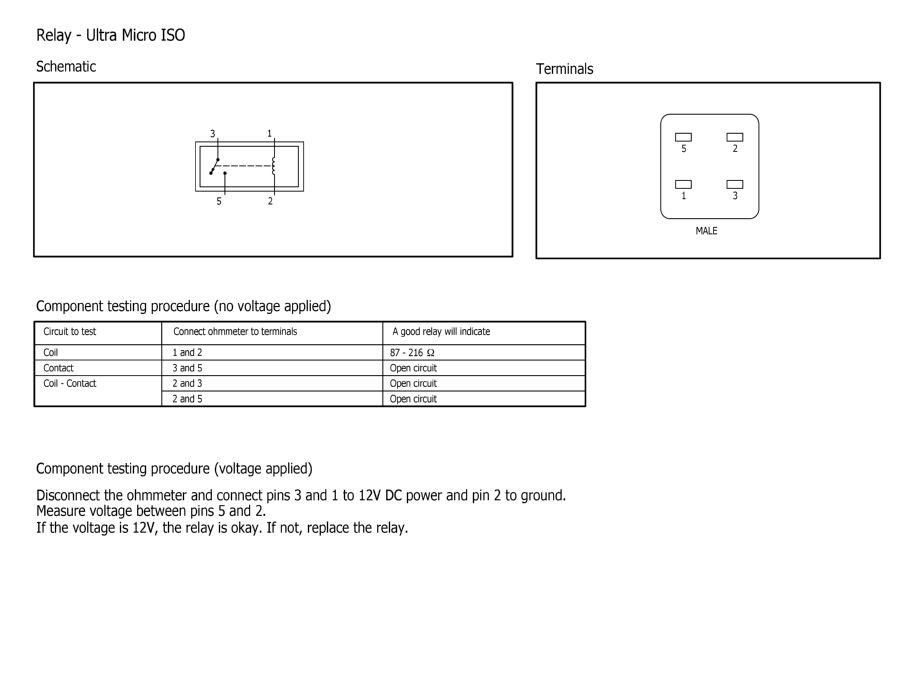

Fig 22: Relay - Ultra Micro ISO Component Testing
GFDWR31288Courtesy of FORD MOTOR COMPANY
