Connector Repair Procedures

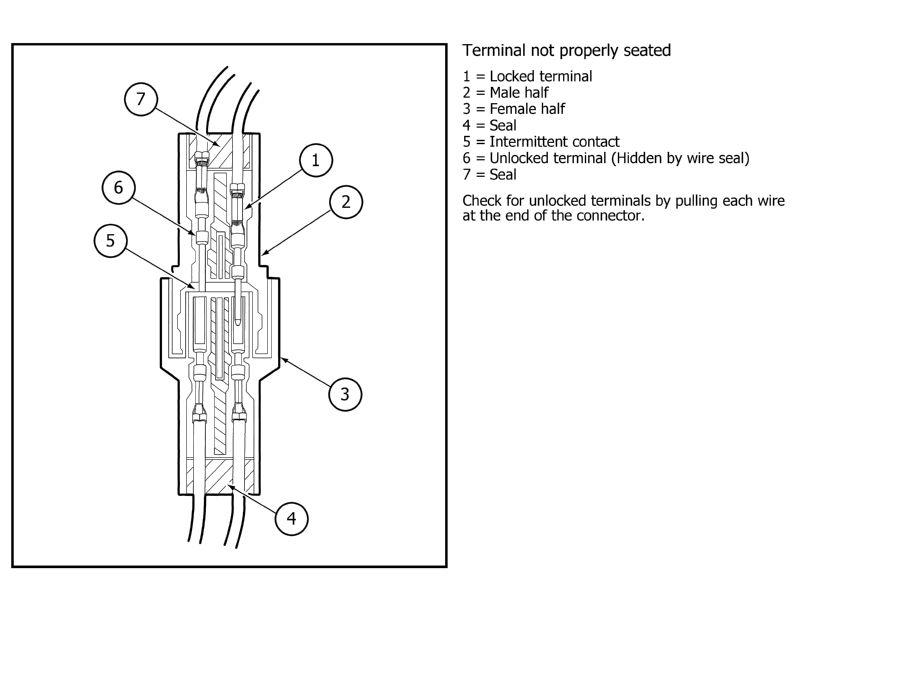

GFDWR30927Courtesy of FORD MOTOR COMPANY

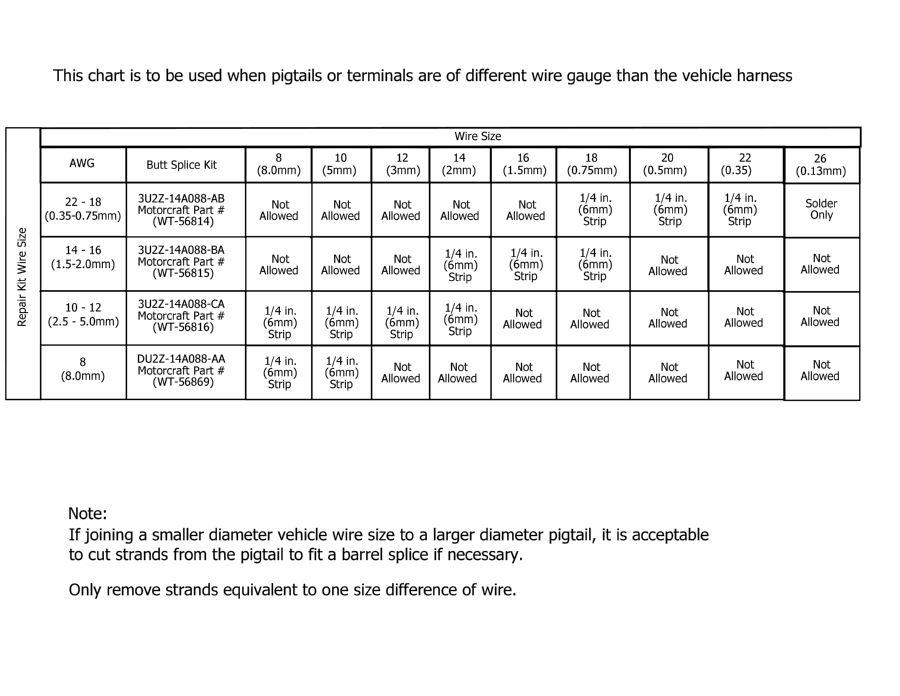

GFDWR30928Courtesy of FORD MOTOR COMPANY

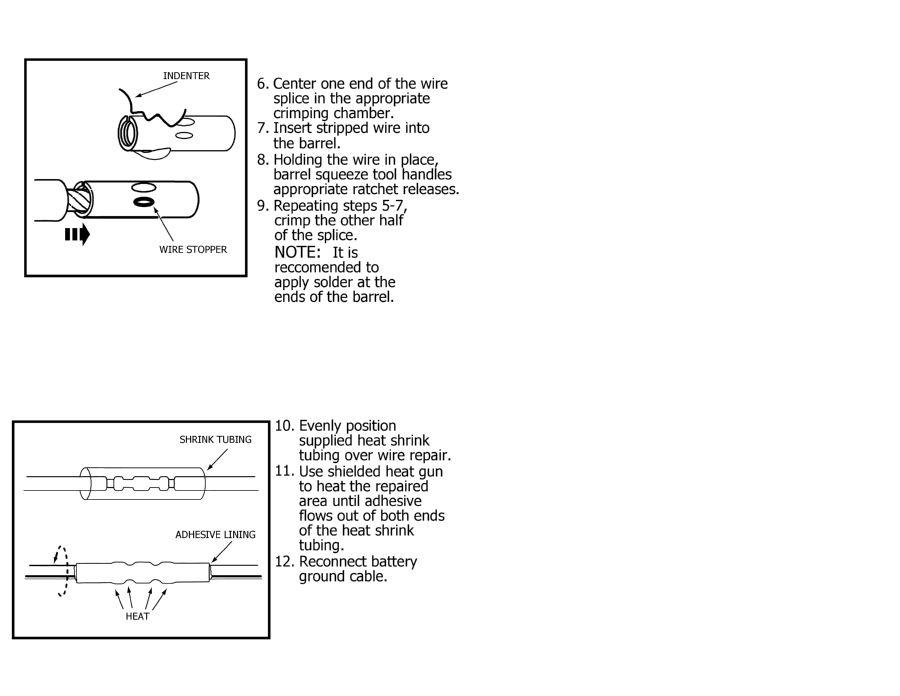

GFDWR30929Courtesy of FORD MOTOR COMPANY

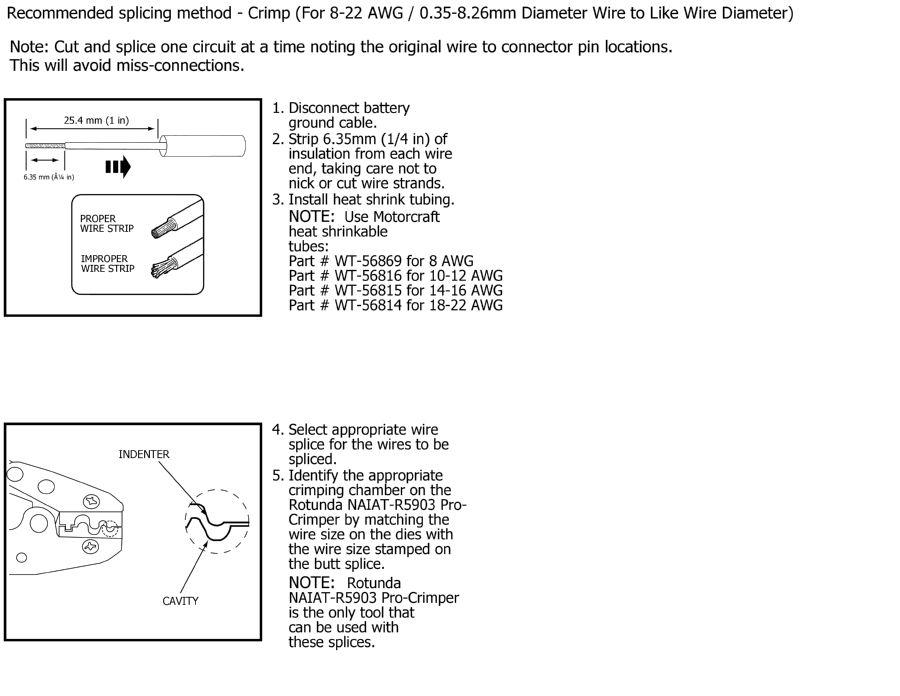

GFDWR30930Courtesy of FORD MOTOR COMPANY

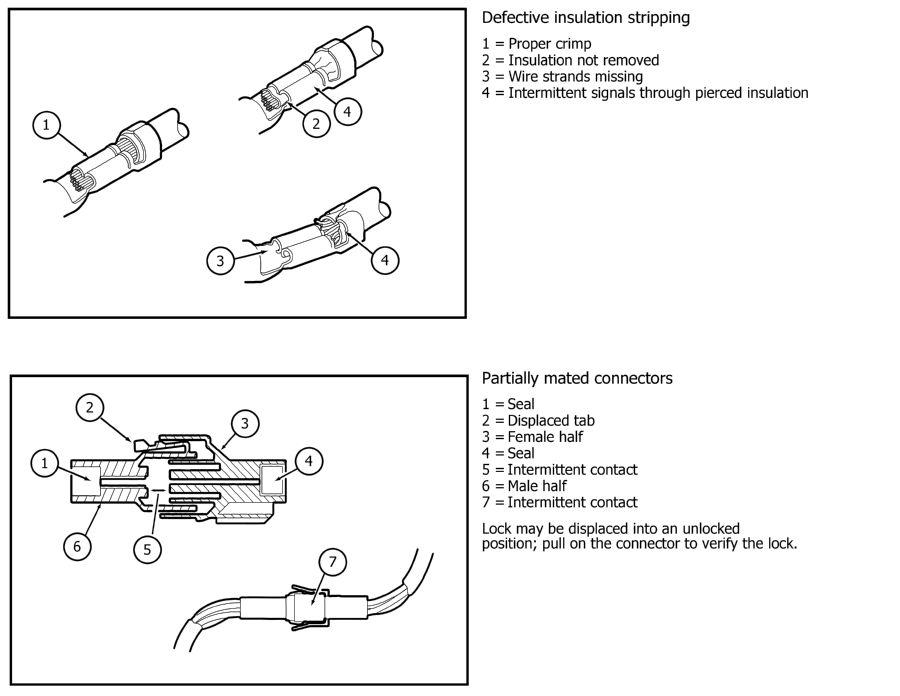

GFDWR30931Courtesy of FORD MOTOR COMPANY

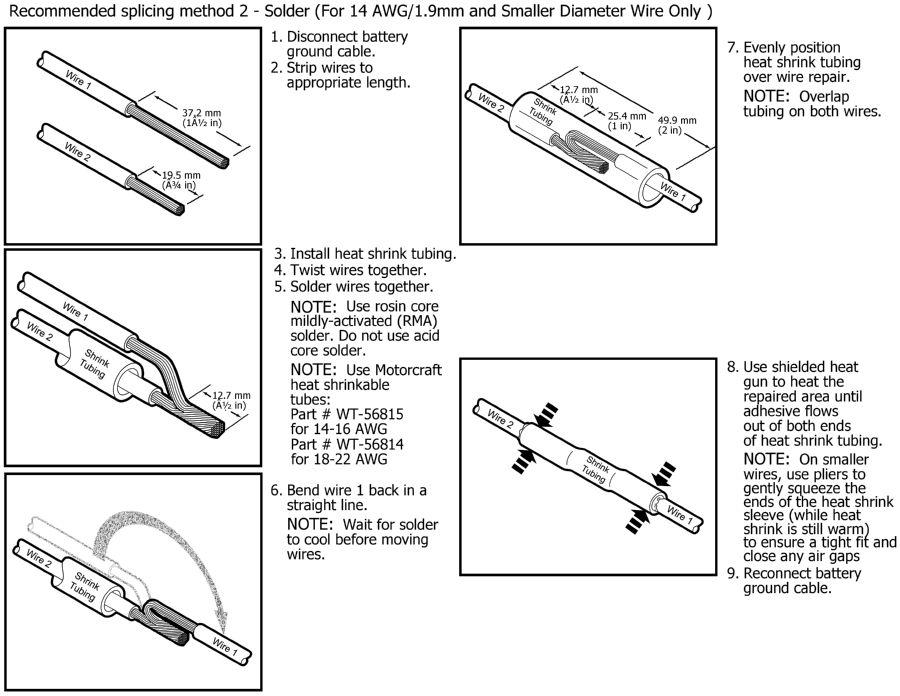

GFDWR30932Courtesy of FORD MOTOR COMPANY

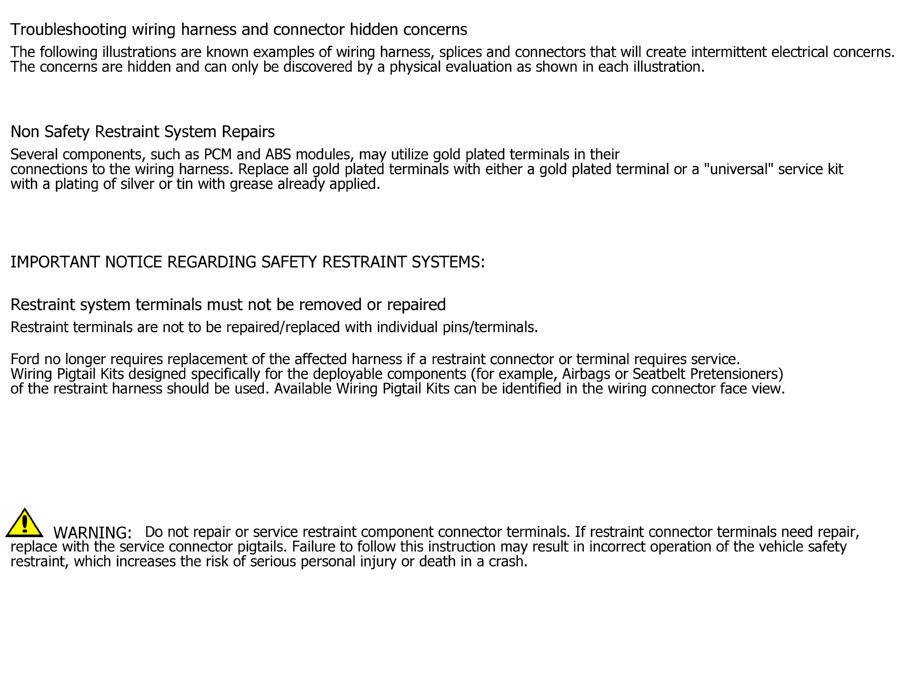

GFDWR30933Courtesy of FORD MOTOR COMPANY

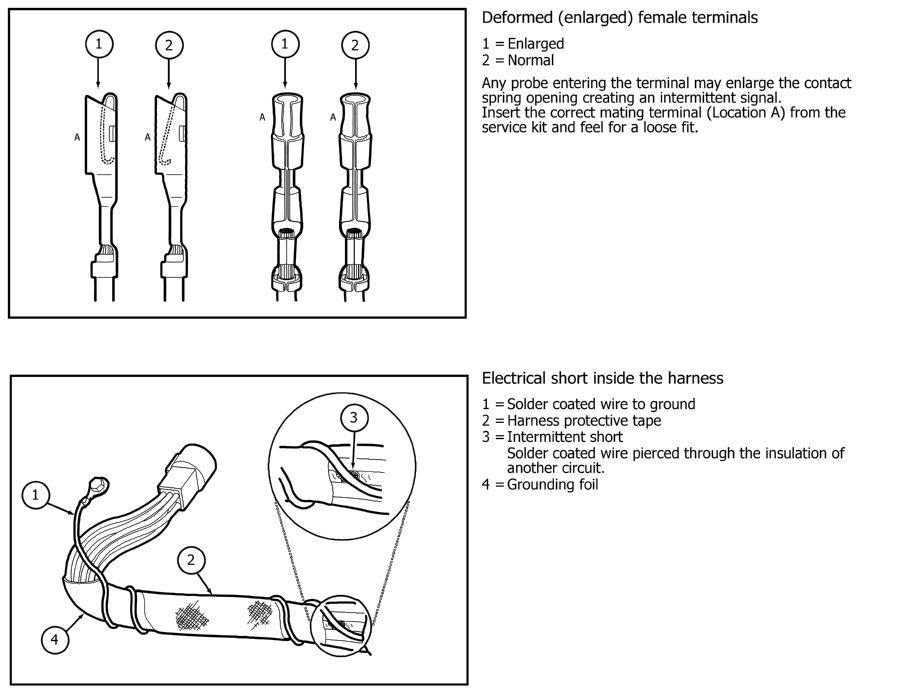

GFDWR30934Courtesy of FORD MOTOR COMPANY

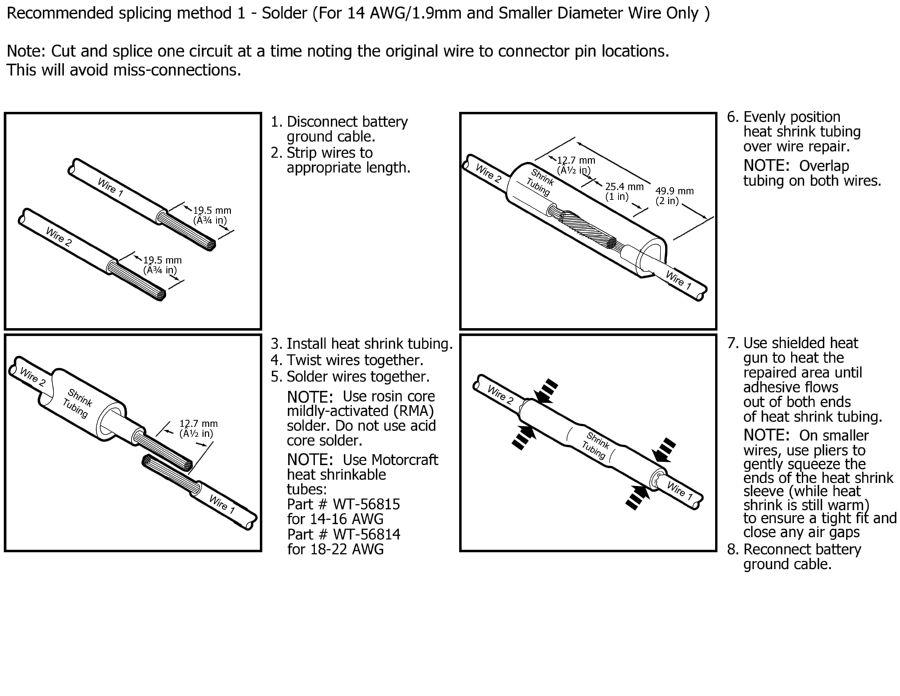

GFDWR30935Courtesy of FORD MOTOR COMPANY
