Taurus SHO
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Ground Distribution
>>
Grounds
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
OEM Ground Distribution: Grounds

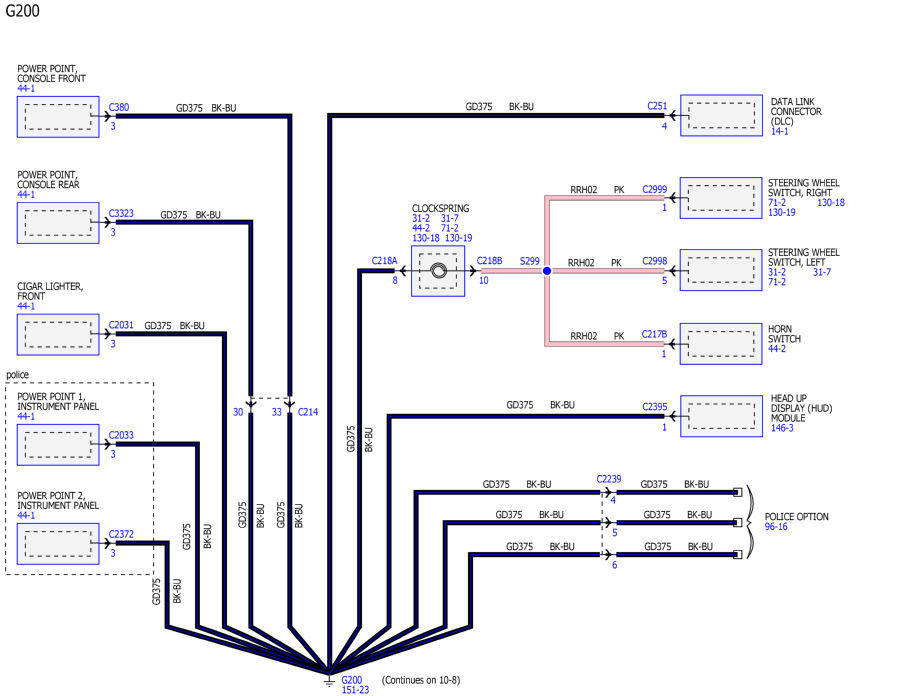

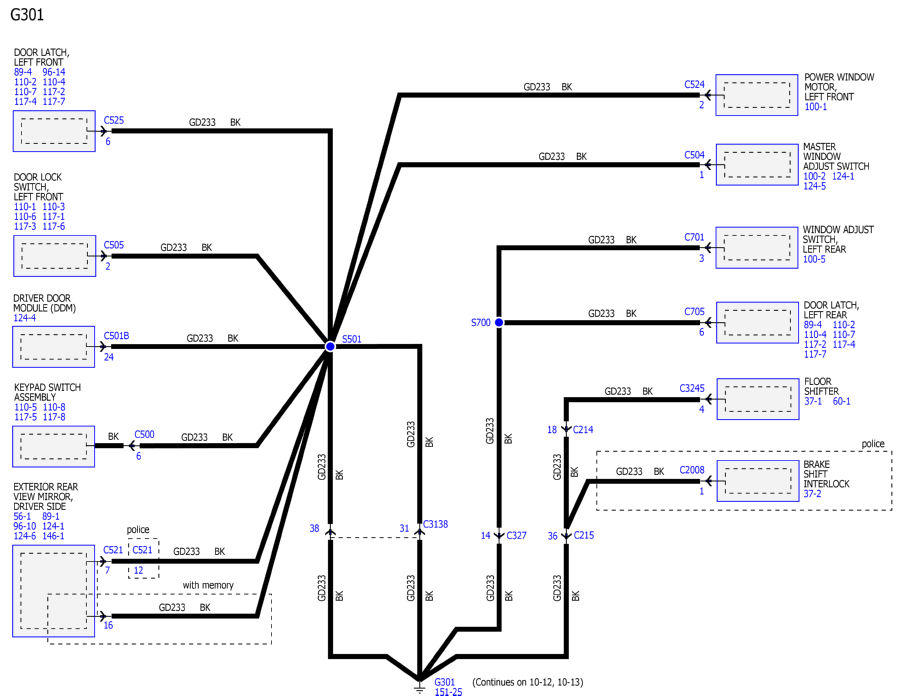

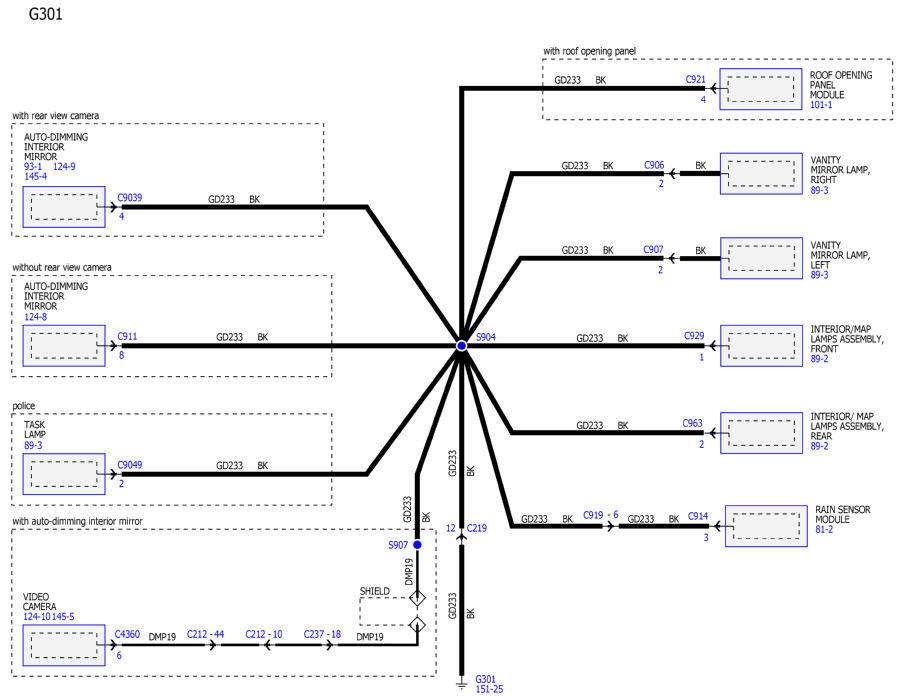

Fig 1: Grounds Distribution (1 Of 20)
Courtesy of FORD MOTOR COMPANY

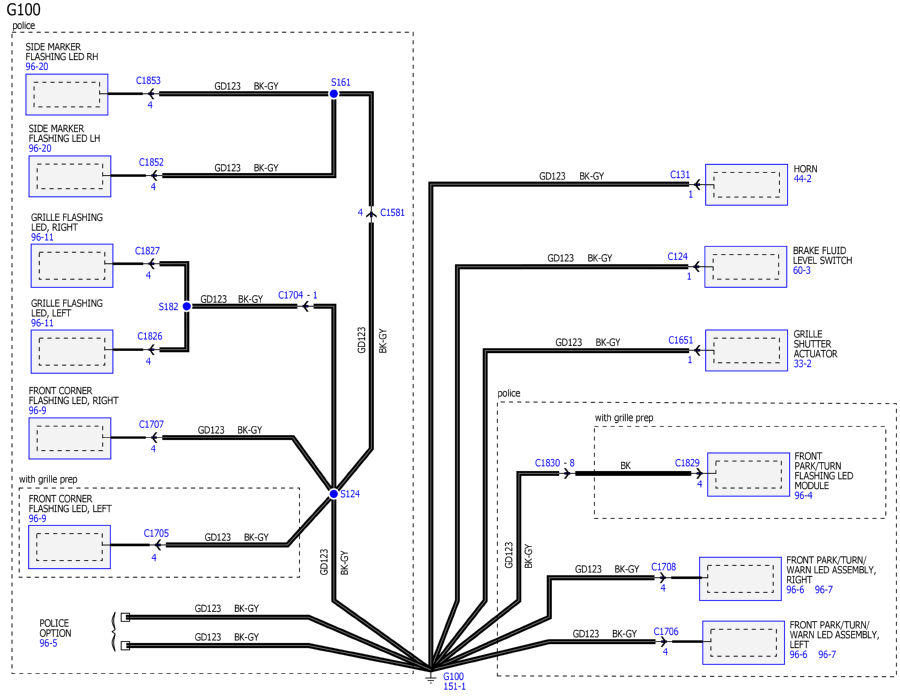

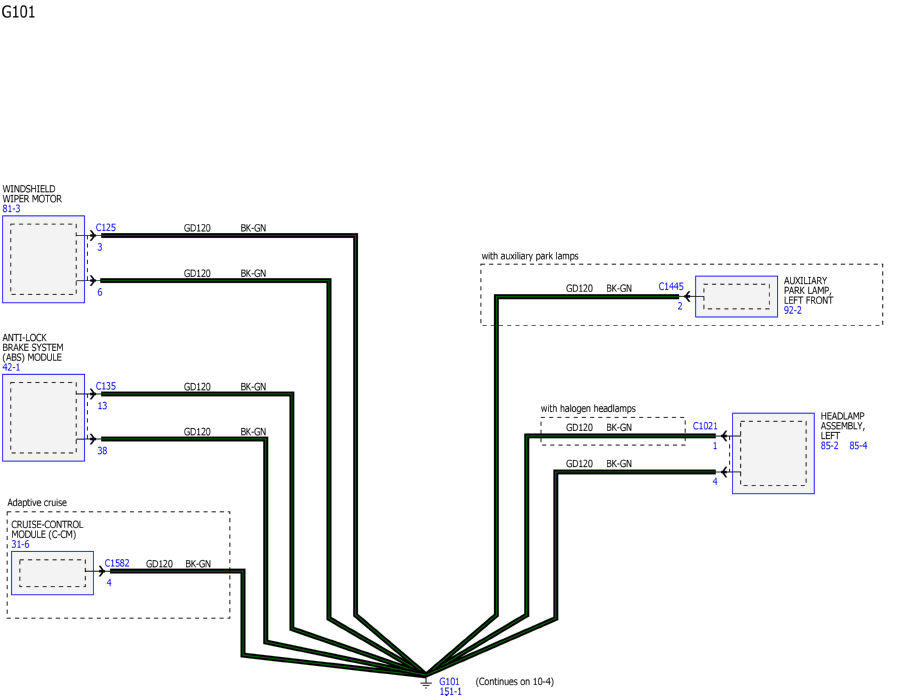

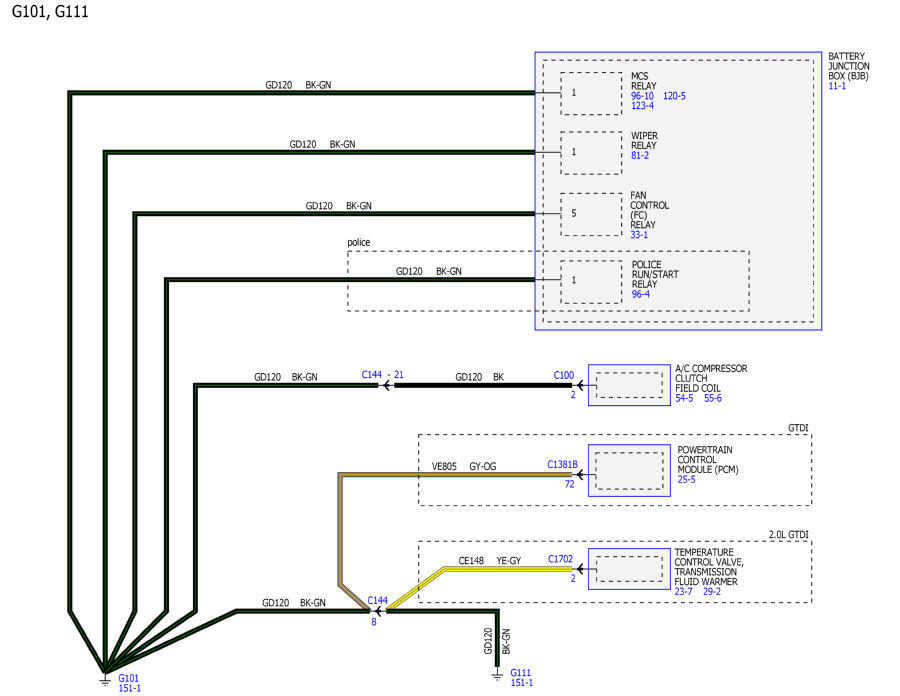

Fig 2: Grounds Distribution (2 Of 20)
Courtesy of FORD MOTOR COMPANY

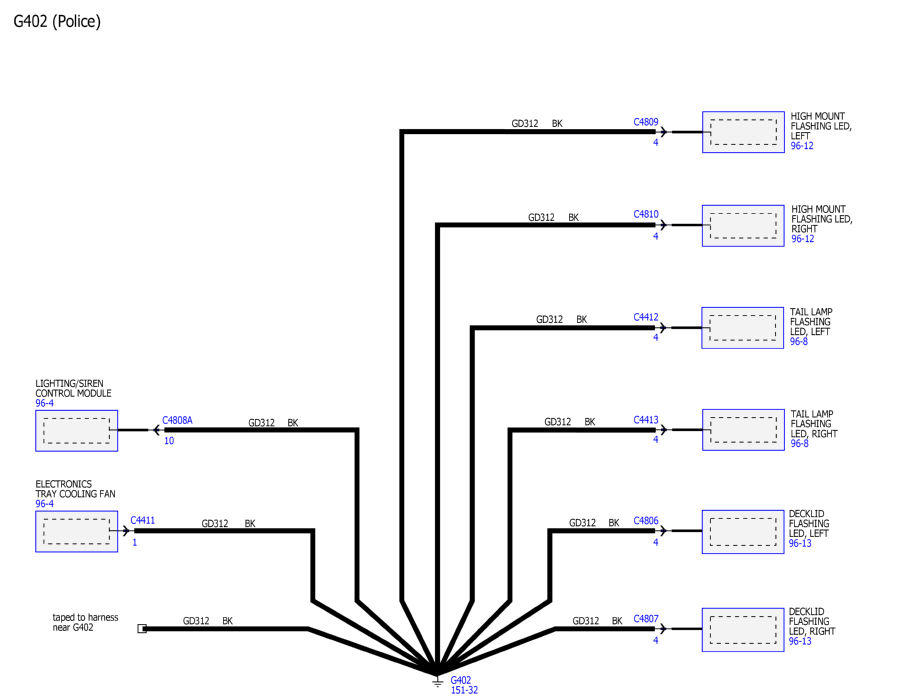

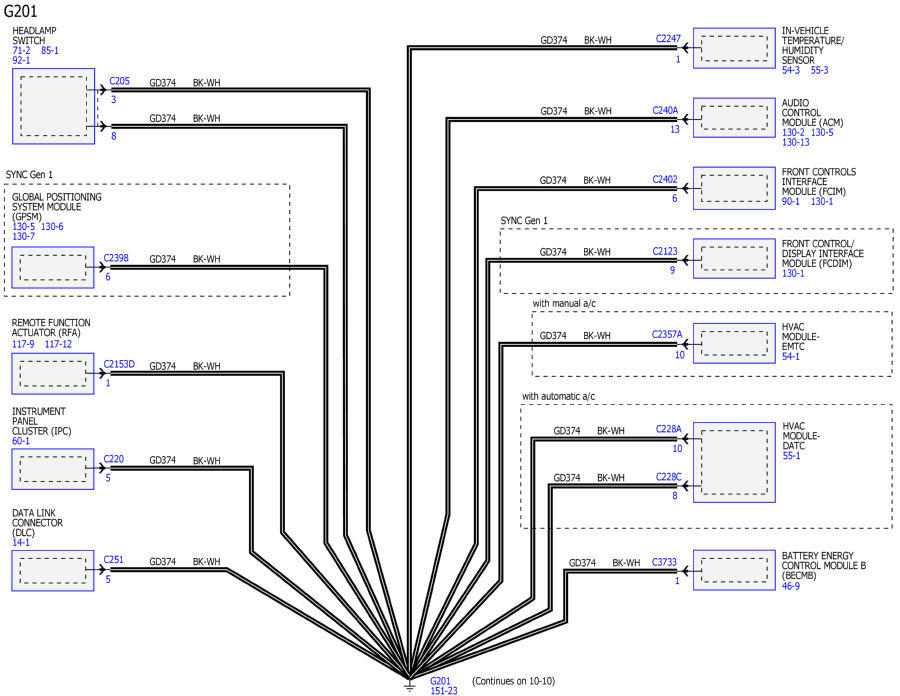

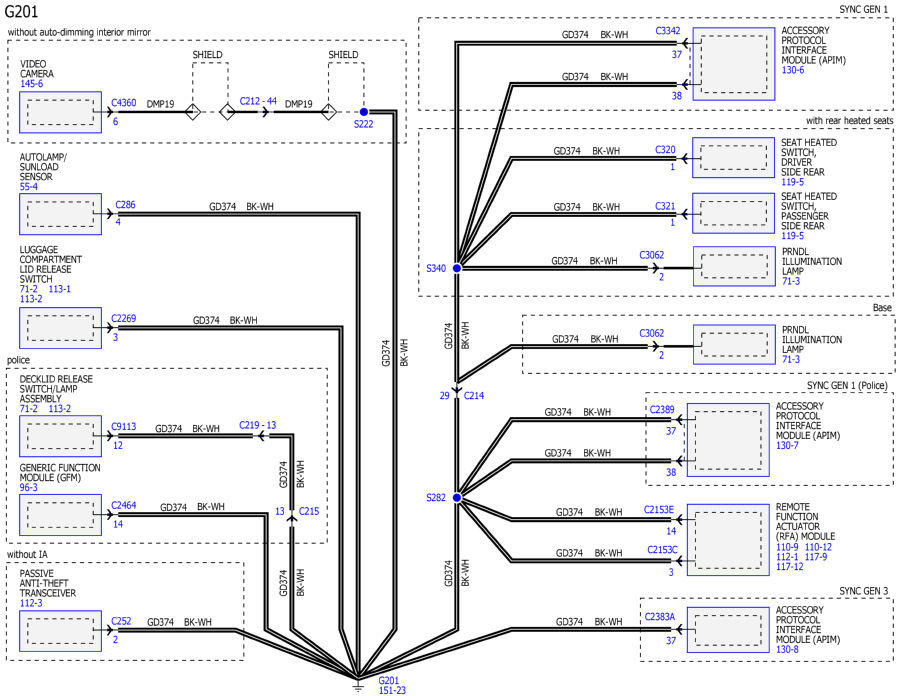

Fig 3: Grounds Distribution (3 Of 20)
Courtesy of FORD MOTOR COMPANY

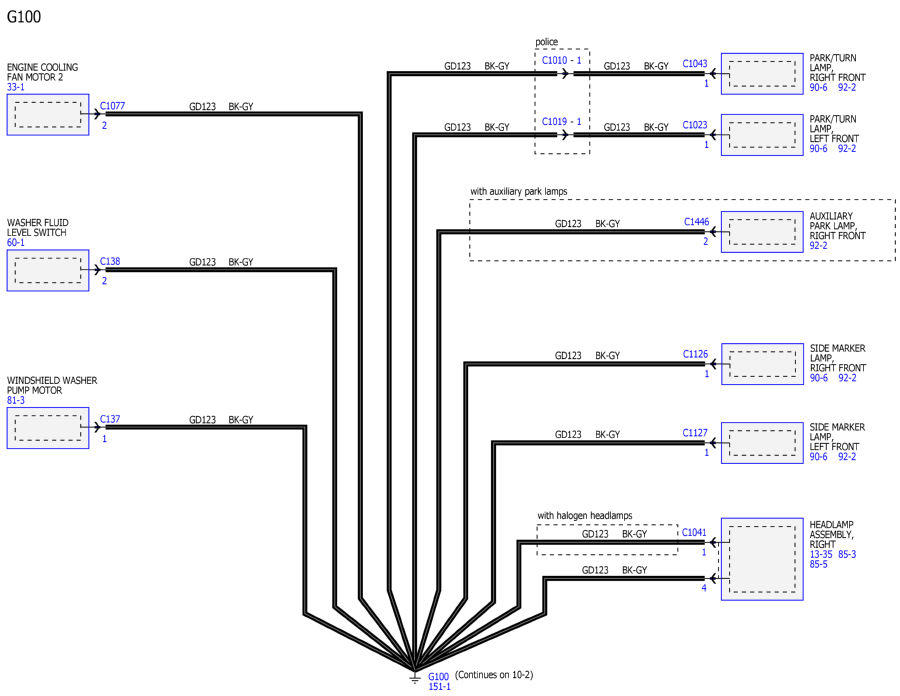

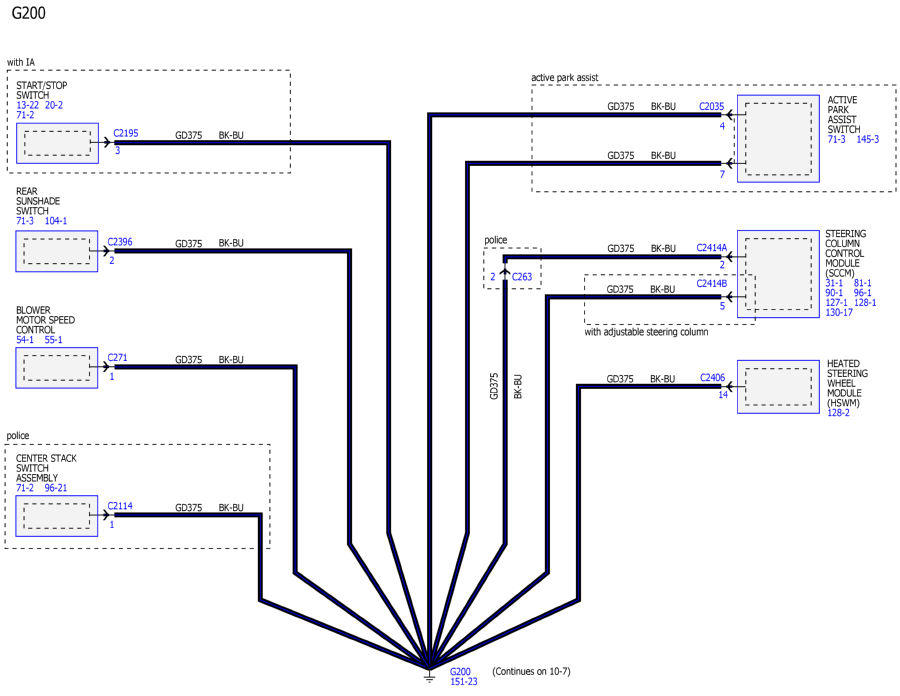

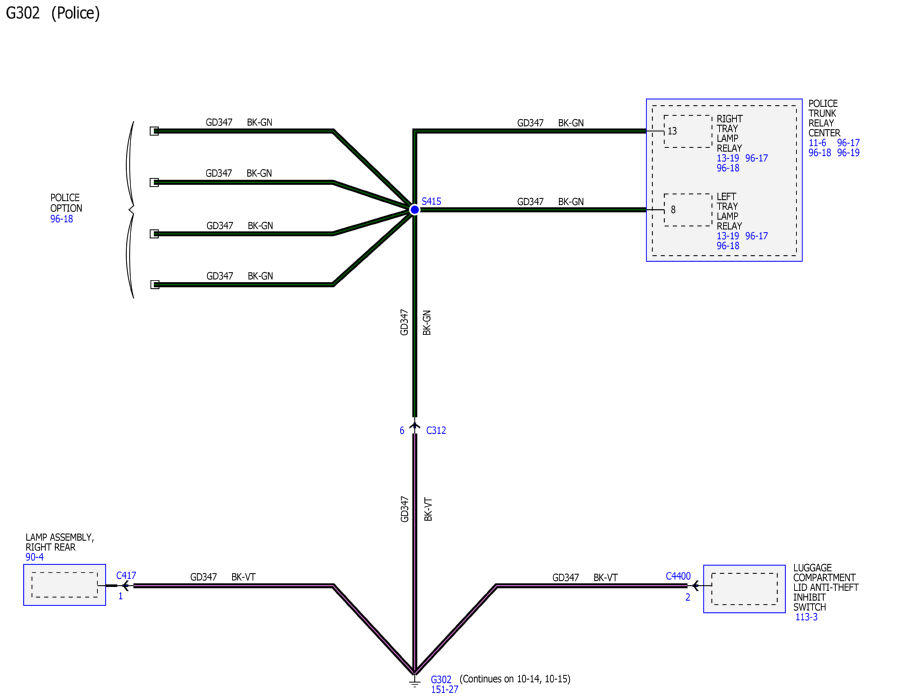

Fig 4: Grounds Distribution (4 Of 20)
Courtesy of FORD MOTOR COMPANY

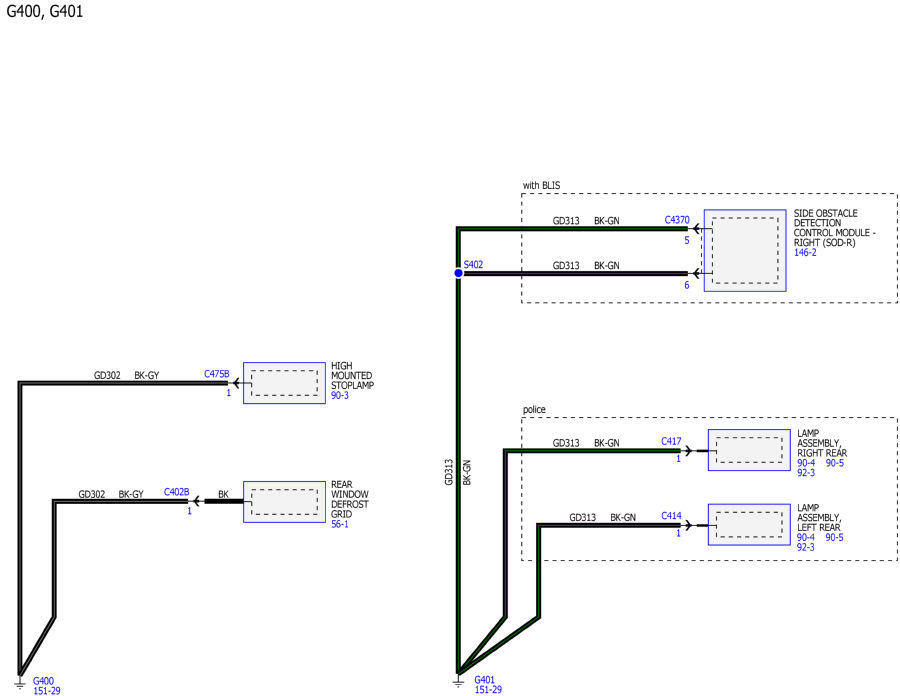

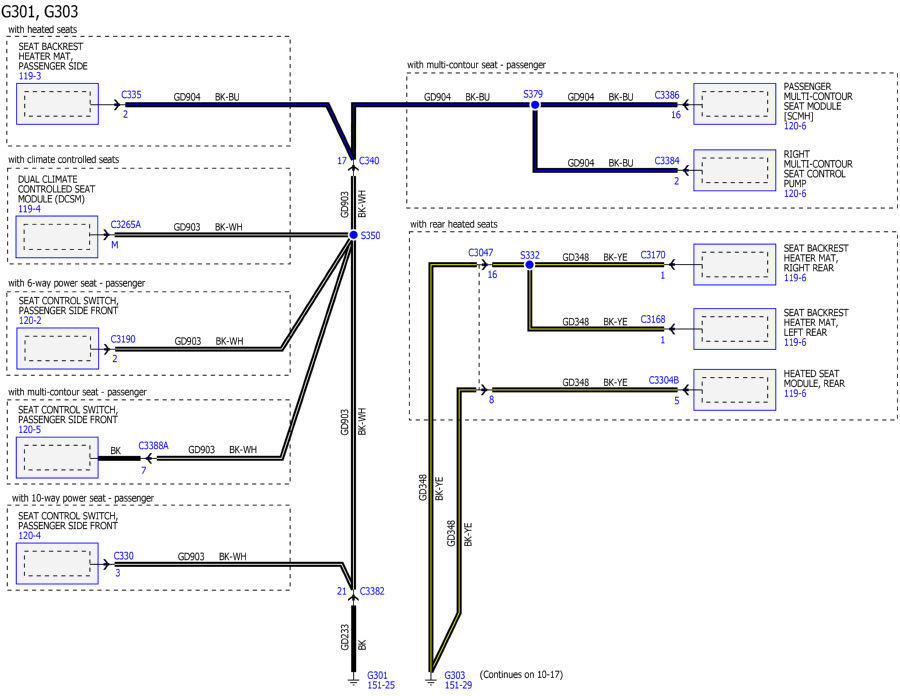

Fig 5: Grounds Distribution (5 Of 20)
Courtesy of FORD MOTOR COMPANY

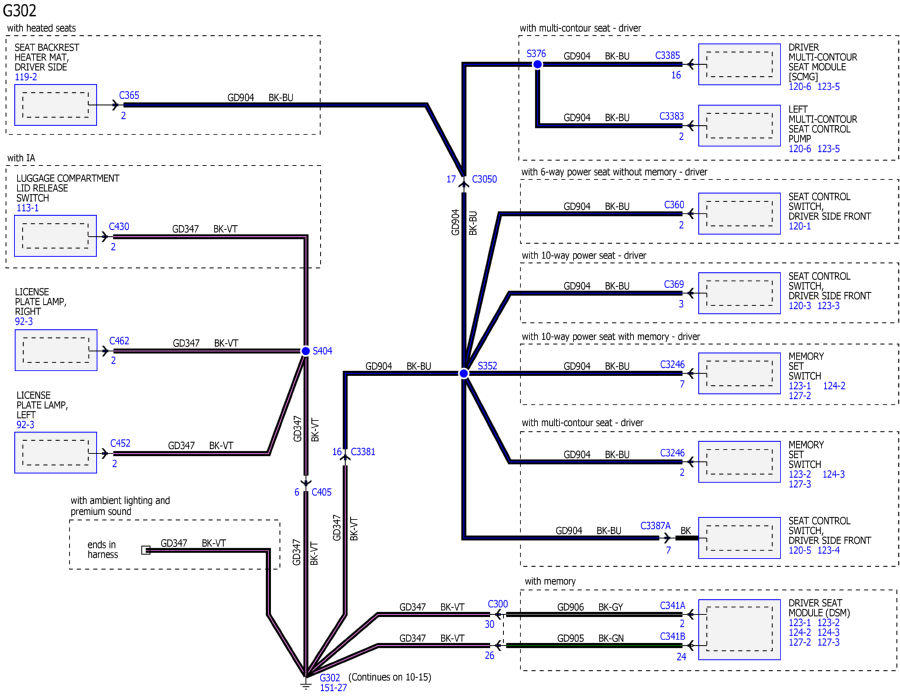

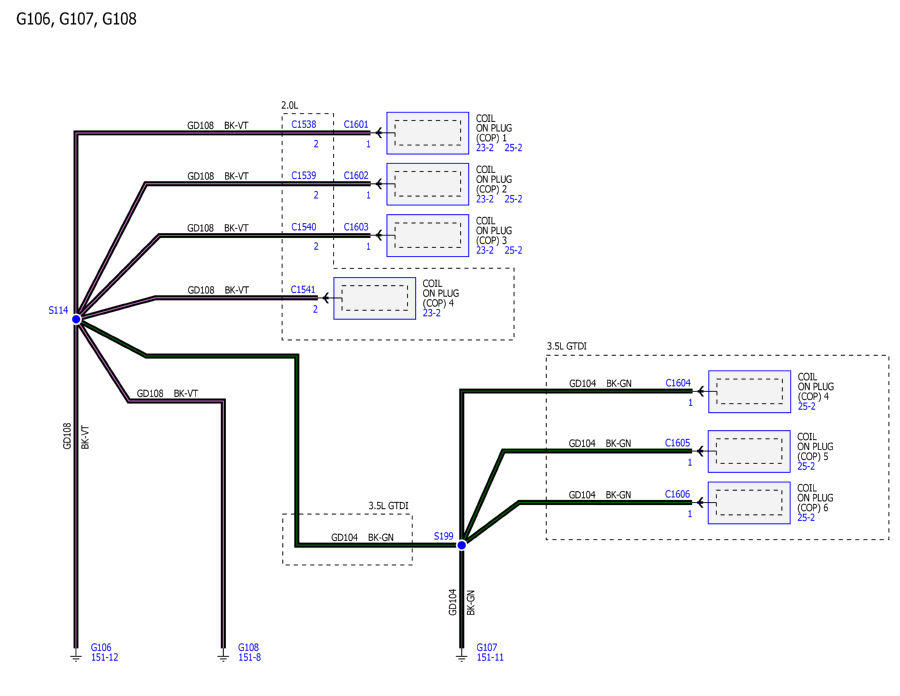

Fig 6: Grounds Distribution (6 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 7: Grounds Distribution (7 Of 20)
Courtesy of FORD MOTOR COMPANY

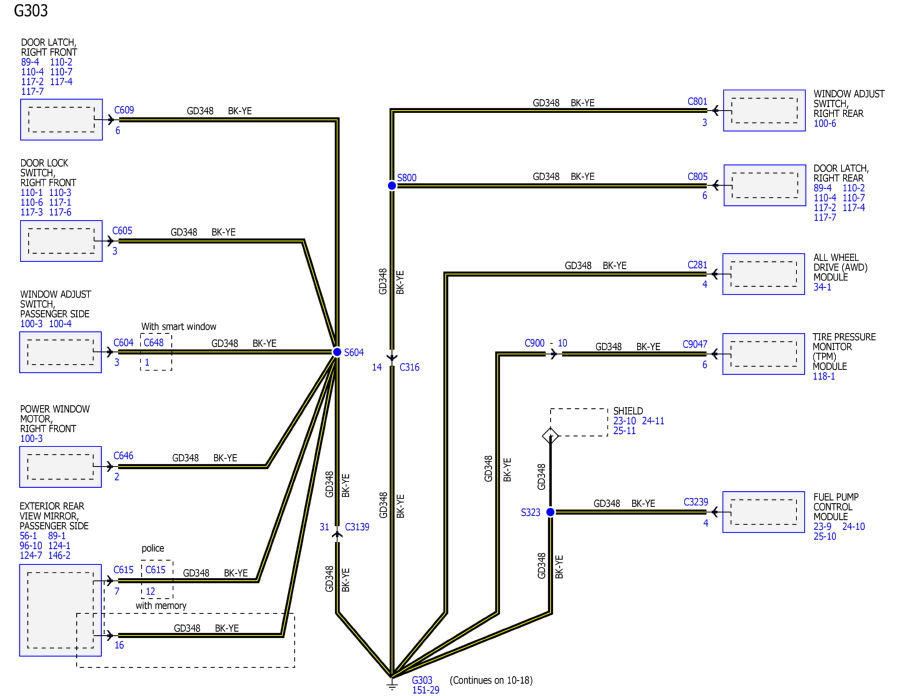

Fig 8: Grounds Distribution (8 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 9: Grounds Distribution (9 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 10: Grounds Distribution (10 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 11: Grounds Distribution (11 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 12: Grounds Distribution (12 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 13: Grounds Distribution (13 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 14: Grounds Distribution (14 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 15: Grounds Distribution (15 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 16: Grounds Distribution (16 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 17: Grounds Distribution (17 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 18: Grounds Distribution (18 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 19: Grounds Distribution (19 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 20: Grounds Distribution (20 Of 20)
Courtesy of FORD MOTOR COMPANY
