Main Control Valve Body: Installation

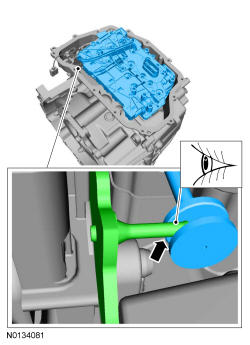

- New separator plate.
- Tighten to 10 Nm (89 lb-in).
-
- Tighten to 10 Nm (89 lb-in).
- Align the new separator plate on the stud and the guide pin.
-
NOTE: Be sure that the manual pin (part of the TR sensor) is correctly installed in the manual valve.
- Nut hand-tight.
- Short bolts hand-tight.
- Long bolts hand-tight.
- Tighten in a crisscross pattern.
- Tighten to 10 Nm (89 lb-in).
-
NOTE: Be sure the main control-to-cover seal is installed with the holes facing up.
- Install the main control cover. Refer to Main Control Cover .
-
NOTE: The solenoid body strategy data file and solenoid body identification must be updated anytime a new solenoid body is installed. A new solenoid body service tag must be installed over the current solenoid body service tag on top of the transmission case.
Refer to Solenoid Body Strategy Download .
