Powertrain/Drivetrain Mount Neutralizing

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Adjustment

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

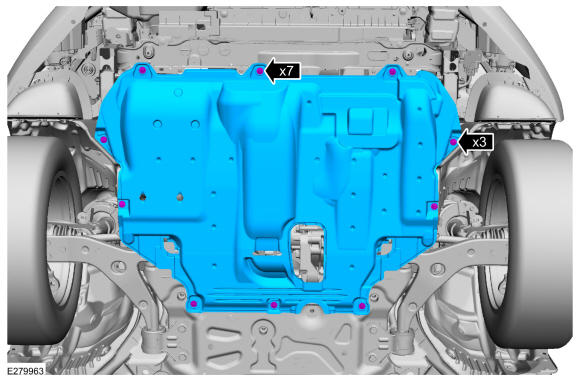

2. If equipped. Remove the bolts, pin type retainers and the underbody shield.

   Courtesy of FORD MOTOR COMPANY

3. Remove the battery tray. Refer to: Battery Tray - 2.5L Duratec (125kW/170PS) .

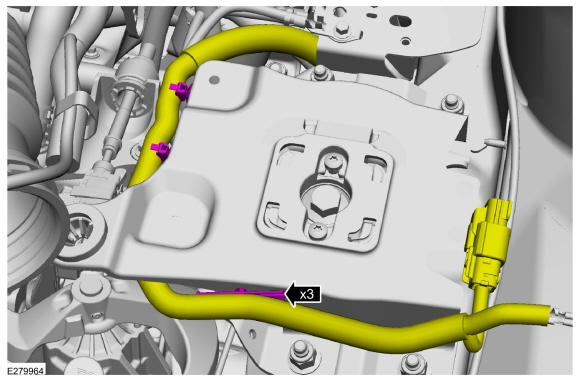

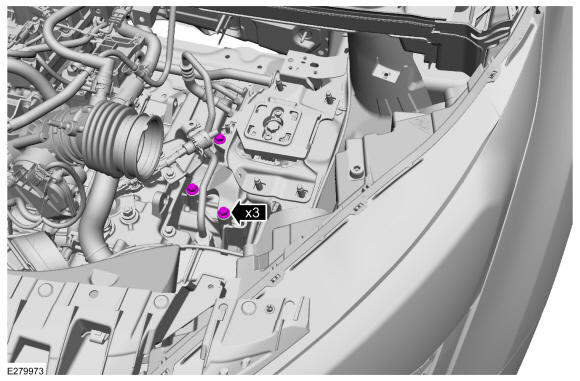

4. Disconnect the pin-type retainers and position the wire harness aside.

   Courtesy of FORD MOTOR COMPANY

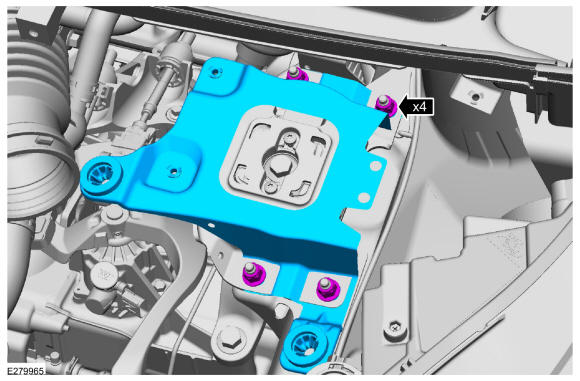

5. Remove the nuts and the battery tray support bracket.

   Courtesy of FORD MOTOR COMPANY

   2.0L

6. Loosen, but do not remove the transmission mounting assembly nuts.

   Courtesy of FORD MOTOR COMPANY

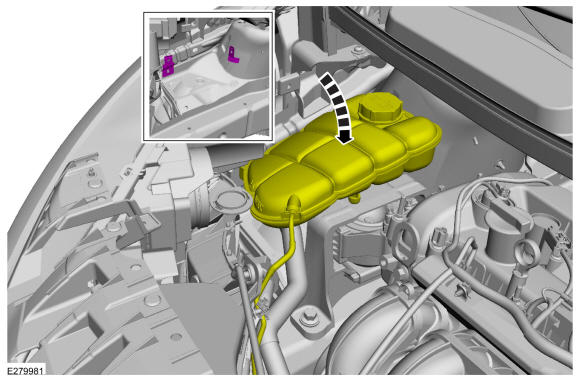

7. Position the degas bottle aside.

   Courtesy of FORD MOTOR COMPANY

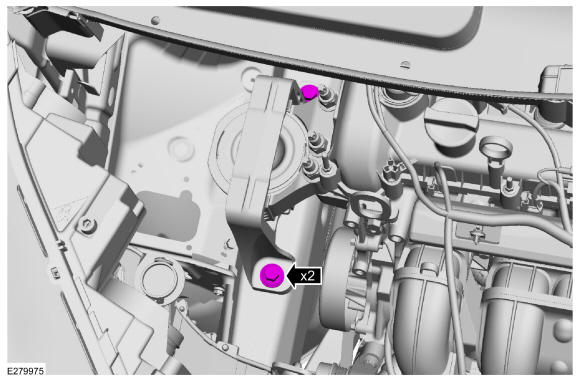

8. Loosen, but do not remove the engine mount bolts.

   Courtesy of FORD MOTOR COMPANY

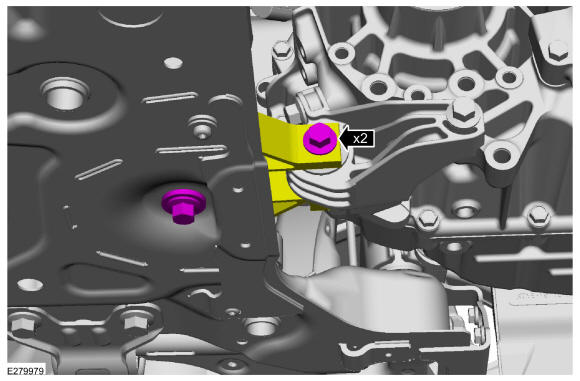

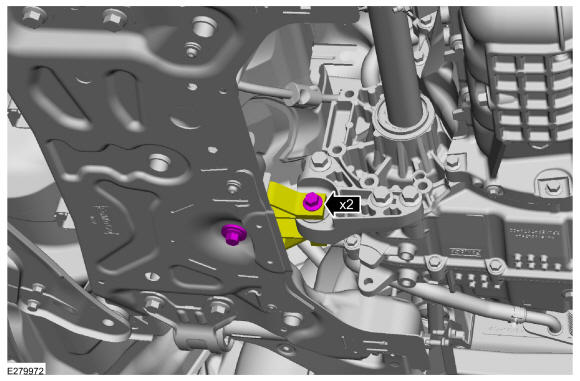

9. Loosen, but do not remove the 2 roll restrictor bolts. Verify that the roll restrictor is loose.

   Courtesy of FORD MOTOR COMPANY

   2.5L

10. Loosen, but do not remove the transmission mounting assembly nuts.

    Courtesy of FORD MOTOR COMPANY

11. Position the degas bottle aside.

    Courtesy of FORD MOTOR COMPANY

12. Loosen, but do not remove the engine mount bolts.

    Courtesy of FORD MOTOR COMPANY

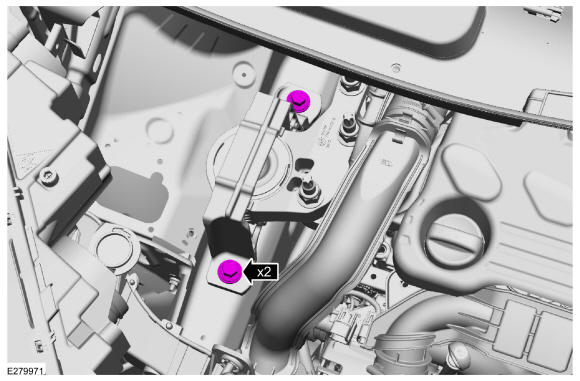

13. Loosen, but do not remove the 2 roll restrictor bolts. Verify that the roll restrictor is loose.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

14. Install the battery. Refer to: Battery - 2.5L Duratec (125kW/170PS) .
15. NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

    Start the vehicle and move it forward 0.6 m (1.97 ft) - 1.2 m (3.94 ft).

    Courtesy of FORD MOTOR COMPANY

16. NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

    Move the vehicle in reverse the same distance 0.6 m (1.97 ft) - 1.2 m (3.94 ft).

    Courtesy of FORD MOTOR COMPANY

17. Remove the battery. Refer to: Battery - 2.5L Duratec (125kW/170PS) .

    2.0L

18. Raise and support the vehicle. Refer to: Jacking and Lifting - Overview .

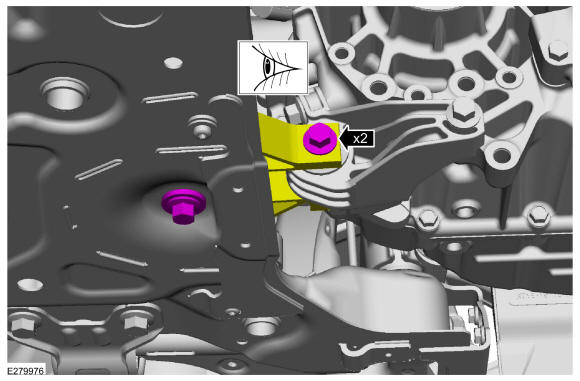

19. Tighten the roll restrictor bolt.

    Torque

    : 76 lb.ft (103 Nm)

    Courtesy of FORD MOTOR COMPANY

20. Tighten the transmission mounting assembly nuts.

    Torque

    : 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

21. Tighten the engine mount bolts.

    Torque

    : 66 lb.ft (90 Nm)

    Courtesy of FORD MOTOR COMPANY

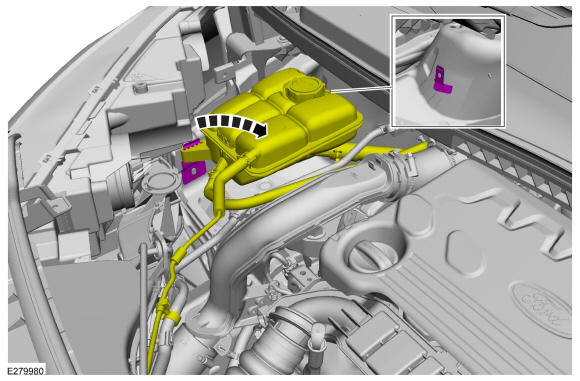

22. Position back the degas bottle.

    Courtesy of FORD MOTOR COMPANY

    2.5L

23. Raise and support the vehicle. Refer to: Jacking and Lifting - Overview .

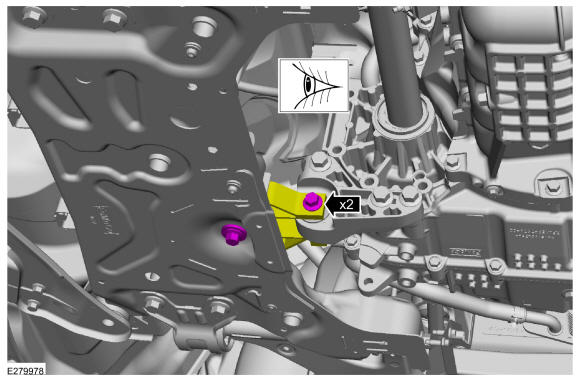

24. Tighten the roll restrictor bolt.

    Torque

    : 76 lb.ft (103 Nm)

    Courtesy of FORD MOTOR COMPANY

25. Tighten the transmission mounting assembly nuts.

    Torque

    : 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

26. Tighten the engine mount bolts.

    Torque

    : 66 lb.ft (90 Nm)

    Courtesy of FORD MOTOR COMPANY

27. Position back the degas bottle.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

28. Position the wire harness aside back and install the pin-type retainers.

    Courtesy of FORD MOTOR COMPANY

29. Install the battery tray support bracket.

    Torque

    : 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

30. Install the battery tray. Refer to: Battery Tray - 2.5L Duratec (125kW/170PS) .
31. If equipped. Install the underbody shield and the retainers.

    Courtesy of FORD MOTOR COMPANY

32. Test the system for normal operation.
