OEM Ground Distribution: Grounds

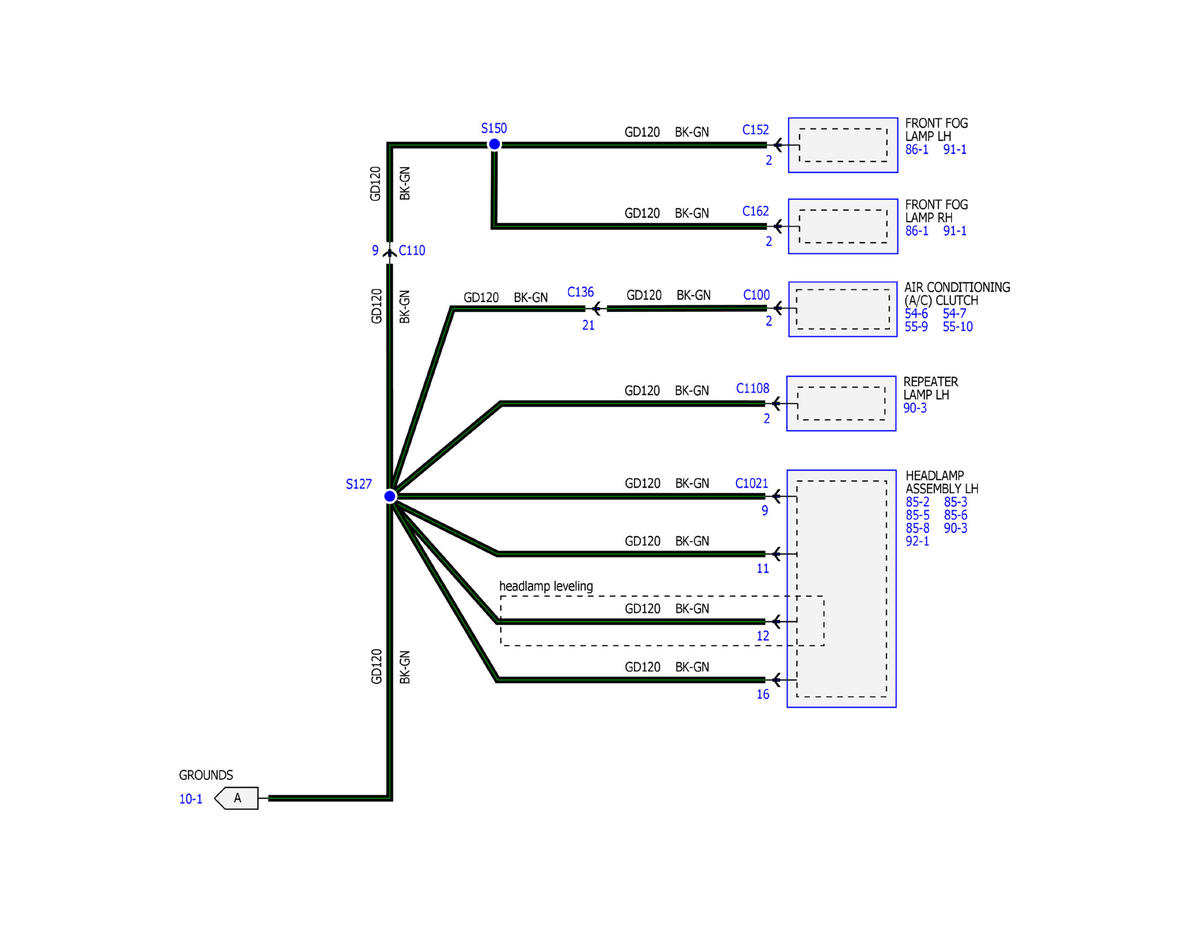

GFDWR36748Courtesy of FORD MOTOR COMPANY

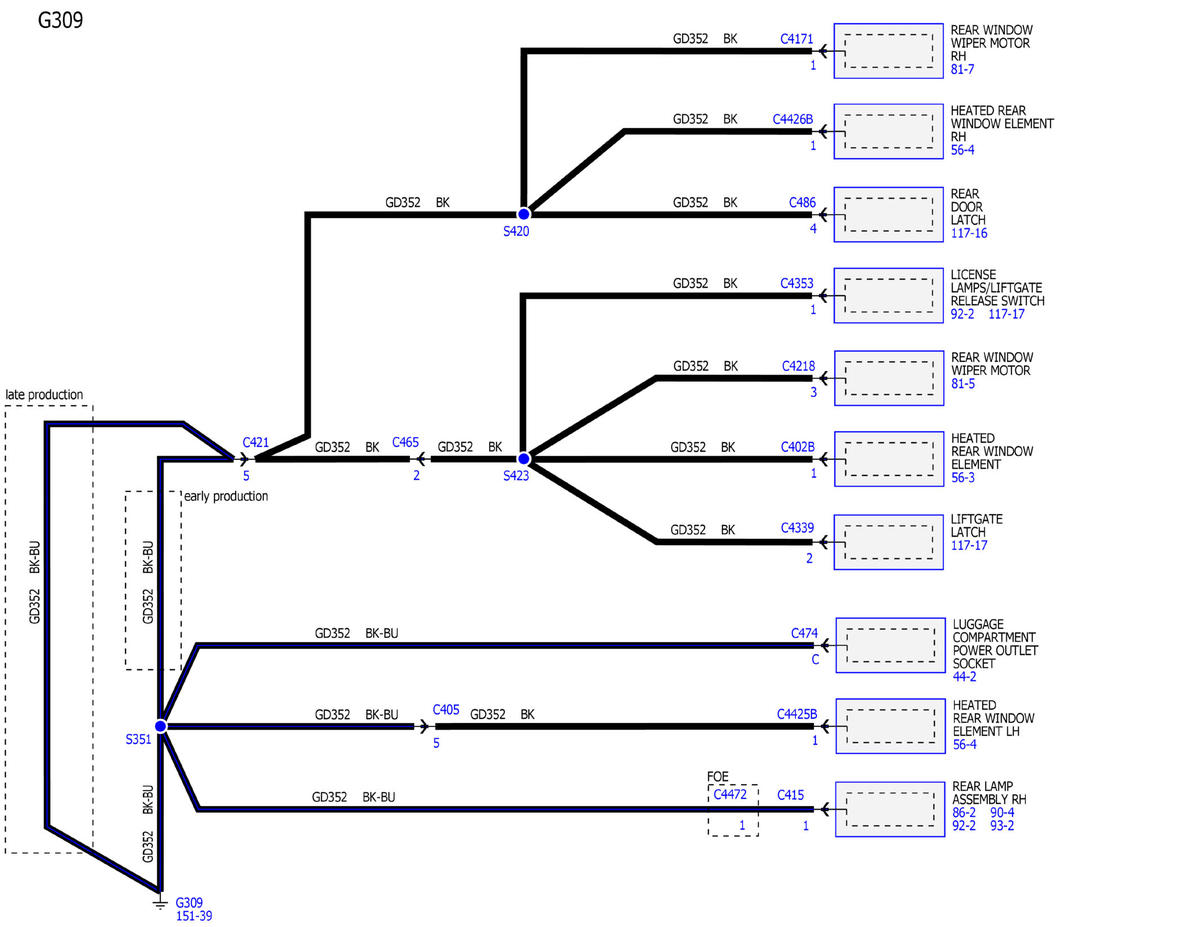

GFDWR36749Courtesy of FORD MOTOR COMPANY

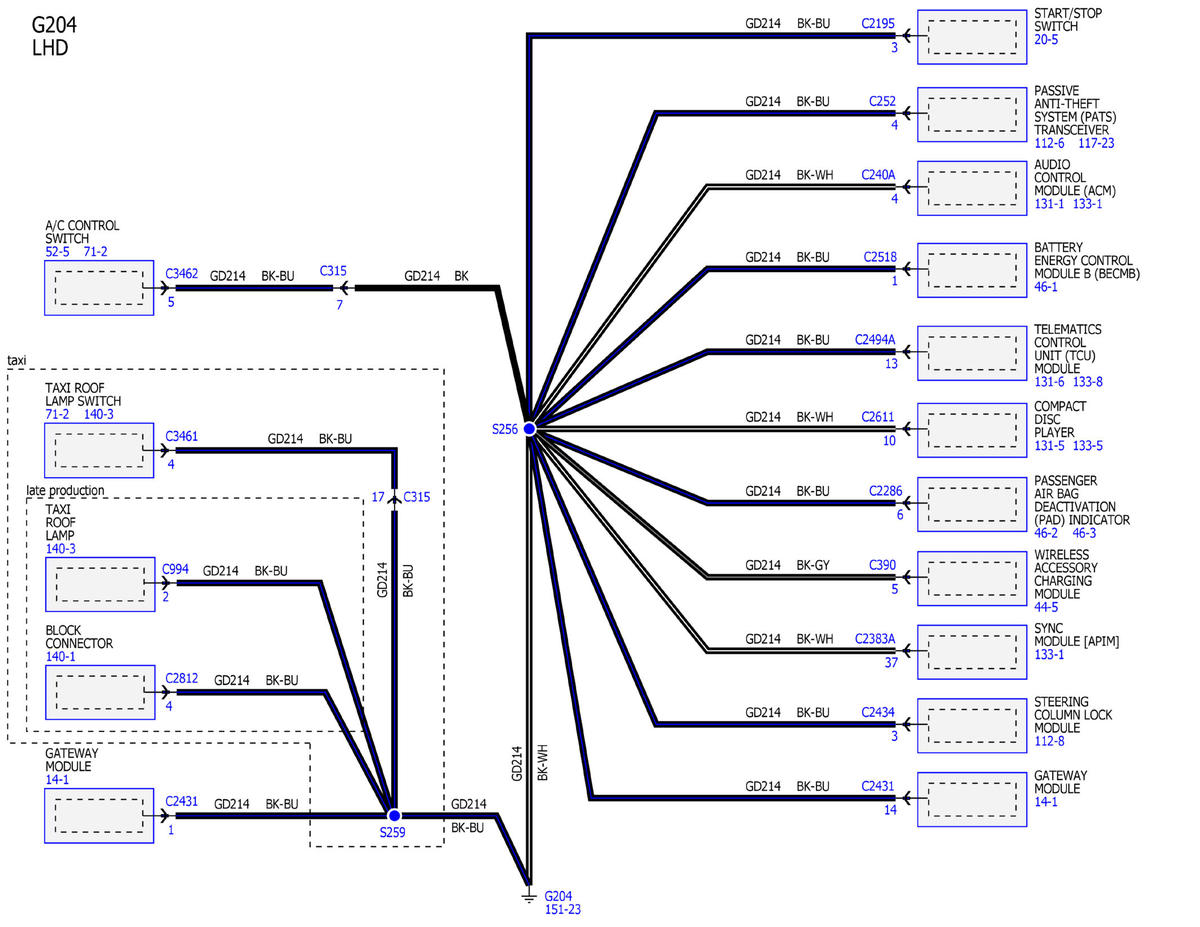

GFDWR36750Courtesy of FORD MOTOR COMPANY

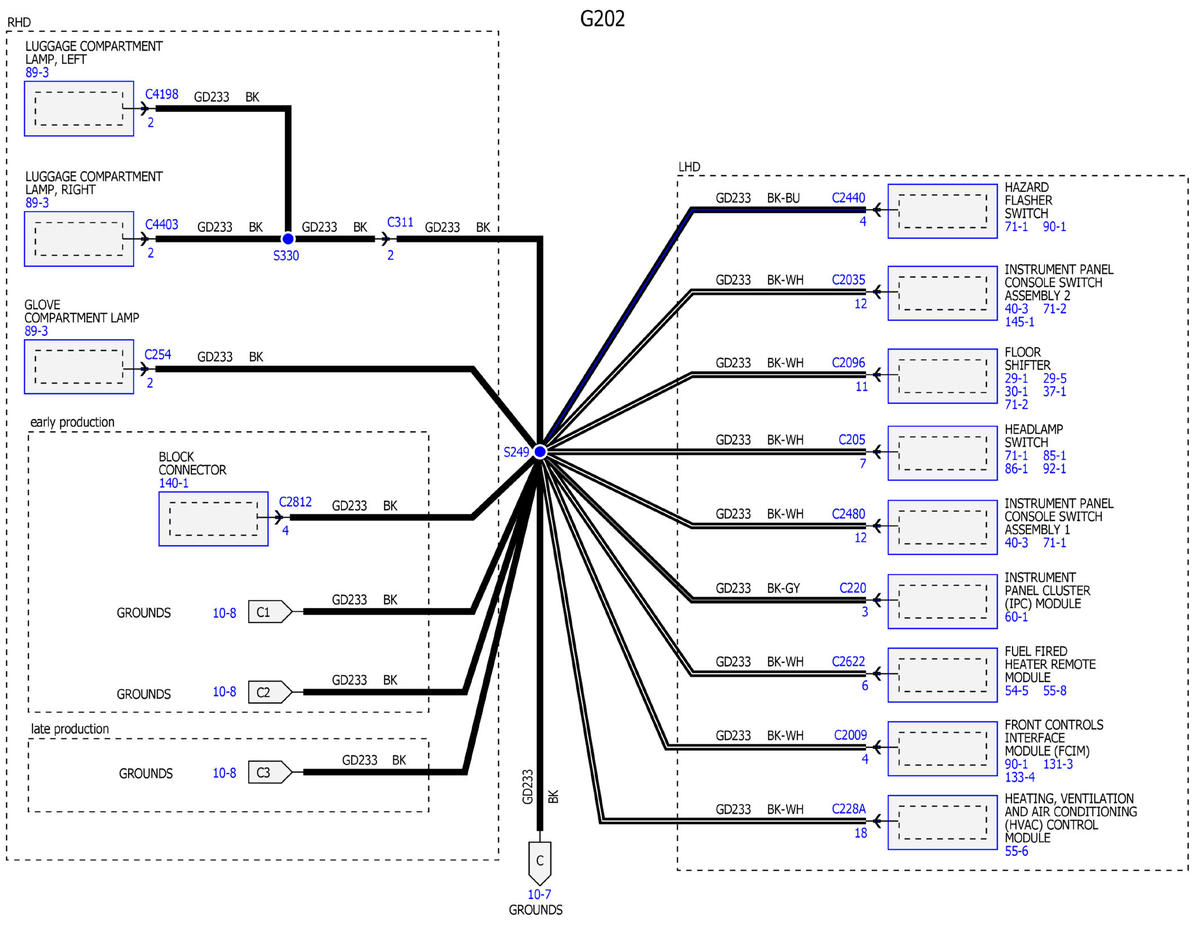

GFDWR36751Courtesy of FORD MOTOR COMPANY

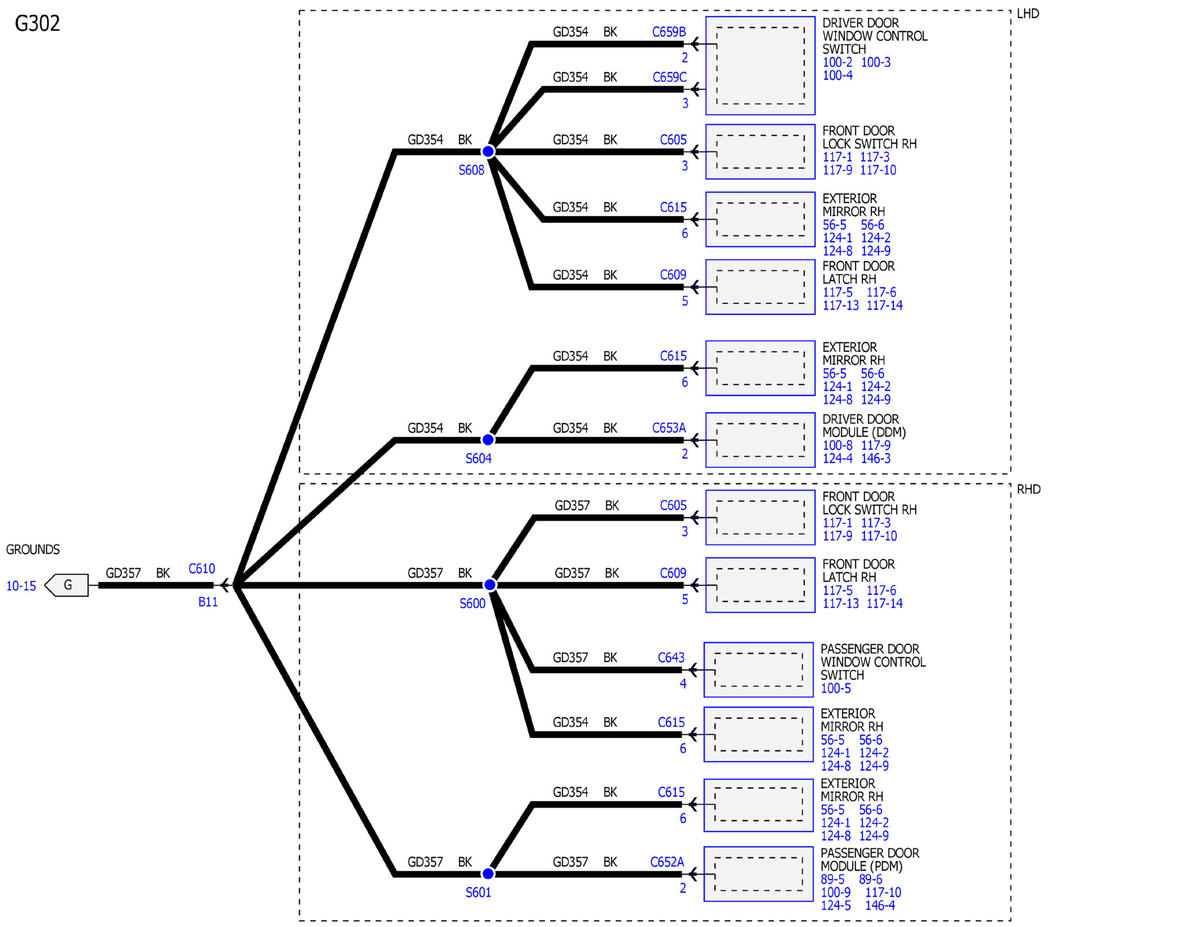

GFDWR36752Courtesy of FORD MOTOR COMPANY

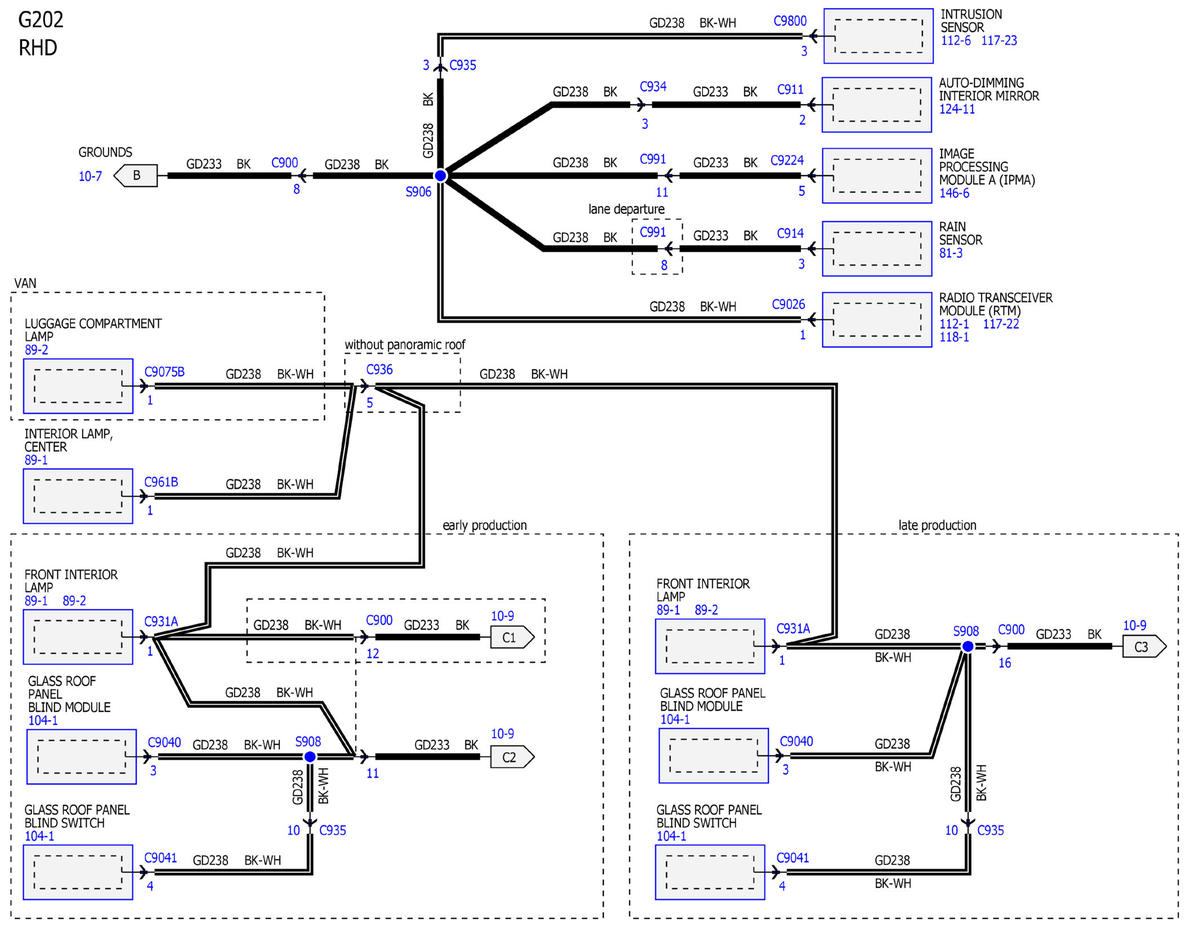

GFDWR36753Courtesy of FORD MOTOR COMPANY

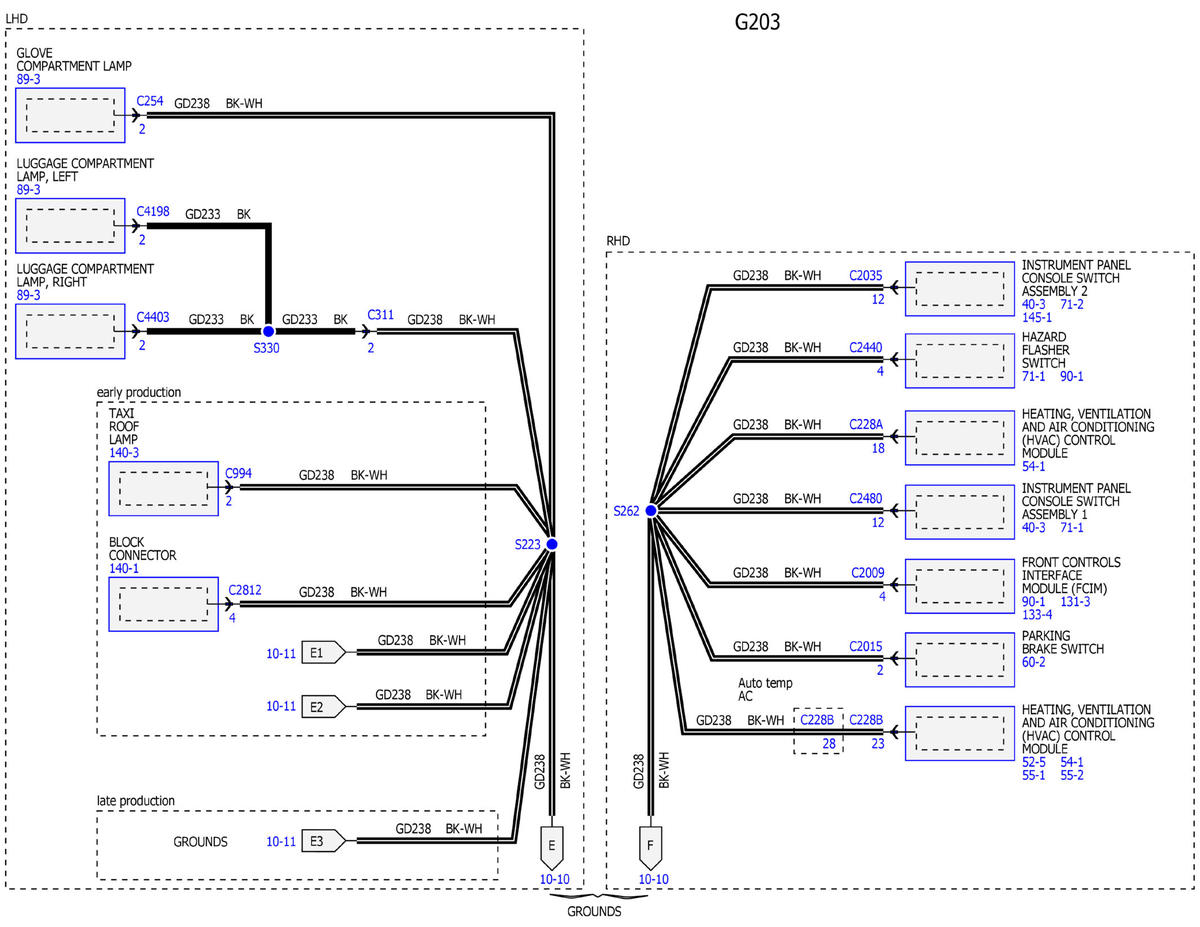

GFDWR36754Courtesy of FORD MOTOR COMPANY

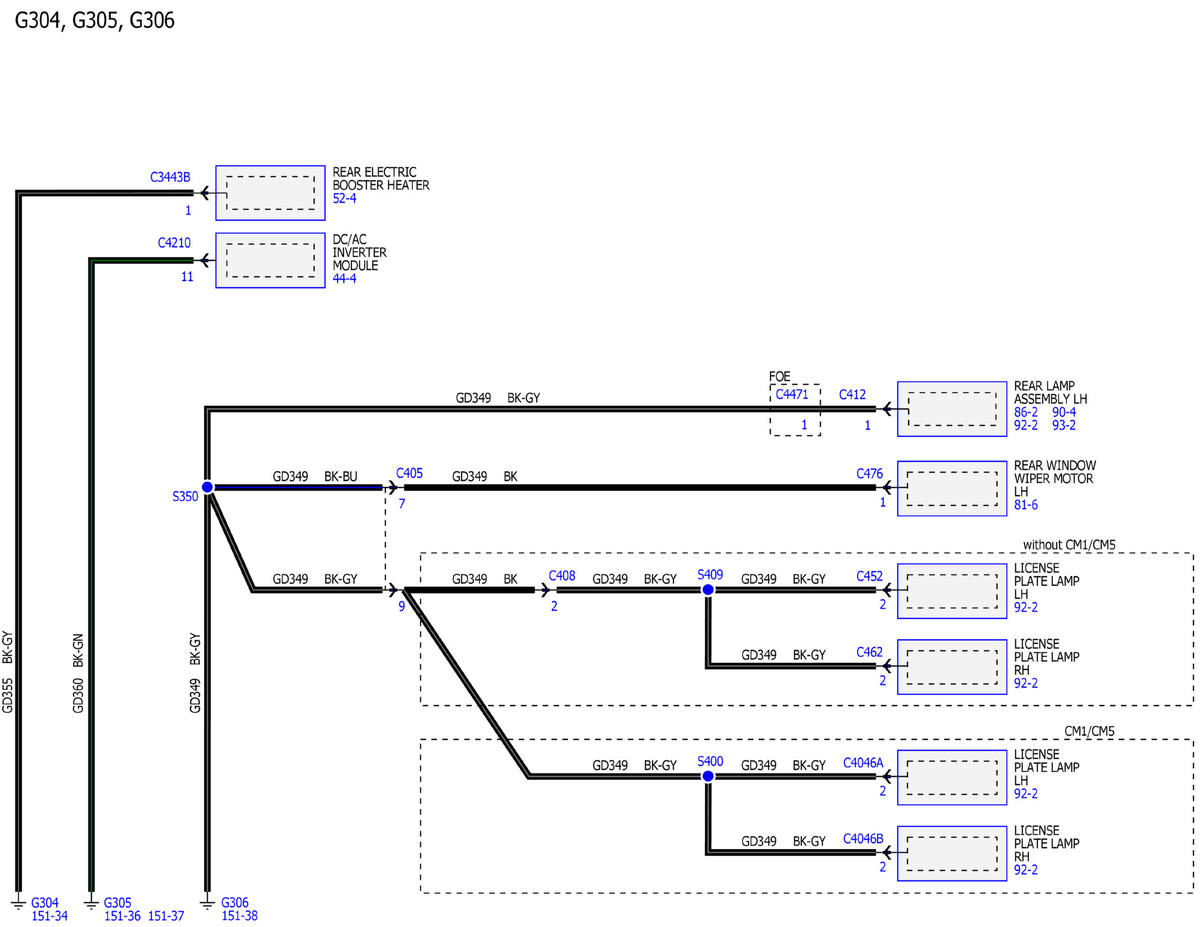

GFDWR36755Courtesy of FORD MOTOR COMPANY

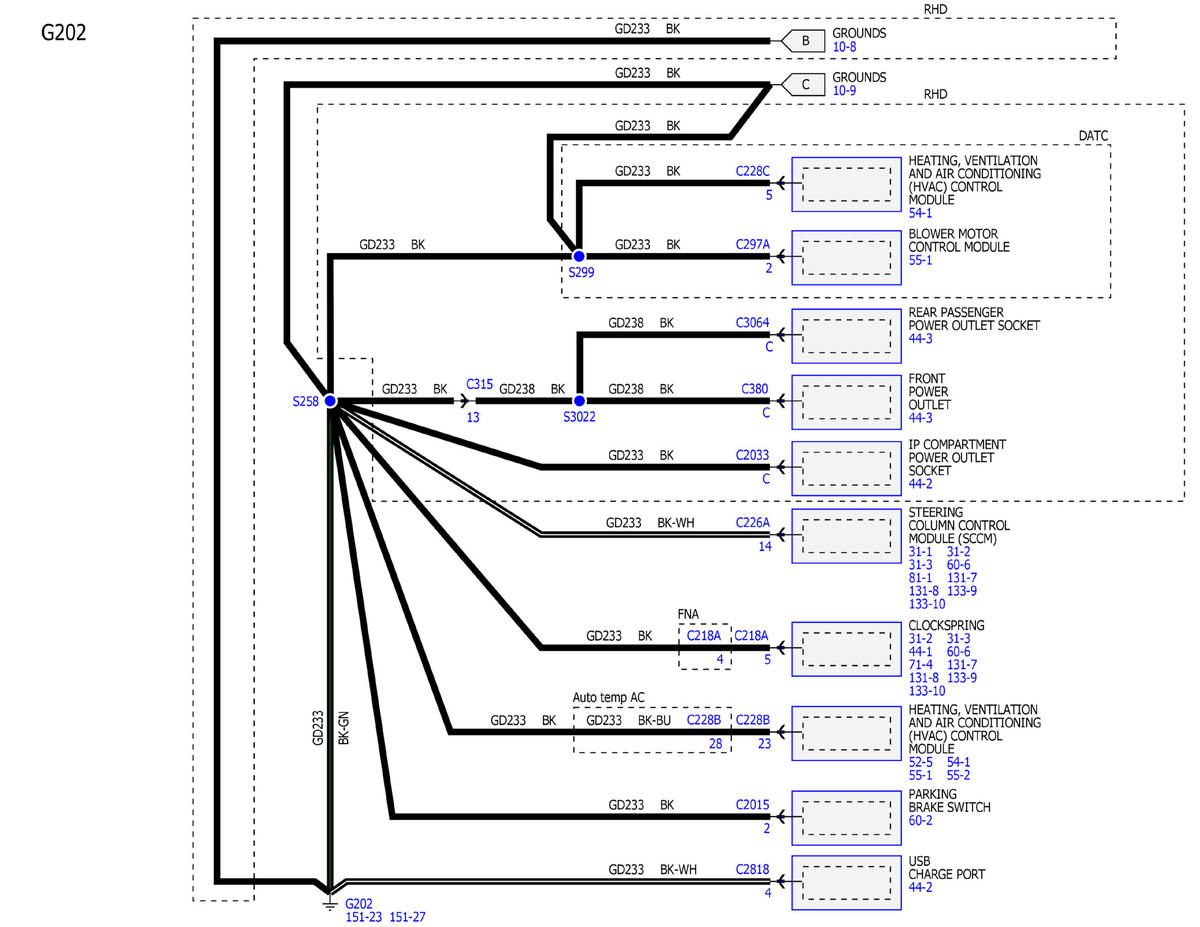

GFDWR36756Courtesy of FORD MOTOR COMPANY

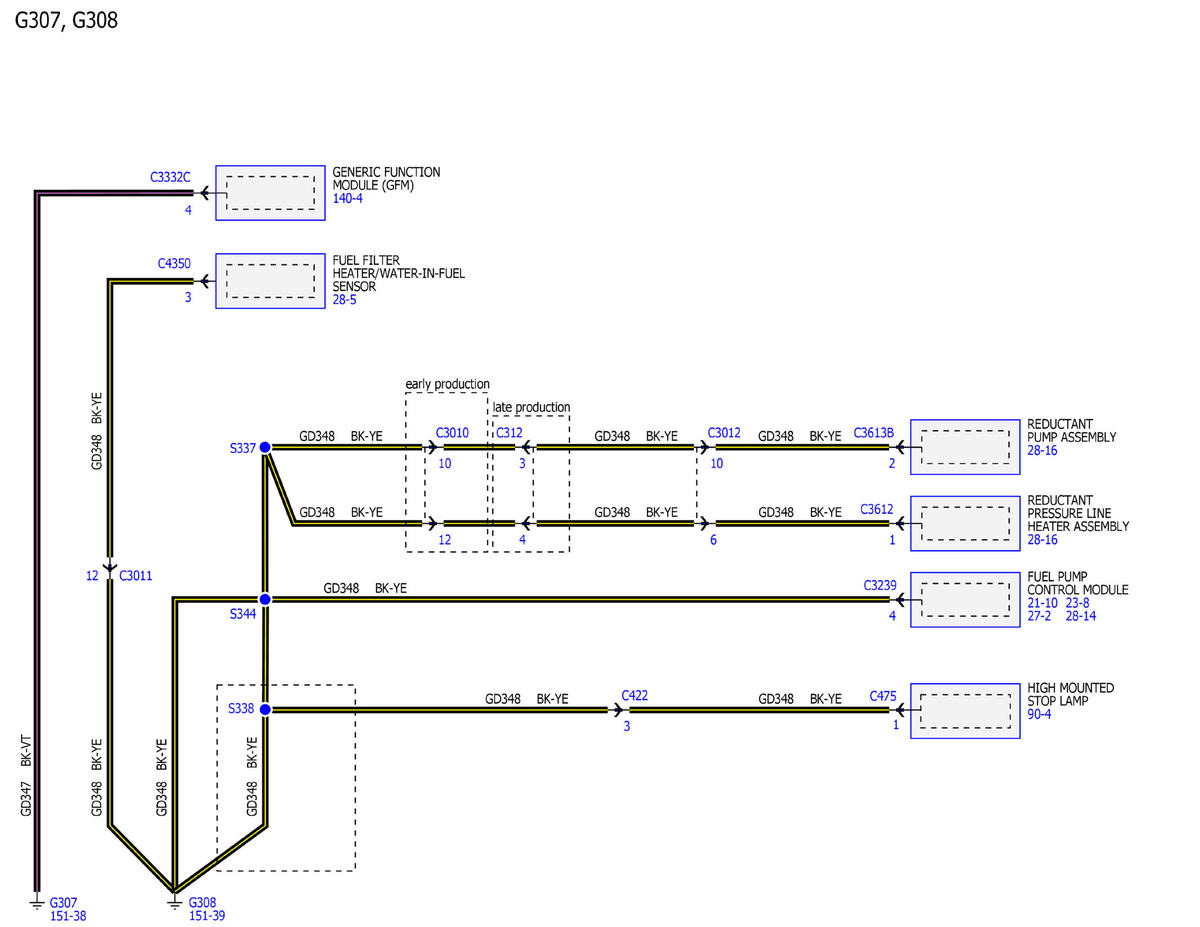

GFDWR36757Courtesy of FORD MOTOR COMPANY

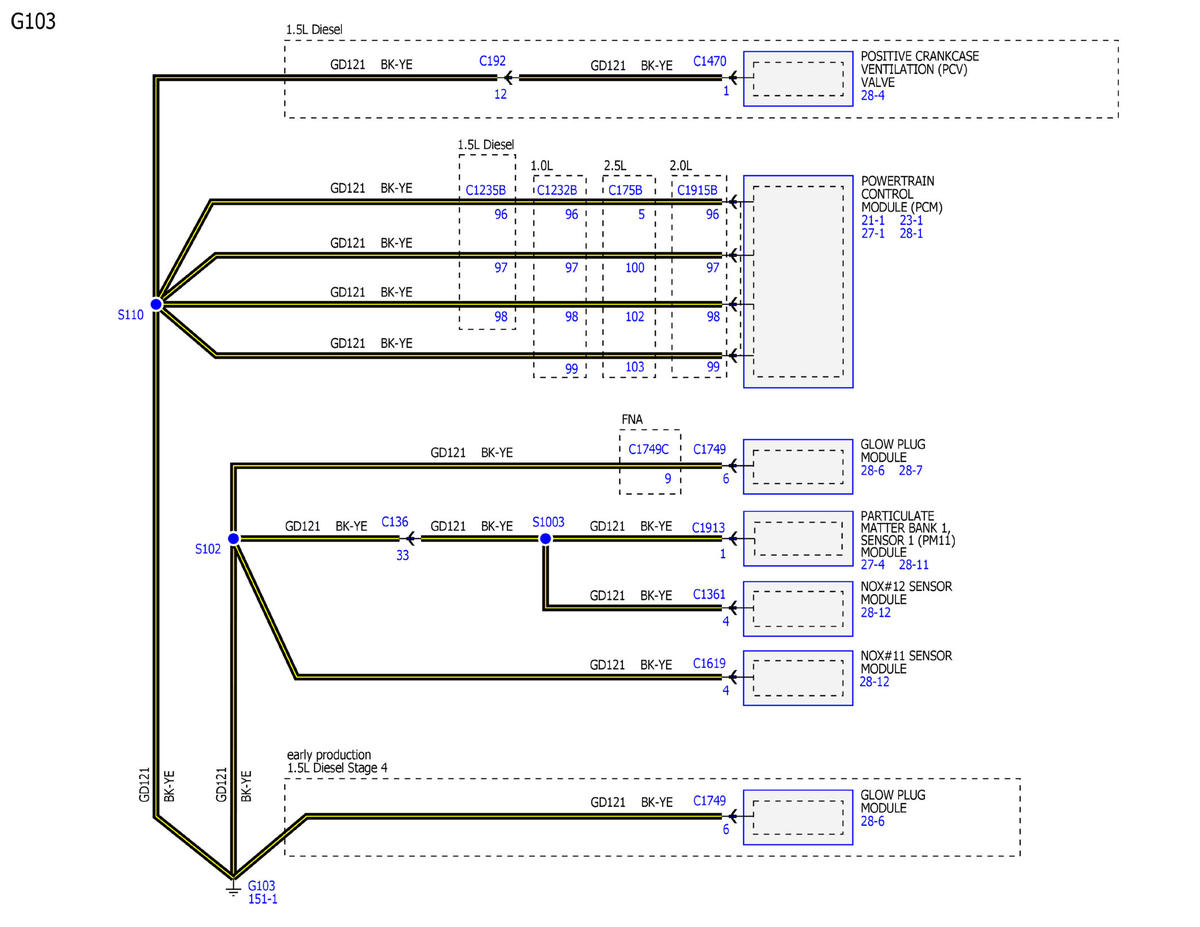

GFDWR36758Courtesy of FORD MOTOR COMPANY

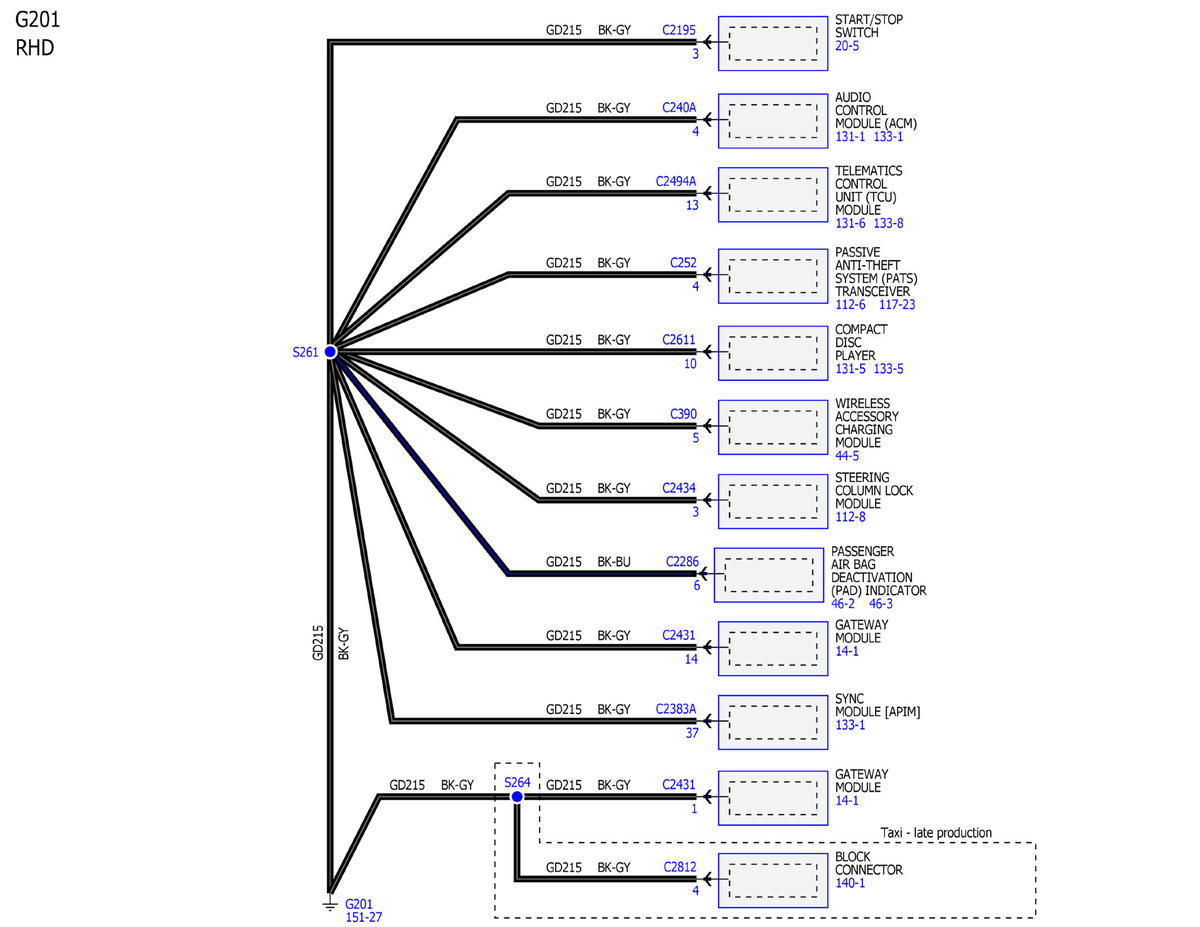

GFDWR36759Courtesy of FORD MOTOR COMPANY

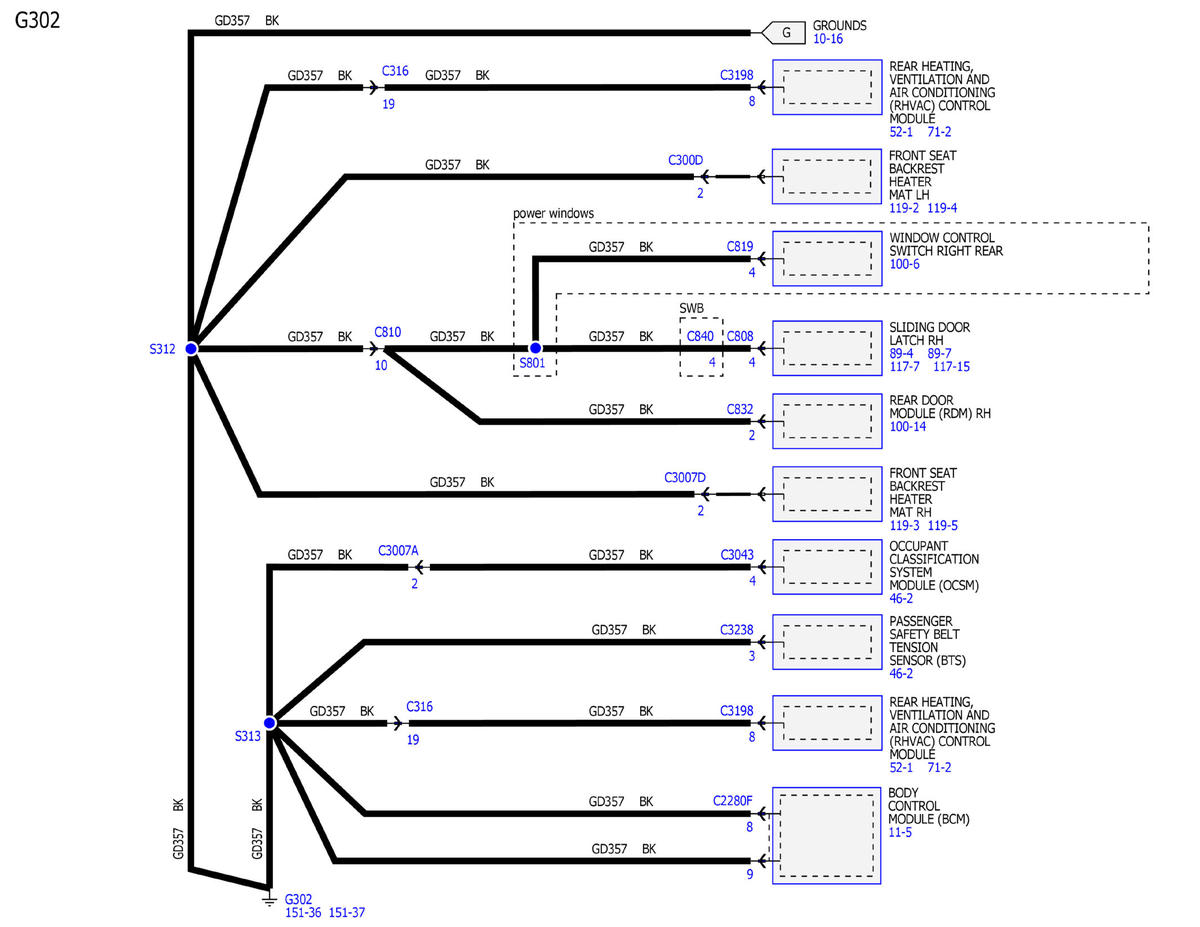

GFDWR36760Courtesy of FORD MOTOR COMPANY

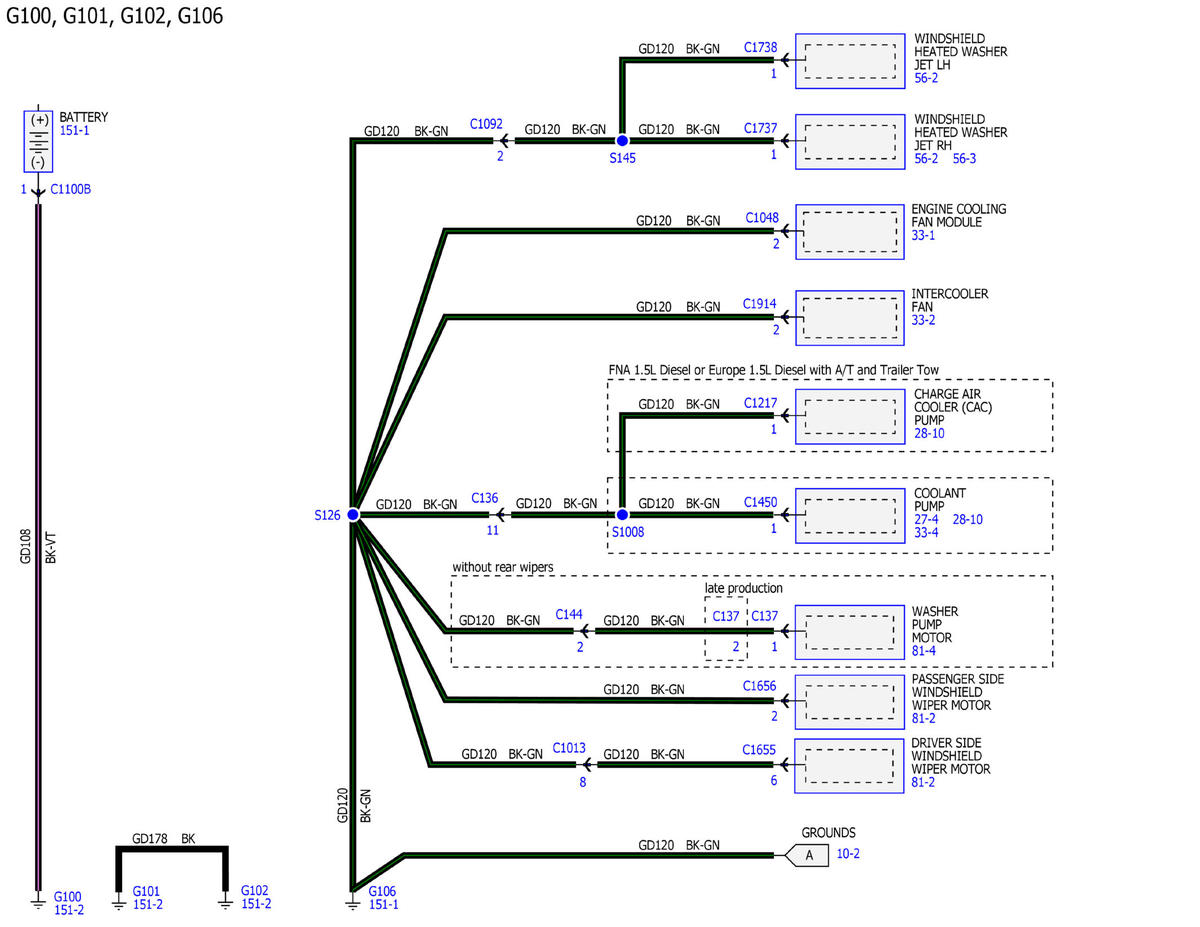

GFDWR36761Courtesy of FORD MOTOR COMPANY

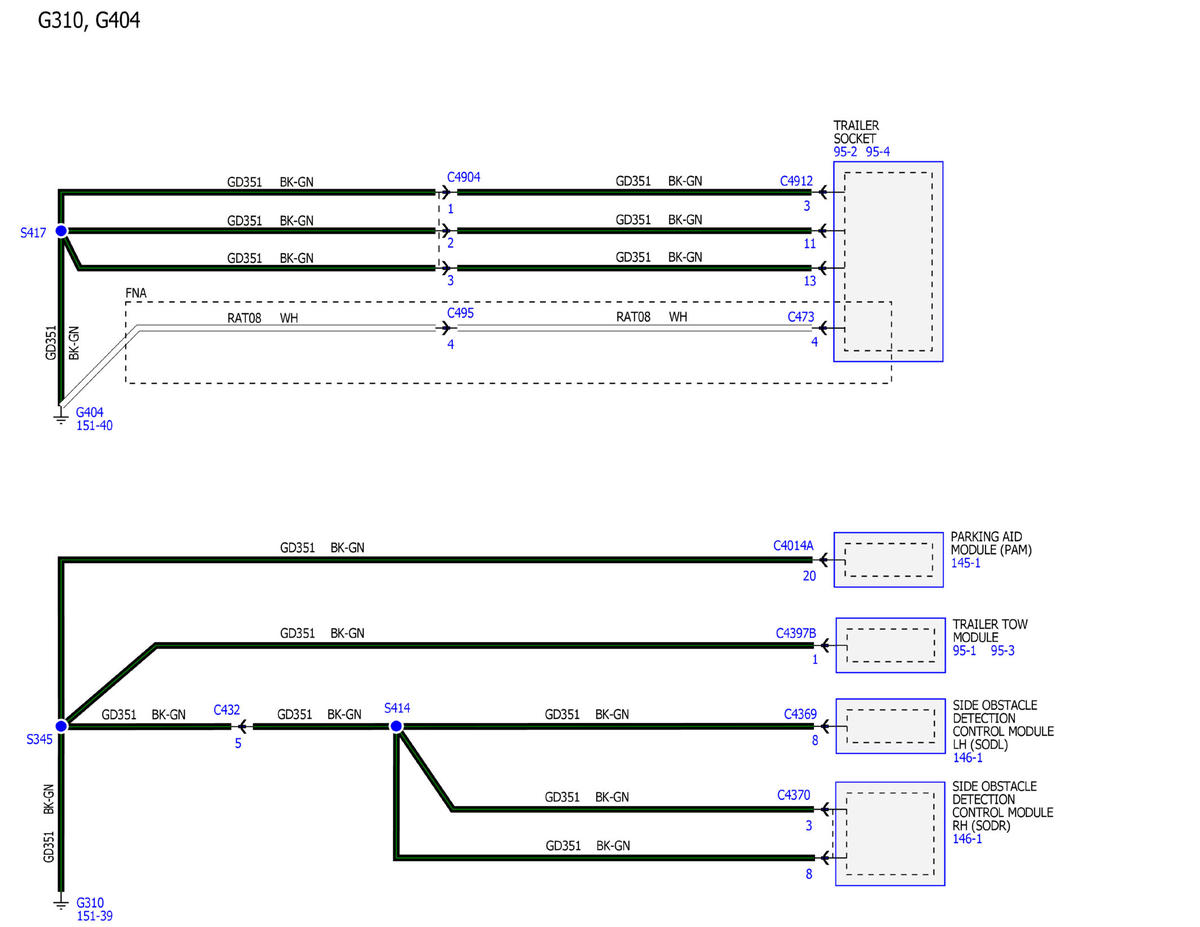

GFDWR36762Courtesy of FORD MOTOR COMPANY

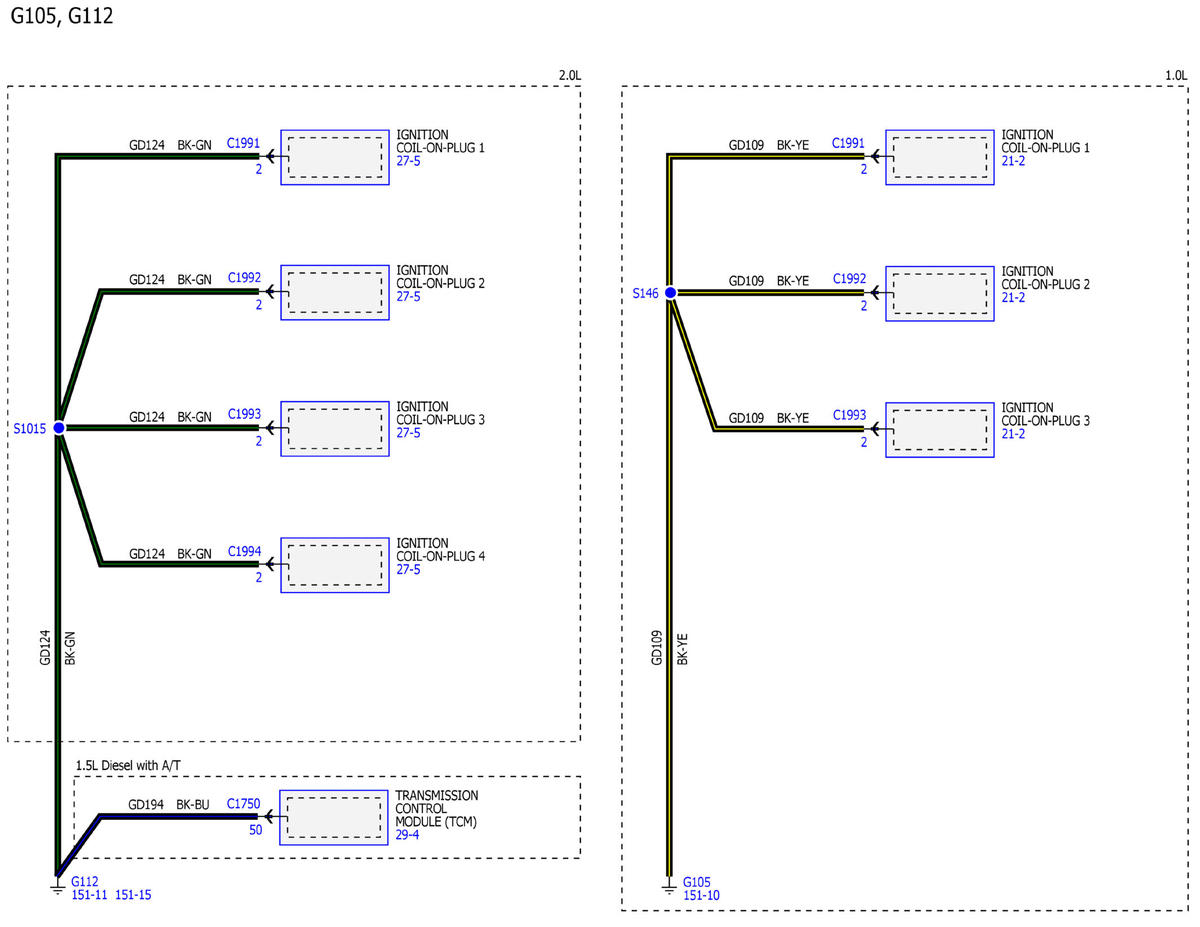

GFDWR36763Courtesy of FORD MOTOR COMPANY

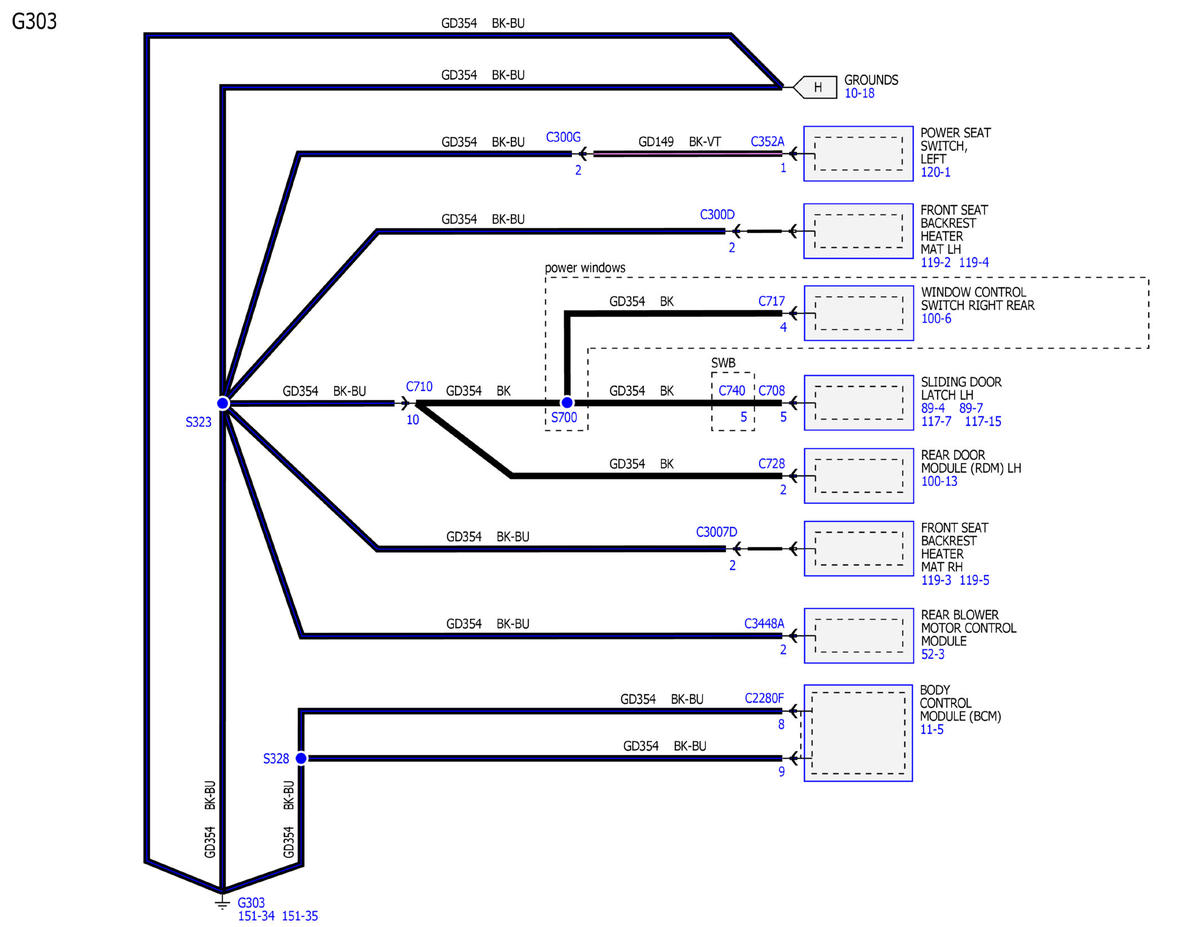

GFDWR36764Courtesy of FORD MOTOR COMPANY

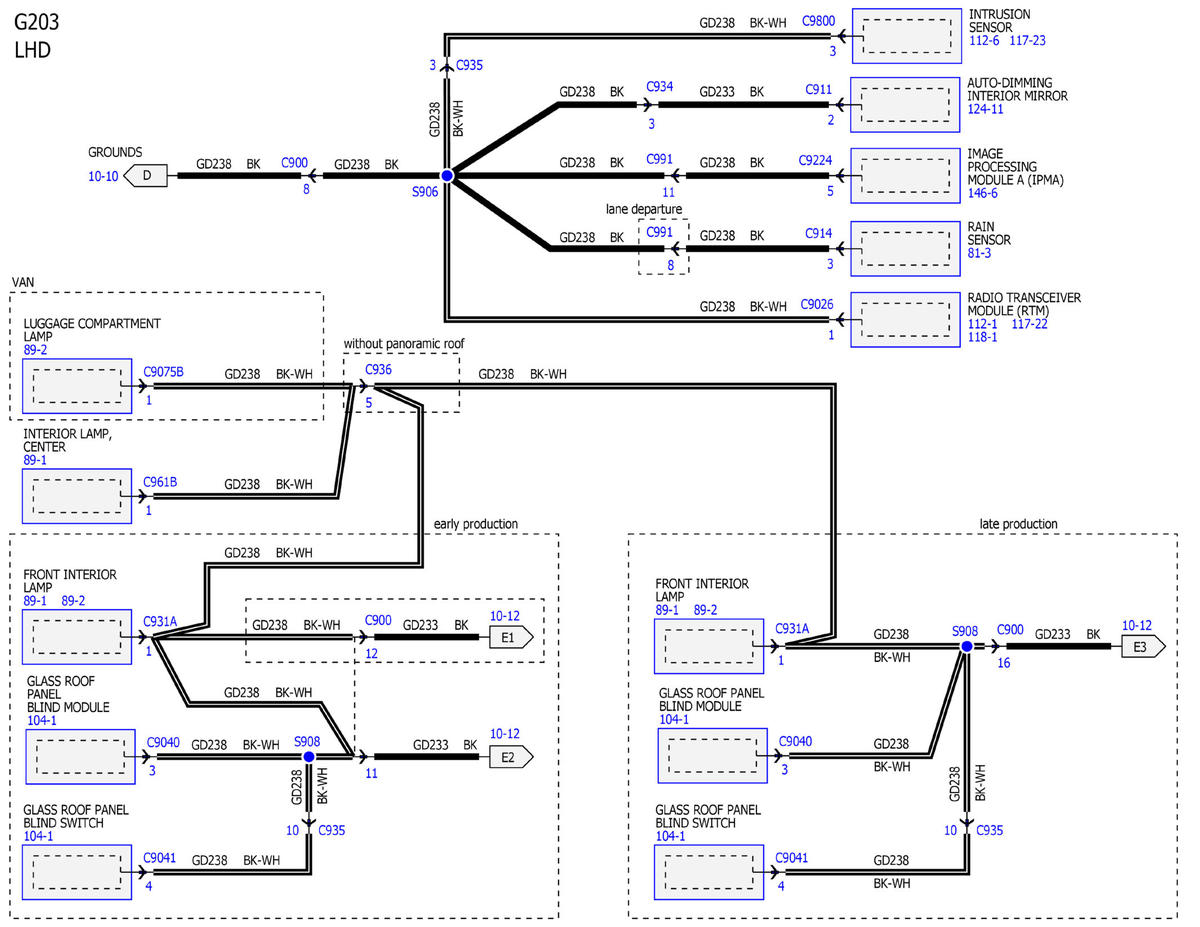

GFDWR36765Courtesy of FORD MOTOR COMPANY

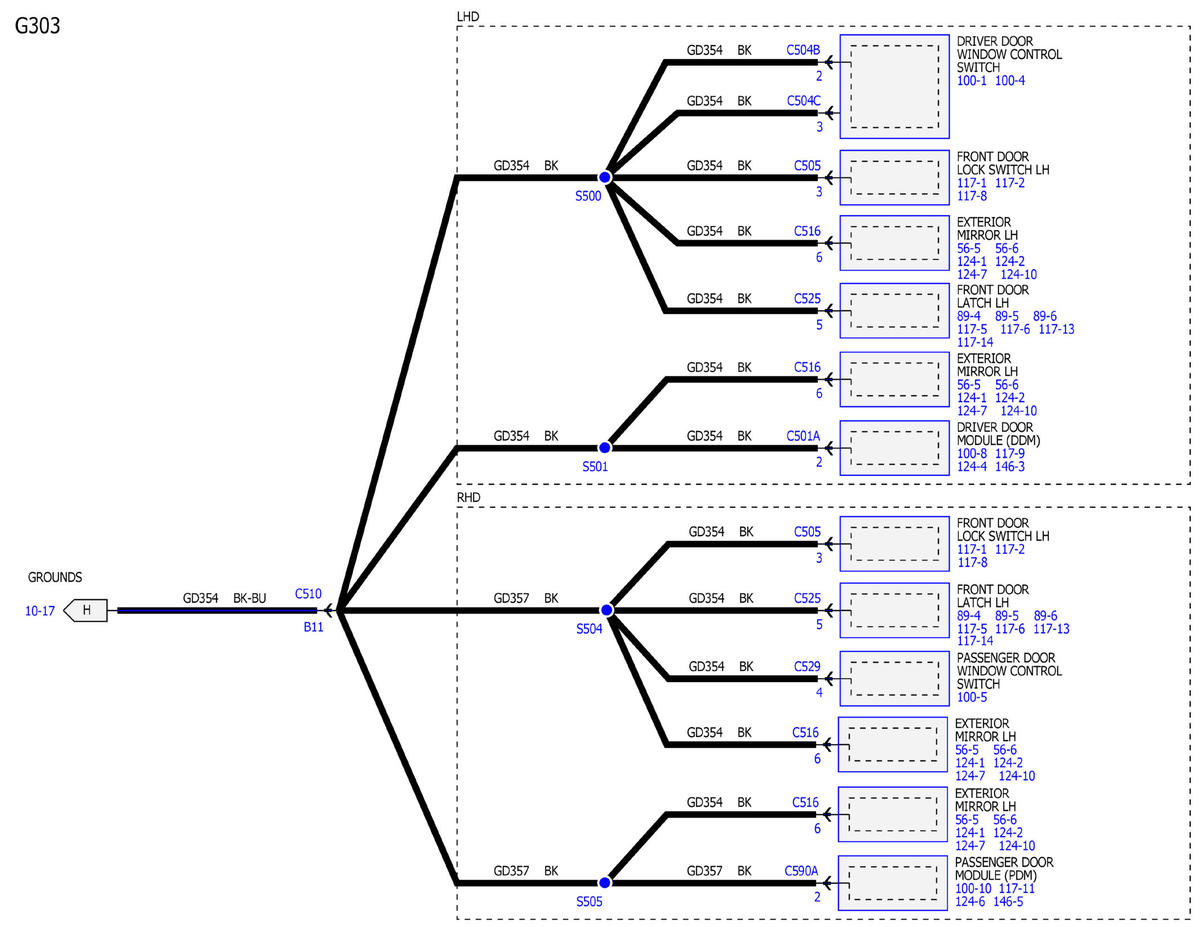

GFDWR36766Courtesy of FORD MOTOR COMPANY

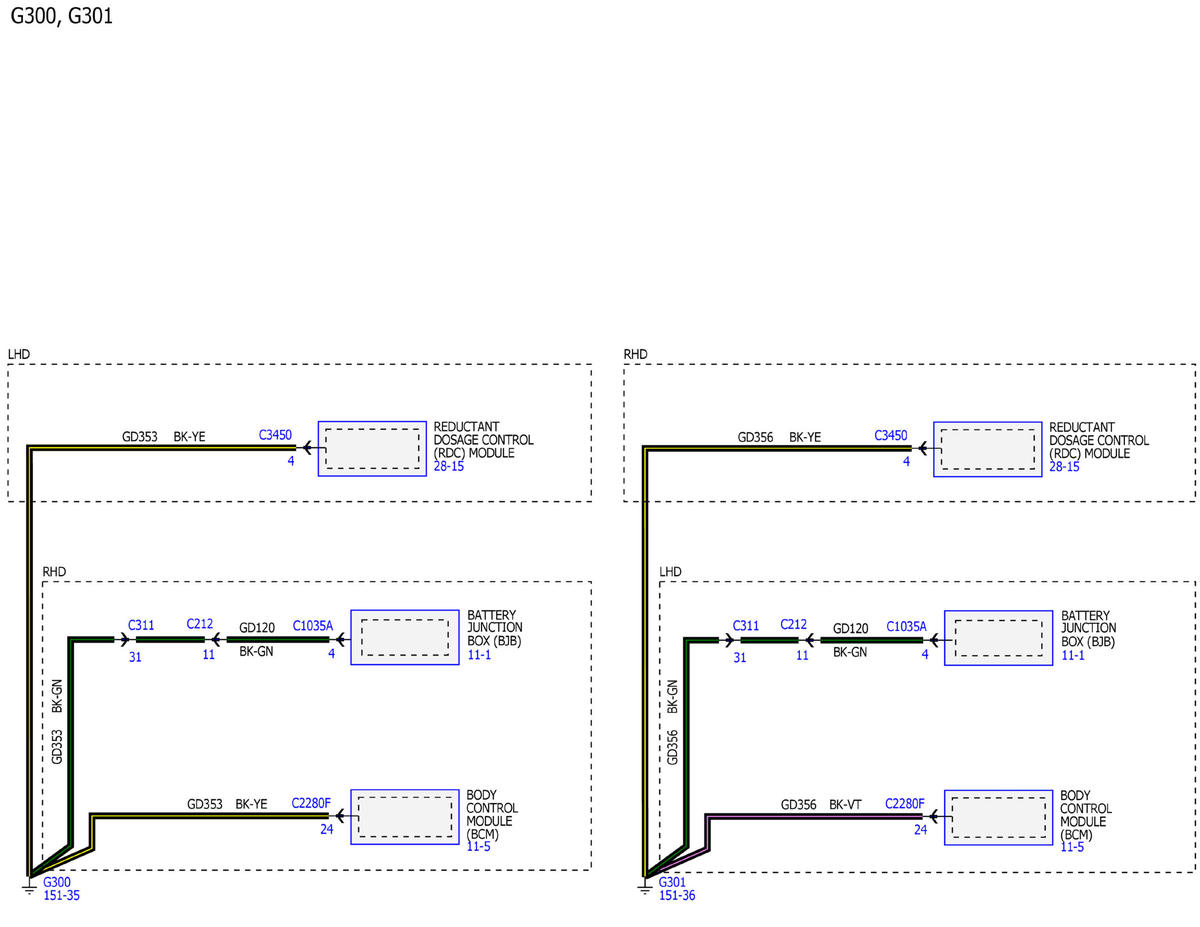

GFDWR36767Courtesy of FORD MOTOR COMPANY

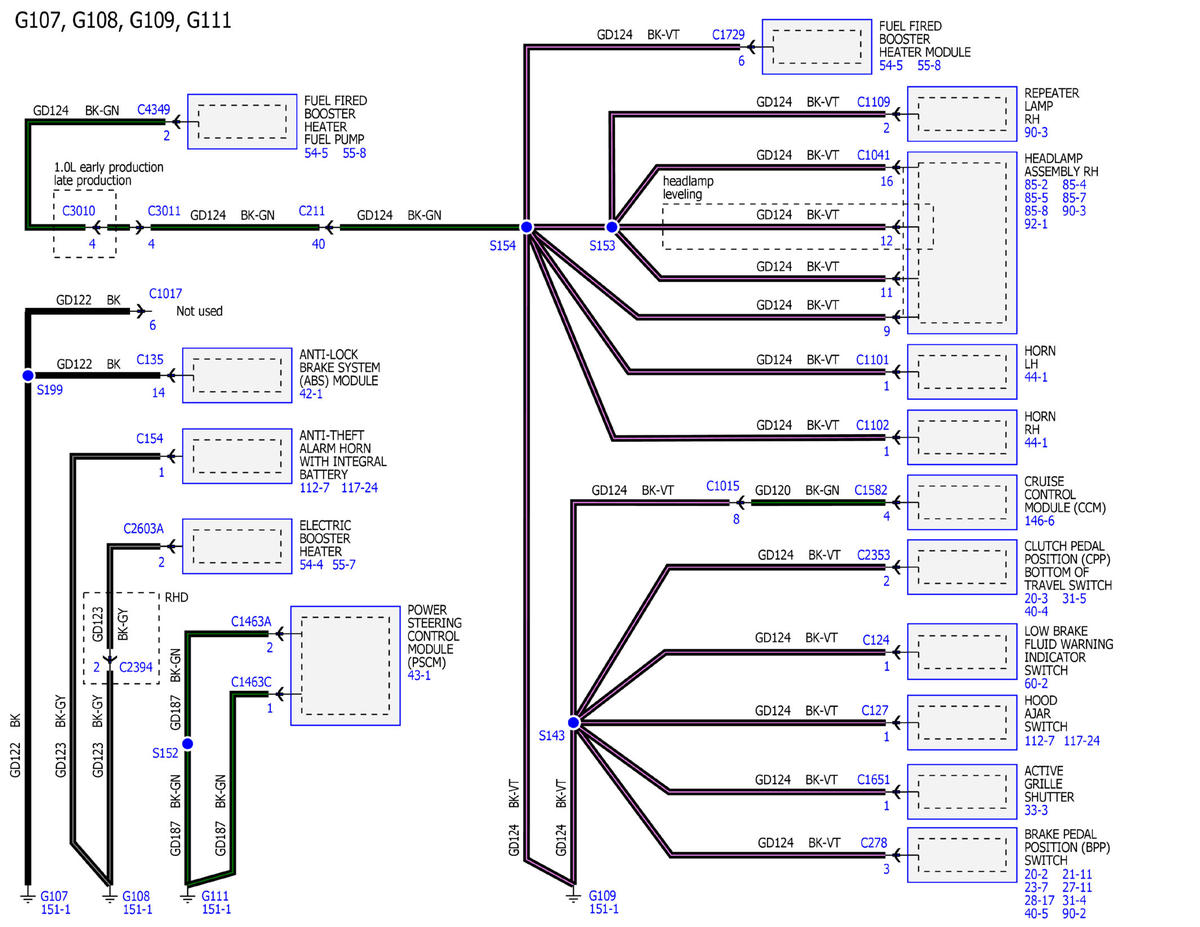

GFDWR36768Courtesy of FORD MOTOR COMPANY

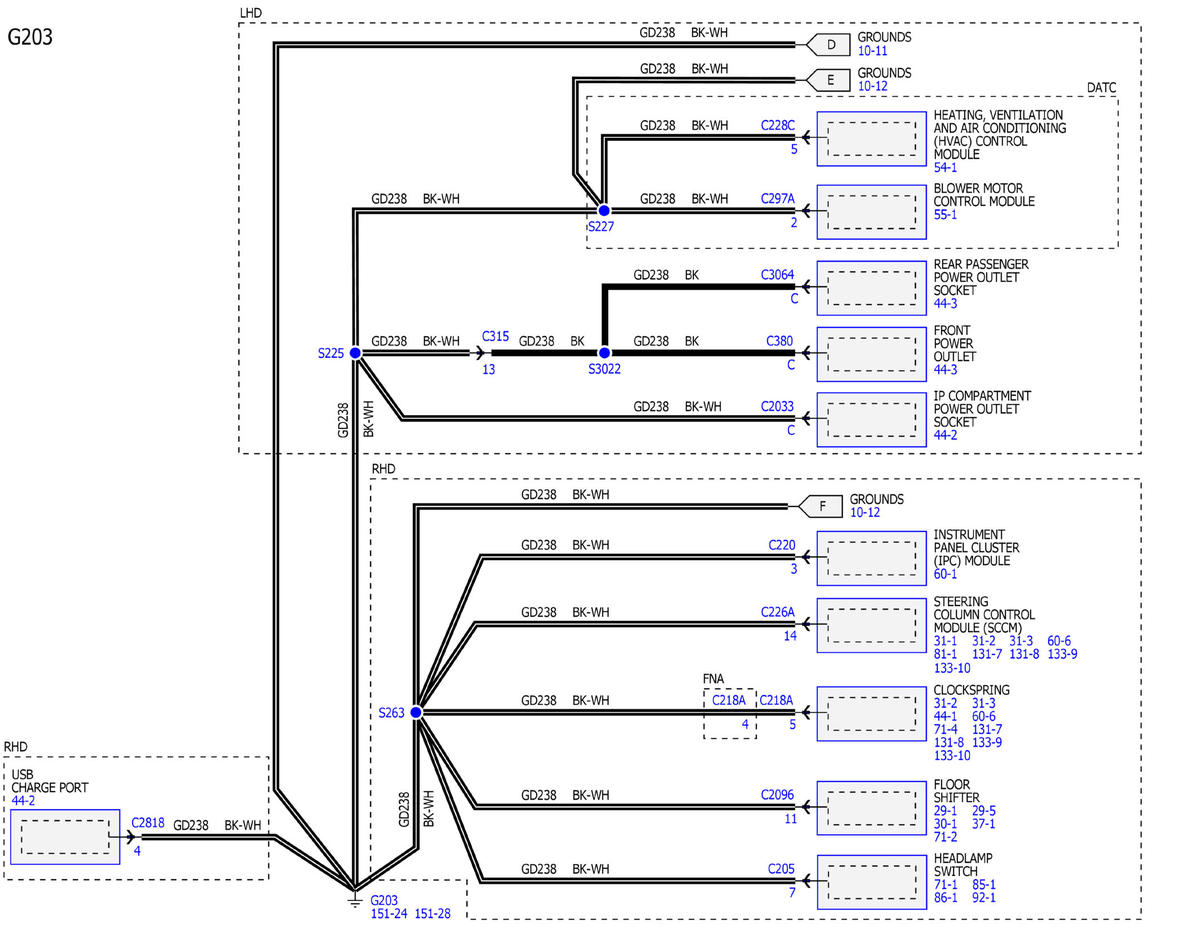

GFDWR36769Courtesy of FORD MOTOR COMPANY
