Pinpoint Tests AX: Intake Throttle: Introduction

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

harness circuits: TACM+, TACM-, TP, SIGRTN and VREF
intake throttle actuator (9E926)
PCM (12A650)

Fig 1: Intake Throttle Actuator Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
VREF (Reference Voltage)	1
TP (Throttle Position)	5
TACM+ (Throttle Actuator Control Motor +)	6
TACM- (Throttle Actuator Control Motor -)	2
SIGRTN (Signal Return)	3

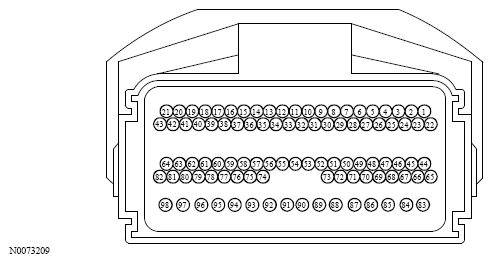

Fig 2: Powertrain Control Module-E (PCM-E) Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
TP (Throttle Position)	29
TACM+ (Throttle Actuator Control Motor +)	45
TACM- (Throttle Actuator Control Motor -)	44
