Pinpoint Tests EB: Engine Brake: Introduction
This pinpoint test is intended to diagnose the following:
- Engine brake switch
- Harness circuits: EBIS and VPWR
- PCM (12A650)
Courtesy of FORD MOTOR CO.
Harness Side
| Circuit |
Pin |
| VPWR (Vehicle Power) |
1 |
| EBIS (Engine Brake Input Signal) |
4 |

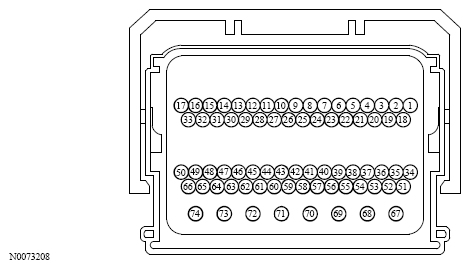

Courtesy of FORD MOTOR CO.
Harness Side
| Circuit |
Pin |
| EBIS (Engine Brake Input Signal) |
26 |
