Pinpoint Tests WA: Exhaust Gas Recirculation Temperature (EGRT) Sensor: Introduction

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

harness circuits: EGRT11, EGRT12, and SIGRTN
EGRT11 and EGRT12 sensors
PCM (12A650)

Fig 1: Exhaust Gas Recirculation Temperature Bank 1, Sensor 1 (EGRT11) Sensor Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
EGRT11 (Exhaust Gas Recirculation Temperature Bank 1, Sensor 1)	1
SIGRTN (Signal Return)	2

Fig 2: Exhaust Gas Recirculation Temperature Bank 1, Sensor 2 (EGRT12) Sensor Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
EGRT12 (Exhaust Gas Recirculation Temperature Bank 1, Sensor 2)	1
SIGRTN (Signal Return)	2

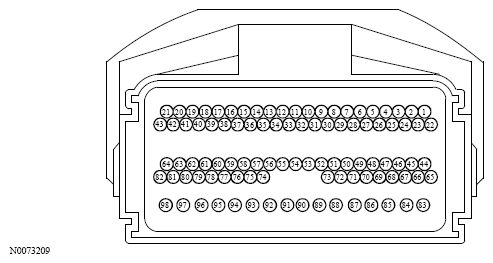

Fig 3: Powertrain Control Module-E (PCM-E) Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
EGRT11 (Exhaust Gas Recirculation Temperature Bank 1, Sensor 1)	27
SIGRTN (Signal Return)	4
EGRT12 (Exhaust Gas Recirculation Temperature Bank 1, Sensor 2)	37

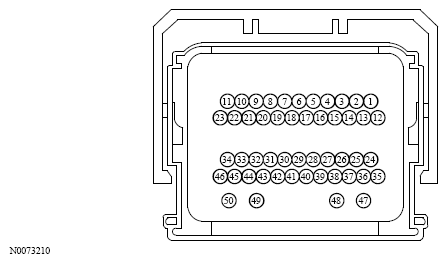

Fig 4: Powertrain Control Module-T (PCM-T) Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit
