Fuel Pump Driver Module (FPDM): Installation

Gas engine

  1. Install the FPDM and the FPDM mounting bolts.

    Torque: 93 lb.in (10.5 Nm)

    GFD349134Courtesy of FORD MOTOR COMPANY

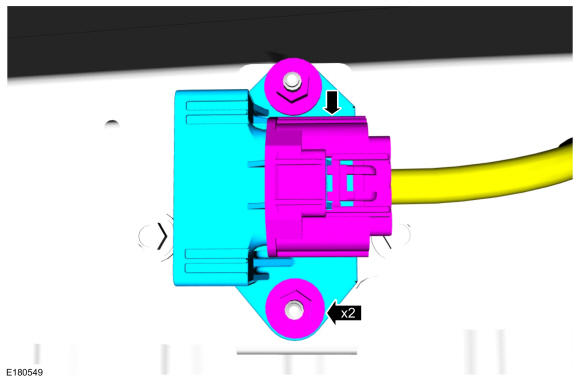

    Diesel engine

  2. Install the FPDM and the FPDM mounting nuts.

    Torque: 93 lb.in (10.5 Nm)

GFD349133Courtesy of FORD MOTOR COMPANY
