Lane Keeping System
>>
Description And Operation
>>
Lane Keeping System - System Operation and Component Description
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

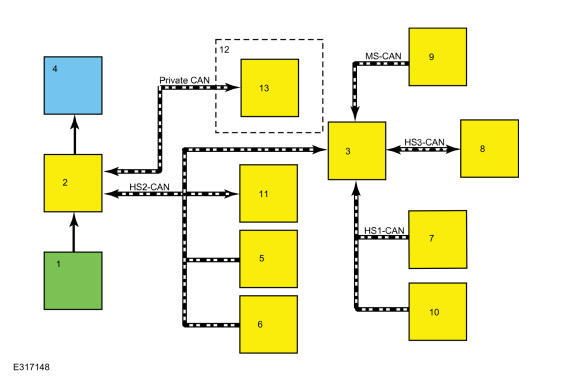

System Diagram
Courtesy of FORD MOTOR COMPANY
Item
Description
1
LH Steering Column Multifunction Switch
2
IPMA
3
GWM
4
Camera Windshield Defrost Heater
5
RCM
6
SCCM
7
PCM
8
IPC
9
TRM
10
BCM
11
PSCM
12
with active cruise control
13
CCM
