Body Control Module (BCM): Removal

WARNING: This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If the BCM did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCM is being replaced

Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.
NOTE: If equipped, the PAM is integral to the BCM. This step is only necessary if the BCM is being replaced.

Using a diagnostic scan tool, begin the PMI process for the PAM following the on-screen instructions.

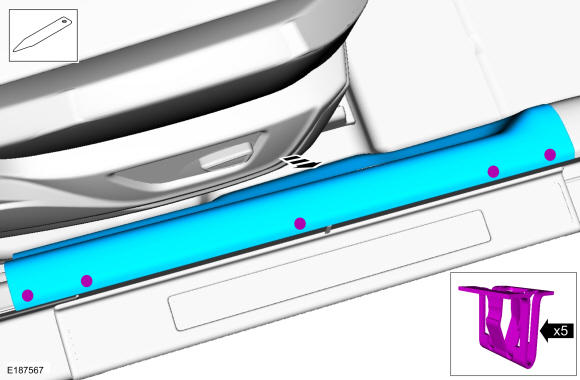

Release the clips and remove the RH scuff plate. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

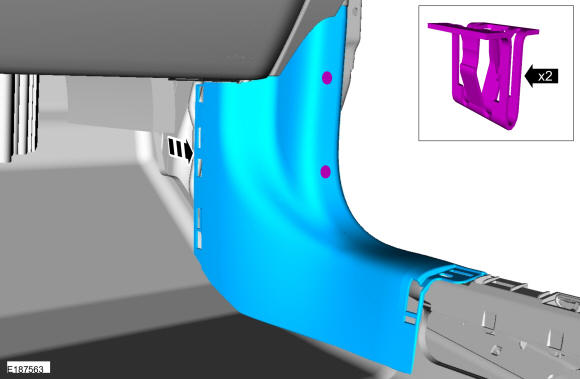

Release the clips and remove the lower RH cowl trim panel.

Courtesy of FORD MOTOR COMPANY

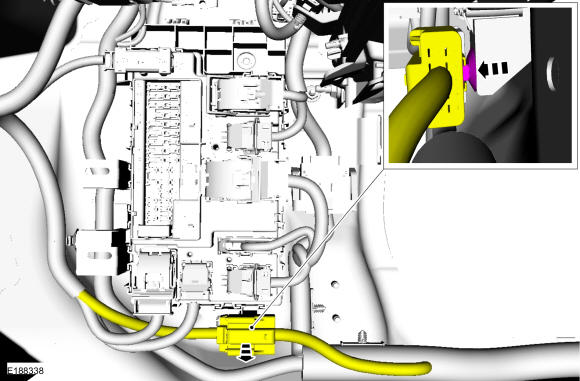

Release the harness retainer and position the harness aside.

Courtesy of FORD MOTOR COMPANY

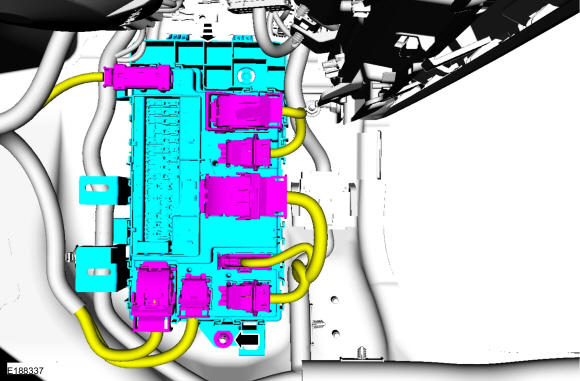

Remove the nut and the BCM.
- Disconnect the electrical connectors.
  Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
