OEM Ground Distribution: Grounds

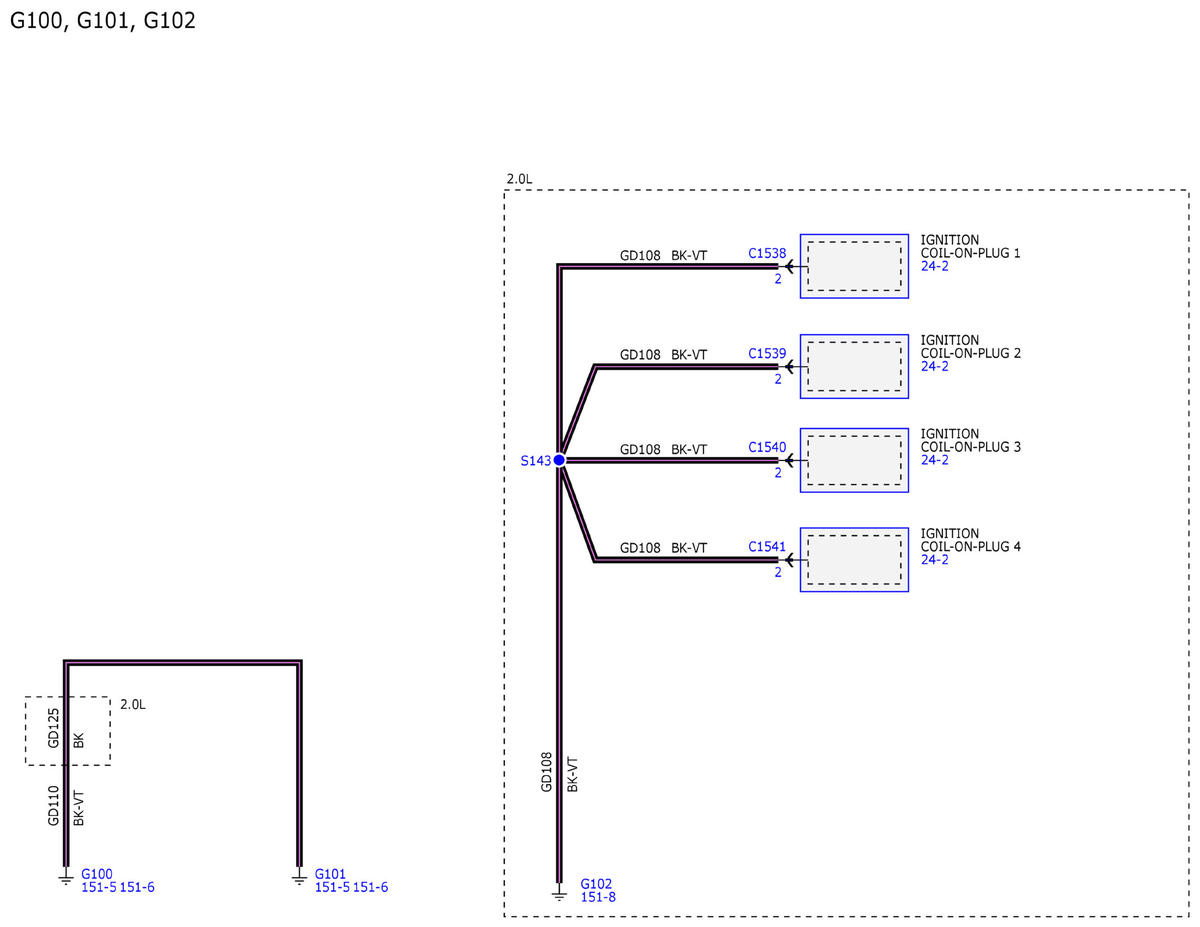

GFDWR108607Courtesy of FORD MOTOR COMPANY

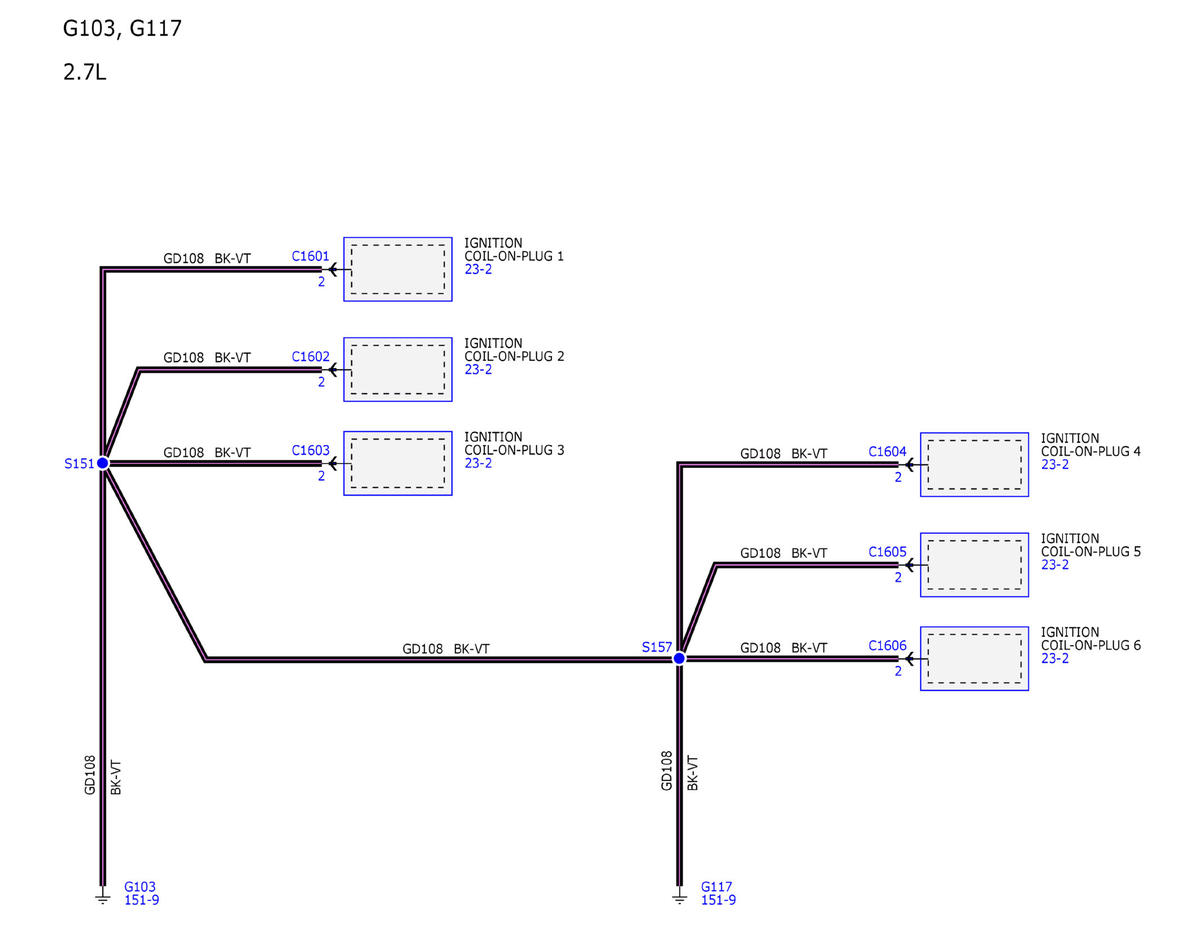

GFDWR108592Courtesy of FORD MOTOR COMPANY

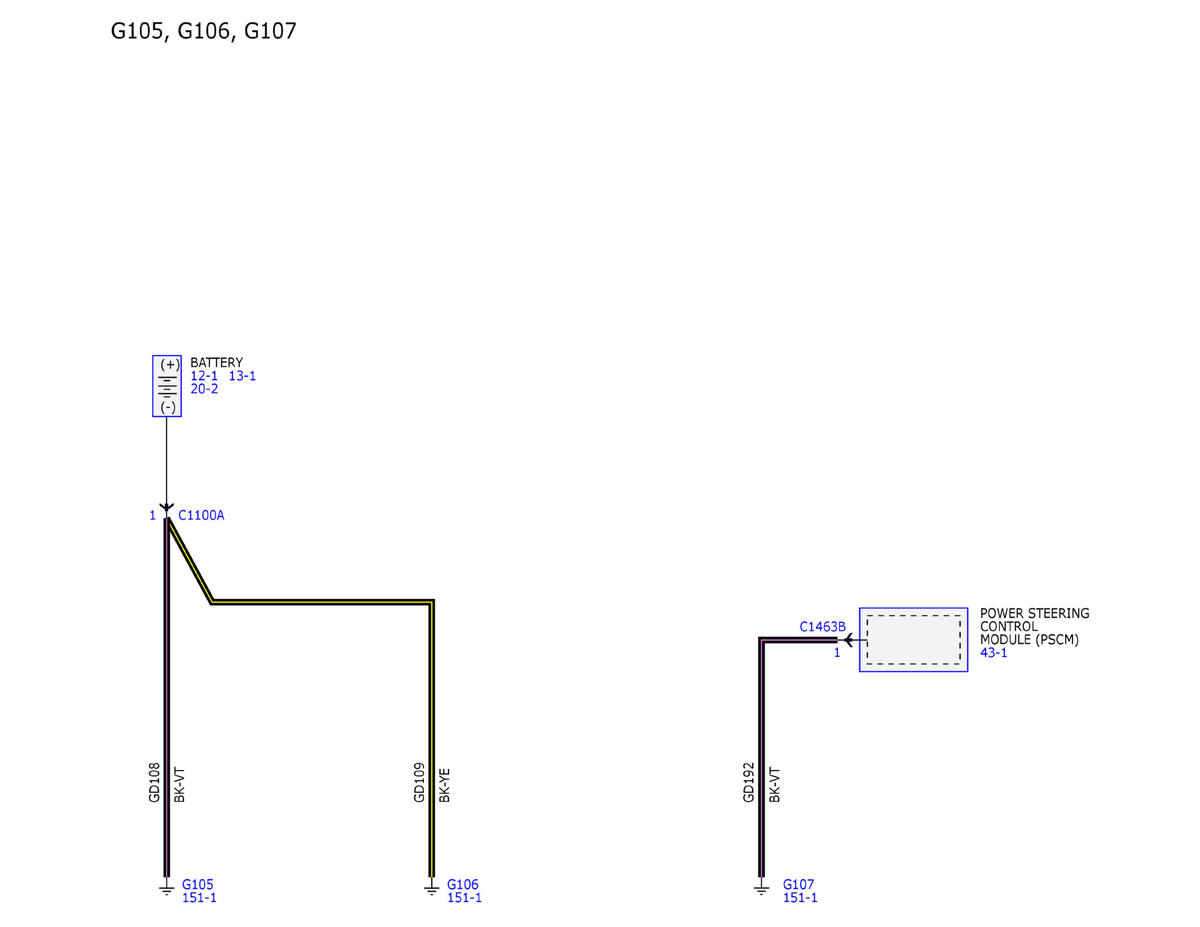

GFDWR108604Courtesy of FORD MOTOR COMPANY

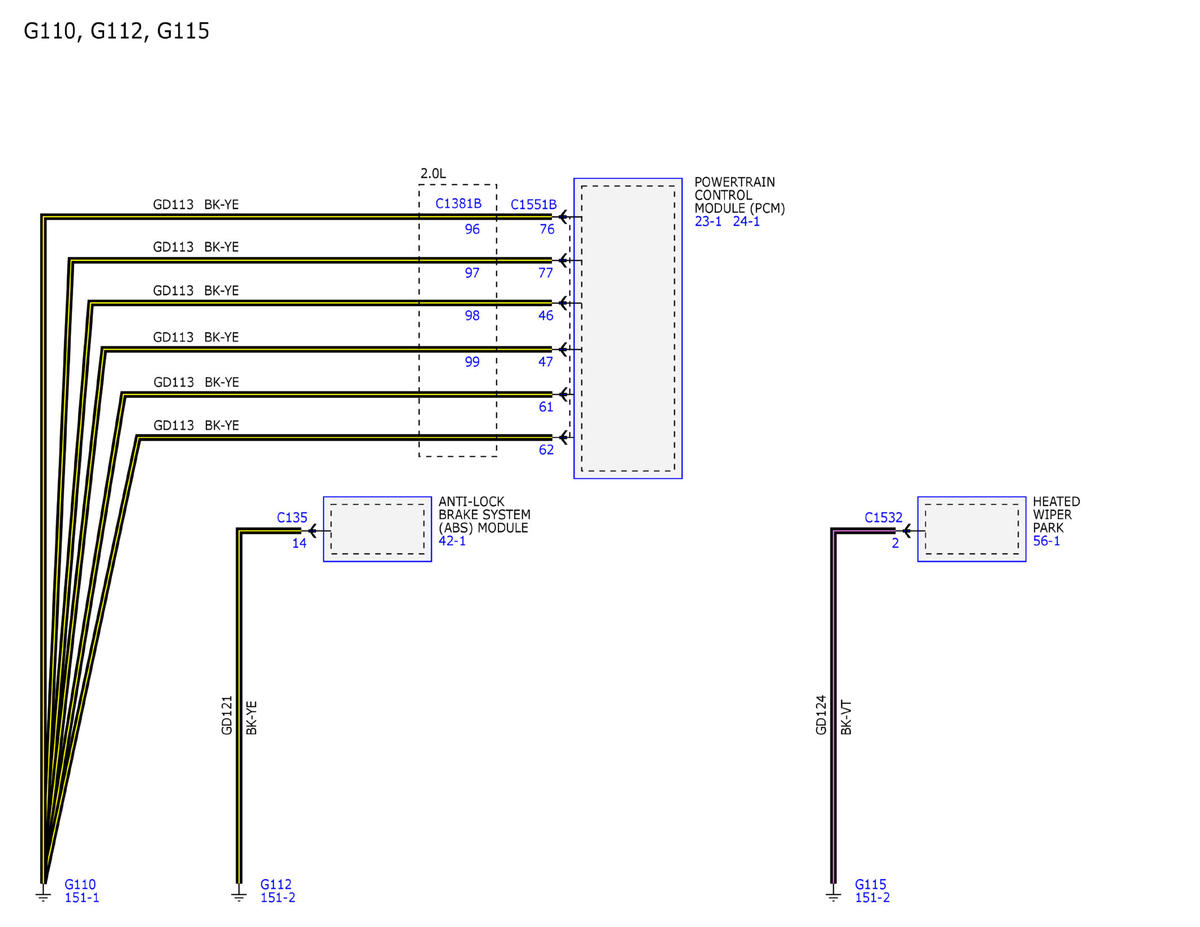

GFDWR108609Courtesy of FORD MOTOR COMPANY

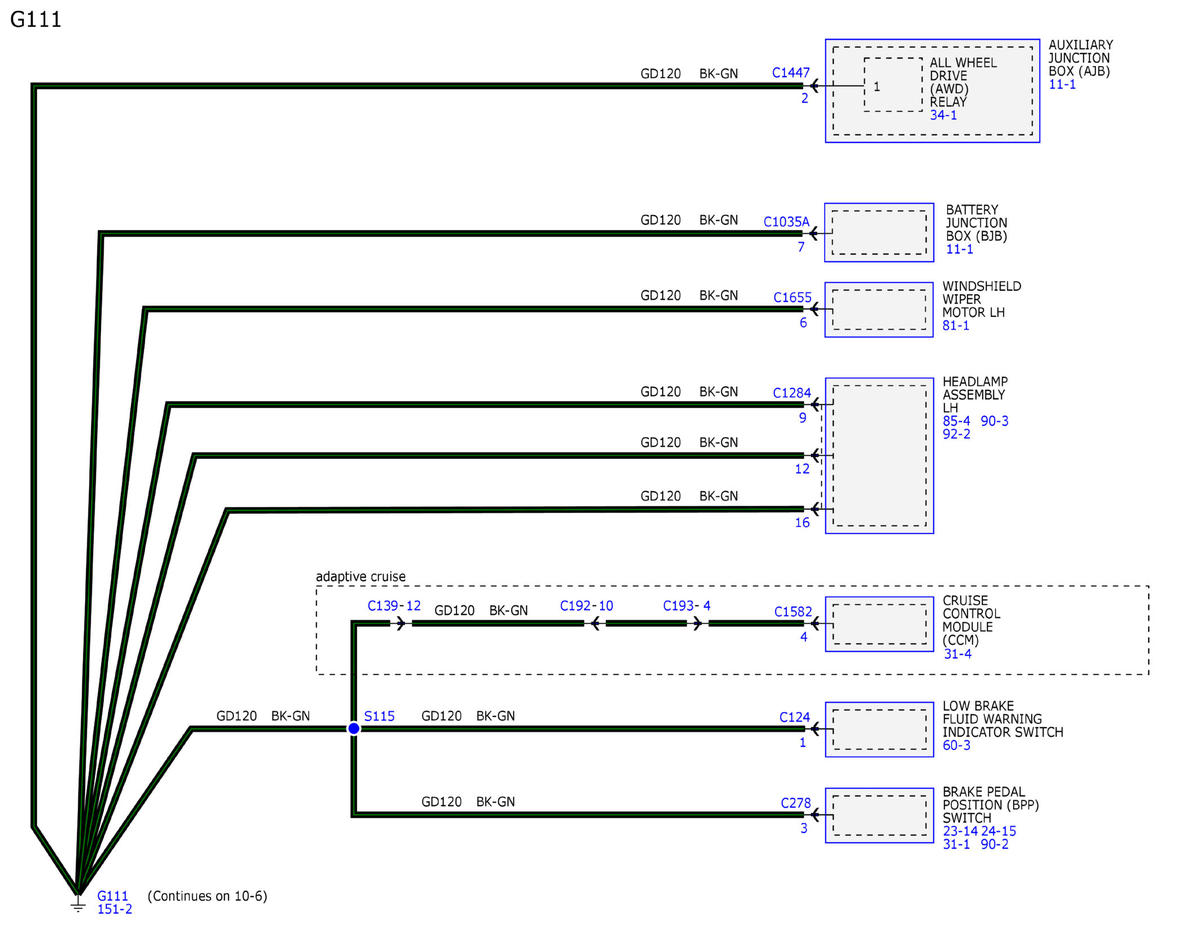

GFDWR108615Courtesy of FORD MOTOR COMPANY

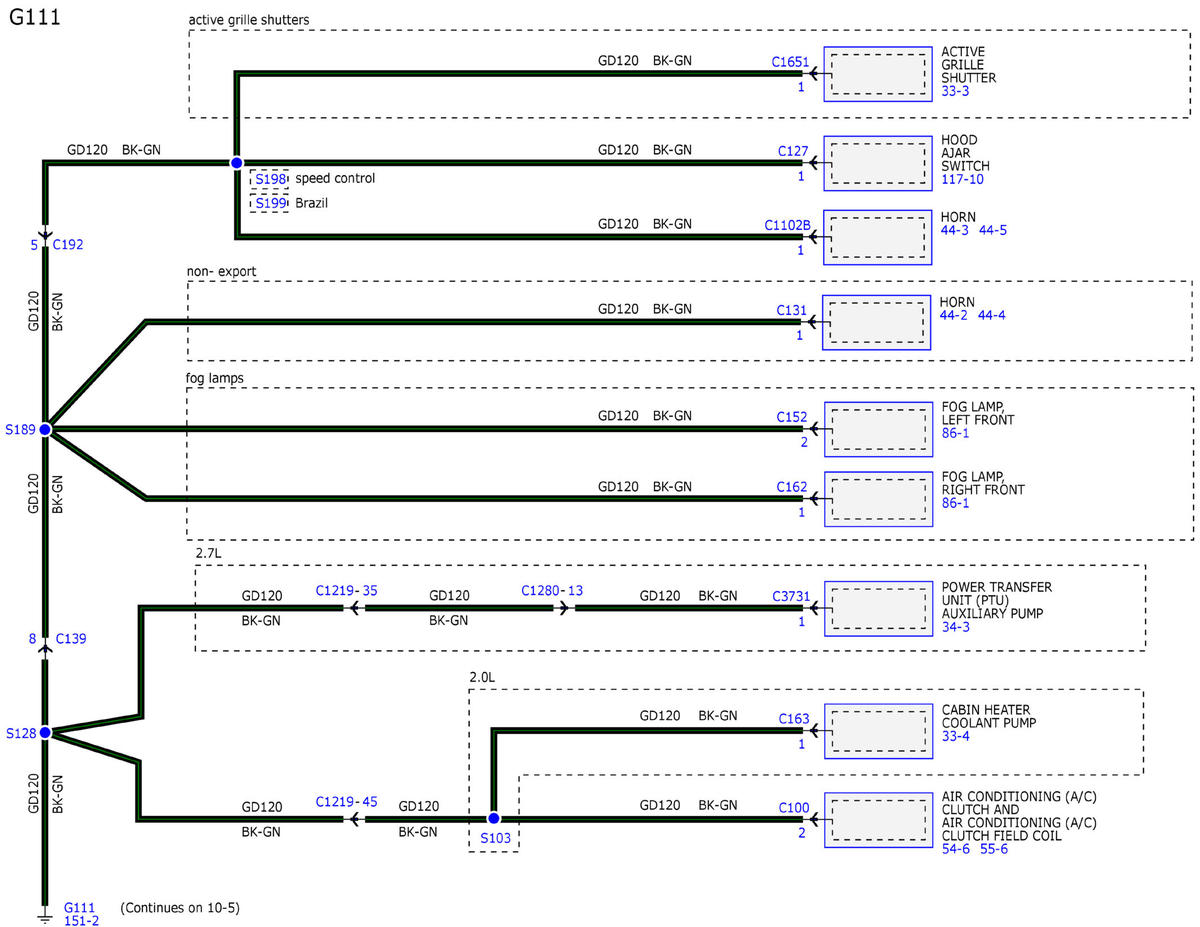

GFDWR108605Courtesy of FORD MOTOR COMPANY

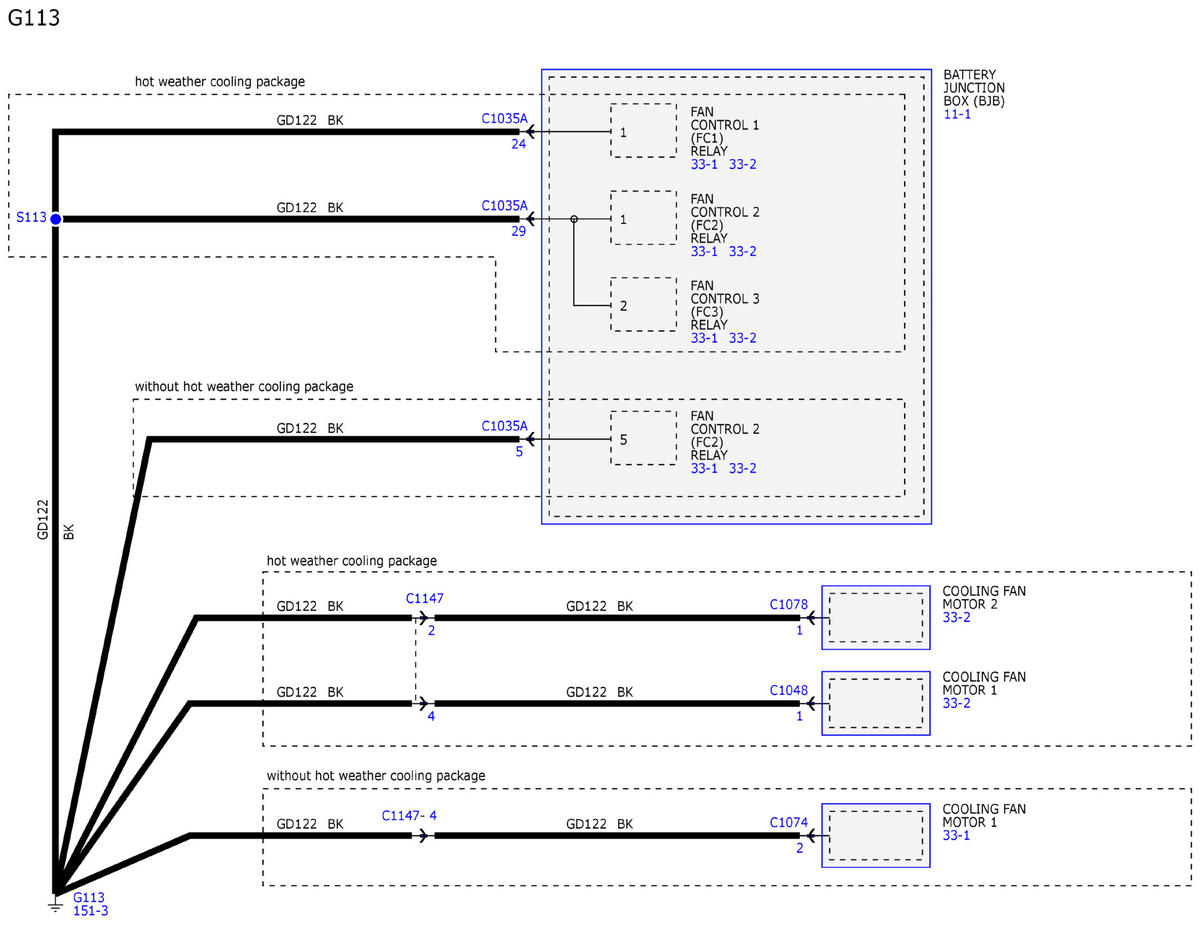

GFDWR108601Courtesy of FORD MOTOR COMPANY

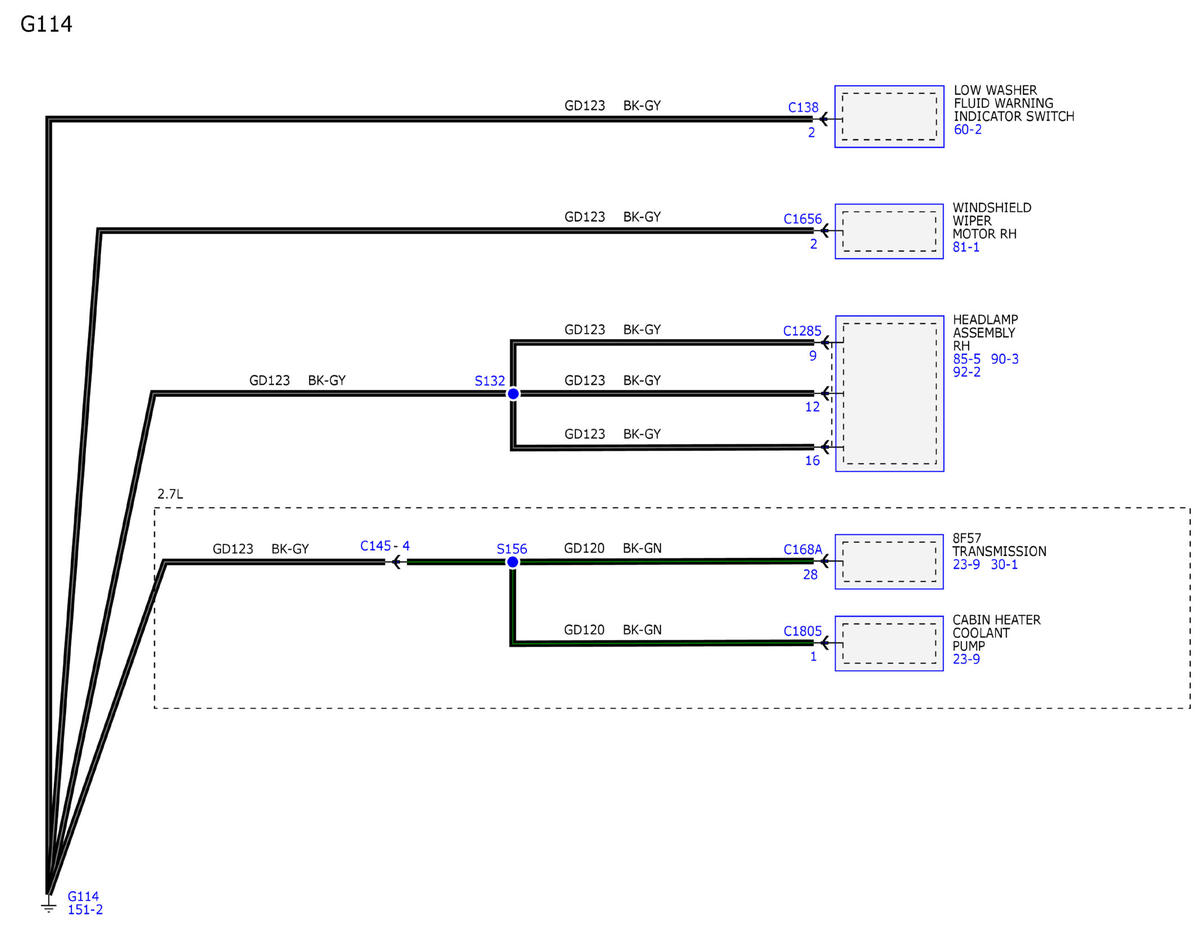

GFDWR108598Courtesy of FORD MOTOR COMPANY

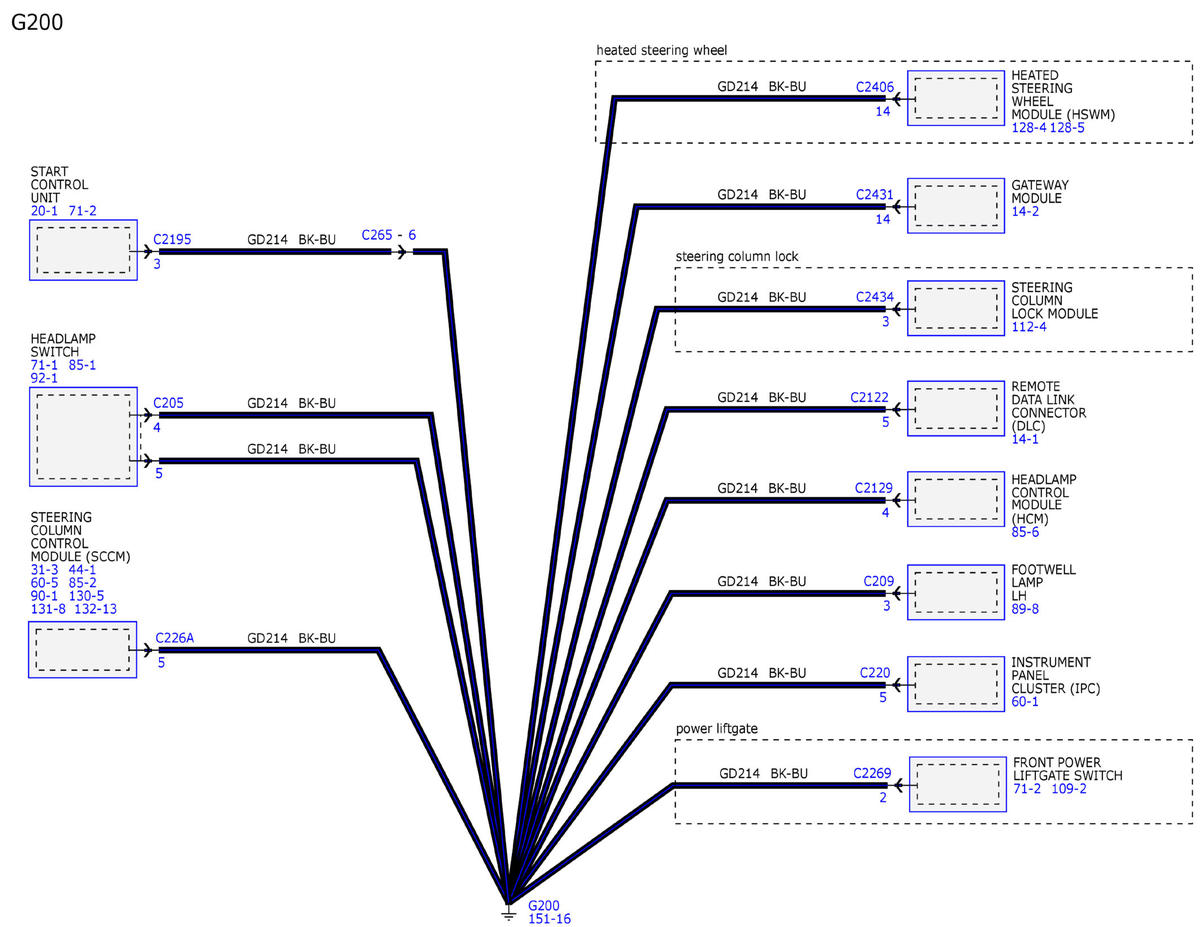

GFDWR108596Courtesy of FORD MOTOR COMPANY

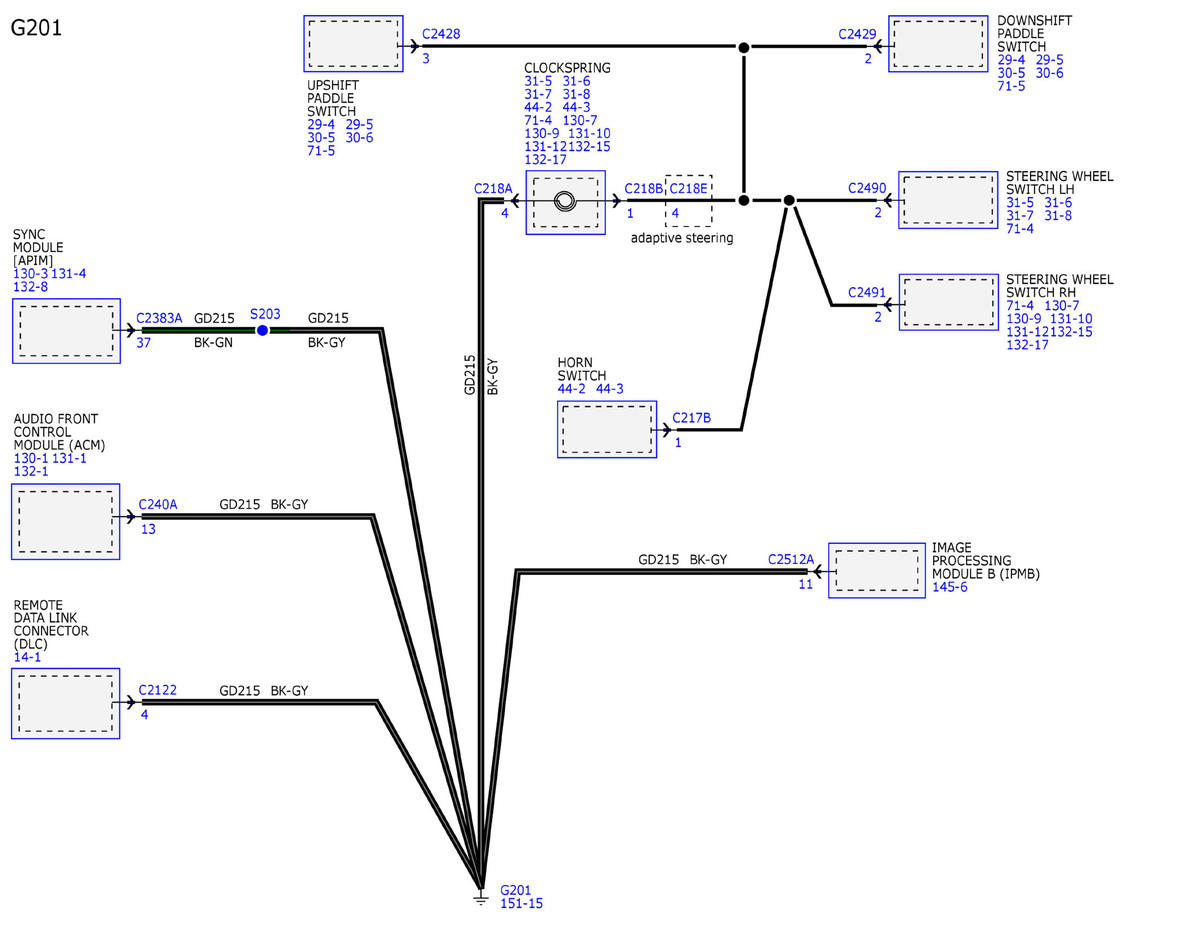

GFDWR108616Courtesy of FORD MOTOR COMPANY

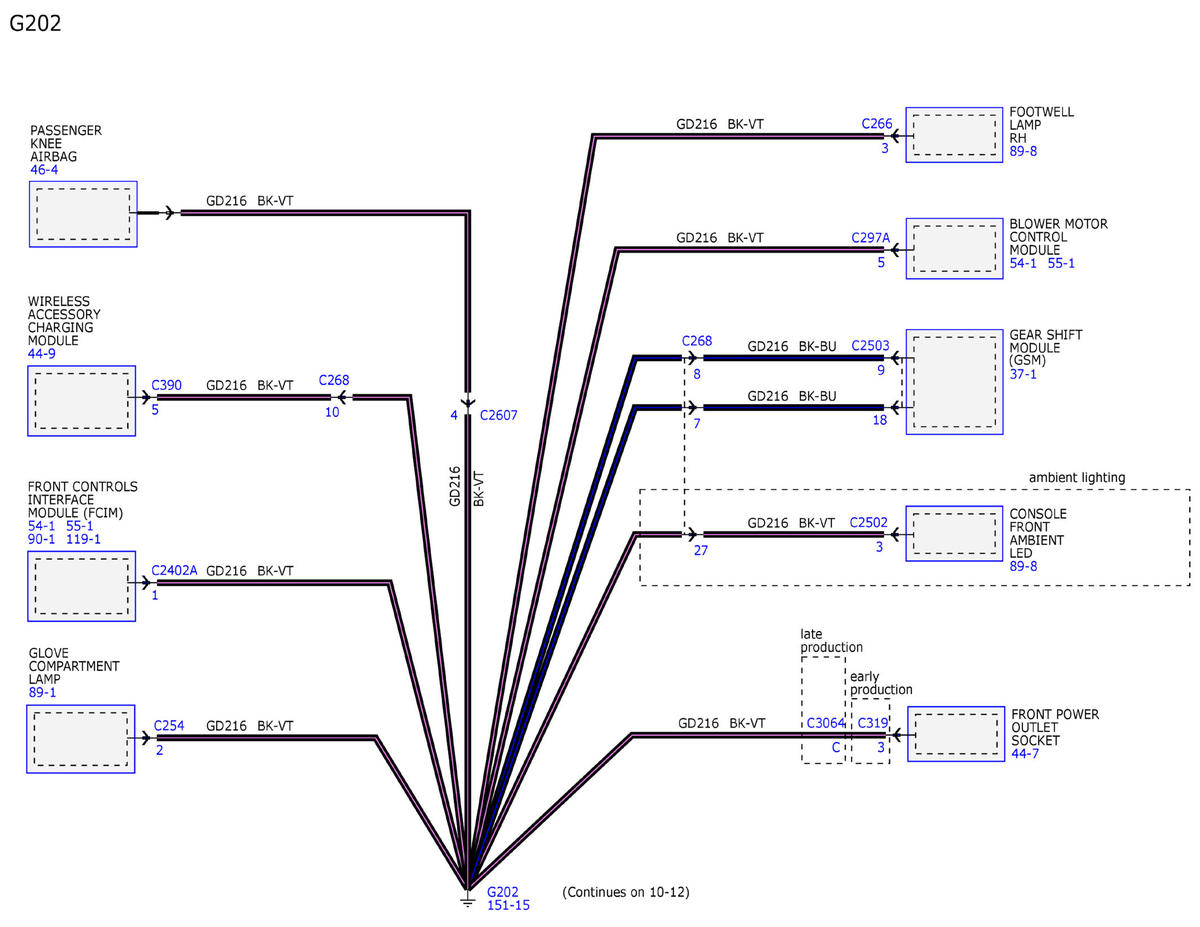

GFDWR108611Courtesy of FORD MOTOR COMPANY

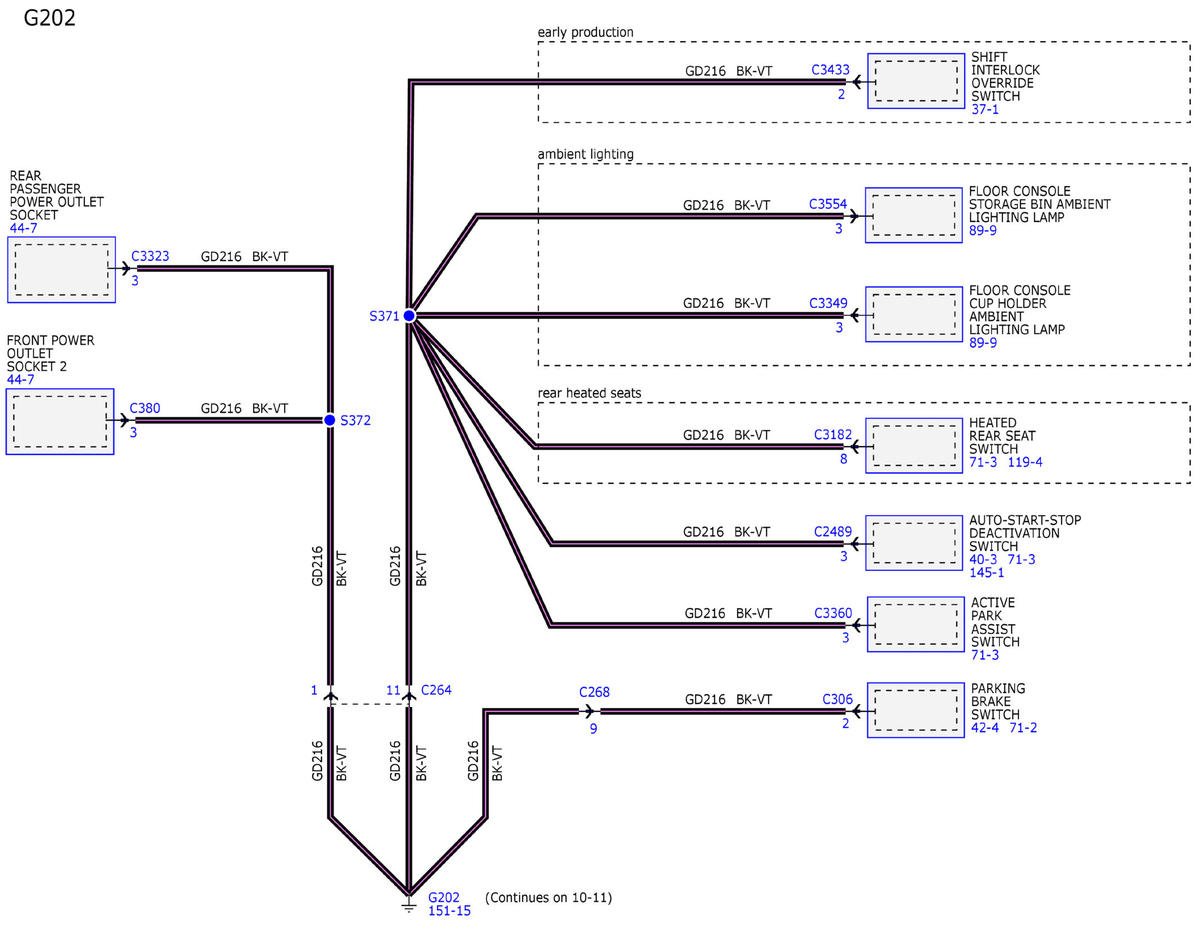

GFDWR108599Courtesy of FORD MOTOR COMPANY

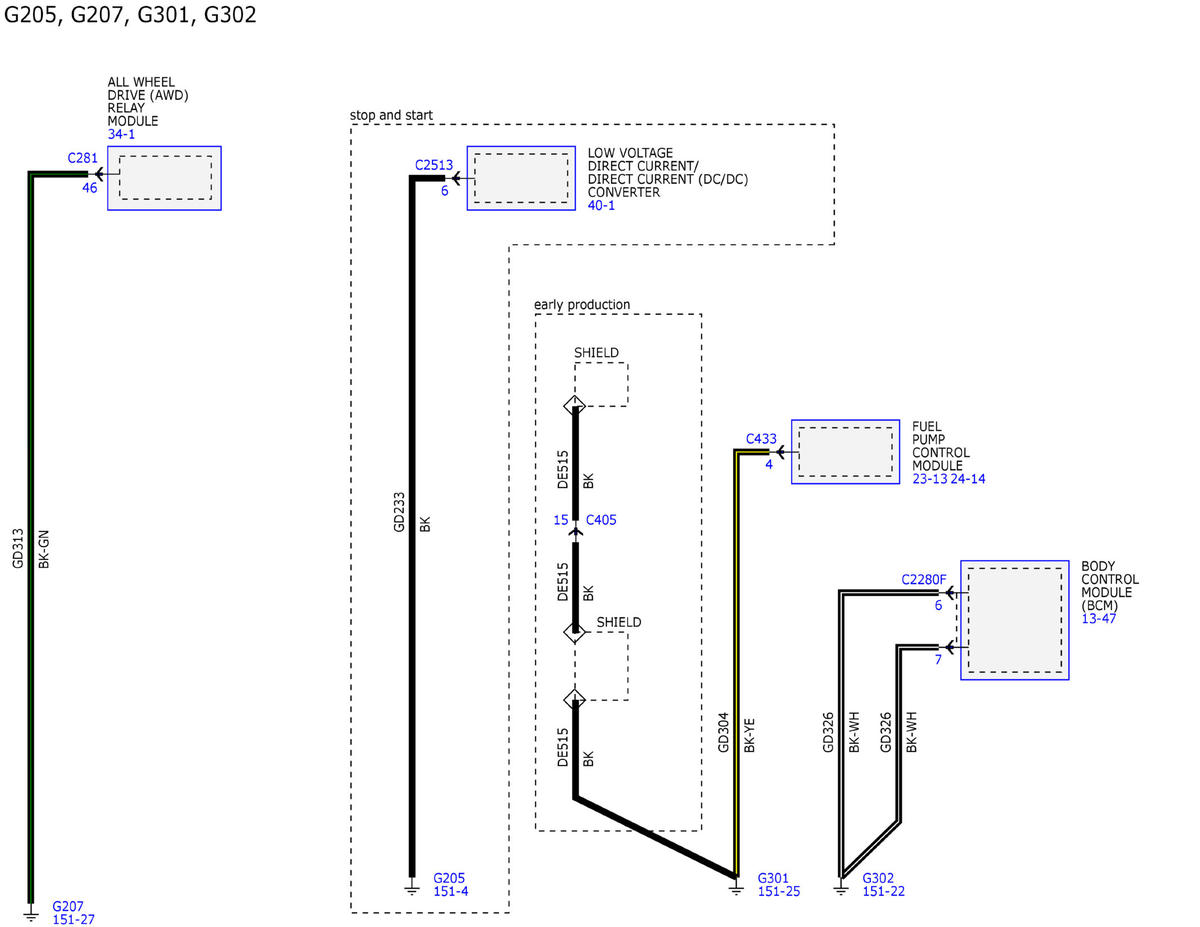

GFDWR108595Courtesy of FORD MOTOR COMPANY

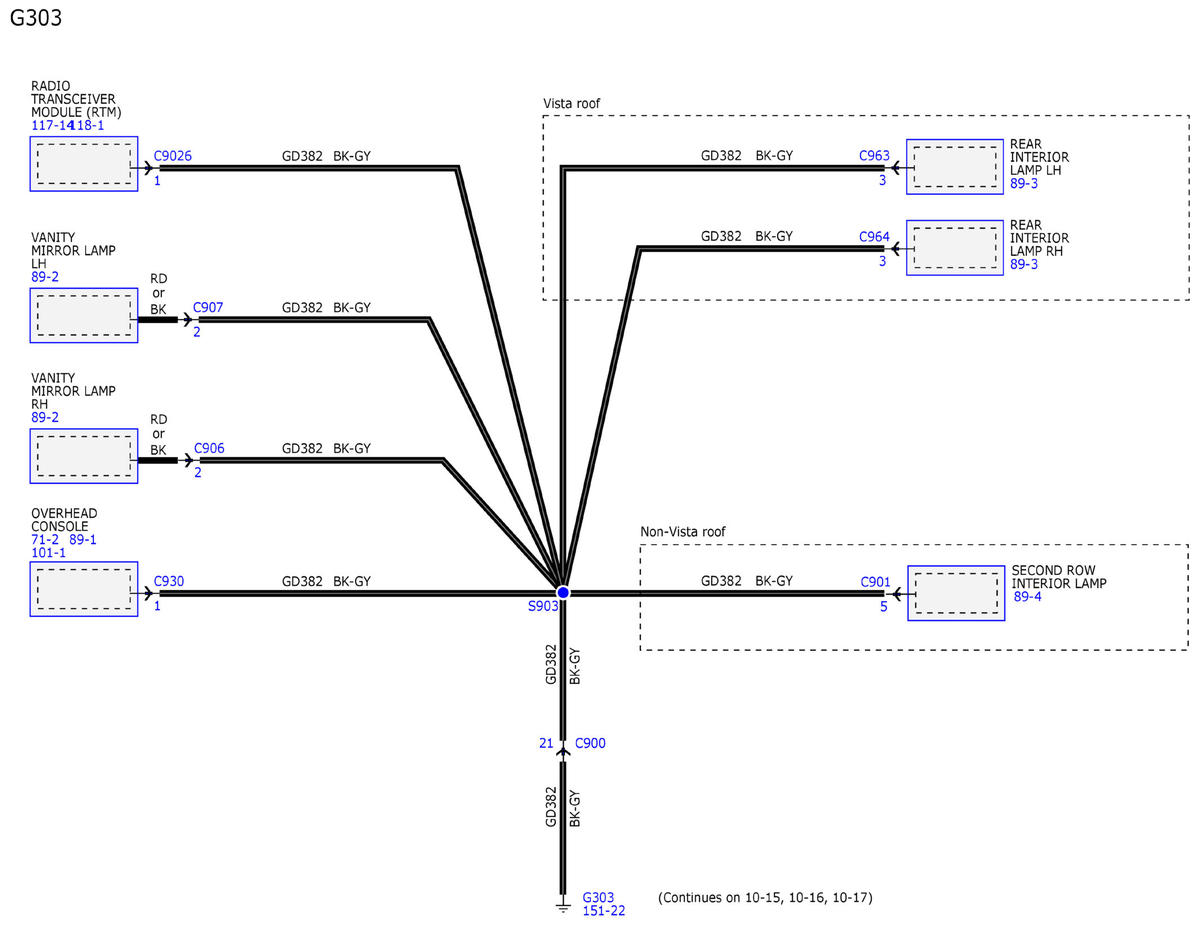

GFDWR108613Courtesy of FORD MOTOR COMPANY

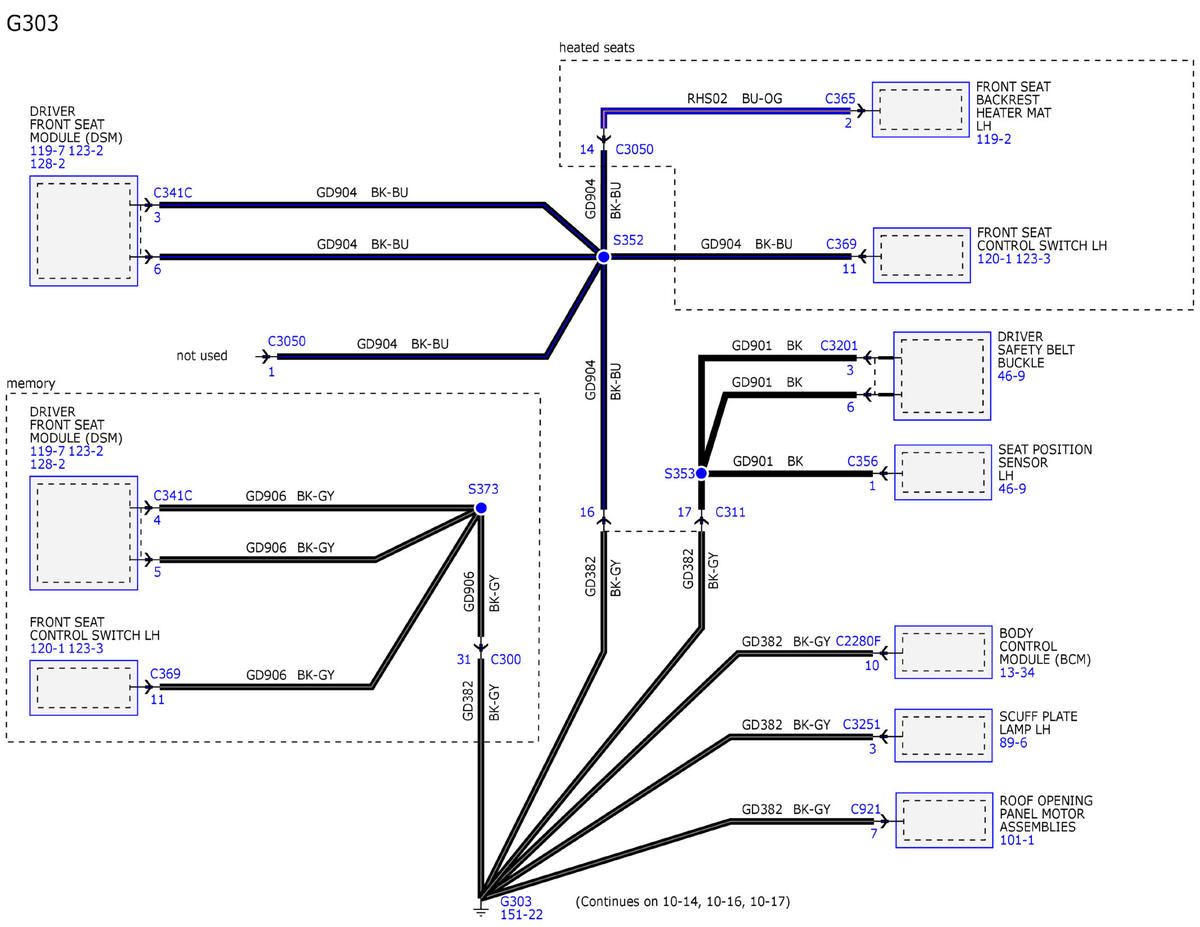

GFDWR108606Courtesy of FORD MOTOR COMPANY

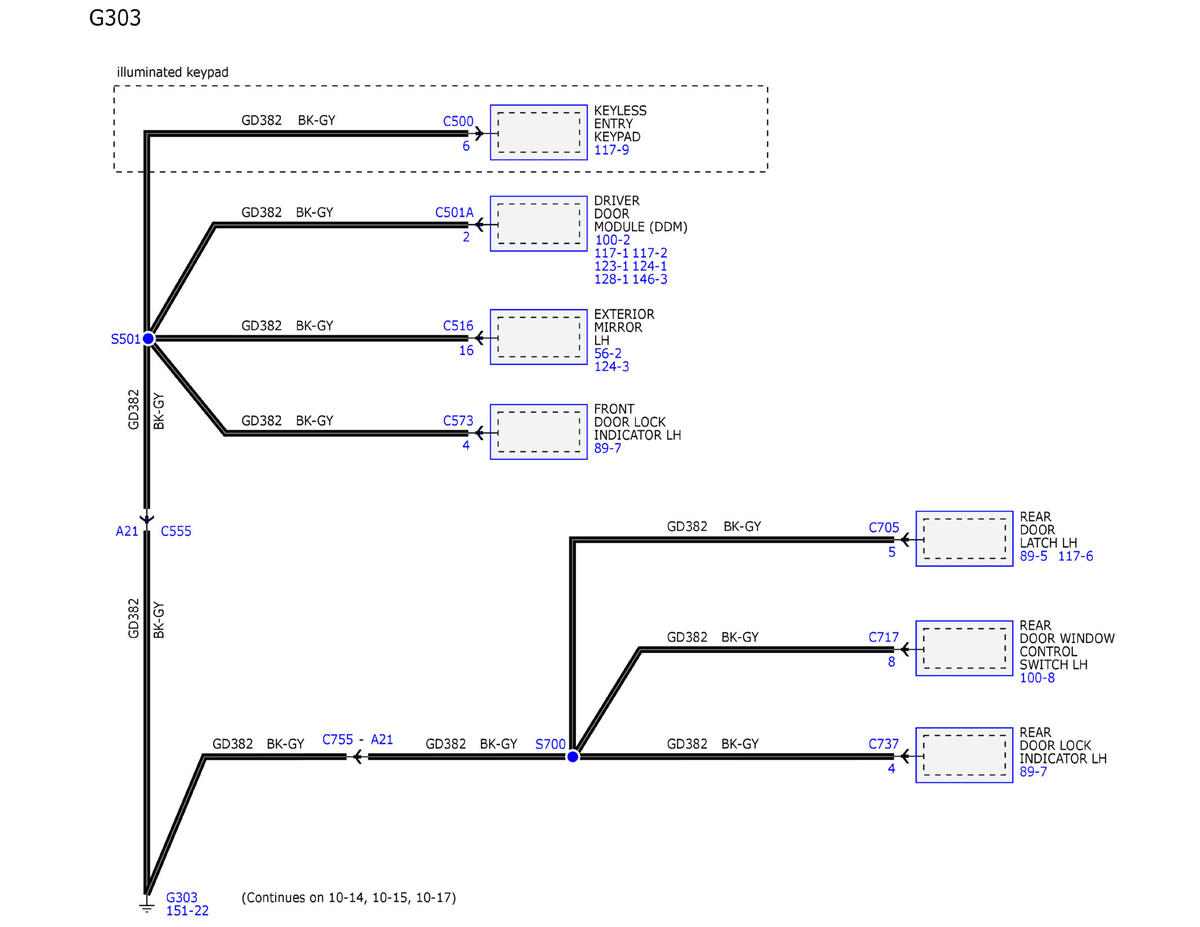

GFDWR108597Courtesy of FORD MOTOR COMPANY

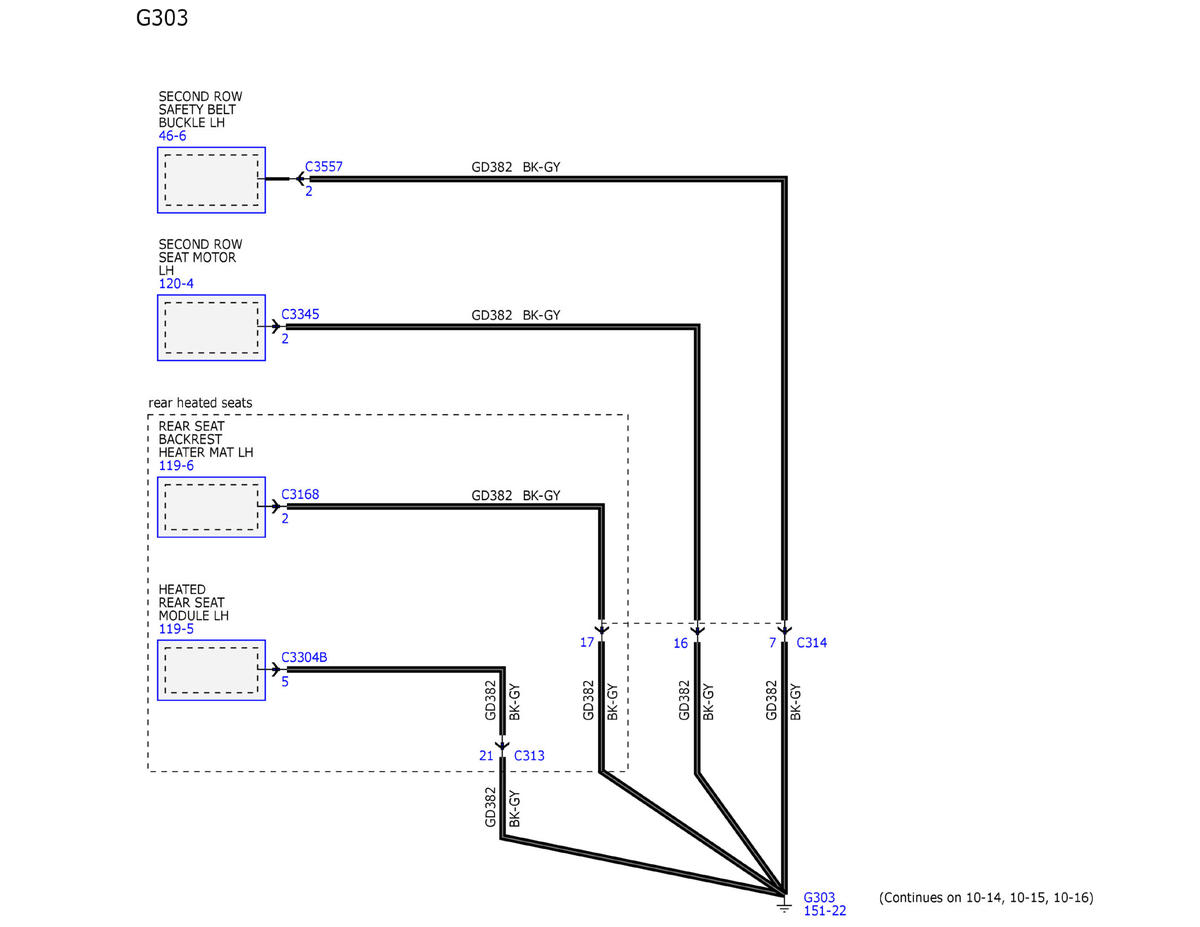

GFDWR108610Courtesy of FORD MOTOR COMPANY

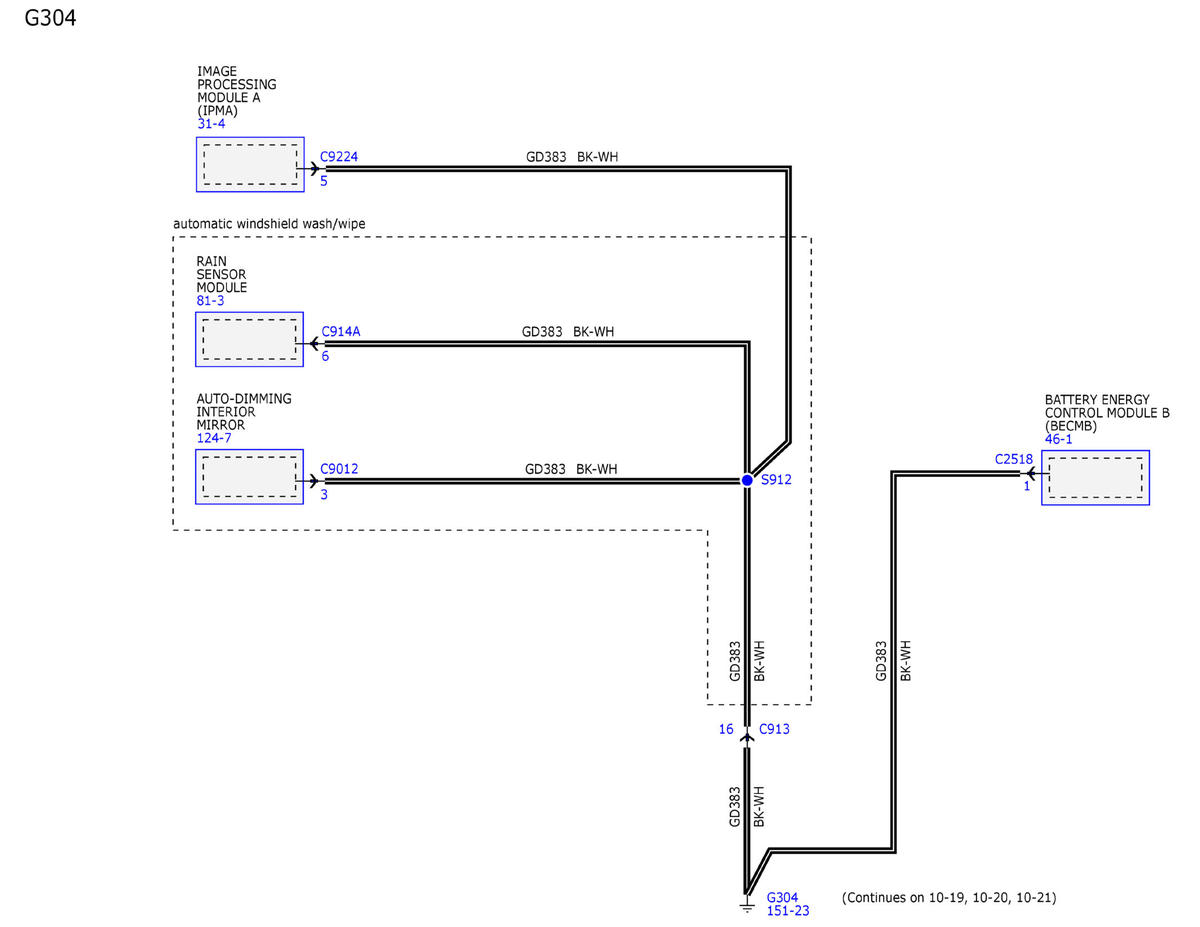

GFDWR108612Courtesy of FORD MOTOR COMPANY

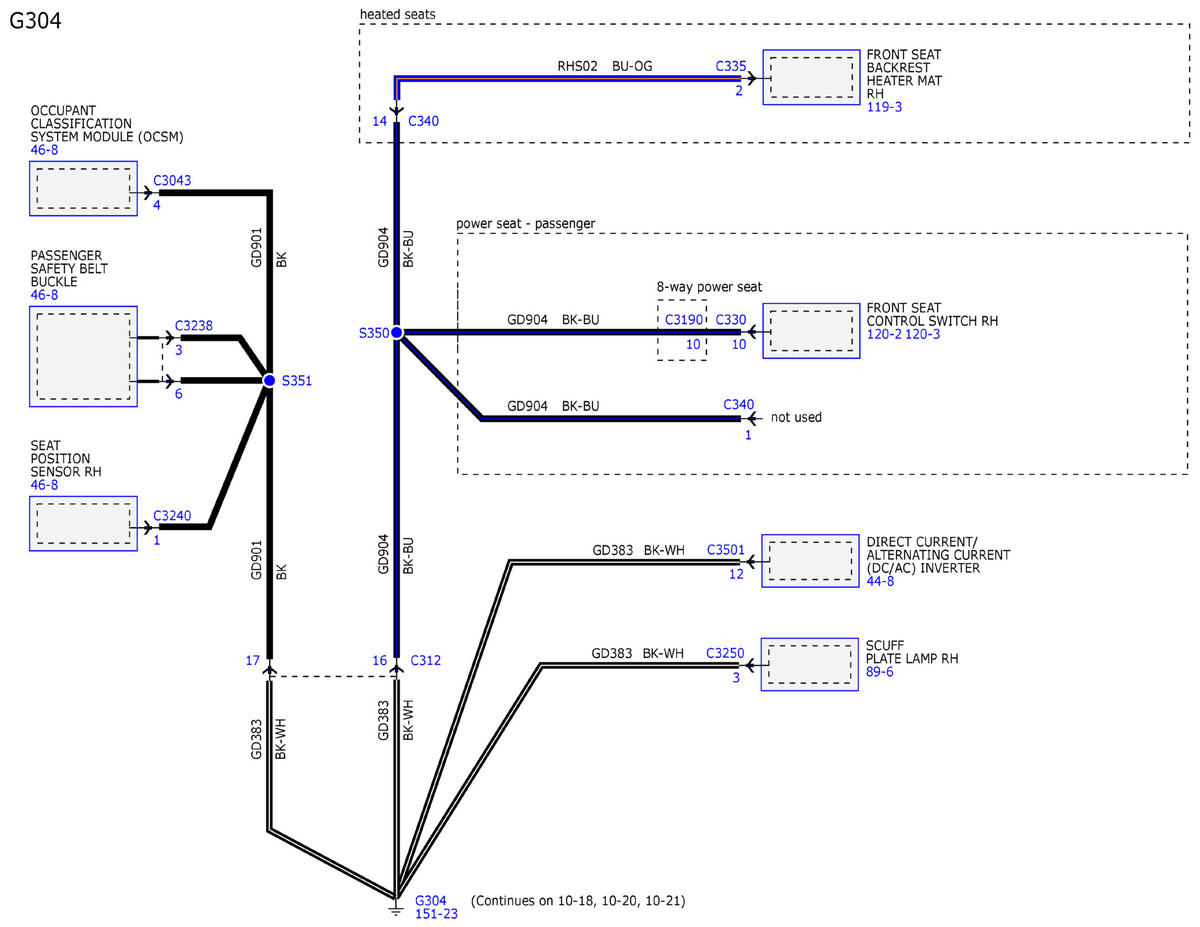

GFDWR108600Courtesy of FORD MOTOR COMPANY

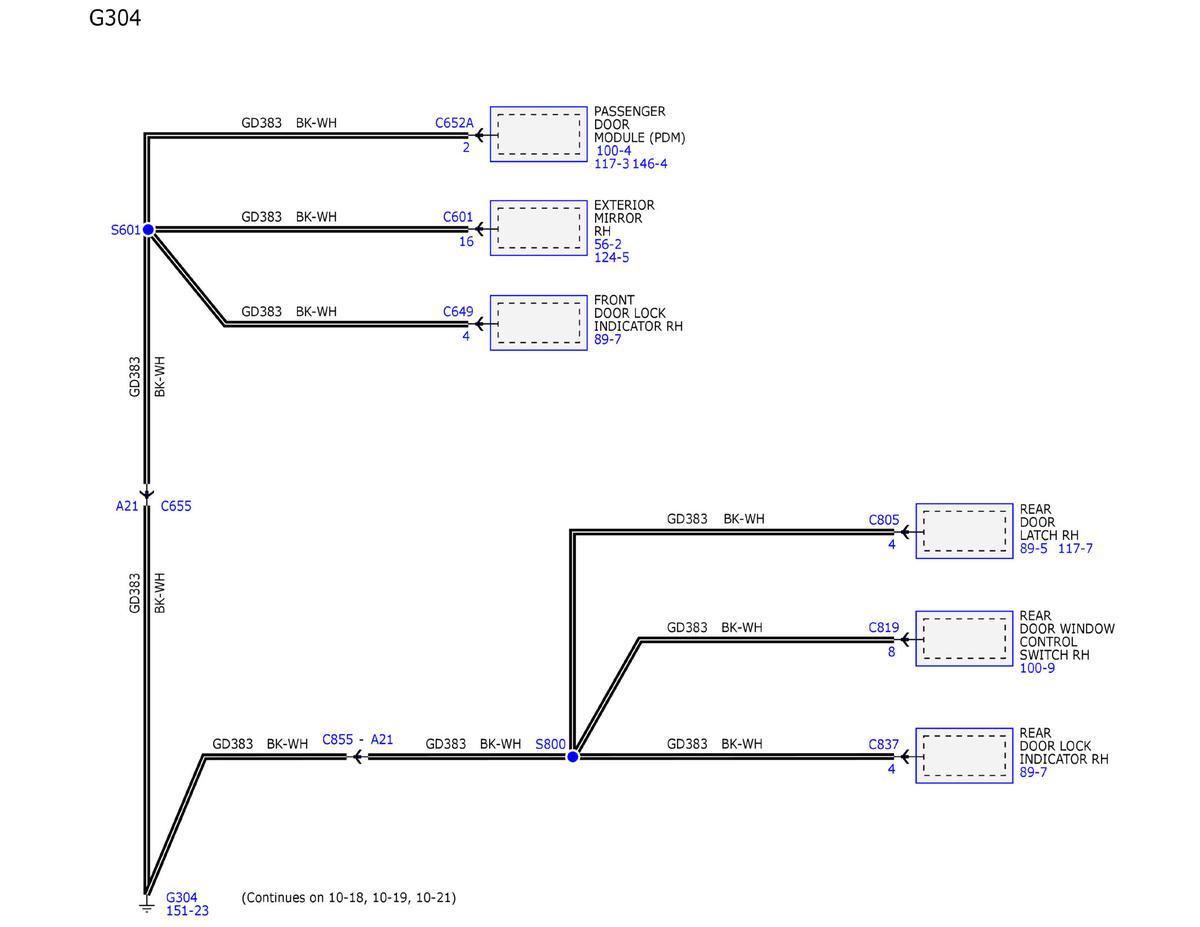

GFDWR108602Courtesy of FORD MOTOR COMPANY

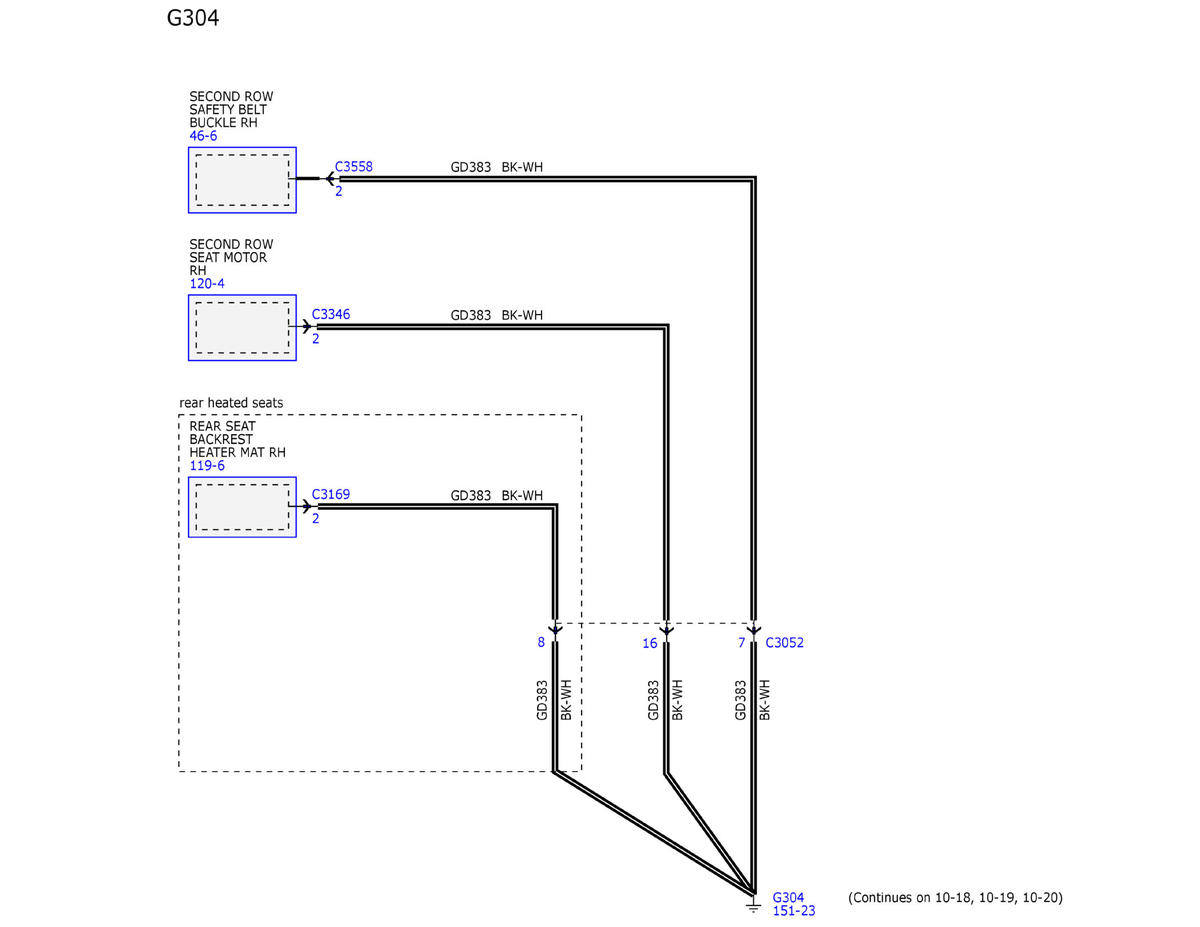

GFDWR108594Courtesy of FORD MOTOR COMPANY

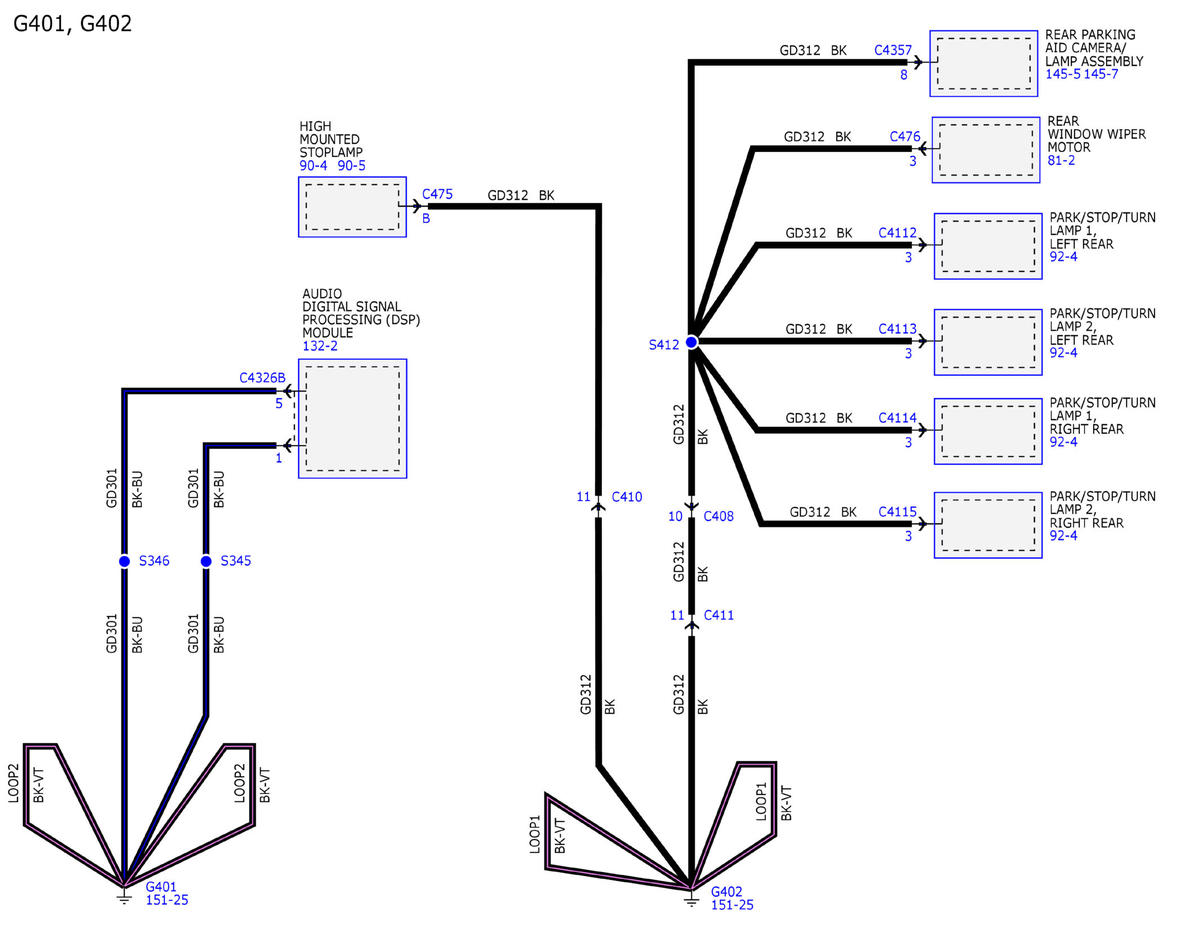

GFDWR108608Courtesy of FORD MOTOR COMPANY

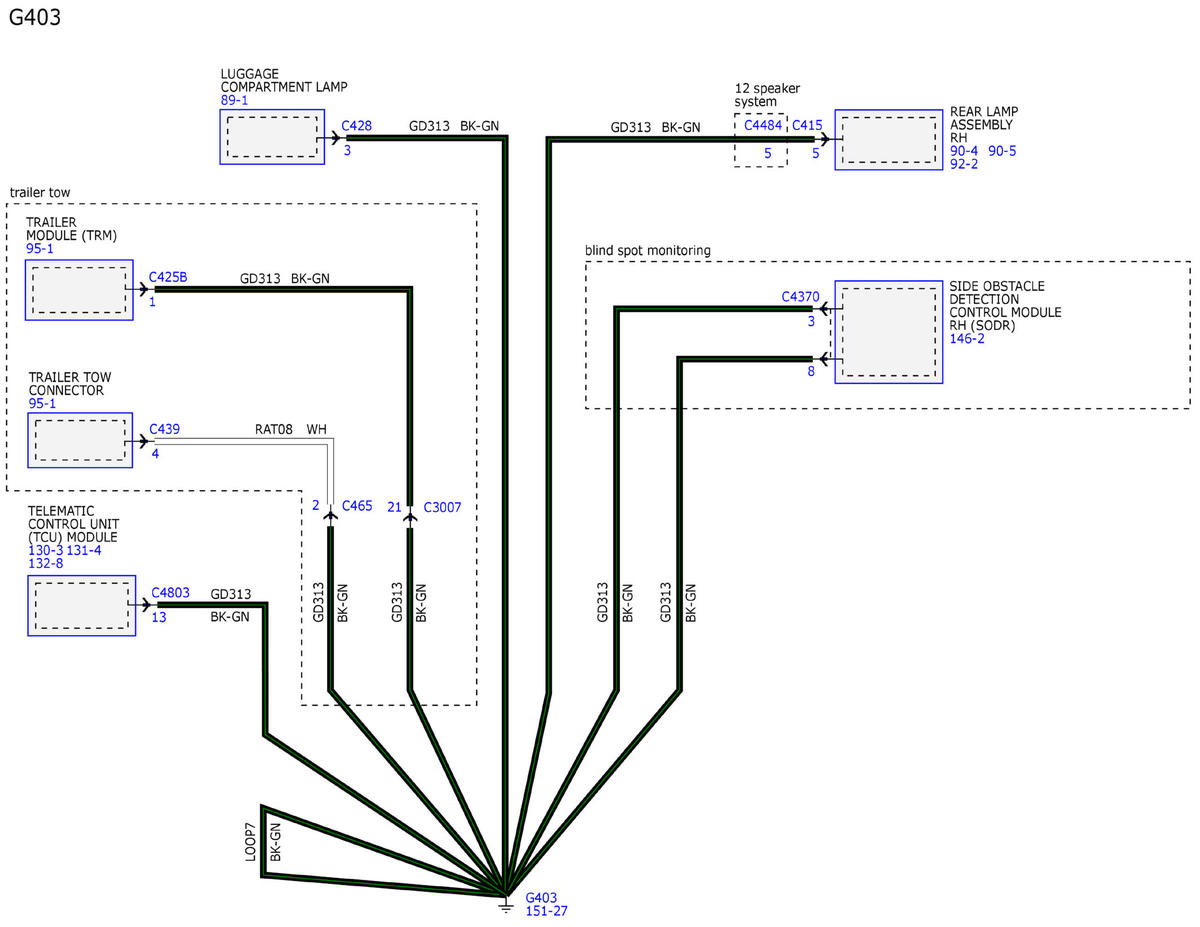

GFDWR108593Courtesy of FORD MOTOR COMPANY

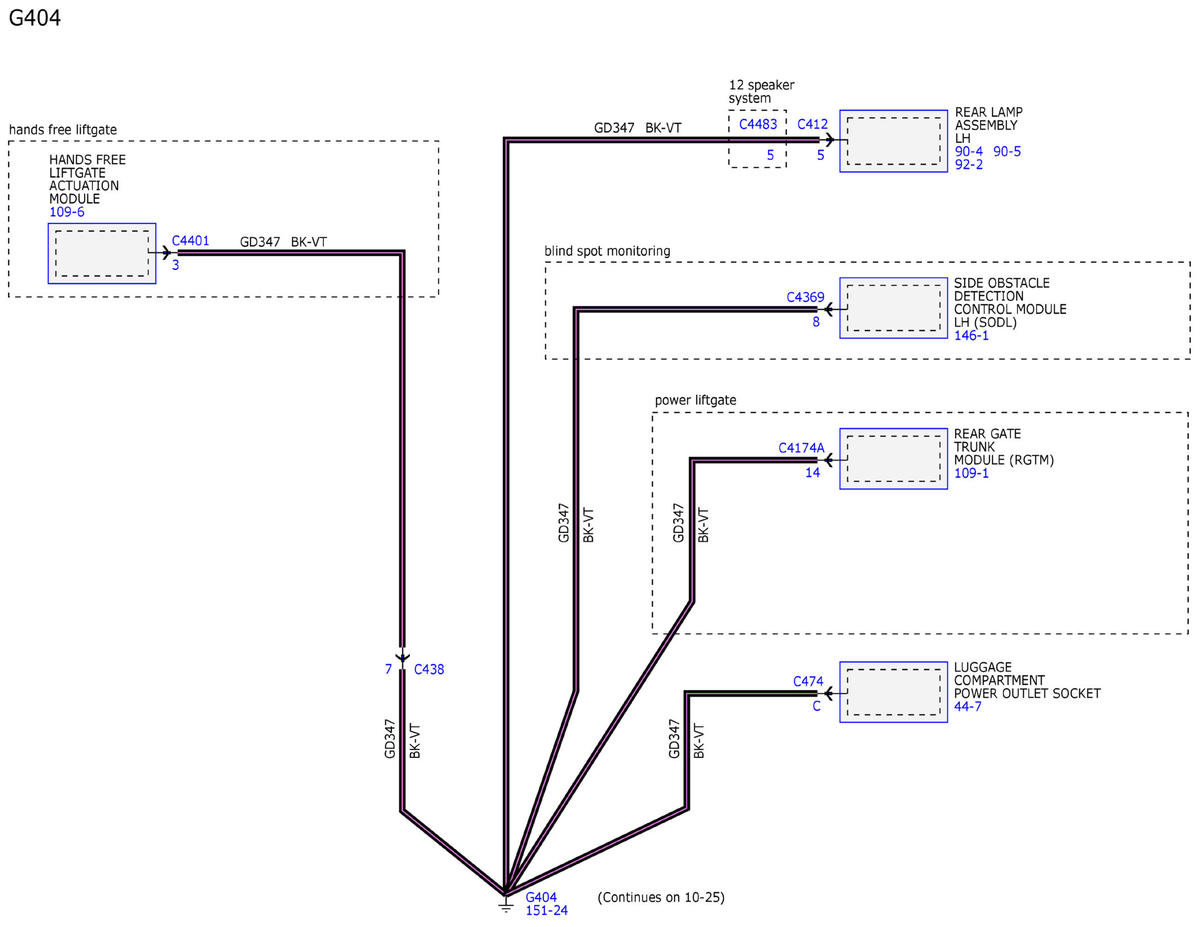

GFDWR108614Courtesy of FORD MOTOR COMPANY

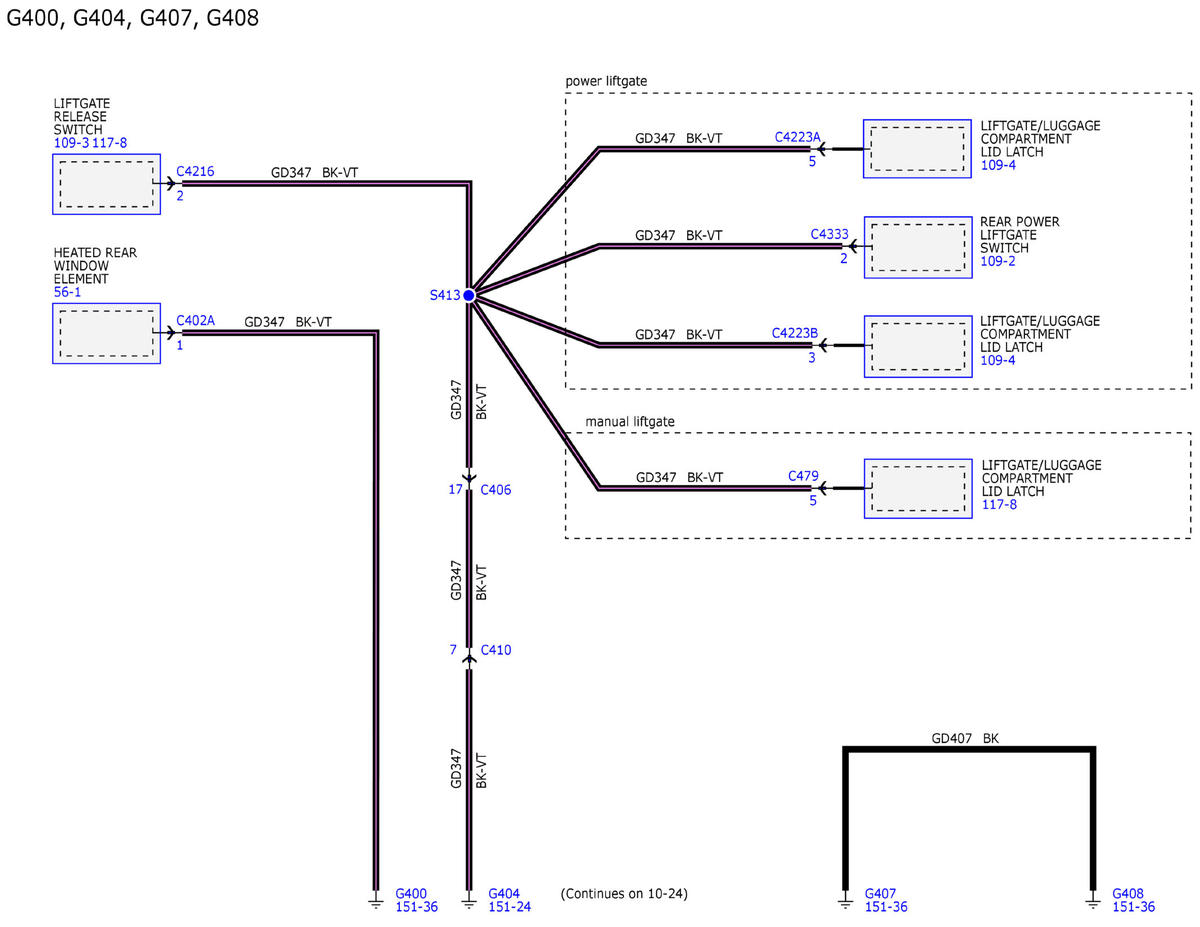

GFDWR108603Courtesy of FORD MOTOR COMPANY
