Front Strut and Spring Assembly: Assembly

WARNING: This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that the components are installed to the position noted before removal.

To assemble, reverse the disassembly procedure.

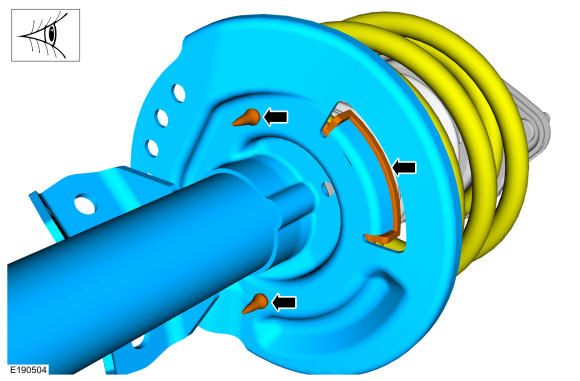

NOTE: Make sure that the spring is centered in the lower spring seat.

Make sure that the lower spring seat is properly installed.

Courtesy of FORD MOTOR COMPANY

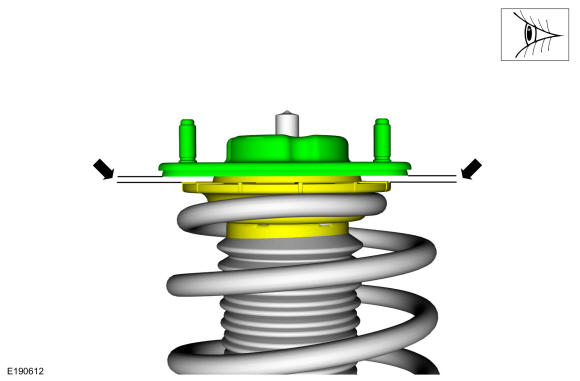

NOTE: If bearing is properly seated, there should be equal spacing on all sides.

Make sure that the bearing is properly seated in the mount.

Courtesy of FORD MOTOR COMPANY

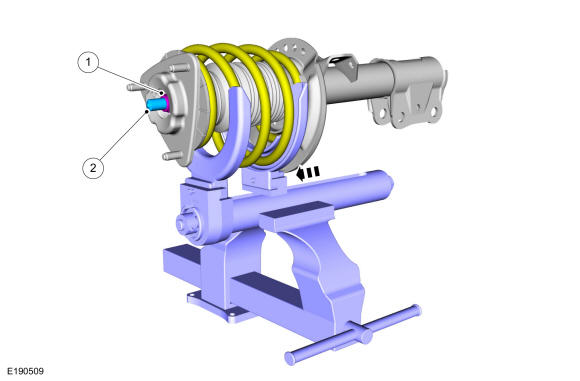

NOTE: Typical strut and spring assembly shown.
1. NOTE: Utilize the hex holding feature to prevent the strut rod from turning while installing the strut rod nut.

  Install the new strut rod nut. Use the General Equipment: Spring Compressor Use the General Equipment: Vise

  Torque: 76 lb.ft (103 Nm)
2. Install the cap.

Courtesy of FORD MOTOR COMPANY
