Radio Transceiver Module (RTM): Removal
WARNING: This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
-
NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.
Using a diagnostic scan tool, begin the PMI process for the RTM following the on-screen instructions.
Coupe

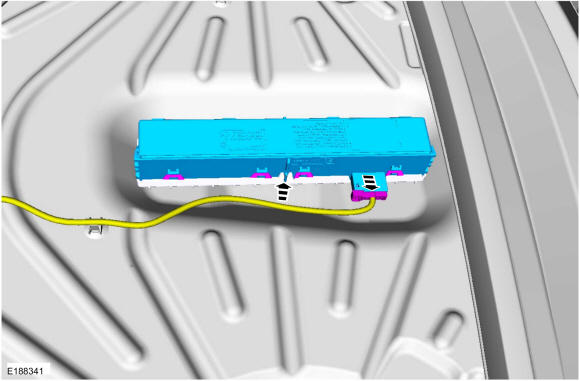

- Remove the parcel shelf. Refer to: Parcel Shelf - Coupe .
- Release the tabs and remove the RTM.
- Disconnect the electrical connectors.
Convertible

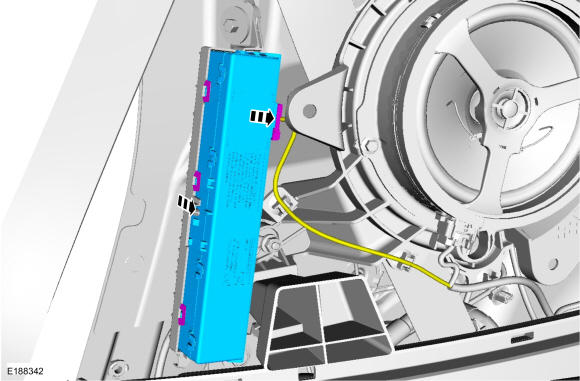

- Remove the loadspace trim panel. Refer to: Loadspace Trim Panel - Convertible .
- Release the tabs and remove the RTM.
- Disconnect the electrical connectors.
