Image Processing Module A (IPMA): Removal

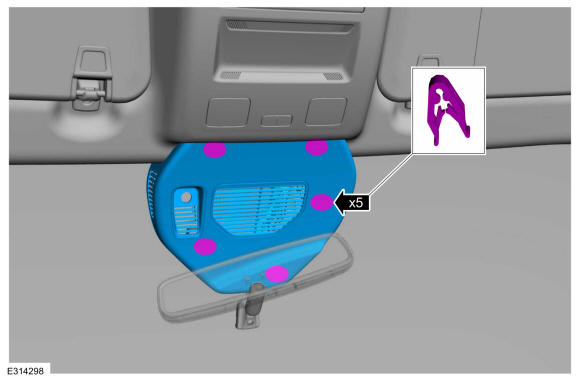

  1. Release the clips and remove the IPMA cover.
    GFD477453Courtesy of FORD MOTOR COMPANY

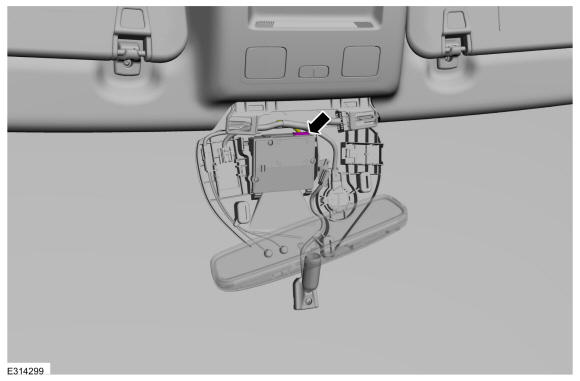

  2. Disconnect the electrical connector.
    GFD477454Courtesy of FORD MOTOR COMPANY

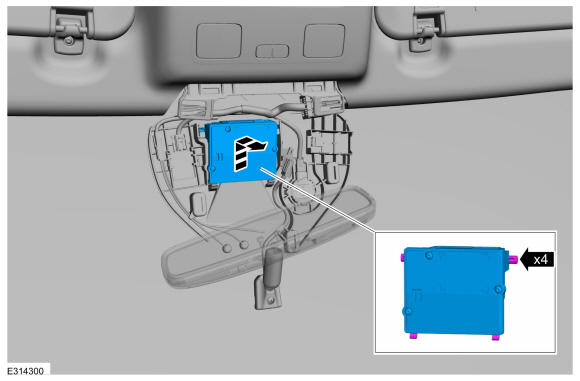

  3. Release the tabs and remove the IPMA.
GFD477455Courtesy of FORD MOTOR COMPANY
