System Diagram - Power Windows

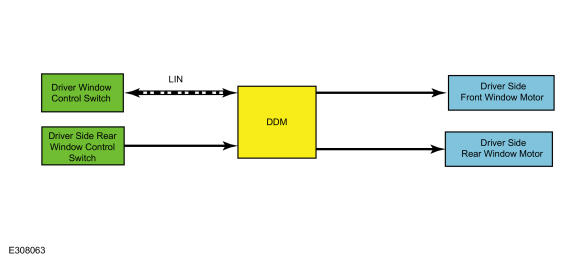

Driver Side Power Windows

GFD477833Courtesy of FORD MOTOR COMPANY

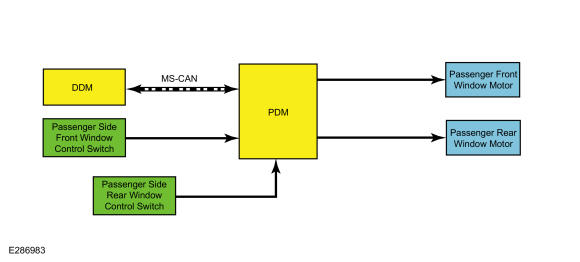

Passenger Side Power Windows

GFD477834Courtesy of FORD MOTOR COMPANY
