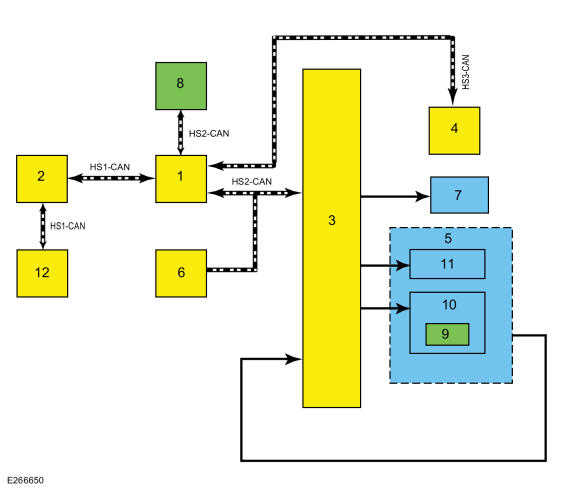

System Diagram
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
GWM |
| 2 |
PCM |
| 3 |
TCCM |
| 4 |
IPC |
| 5 |
Transfer Case |
| 6 |
ABS module |
| 7 |
IWE solenoid |
| 8 |
ATCM |
| 9 |
Shift motor position sensors (2-Speed TOD Only) |
| 10 |
Shift motor (2-speed TOD only) |
| 11 |
Clutch solenoid |
| 12 |
TCM |
