Front Strut and Spring Assembly: Disassembly
WARNING: This page is about a different car, the 2019 Ford Police Interceptor Utility and 2019 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not apply heat or flame to the shock absorber or strut tube. The shock absorber and strut tube are gas pressurized and could explode if heated. Failure to follow this instruction may result in serious personal injury.
WARNING:
Keep all body parts clear of shock absorbers or strut rods. Shock absorbers or struts can extend unassisted. Failure to follow this instruction may result in serious personal injury.
NOTE:
Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
NOTE:
When installing a suitable spring compressor, use care not to damage the spring coating.
- Remove the front strut and spring assembly. Refer to: Front Strut and Spring Assembly .
-
WARNING: Coil springs and strut assemblies are compressed under extreme load. Always use a spring compressor for disassembly. Follow procedure instructions carefully and make sure the spring compressor has the correct spring plates or adapters. Failure to follow these instructions may result in serious personal injury.

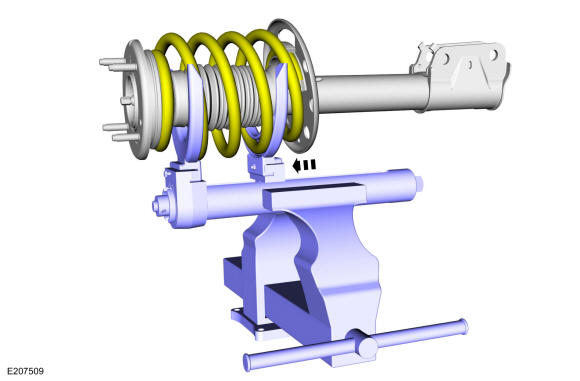

Compress the coil spring enough to relieve the tension on the strut assembly. Use the General Equipment: Spring Compressor Use the General Equipment: Vise
-
NOTE: Note the position of the components before removal.NOTE: Do not use an impact wrench on the strut rod nut.NOTE: Use the hex-holding feature to prevent the strut rod from turning while removing the strut rod nut.

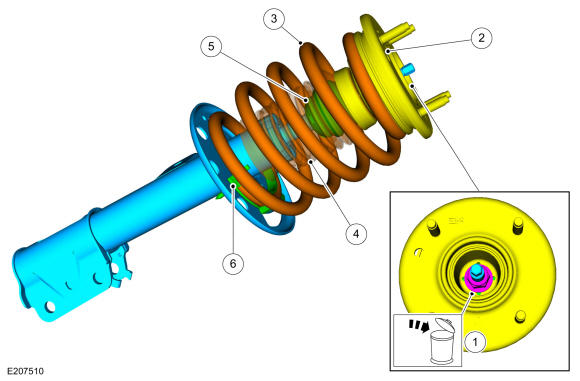

Remove and discard the strut rod nut. Disassemble the front strut and spring assembly in the order shown.
