Pinpoint Test B: Powertrain Control Module (Pcm) Power Relay: Introduction

This pinpoint test is intended to diagnose the following:

Fig 1: Powertrain Control Module Power (PCM Power) Relay Connector
G13533187Courtesy of FORD MOTOR CO.

Harness Side

Circuit Pin
B+ (Battery Positive Voltage) 5
B+ (Battery Positive Voltage) 1
PCMRC (PCM Relay Control) 2
VPWR (Vehicle Power) 3

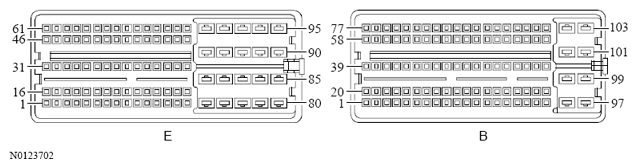

Fig 2: Powertrain Control Module (PCM) Connector - For PCM Connector Views
G13533188Courtesy of FORD MOTOR CO.

Harness Side

Circuit Pin
PCMRC (PCM Relay Control) B25
ISP-R (Ignition Switch Position Run) B64
VPWR (Vehicle Power) B100
VPWR (Vehicle Power) B102
VPWR (Vehicle Power) B101
