Powertrain Control Module (PCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Configuration - System Operation and Component Description .

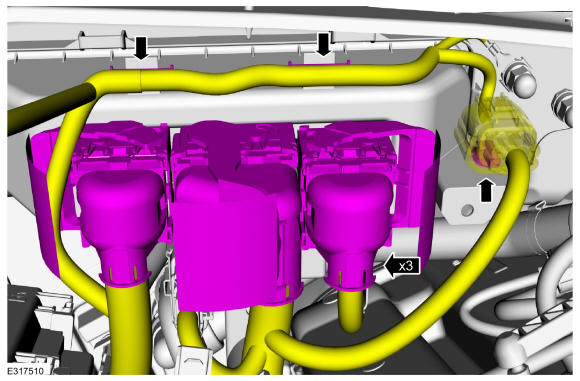

Disconnect the PCM electrical connectors and pushpin retainers from the bracket..

Courtesy of FORD MOTOR COMPANY

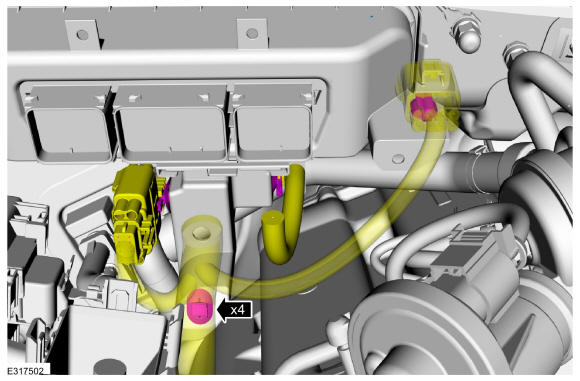

Remove pushpins and position harness aside.

Courtesy of FORD MOTOR COMPANY

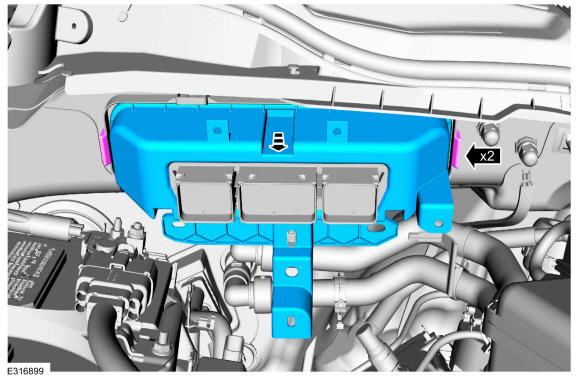

Release the tabs and remove the PCM cover.

Courtesy of FORD MOTOR COMPANY

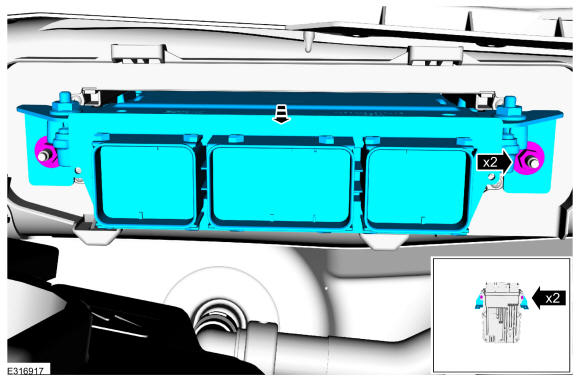

- Remove the nuts and the PCM.
  Torque: 89 lb.in (10 Nm)
- Remove the mounting bracket from the PCM.
  Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
