Transfer Case Control Module (TCCM): Removal

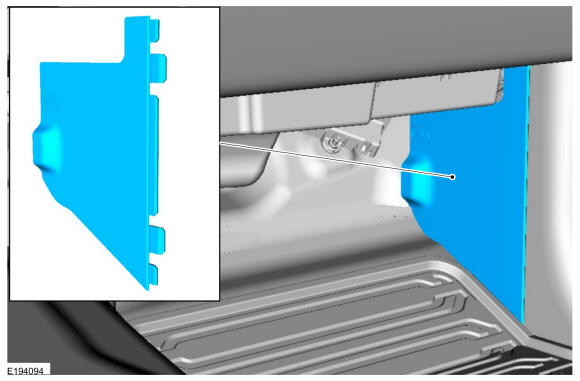

  1. Remove the CJB cover.
    GFD497914Courtesy of FORD MOTOR COMPANY

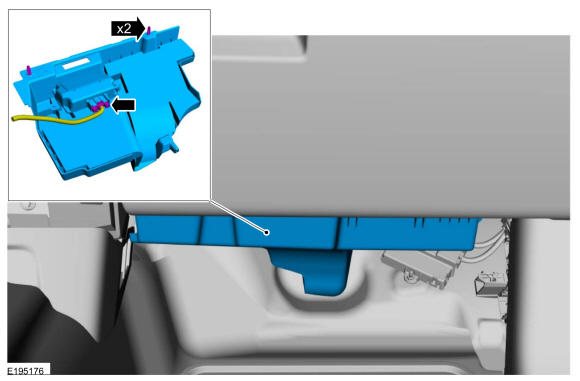

  2. Remove and disconnect the lower access panel.
    GFD497915Courtesy of FORD MOTOR COMPANY

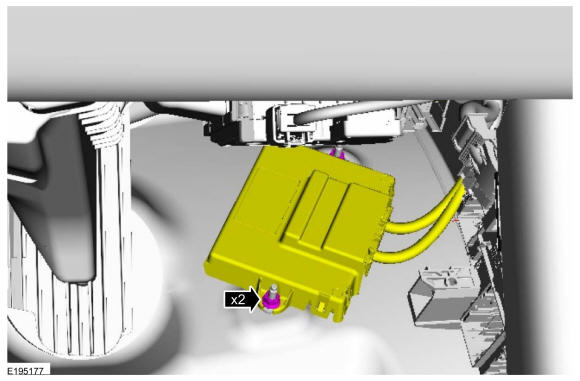

  3. NOTE: The TCCM has slotted mounting holes. It is not necessary to remove the LH TCCM nut when removing the TCCM.

    Loosen the LH TCCM nut and remove the RH TCCM nut.

    Torque: 62 lb.in (7 Nm)

    GFD497916Courtesy of FORD MOTOR COMPANY

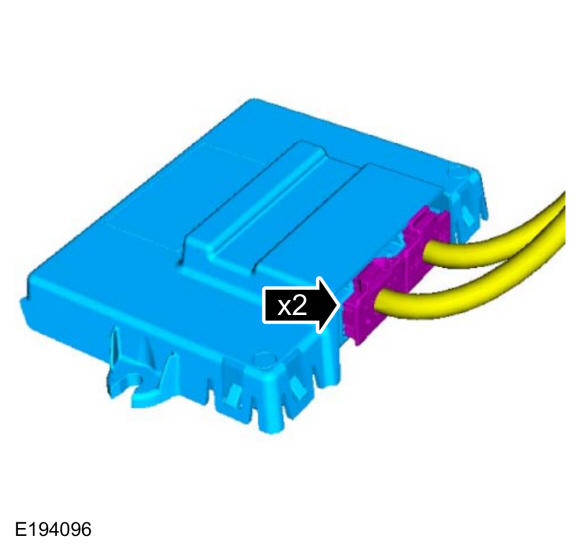

  4. Disconnect the electrical connectors and remove the TCCM.
GFD497917Courtesy of FORD MOTOR COMPANY
