Fuel Pump Driver Module (FPDM): Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

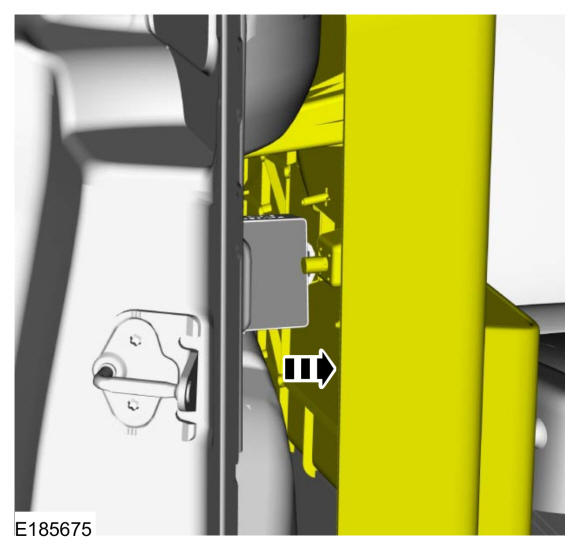

1. Position aside the RH load space trim panel.

   Courtesy of FORD MOTOR COMPANY

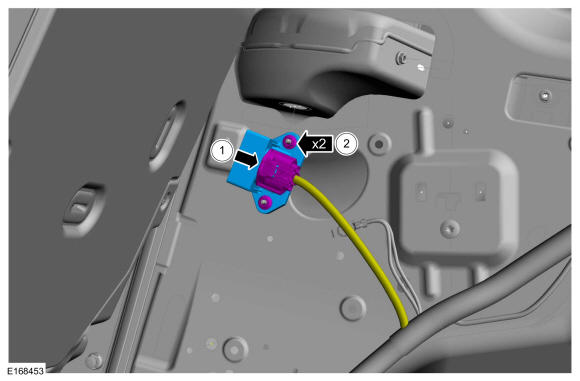

2. 1. Disconnect the FPDM electrical connector.
   2. Remove the FPDM retaining nuts and the FPDM.

      Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
