OEM Ground Distribution: Grounds

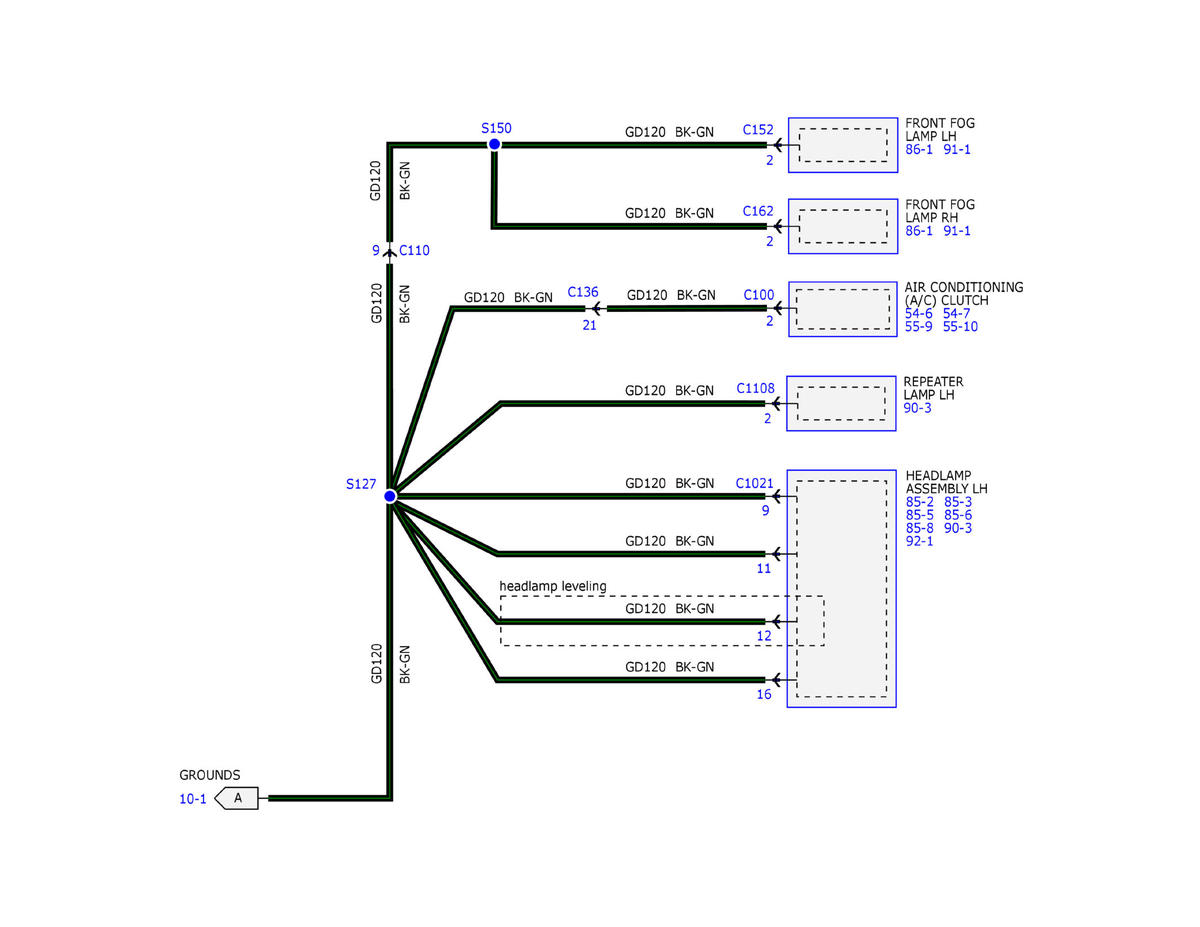

GFDWR79833Courtesy of FORD MOTOR COMPANY

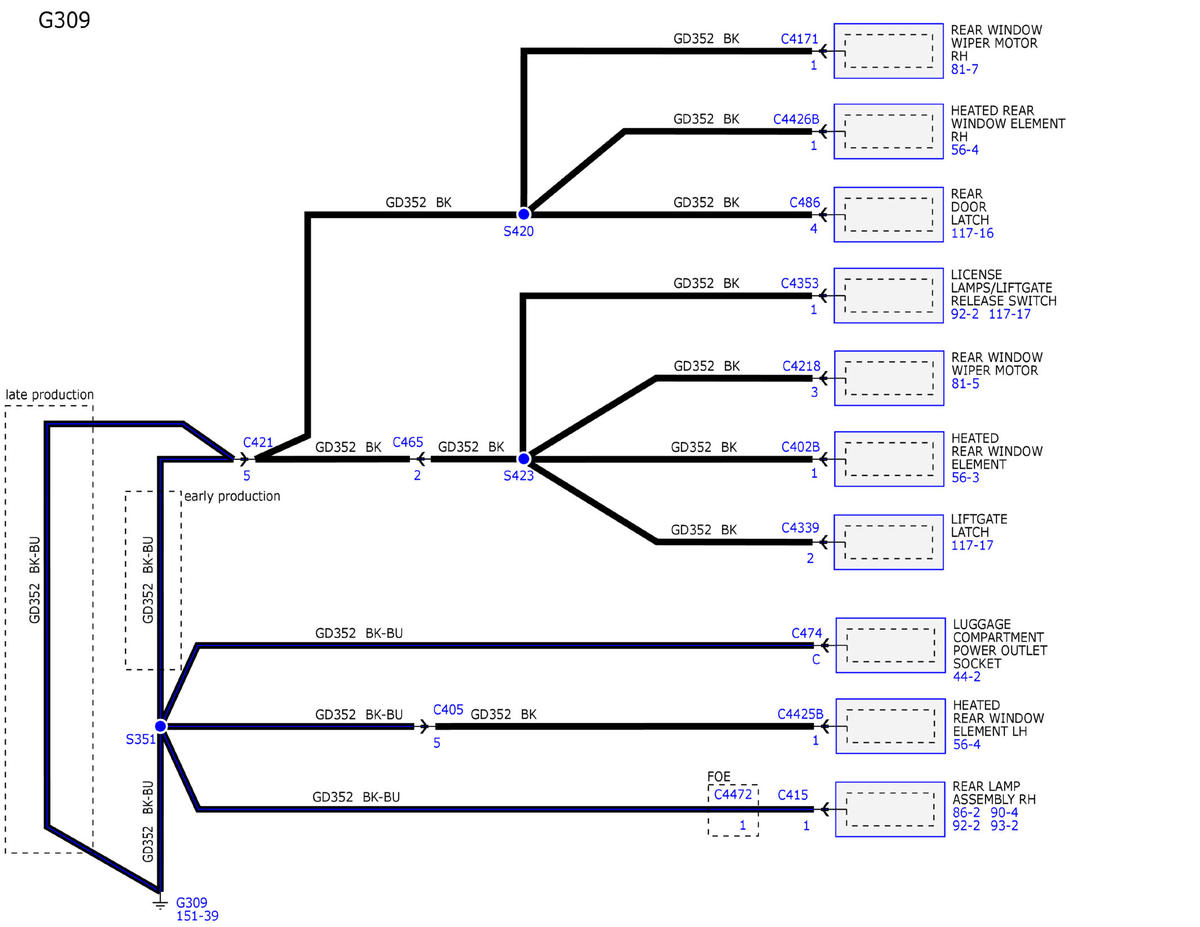

GFDWR79834Courtesy of FORD MOTOR COMPANY

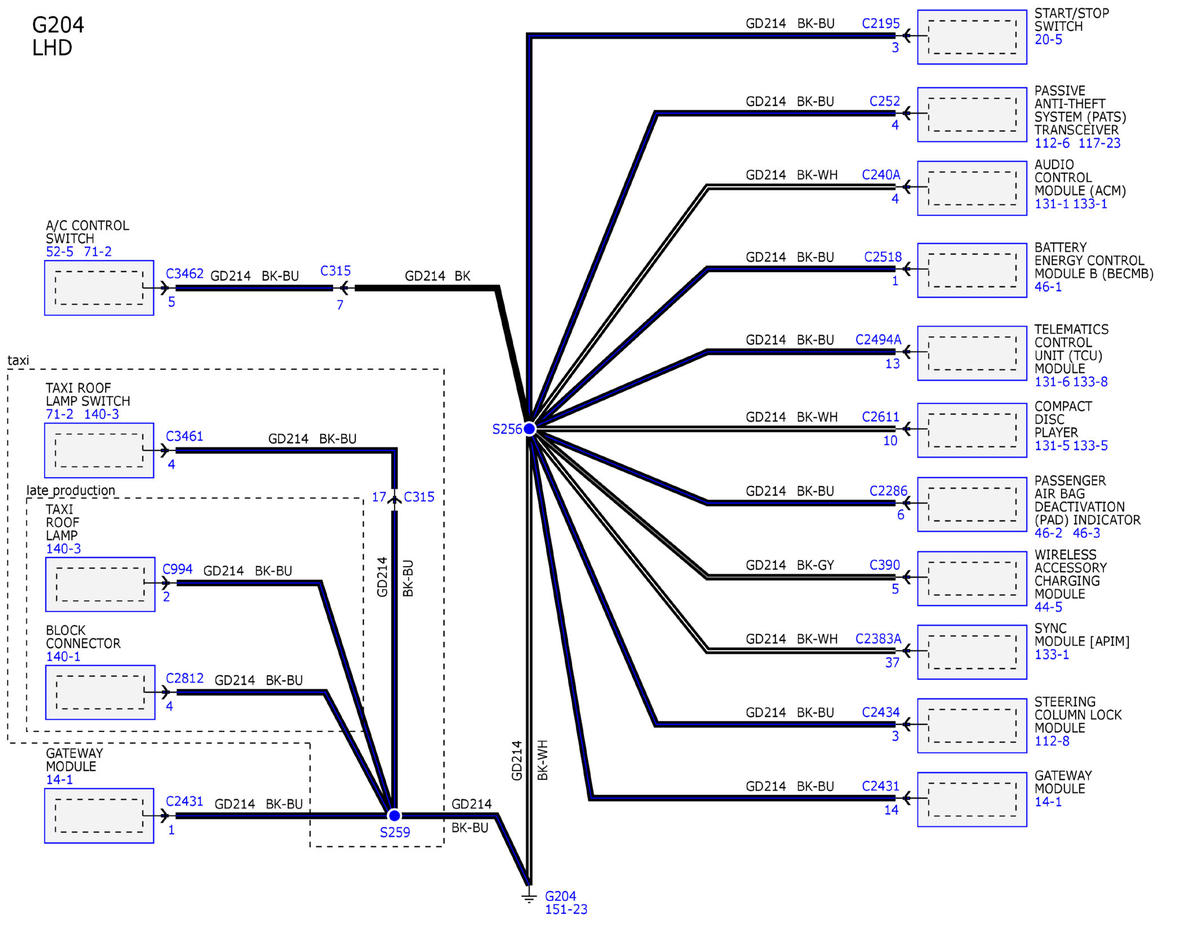

GFDWR79835Courtesy of FORD MOTOR COMPANY

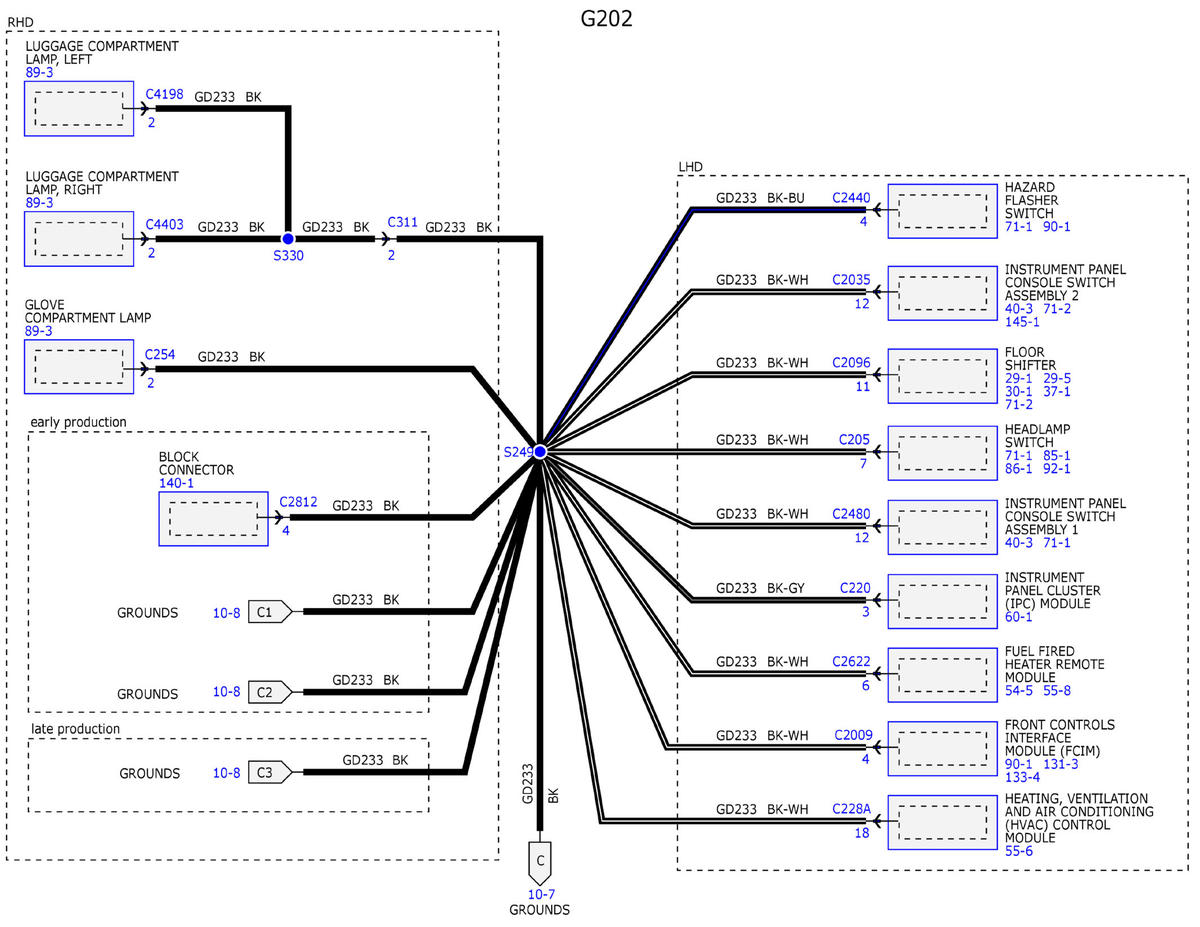

GFDWR79836Courtesy of FORD MOTOR COMPANY

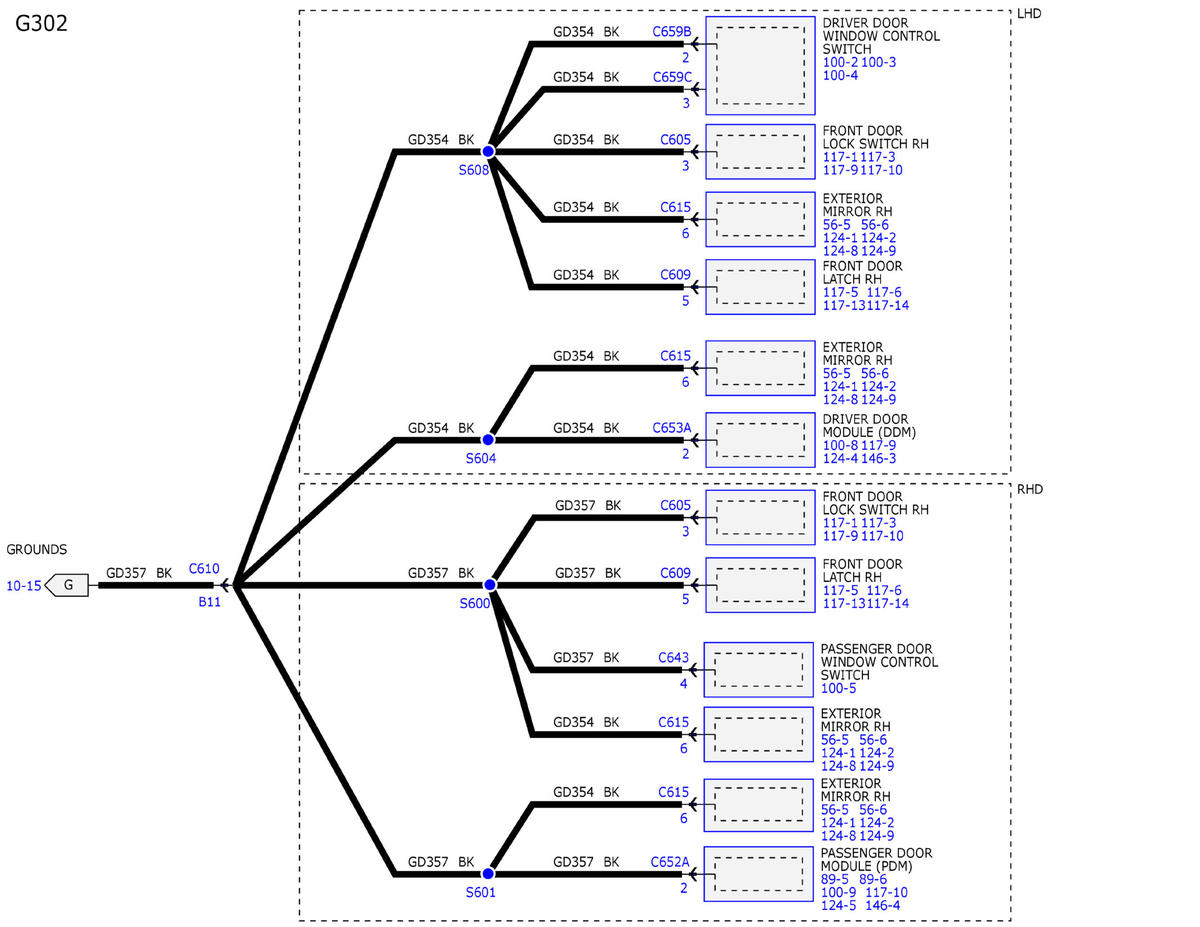

GFDWR79837Courtesy of FORD MOTOR COMPANY

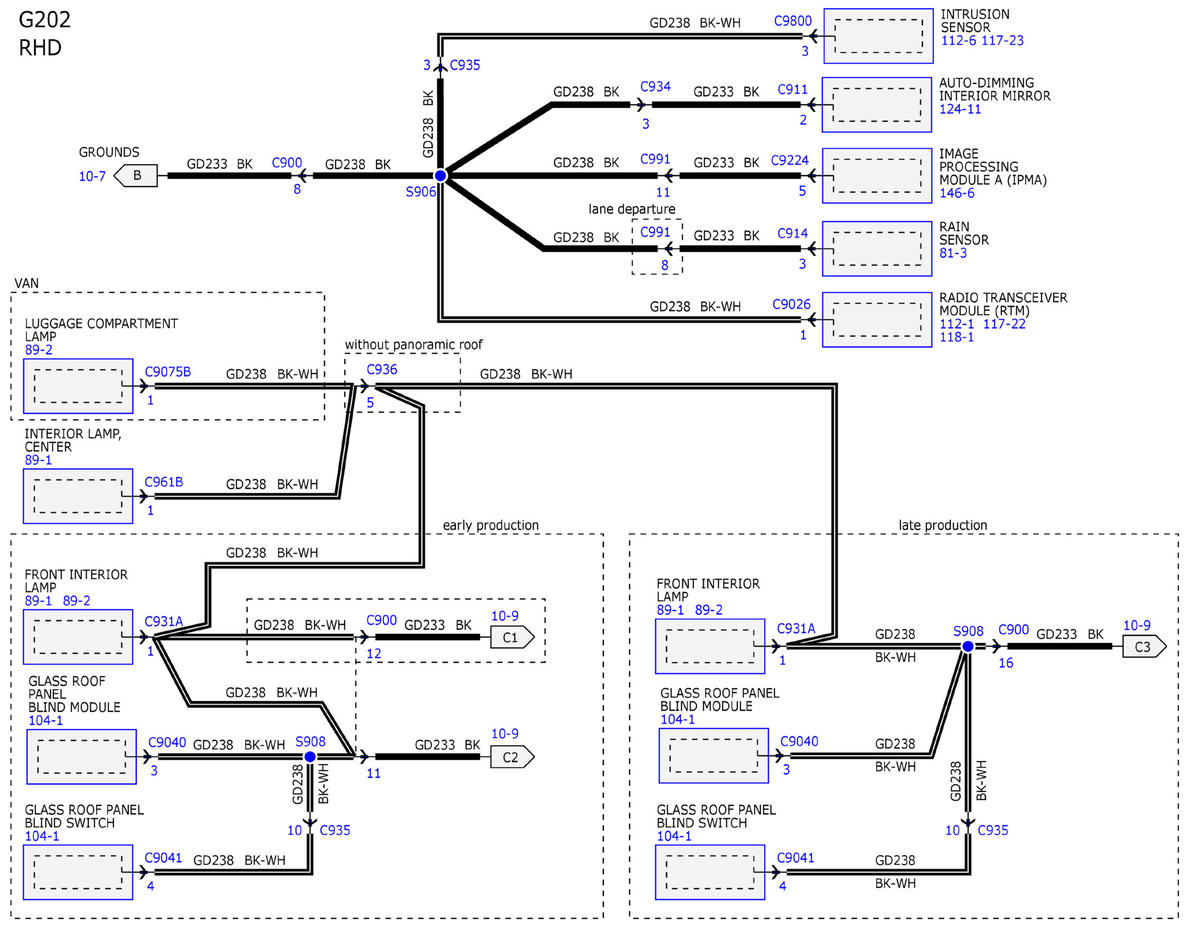

GFDWR79838Courtesy of FORD MOTOR COMPANY

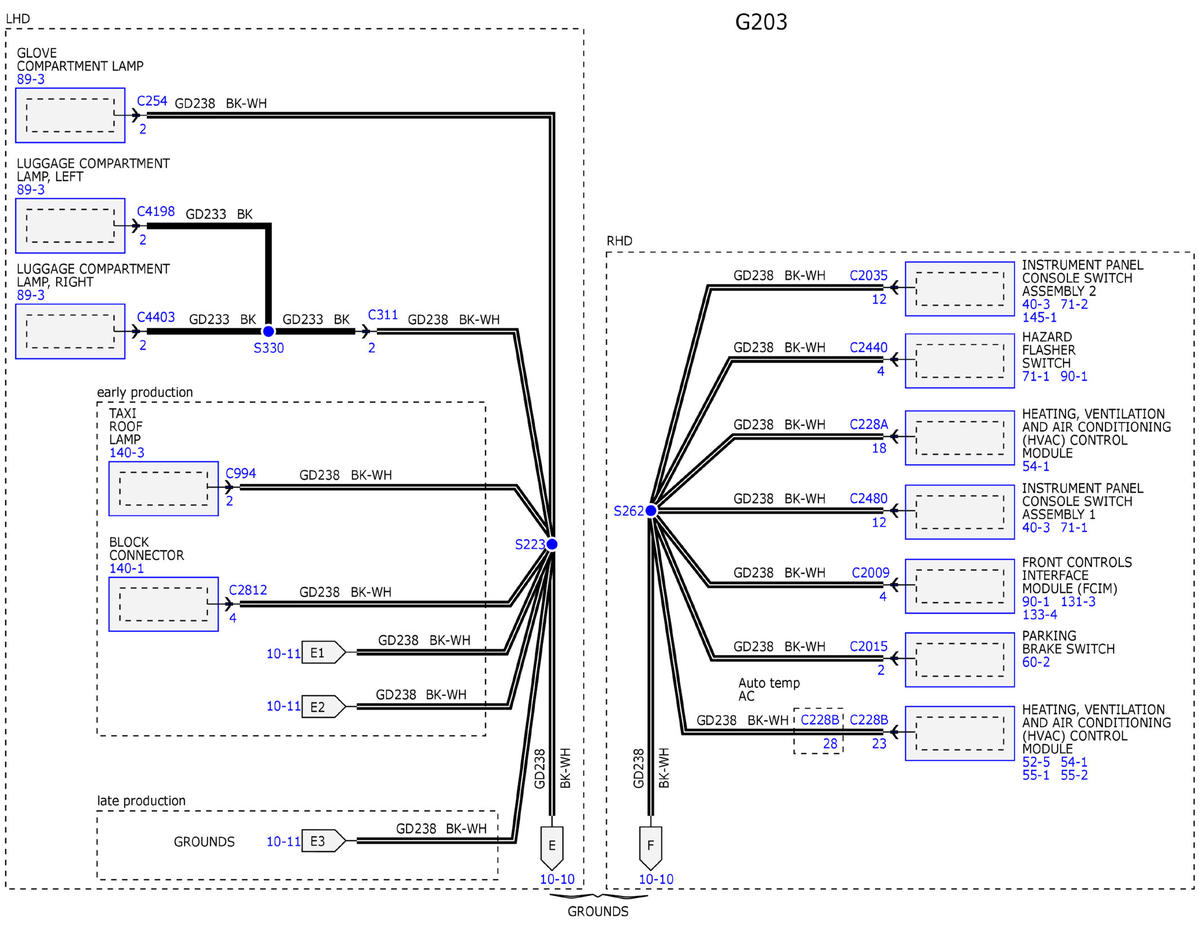

GFDWR79839Courtesy of FORD MOTOR COMPANY

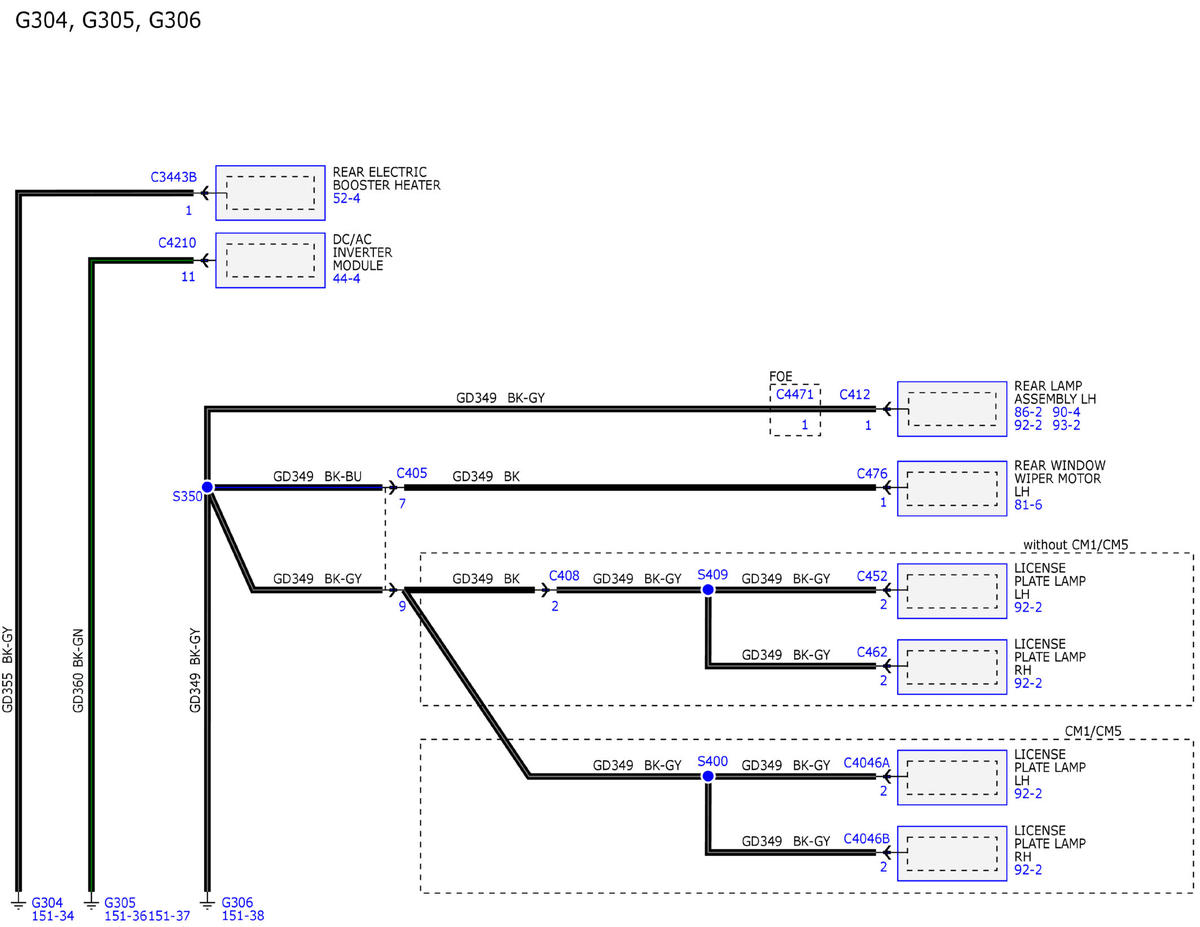

GFDWR79840Courtesy of FORD MOTOR COMPANY

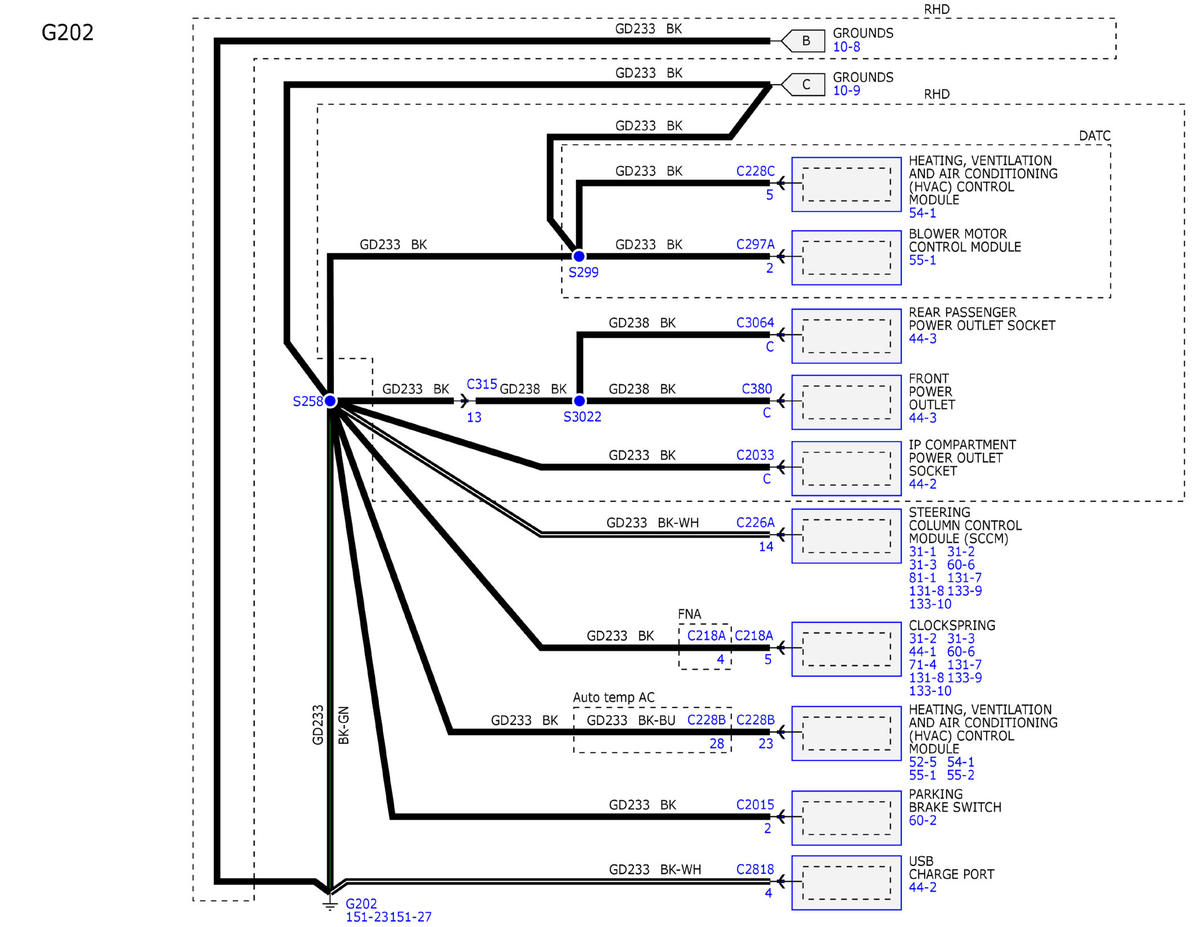

GFDWR79841Courtesy of FORD MOTOR COMPANY

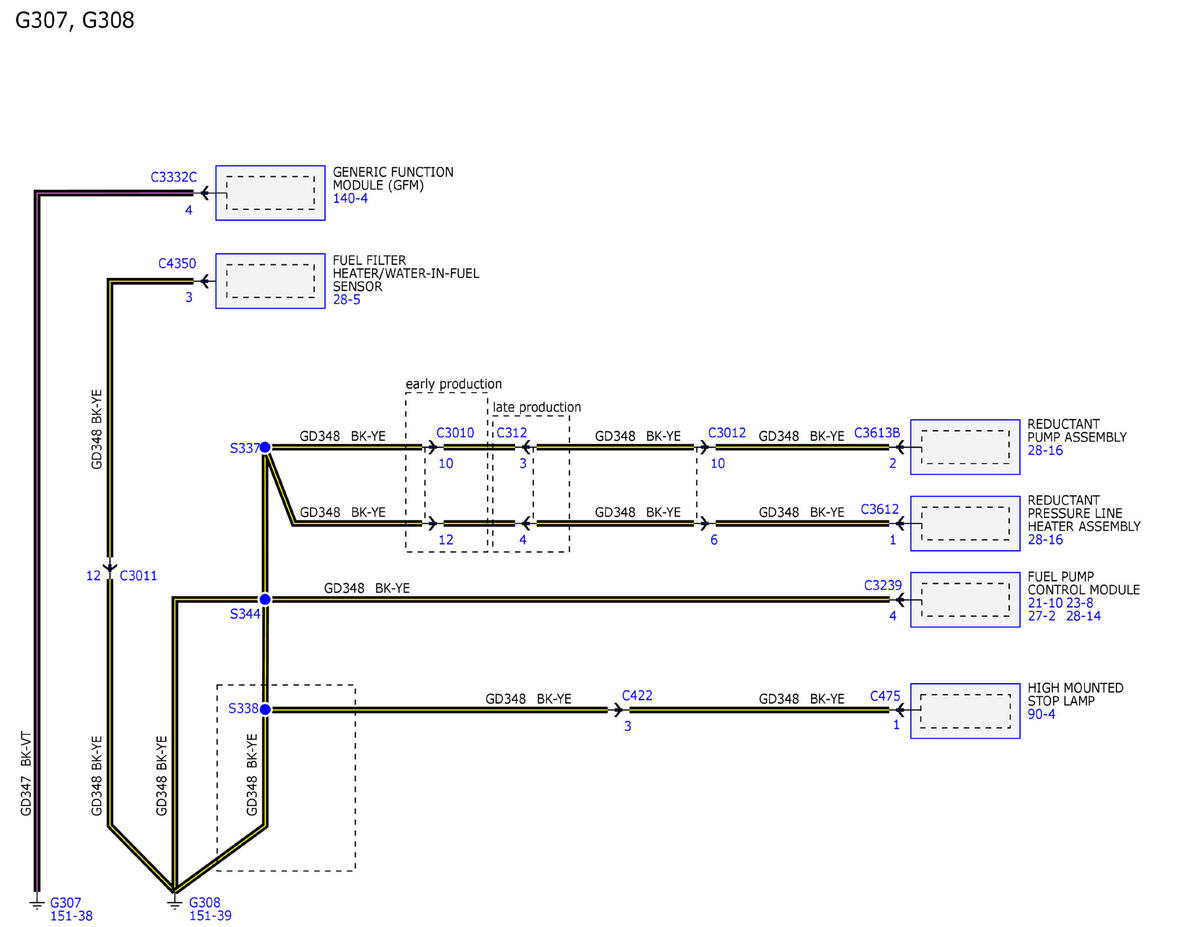

GFDWR79842Courtesy of FORD MOTOR COMPANY

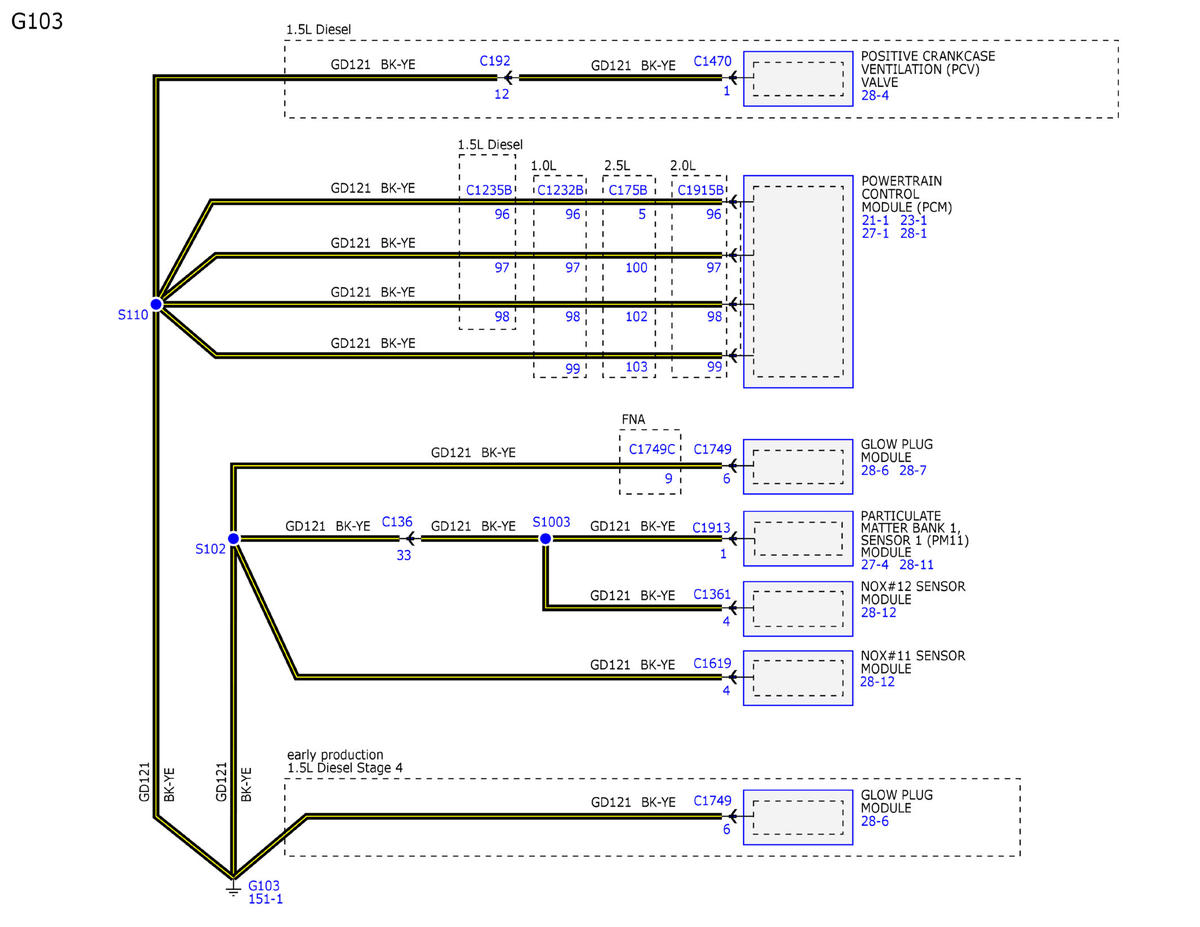

GFDWR79843Courtesy of FORD MOTOR COMPANY

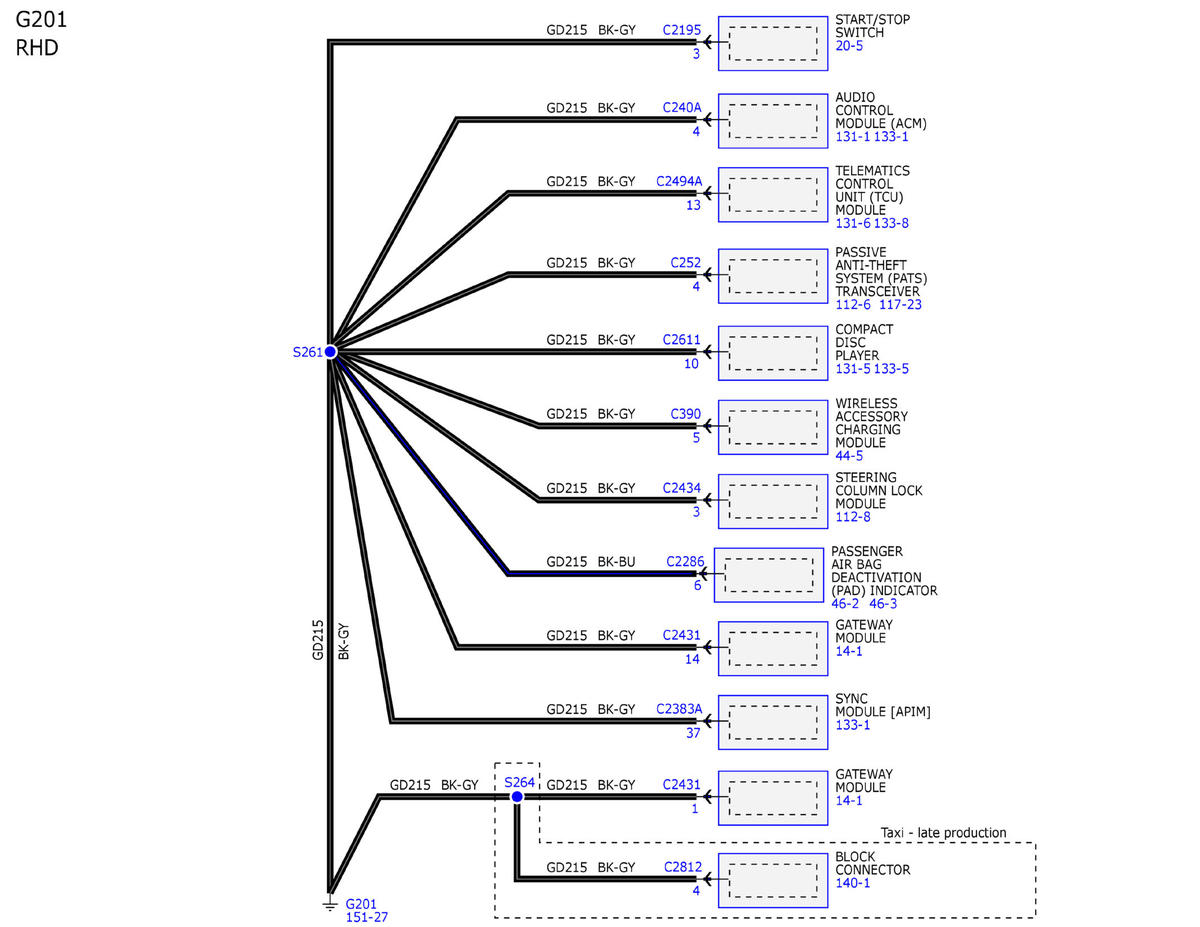

GFDWR79844Courtesy of FORD MOTOR COMPANY

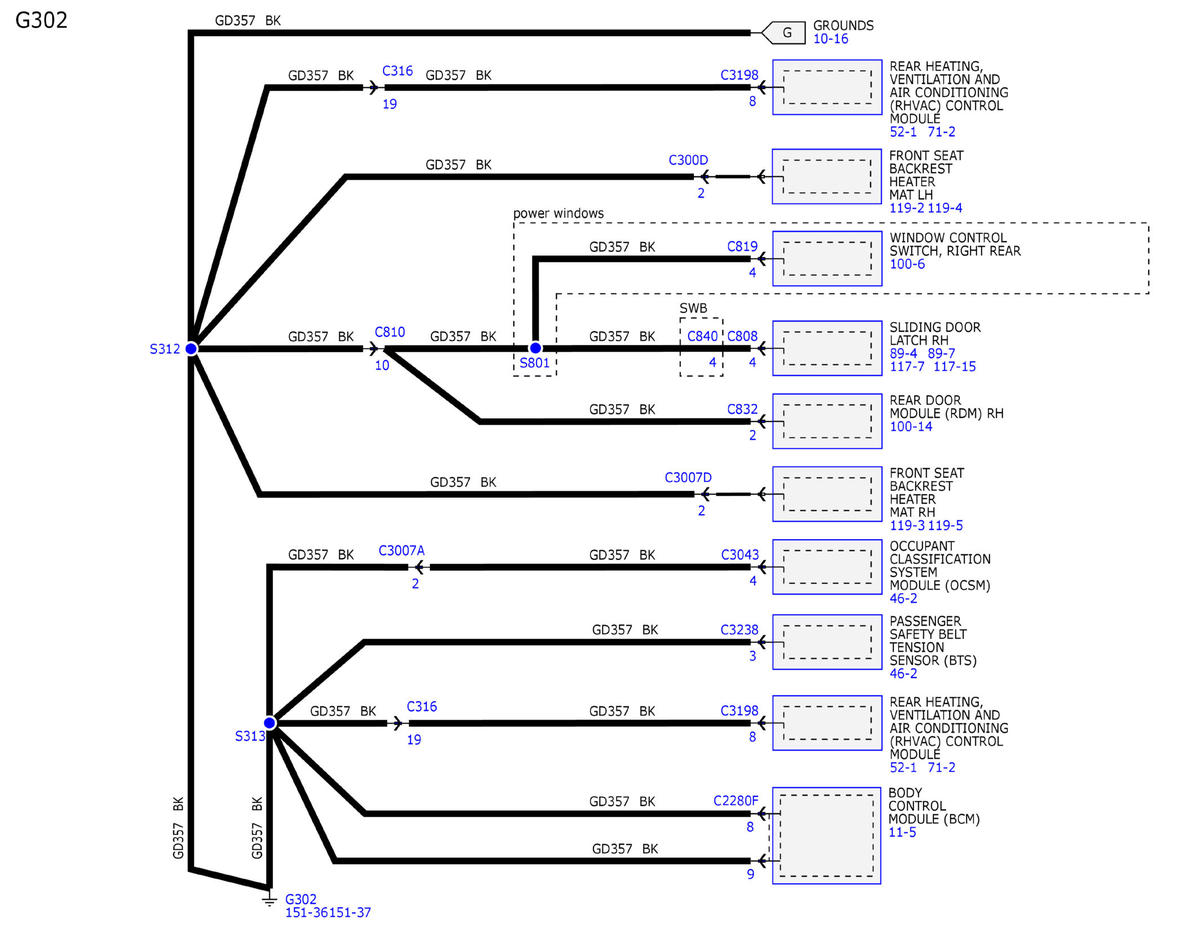

GFDWR79845Courtesy of FORD MOTOR COMPANY

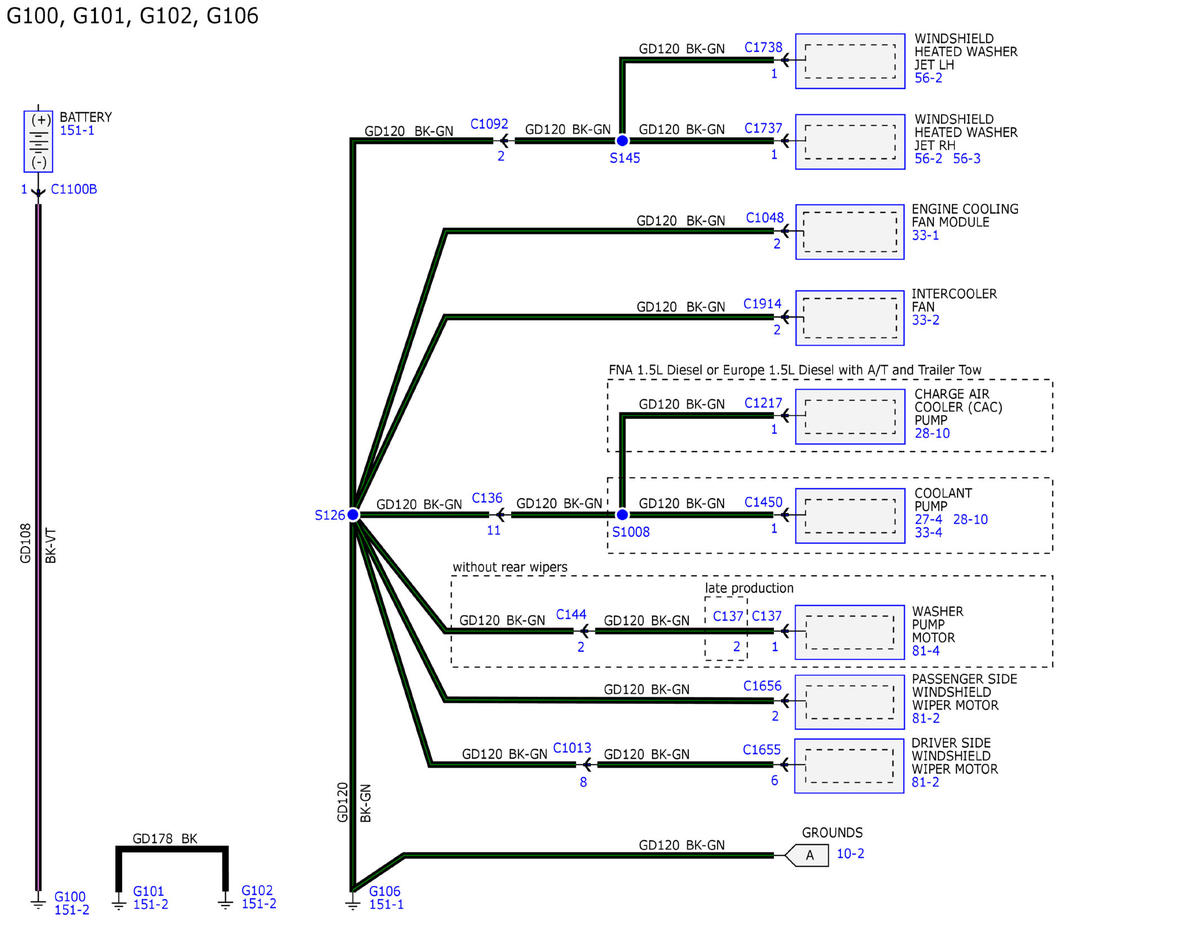

GFDWR79846Courtesy of FORD MOTOR COMPANY

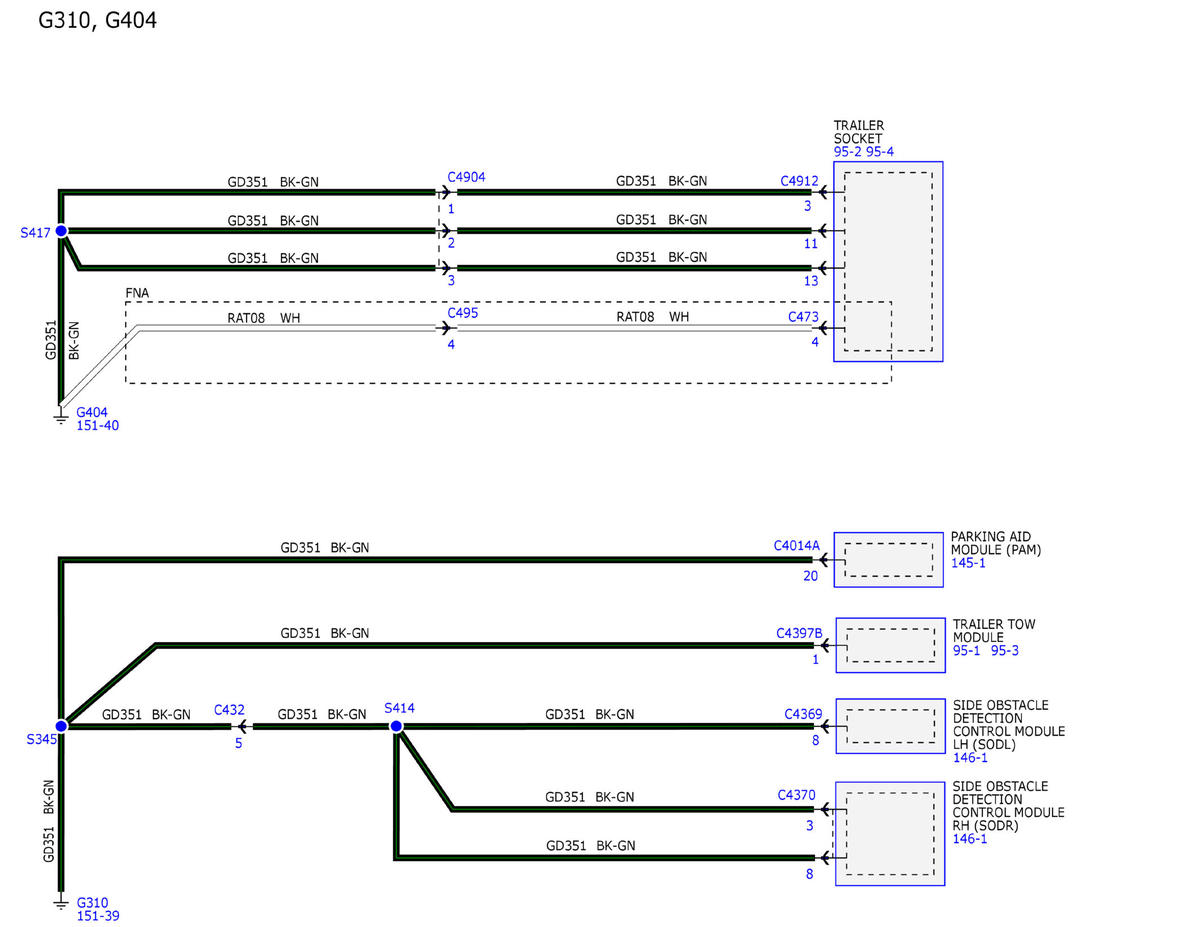

GFDWR79847Courtesy of FORD MOTOR COMPANY

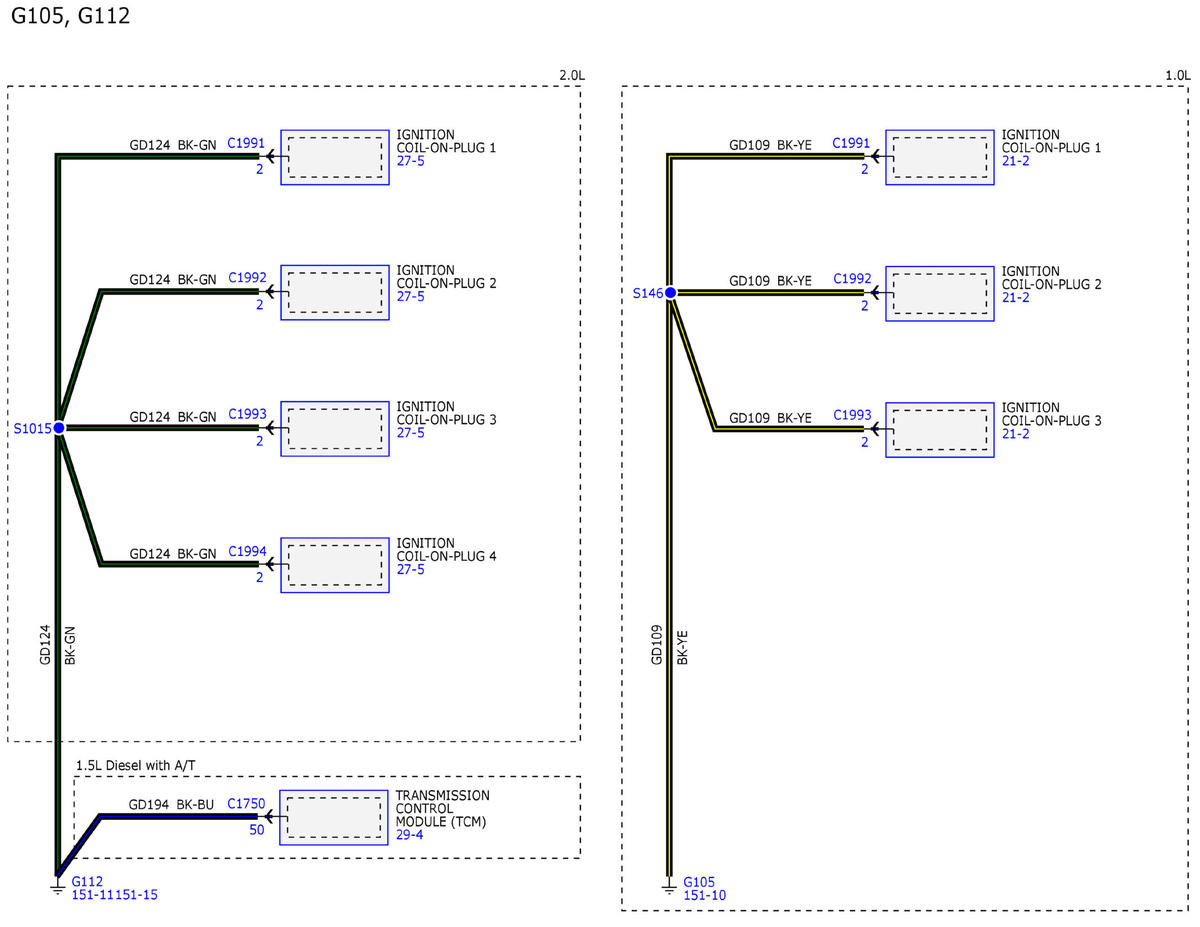

GFDWR79848Courtesy of FORD MOTOR COMPANY

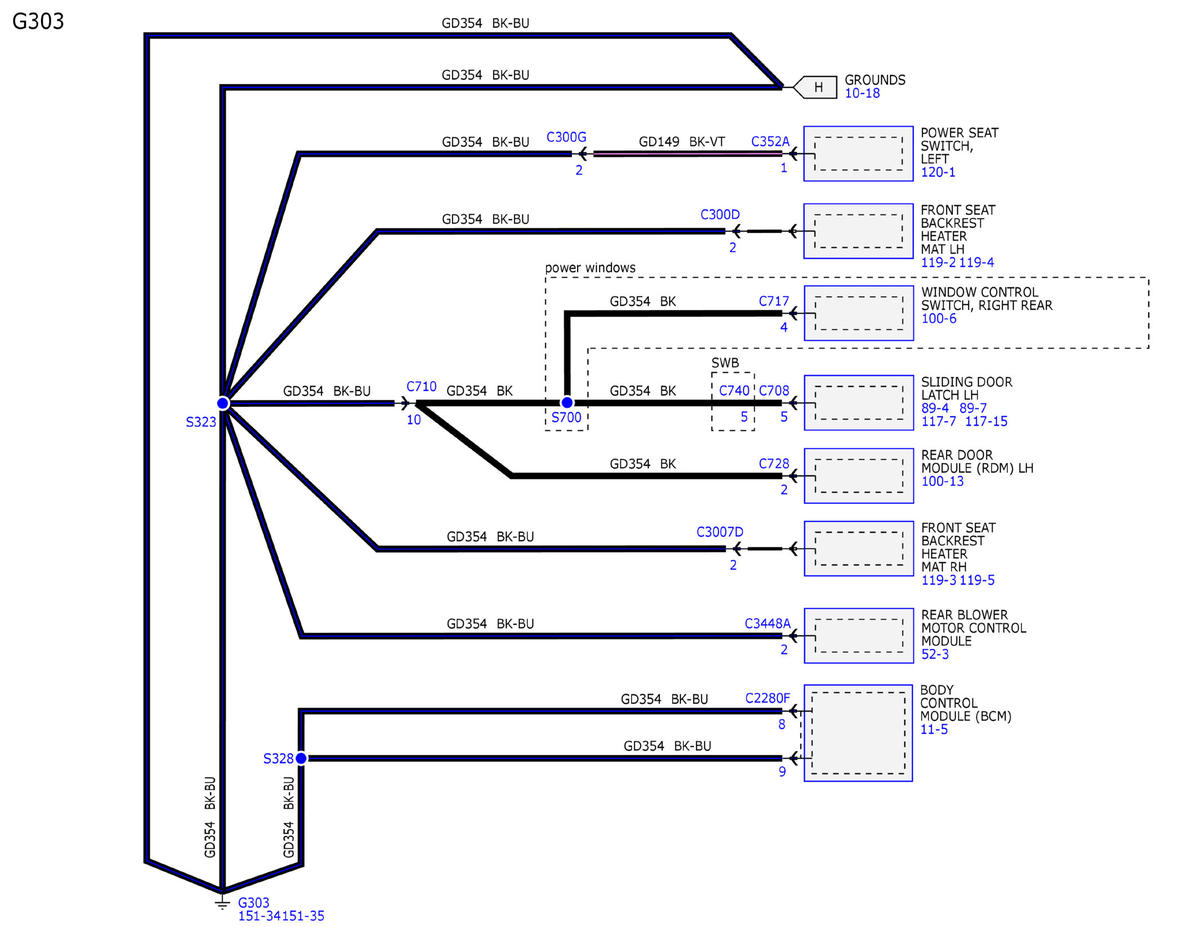

GFDWR79849Courtesy of FORD MOTOR COMPANY

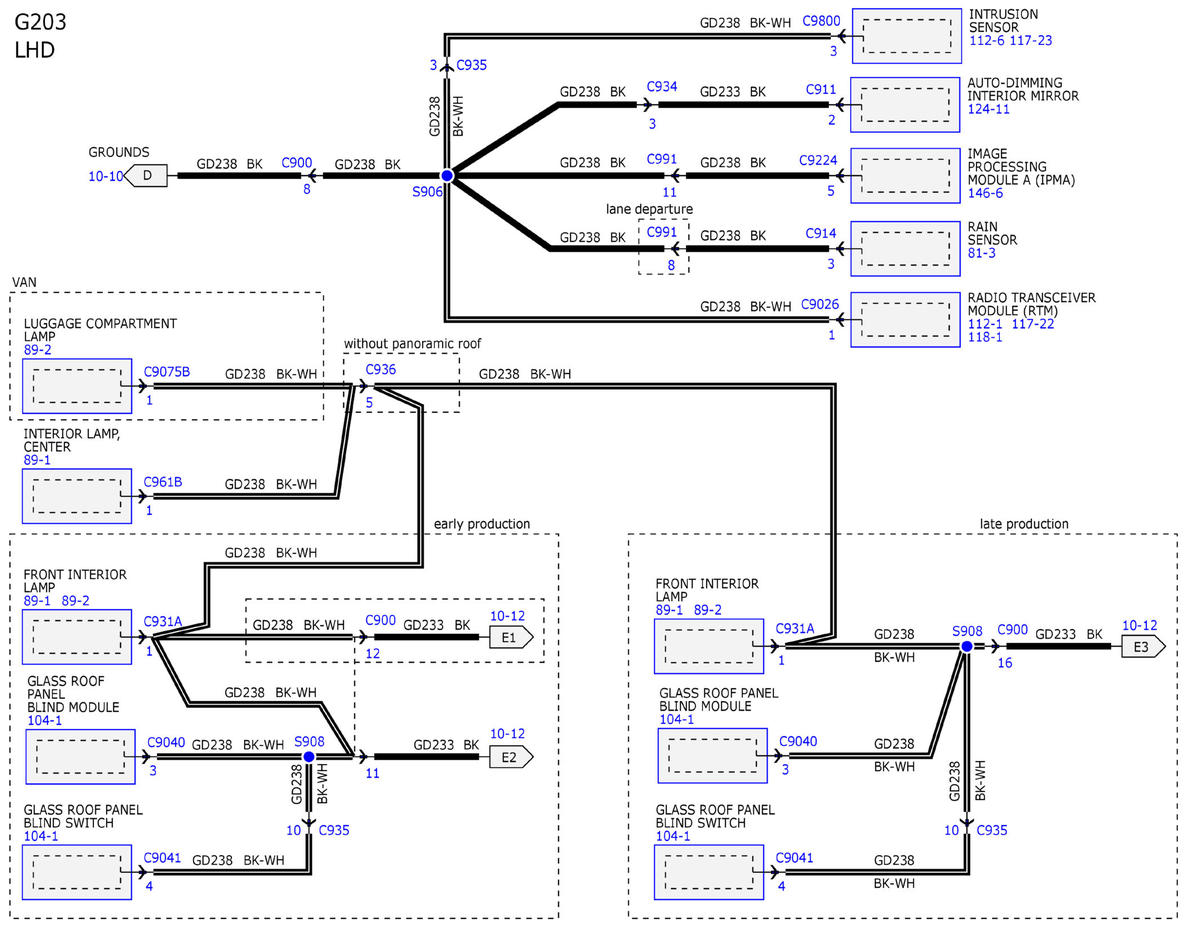

GFDWR79850Courtesy of FORD MOTOR COMPANY

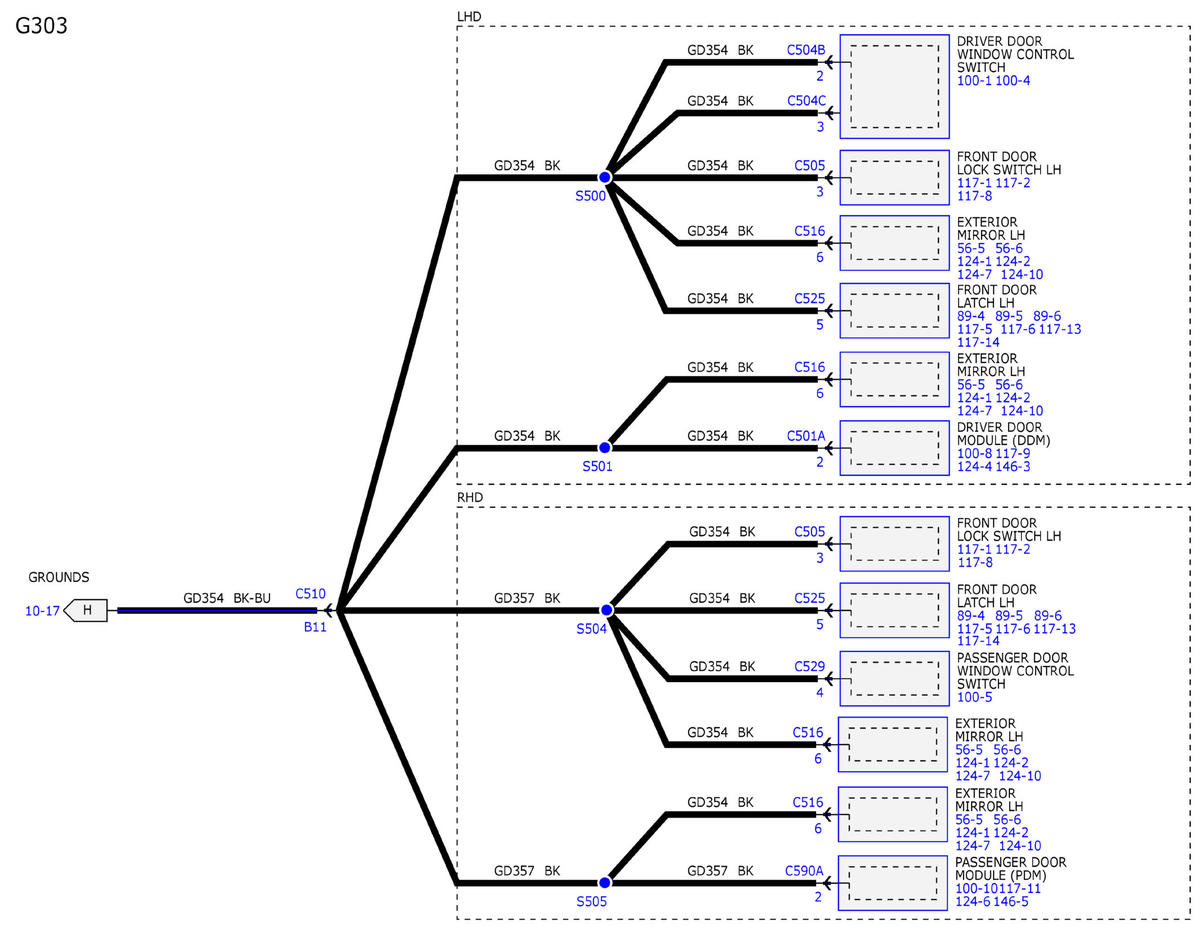

GFDWR79851Courtesy of FORD MOTOR COMPANY

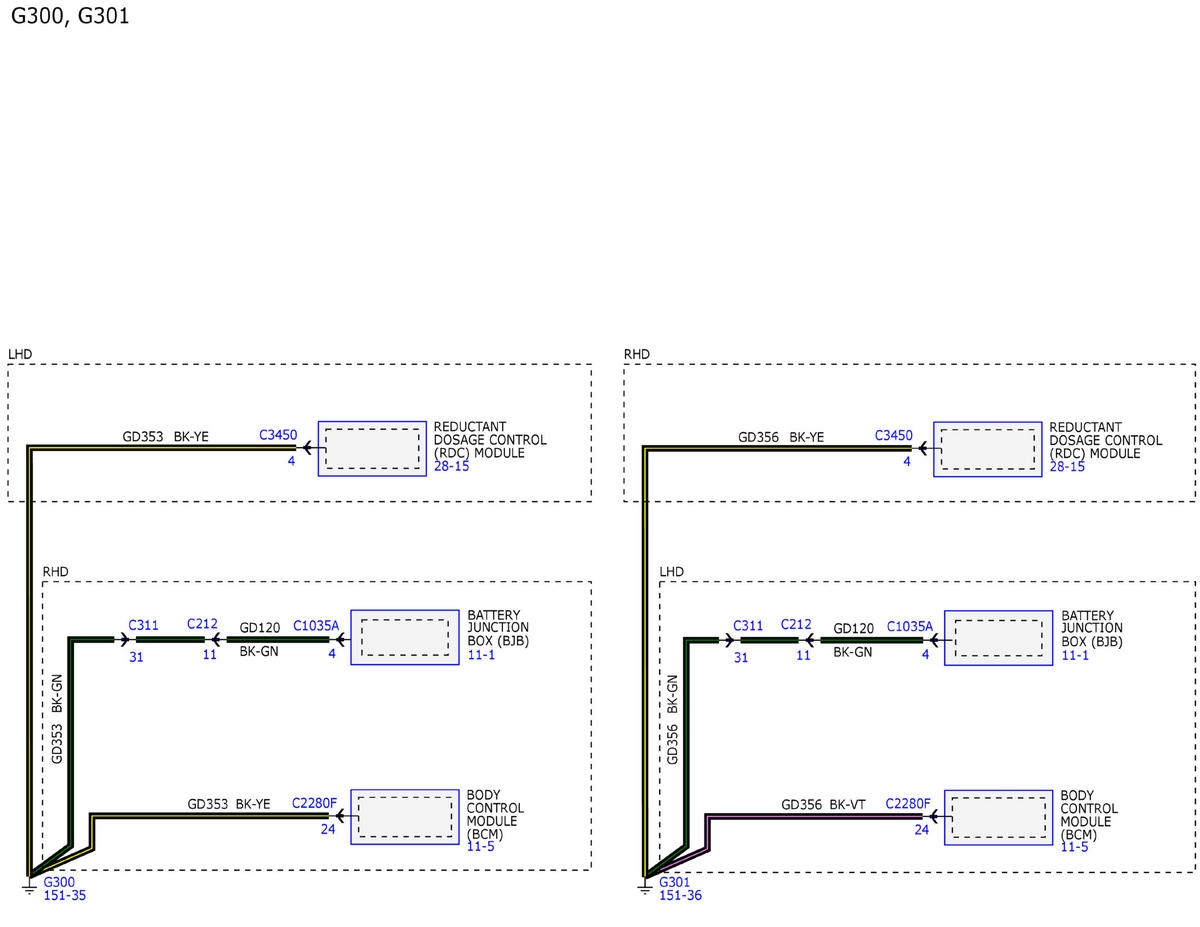

GFDWR79852Courtesy of FORD MOTOR COMPANY
GFDWR79853Courtesy of FORD MOTOR COMPANY

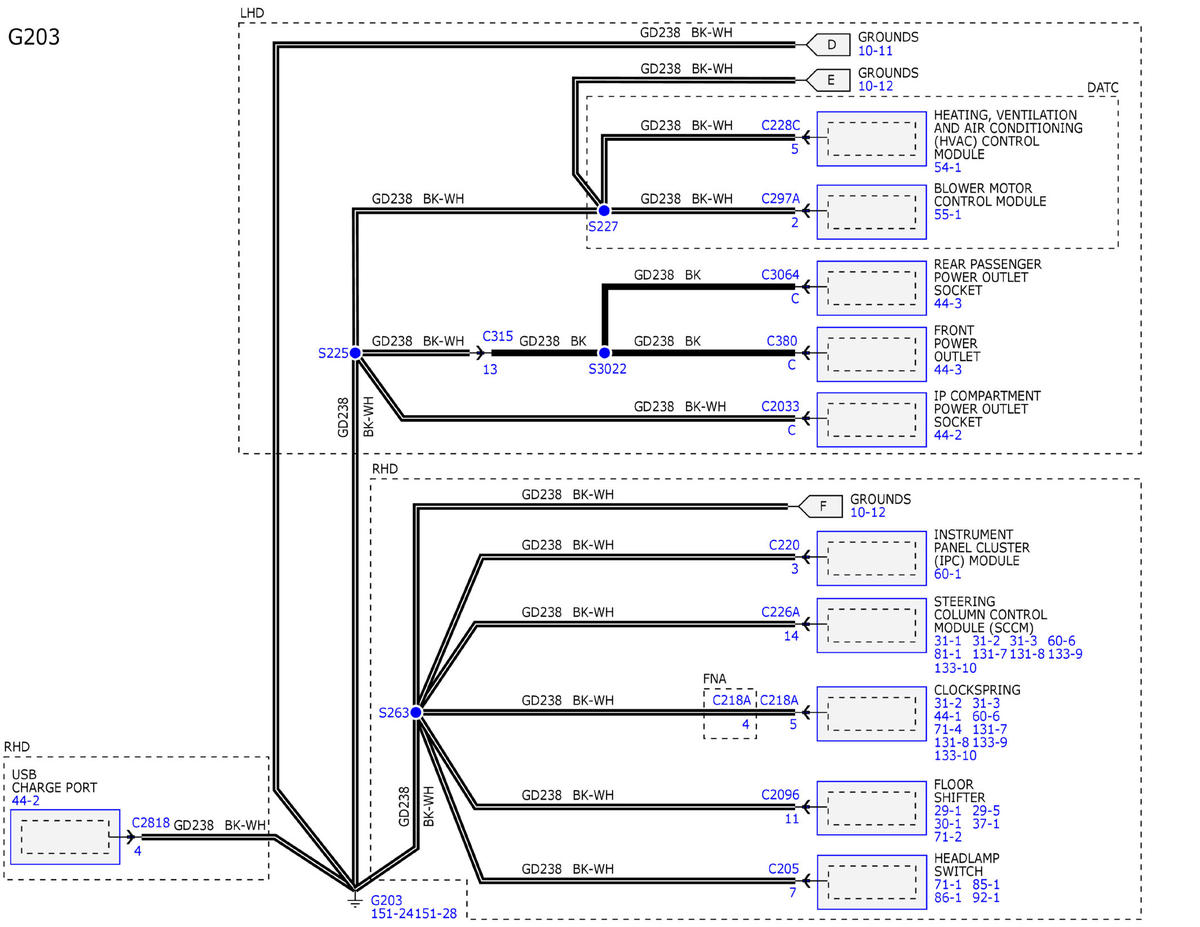

GFDWR79854Courtesy of FORD MOTOR COMPANY
