Image Processing Module A (IPMA): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Using the interior trim remover release the tabs and remove the IPMA cover. Use the General Equipment: Interior Trim Remover

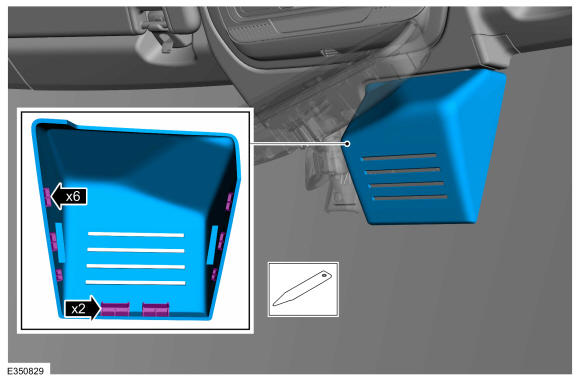

    GFD627680Courtesy of FORD MOTOR COMPANY
  2. Disconnect the electrical connector.

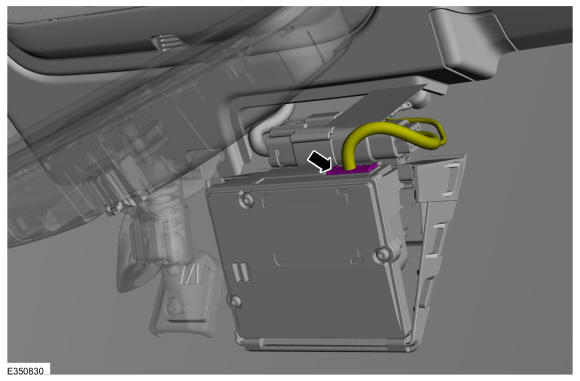

    GFD627681Courtesy of FORD MOTOR COMPANY
  3. Remove the IPMA.

    1. Remove the upper tabs.
    2. Remove the lower tabs.

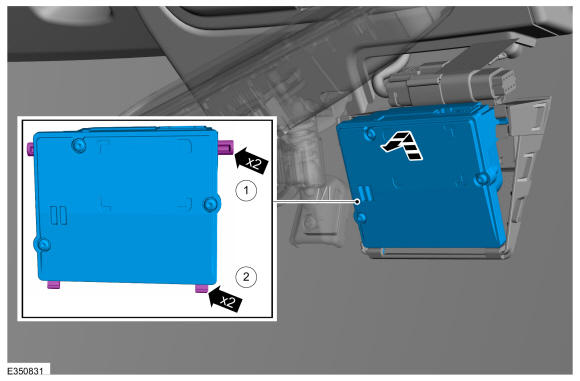

GFD627682Courtesy of FORD MOTOR COMPANY
