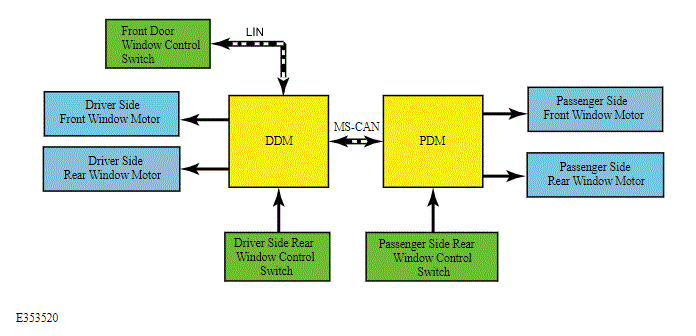

System Diagram - Power Windows

Power Windows - 5-Door Shown in illustration, 3-Door Similar

G00607476Courtesy of FORD MOTOR COMPANY
