High-Pressure Fuel Pump Drive Unit: Installation

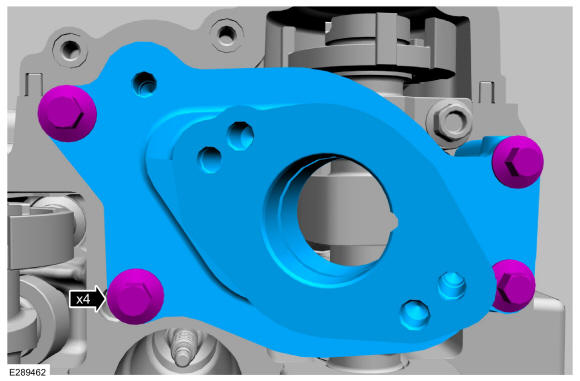

  1. Make sure that the mating faces are clean and free of corrosion and foreign material. Install the high-pressure fuel pump drive unit, then install and tighten the high-pressure fuel pump drive unit bolts.

    Torque: 97 lb.in (11.0 Nm)

    GFD625373Courtesy of FORD MOTOR COMPANY
  2. Install the valve cover. Refer to: Valve Cover .
