Climate Control System - Vehicles With: Dual Automatic Temperature Control (DATC) - Component Location: Notes

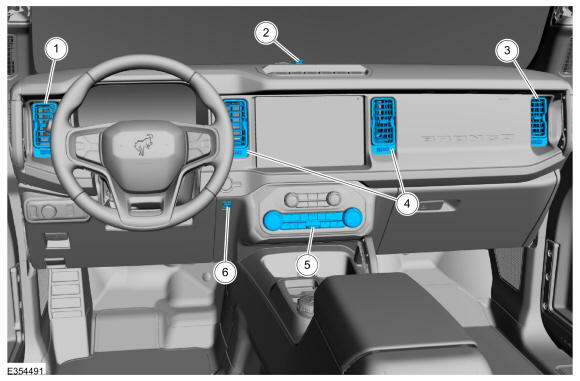

| Item | Description |
|---|---|
| 1 | Driver side register |
| 2 | Sunload sensor |
| 3 | Passenger side register |
| 4 | Center registers |
| 5 | HVAC control module |
| 6 | In-vehicle temperature and humidity sensor |

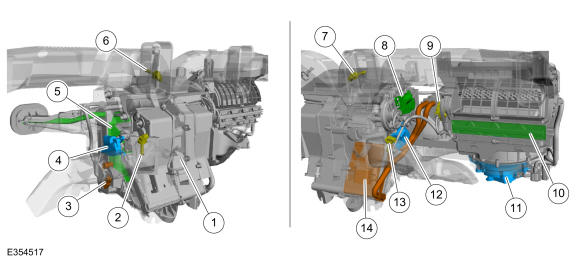

| Item | Description |
|---|---|
| 1 | Climate control housing |
| 2 | Driver side footwell air discharge temperature sensor |
| 3 | Evaporator temperature sensor |
| 4 | Driver temperature door actuator |
| 5 | Evaporator |
| 6 | Driver side register air discharge temperature sensor |
| 7 | Passenger side register air discharge temperature sensor |
| 8 | Air distribution door actuator |
| 9 | Air inlet door actuator |
| 10 | Cabin air filter |
| 11 | Blower motor control module |
| 12 | Passenger temperature door actuator |
| 13 | Passenger side footwell air discharge temperature sensor |
| 14 | Heater core |
