2.7L EcoBoost

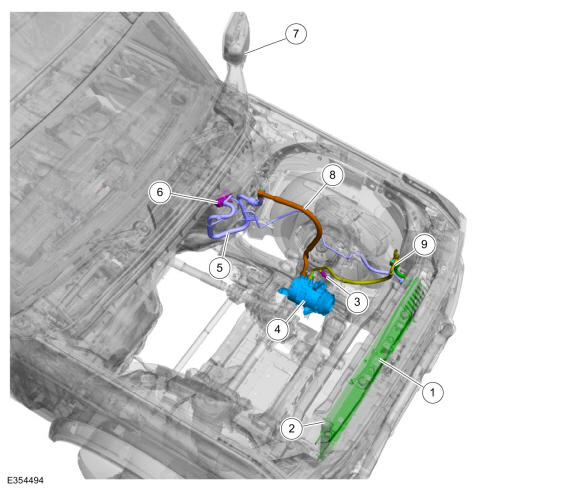

| Item | Description |
|---|---|
| 1 | Condenser |
| 2 | Desiccant bag |
| 3 | A/C pressure transducer |
| 4 | A/C compressor |
| 5 | Thermostatic expansion valve manifold and tube assembly |
| 6 | Thermostatic expansion valve |
| 7 | Ambient air temperature sensor |
| 8 | A/C compressor inlet line |
| 9 | A/C compressor outlet line |
| Item | Description |
|---|---|
| 1 | Cabin heater coolant pump |
