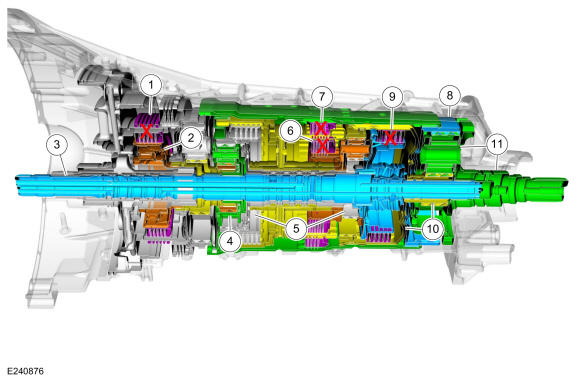

8th Gear
| Item | Description |
|---|---|
| 1 | A clutch |
| 2 | One-Way Clutch (OWC) |
| 3 | Input shaft |
| 4 | Sun gear No. 2 |
| 5 | Ring gear No. 2 and sun gear No. 3 |
| 6 | D clutch |
| 7 | F clutch |
| 8 | Ring gear No. 4 |
| 9 | E clutch |
| 10 | Shell and sun gear No. 4 |
| 11 | Output shaft and planetary carrier No. 4 |
The B clutch is holding the sun gear No. 2 stationary. The input shaft turns the planetary carrier No. 2 and causes the ring gear No. 2 and sun gear No. 3 to rotate at a 0.63 overdrive ratio. The D clutch and F clutch are applied allowing torque to be transferred from the planetary No. 3 to the ring gear No. 4 at a 0.82 overdrive gear ratio. The E clutch is applied allowing torque to be transferred from the input shaft to the shell and sun gear No. 4 at a 1:1 ratio. The 2 inputs to the 4th planetary gearset cause the output shaft and planetary carrier No. 4 to rotate at a 0.85 ratio.
