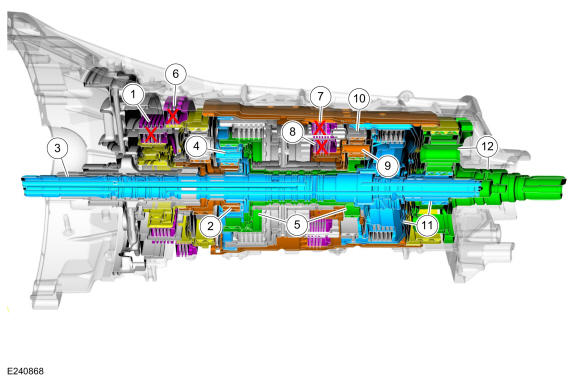

Component Description: Powerflows: Reverse
| Item | Description |
|---|---|
| 1 | B clutch |
| 2 | Sun gear No. 2 |
| 3 | Input shaft |
| 4 | Planetary carrier No. 2 |
| 5 | Ring gear No. 2 and sun gear No. 3 |
| 6 | A clutch |
| 7 | F clutch |
| 8 | D clutch |
| 9 | Planetary carrier No. 3 |
| 10 | Ring gear No. 3 |
| 11 | Shell and sun gear No. 4 |
| 12 | Output shaft and planetary carrier No. 4 |
The B clutch is applied to hold the sun gear No. 2 stationary. The input shaft turns the planetary carrier No. 2 and causes the ring gear No. 2 and the sun gear No. 3 to rotate at a 0.63 overdrive ratio. The A clutch, F clutch, and the D clutch are applied to hold the planetary carrier No. 3 stationary. The 2 inputs to the 3rd planetary gearset cause the ring gear No. 3 and the planetary carrier No. 4 to rotate at a 1.03 ratio in the reverse direction. The A clutch and F clutch are applied to hold the ring gear No. 4 stationary. The 2 inputs to the 4th planetary gearset cause the output shaft and planetary carrier No. 4 to rotate at a 4.85 reduction ratio in the reverse direction.
