All Terrain Control Module (ATCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

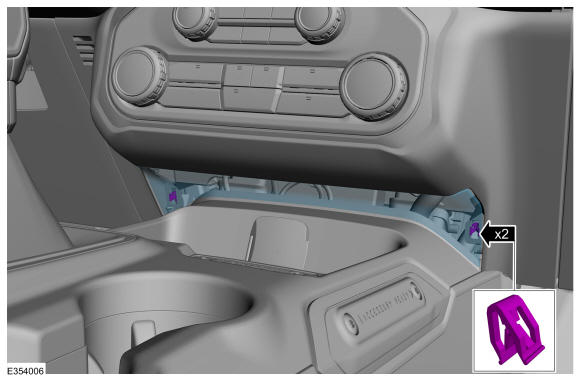

Release the clips and remove the instrument panel lower trim panel. Remove the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

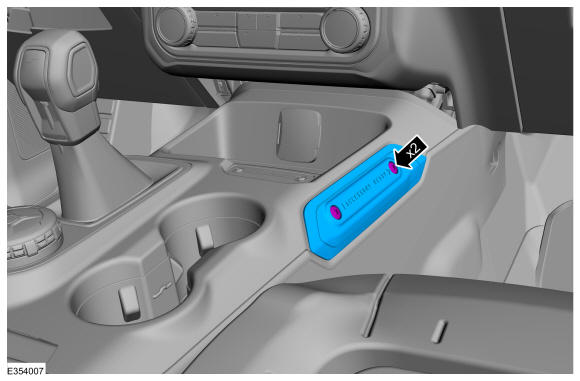

Remove the retainer and remove the floor console finish panel.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

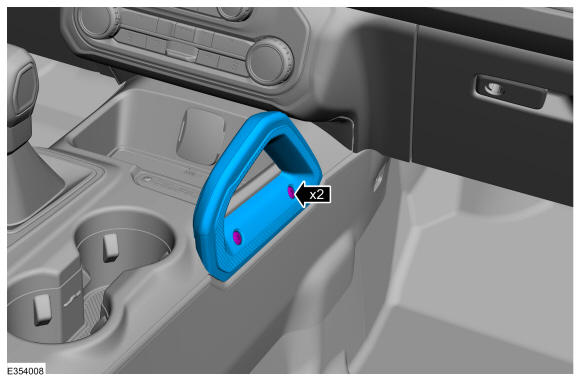

If equipped Remove the retainer and remove the floor console handle.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

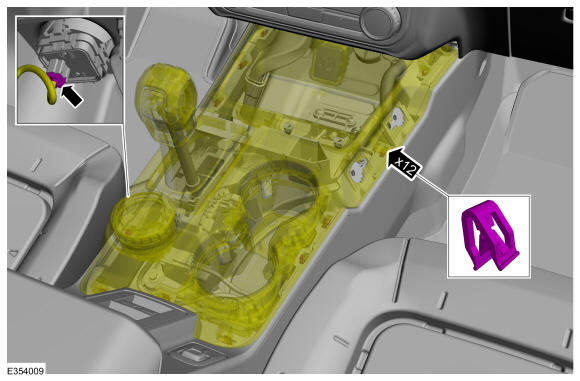

NOTE: It is not necessary to remove the upper finish panel to access the ATCM retaining tabs.
1. Lift the center console upper finish panel upward, releasing the rear retaining clips. Remove the General Equipment: Interior Trim Remover
2. Disconnect the ATCM electrical connector.
Courtesy of FORD MOTOR COMPANY
1. Press and release the ATCM retaining tabs inward.
2. Remove the ATCM from the upper finish panel.

Courtesy of FORD MOTOR COMPANY
