Transfer Case Input Shaft Seal: Installation

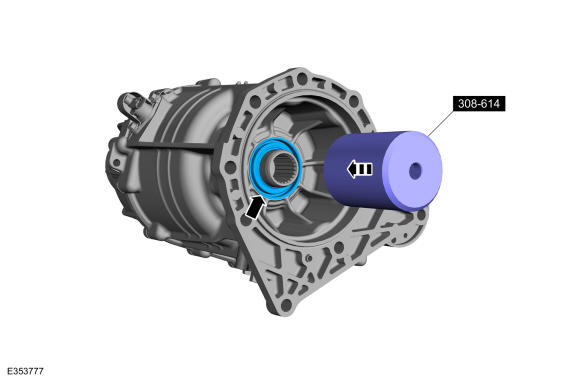

  1. Using the special tools, install the input shaft seal. Use Special Service Tool: 308-614 Installer, Output Shaft Seal.
    GFD626687Courtesy of FORD MOTOR COMPANY
  2. Install the transfer case. Refer to: Transfer Case .
