Transfer Case Draining and Filling

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Materials

Name	Specification
Motorcraft® Thread Sealant with PTFETA-24-B	WSK-M2G350-A2
Motorcraft® MERCON® LV Automatic Transmission FluidXT-10-QLVC	WSS-M2C938-AMERCON® LV,

Draining

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
If equipped. Remove the skid plate bolts and the skid plate.

Courtesy of FORD MOTOR COMPANY

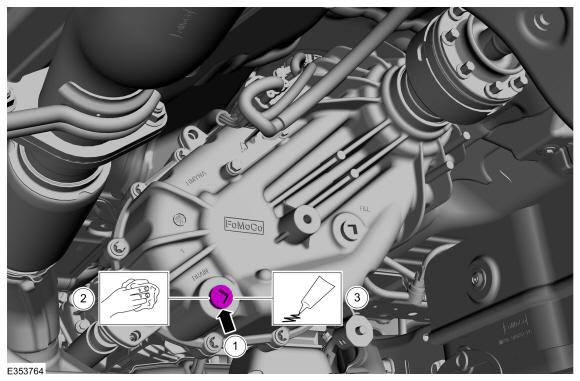

1. Remove the drain plug and drain the fluid.
2. Clean the drain plug and the area around drain plug.
3. Apply thread sealant to the drain plug threads and install the drain plug.
  Material: Motorcraft® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)

  Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

Filling

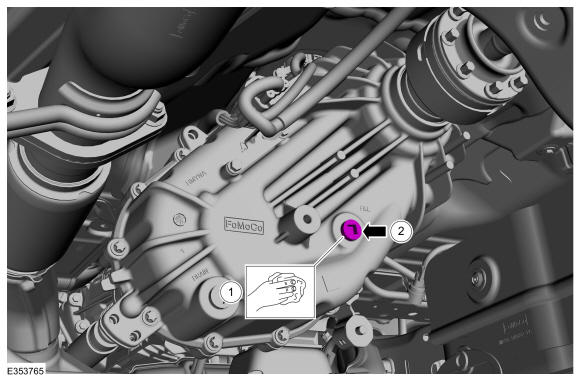

1. Clean the filler plug and the area around filler plug.
2. Remove the filler plug.
Courtesy of FORD MOTOR COMPANY

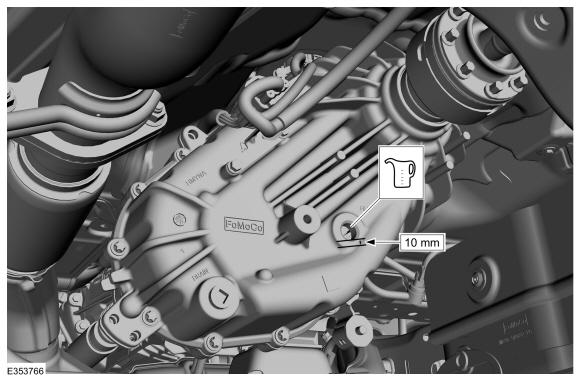

Fill the transfer case with 1.55L (2.7 pt) of clean fluid. The transfer case fluid must be within 10mm (0.393 in) below the filler plug hole.
Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

Courtesy of FORD MOTOR COMPANY

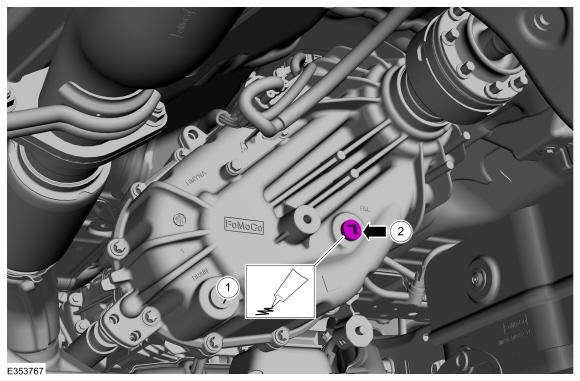

1. Apply thread sealant to the filler plug threads.
  Material: Motorcraft® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)
2. Install the filler plug.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
If equipped. Install the skid plate bolts and the skid plate.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
