VC Codes

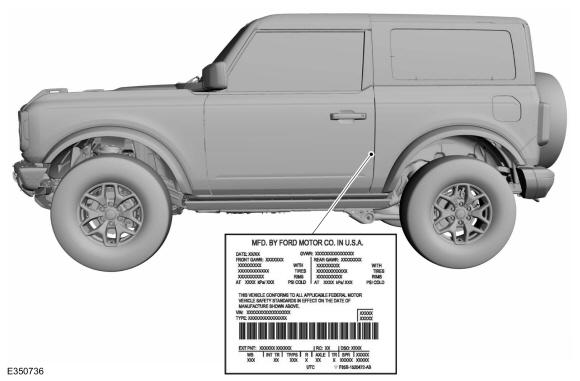

VC Label Locator
The VC label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes GVW and tire information. If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.

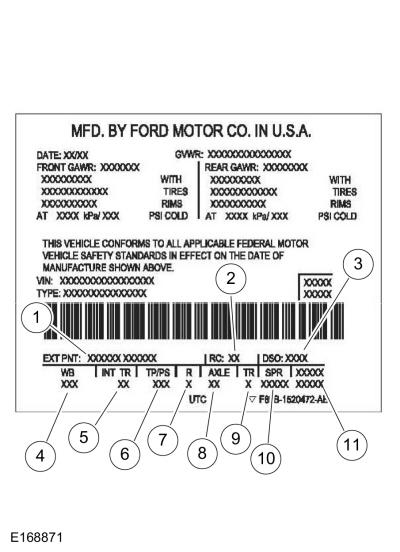

| Item | Description |
|---|---|
| 1 | Exterior paint code |
| 2 | Region code |
| 3 | DSO (District Special Order) code |
| 4 | Wheelbase code |
| 5 | Interior trim code |
| 6 | Tape/paint stripe code |
| 7 | Radio code |
| 8 | Axle code |
| 9 | Transmission code |
| 10 | Spring code |
| 11 | Powertrain calibration information |
Paint Code
Paint codes may be listed as a 2-part code. The first set of paint code numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a 2-tone or accent body color. All paint codes are a base coat/clear coat finish.
- D4 - Rapid Red Metallic (tinted clearcoat)
- E7 - Velocity Blue Metallic
- G1 - Shadow Black/Absolute Black
- HX - Antimatter Blue/Signature Navy
- JS - Iconic Silver/Silver Radiance
- KU - Area 51
- M7 - Carbonized Gray Metallic
- N6 - Lightning Blue (First Edition only)
- NE - Cactus Gray
- PQ - Race Red
- SB - Cyber Orange Metallic (tri-coat)
- YZ - Oxford White
Wheelbase
The following identifies the vehicle wheelbase:
- 100 - 100.4 in (2, 550 mm) wheelbase
- 116 - 116.1 in (2, 950 mm) wheelbase
Interior Trim Codes
Interior trim codes are listed as a 2-part code. The first digit listed indicates the seat and fabric style. The second digit listed indicates the interior trim color.
Interior Trim Type
- 1 - Vinyl Black seats
- 2 - Leather trim/Vinyl Roast/Black seats
- 5 - Leather trim/Vinyl Black seats (First Edition only)
- 7 - Leather trim/Vinyl Gray/Navy seats
- 8 - Leather trim/Vinyl Black seats
- J - Cloth Gray/Navy seats
- L - Cloth Gray/Black seats
- P - Cloth Sandstone/Black seats
- Q - Cloth Sandstone/Black seats
- R - Cloth Roast/Black seats
- S - Vinyl Gray/Black seats
- T - Leather trim/Vinyl Standstone/Black seats
Interior Trim Color Codes
- V - Black Onyx
Tape/Paint Stripe Codes
Tape and paint stripe codes do not apply.
Radio Codes
The following lists available radio codes:
- 9 - AM/ FM stereo, 10-Speakers, SYNC, navigation
- B - AM/ FM stereo, 6-Speakers, SYNC
- C - Connected navigation (90-days trial)
- E - Connected built in navigation (3-years included)
- F - AM/ FM stereo, 10-Speakers, SYNC #4, navigation
- G - AM/ FM stereo, 10-Speakers, SYNC #4
- H - AM/ FM stereo, 6-Speakers, SYNC, Electronic Digital A2B (Automobile Audio Bus)
- I - AM/ FM stereo, 6-Speakers, SYNC
- J - AM/ FM stereo, 6-Speakers, SYNC #4, Electronic Digital A2B (Automobile Audio Bus)
- K - AM/ FM stereo, 6-Speakers, SYNC #4
- L - AM/ FM stereo, 6-Speakers, SYNC #4, navigation, Electronic Digital A2B (Automobile Audio Bus)
- M - AM/ FM stereo, 6-Speakers, SYNC #4, navigation
- N - AM/ FM stereo, 10-Speakers, SYNC #4, Electronic Digital A2B (Automobile Audio Bus)
- P - B Play® AM/ FM stereo, Connected built in navigation (3-years included)
- S - AM/ FM stereo, 6-Speakers, SYNC #4
- T - AM/ FM stereo, 6-Speakers, SYNC #4, navigation
- Y - AM/ FM stereo, 6-Speakers, SYNC
Axle Type
The following lists the available axle ratios and associated codes:
- 2L - 4.27 Final Drive Ratio/Rear Axle-Locking Differential
- 46 - 4.46 Final Drive Ratio/Rear Axle-Locking Differential
- 4L - 4.46 Final Drive Ratio/Rear Axle-Open Differential
- 7L - 4.7 Final Drive Ratio/Rear Axle-Locking Differential
- 73 - 3.73 Final Drive Ratio/Rear Axle-Open Differential
Transmission Codes
Available transmissions are as follows:
- Q - 7- speed manual (MT88)
- T - 10-speed automatic (10R60)
Spring Codes
Spring codes are listed as a 2-part code. The first 2 characters identify the RH and LH front springs. The third and fourth characters identify the RH and LH rear springs.
Front Springs
- Base part number - 5310
Rear Springs
- Base part number - 5560
