Piston Diameter
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Check
-

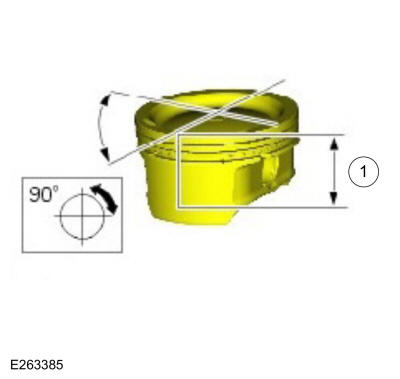

- Measure the piston diameter 90 degrees from the piston pin at the diameter nominal (DN) height measured from the top of the piston.
- Refer to specifications for the piston diameter (DN) height. Refer to: Specifications (303-01A). Refer to: Specifications Refer to: Specifications Refer to: Specifications
