Fuel Pump Driver Module (FPDM): Removal
-
NOTE: The fuel pump driver module is located on a bracket attached to the evaporative emission canister mounting bracket.
For fuel pump driver module component location view, Refer to: Fuel Charging and Controls - Component Location .
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .

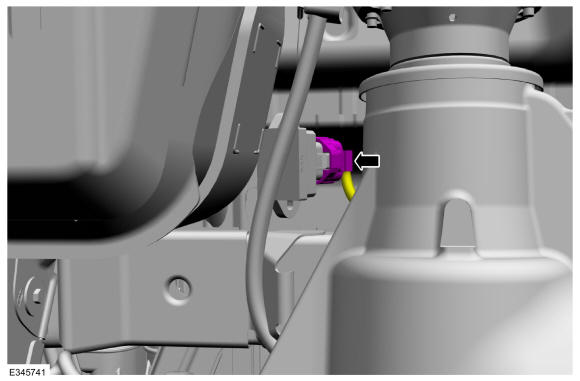

- Disconnect the fuel pump driver module electrical connector.

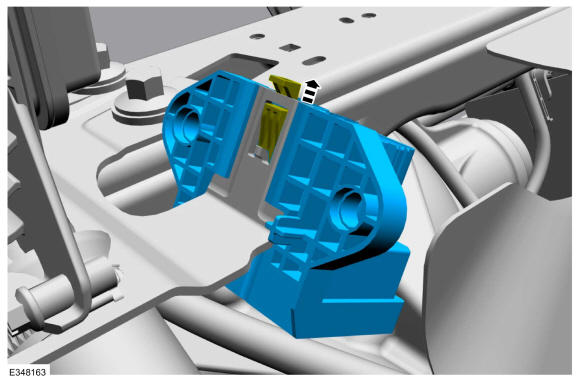

- Release the fuel pump driver module retaining tab, then remove the fuel pump driver module from the bracket.
