Connector Repair Procedures

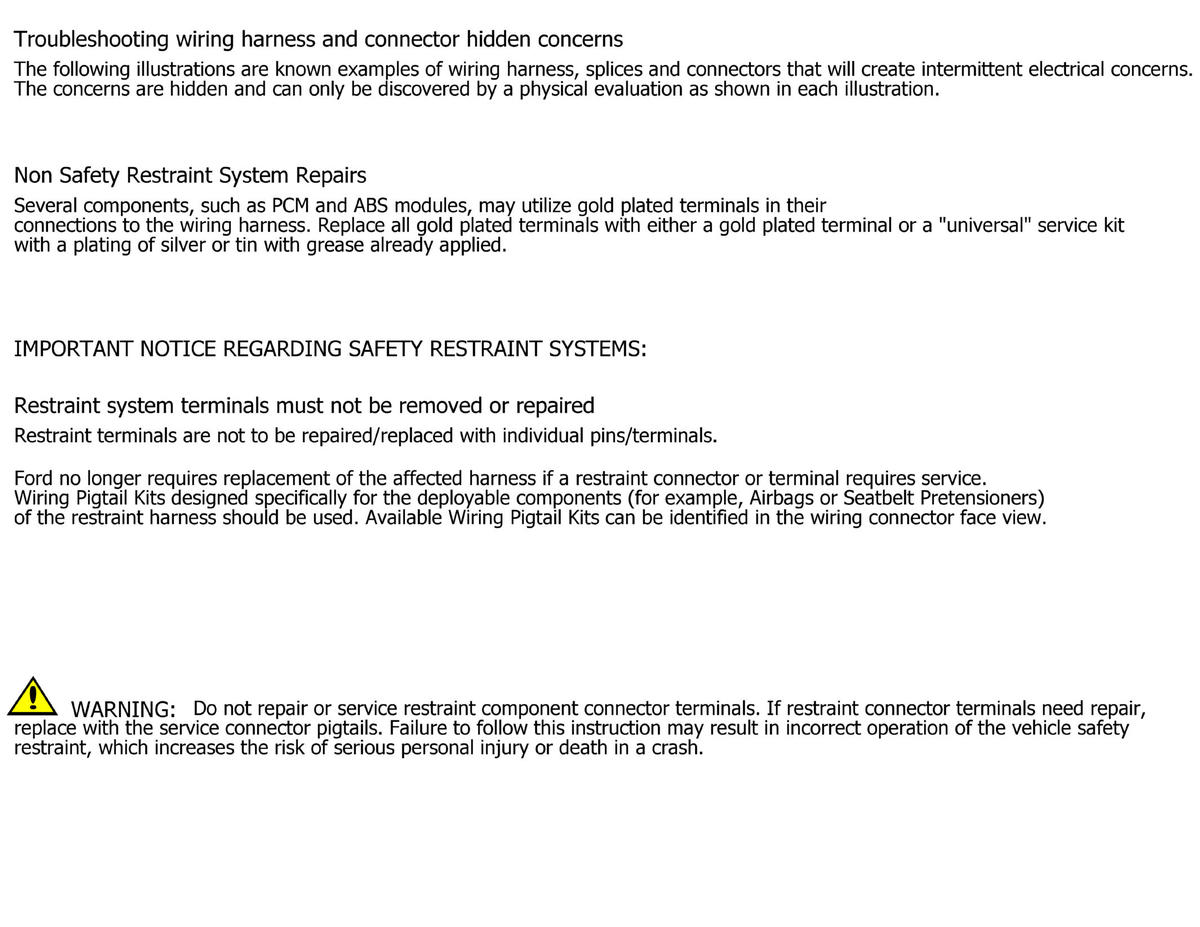

GFDWR151640Courtesy of FORD MOTOR COMPANY

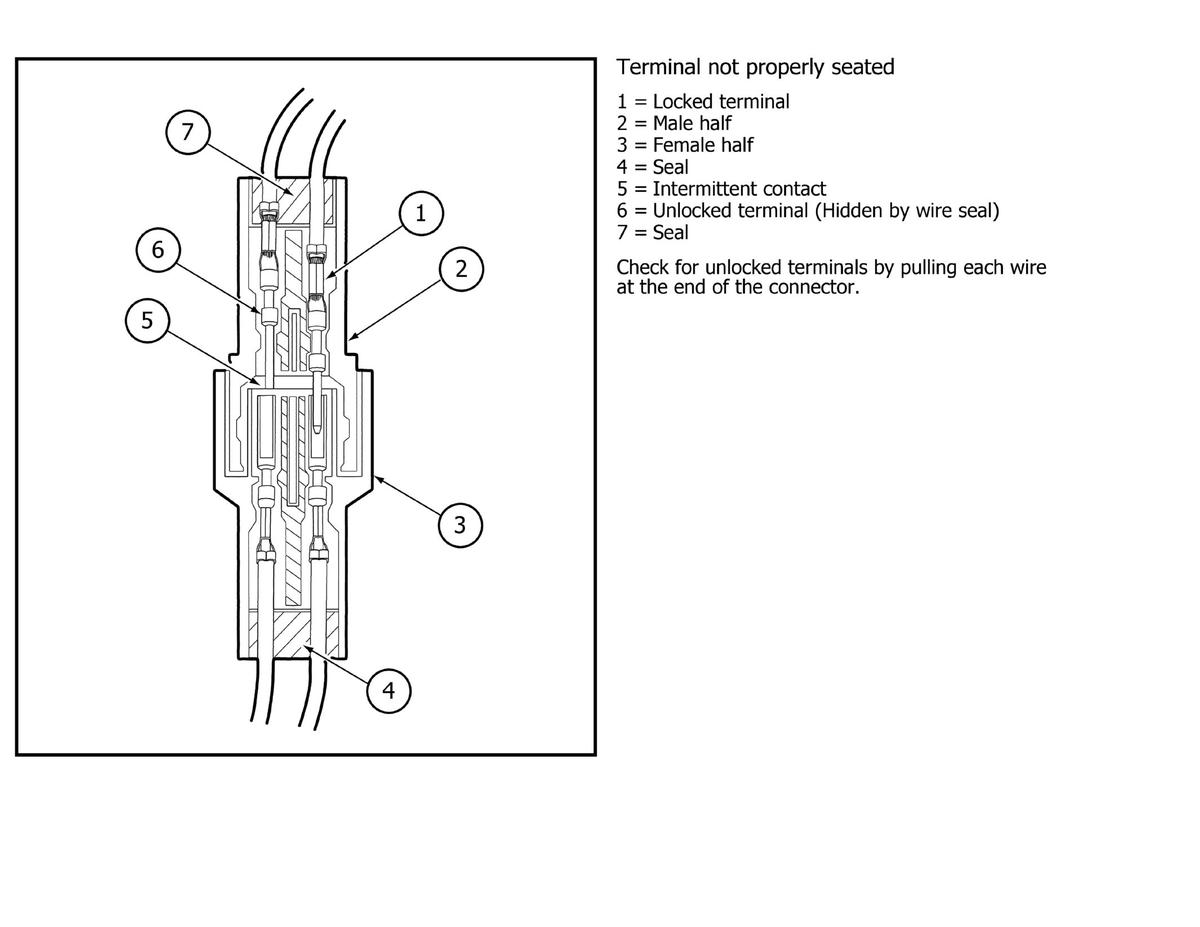

GFDWR151641Courtesy of FORD MOTOR COMPANY

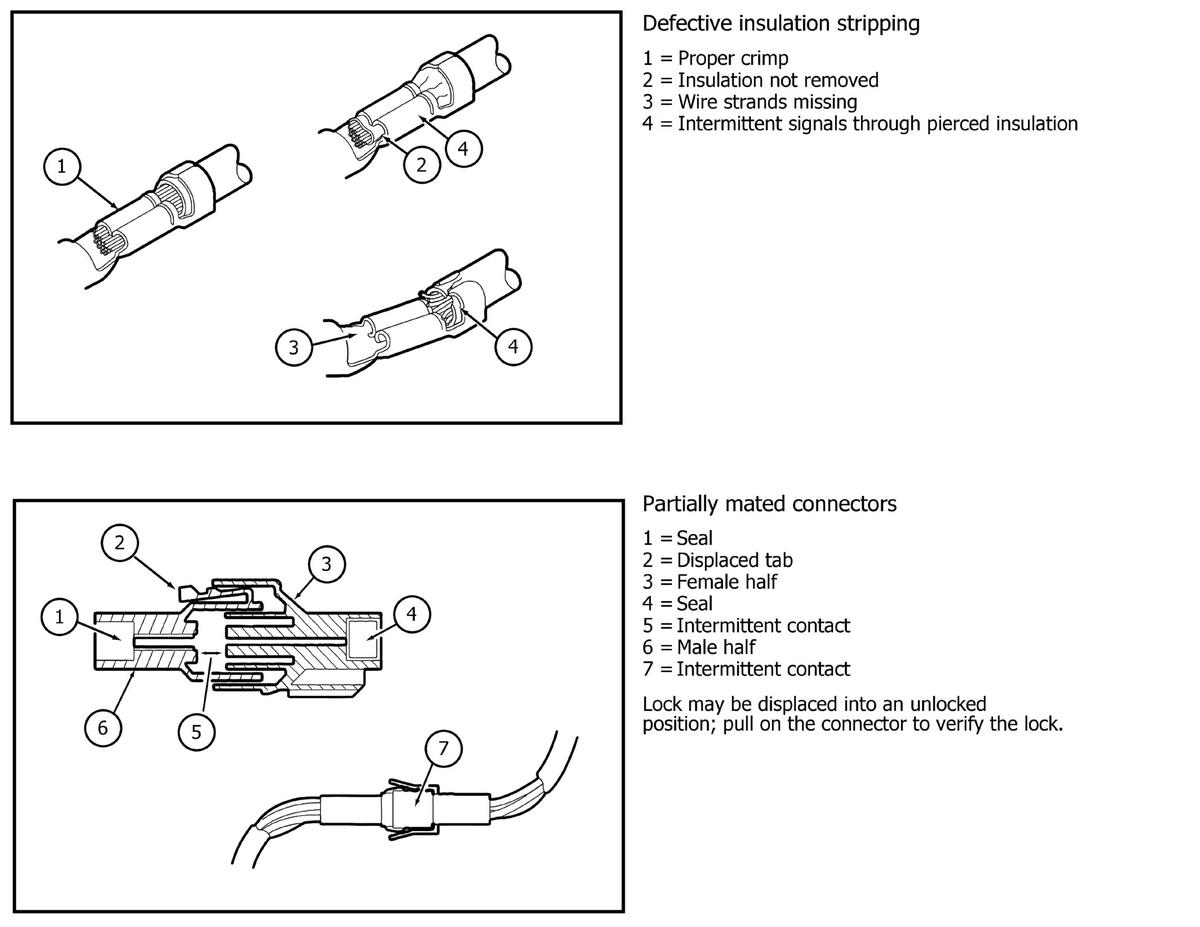

GFDWR151642Courtesy of FORD MOTOR COMPANY

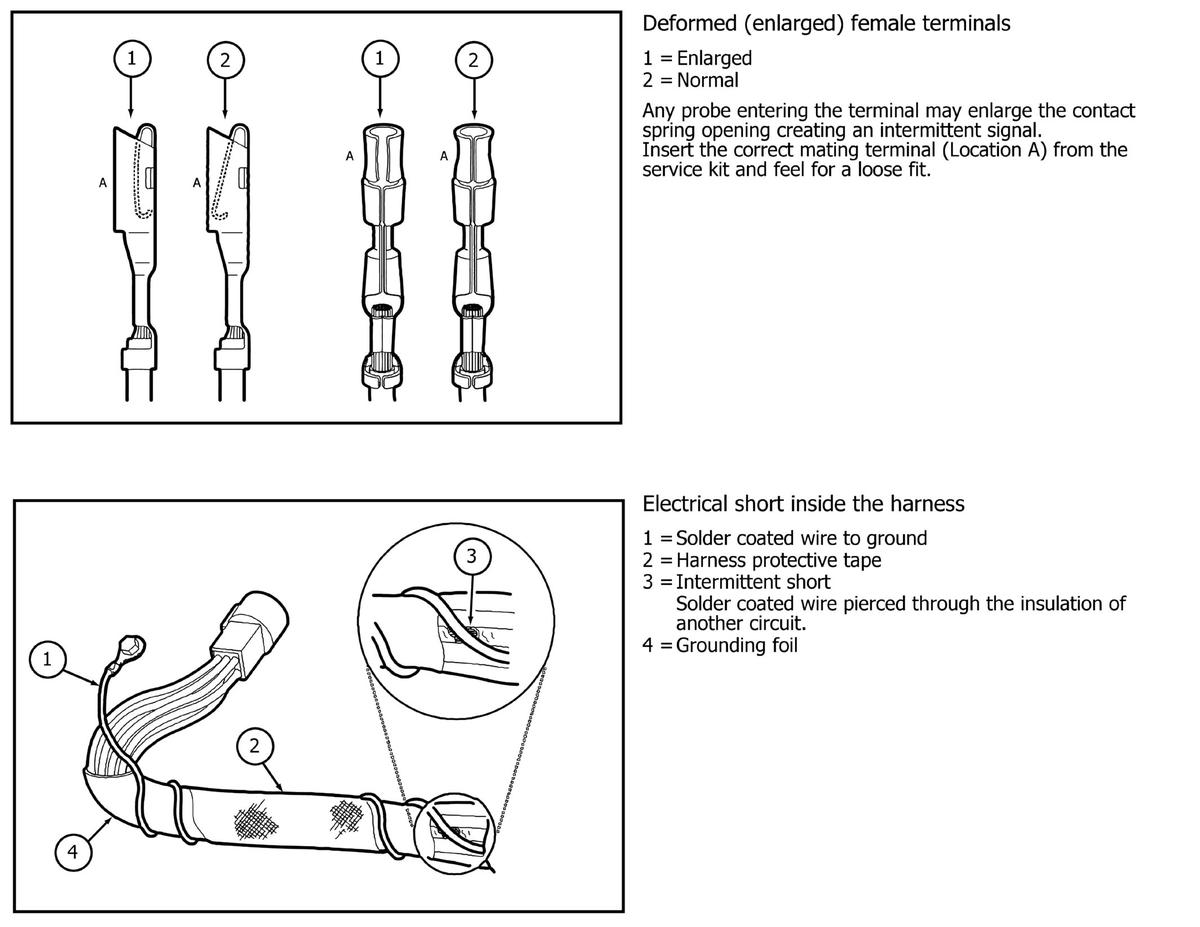

GFDWR151643Courtesy of FORD MOTOR COMPANY

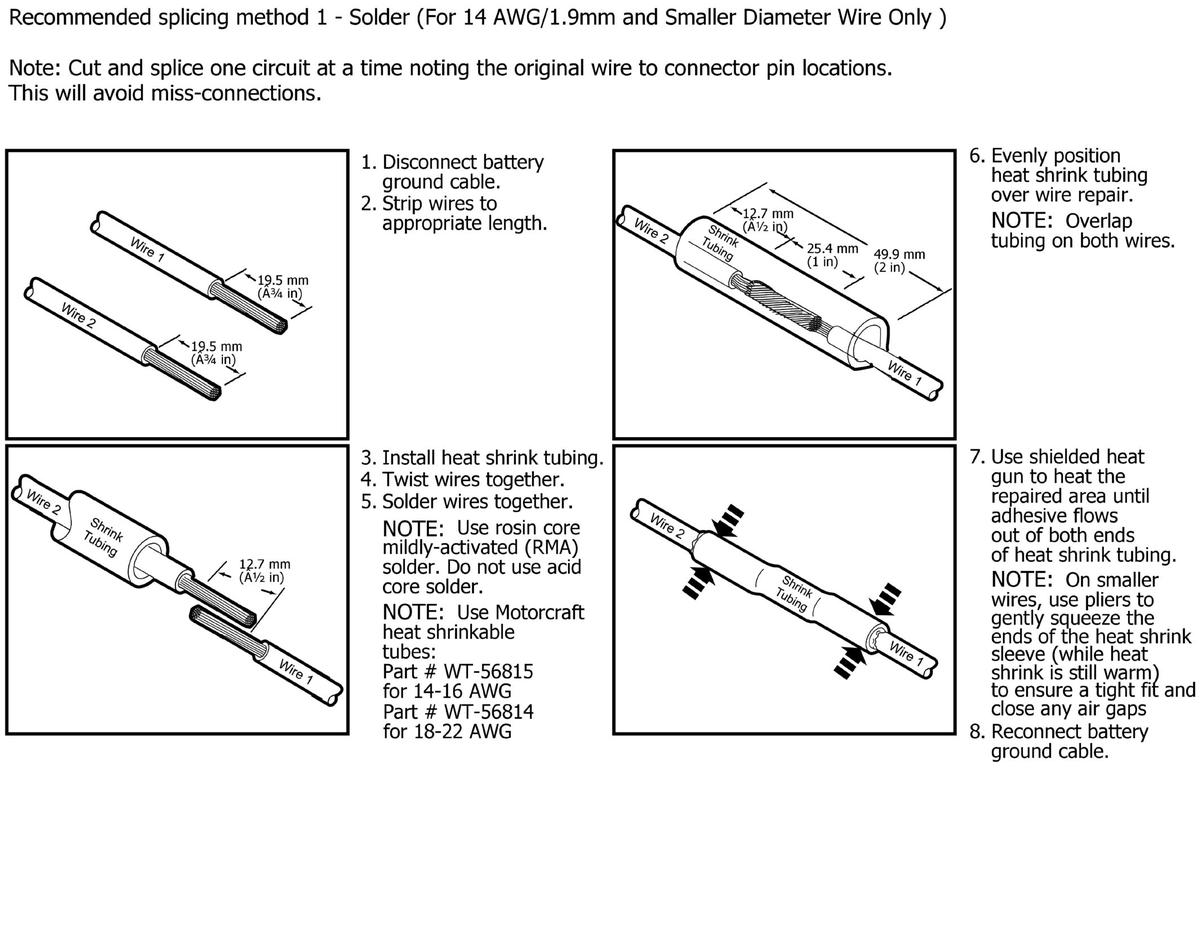

GFDWR151644Courtesy of FORD MOTOR COMPANY

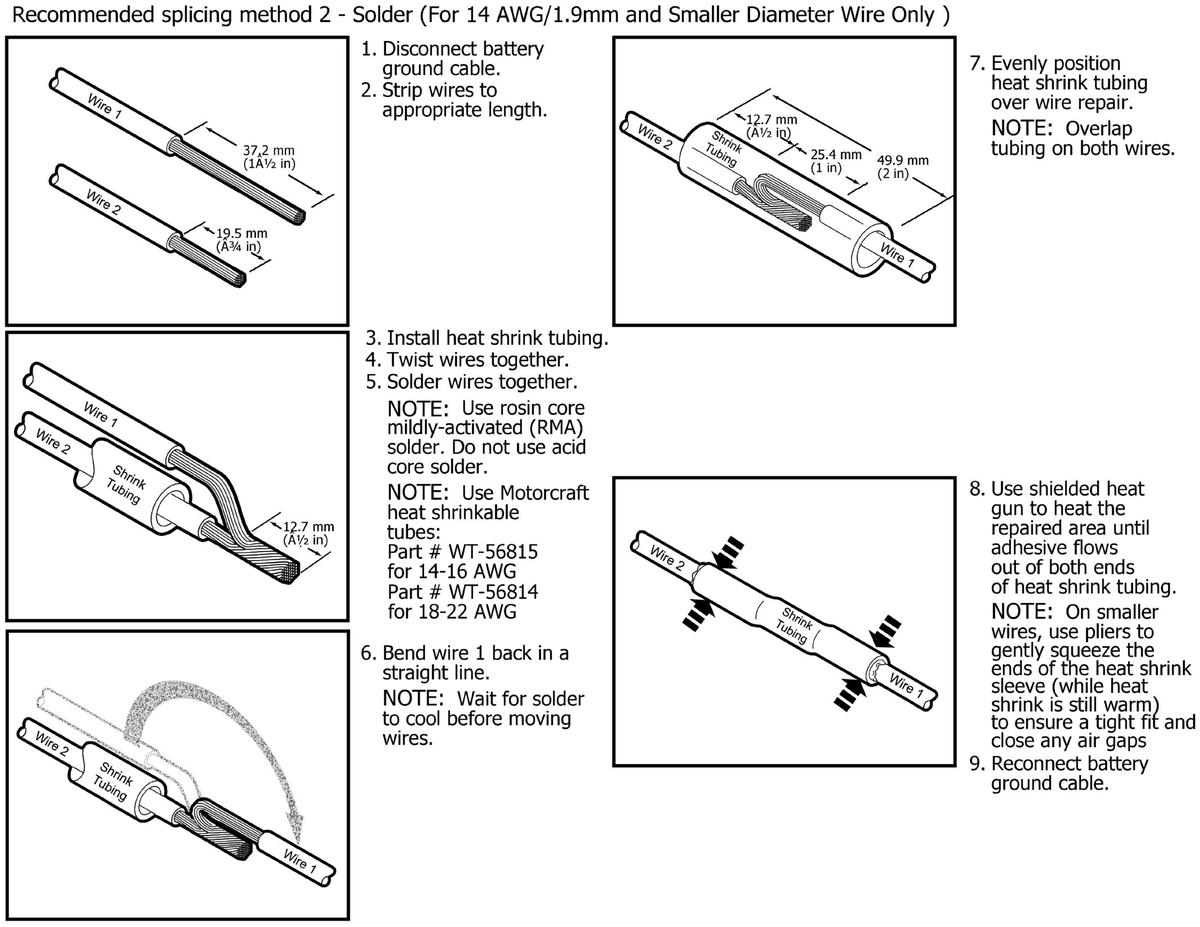

GFDWR151645Courtesy of FORD MOTOR COMPANY

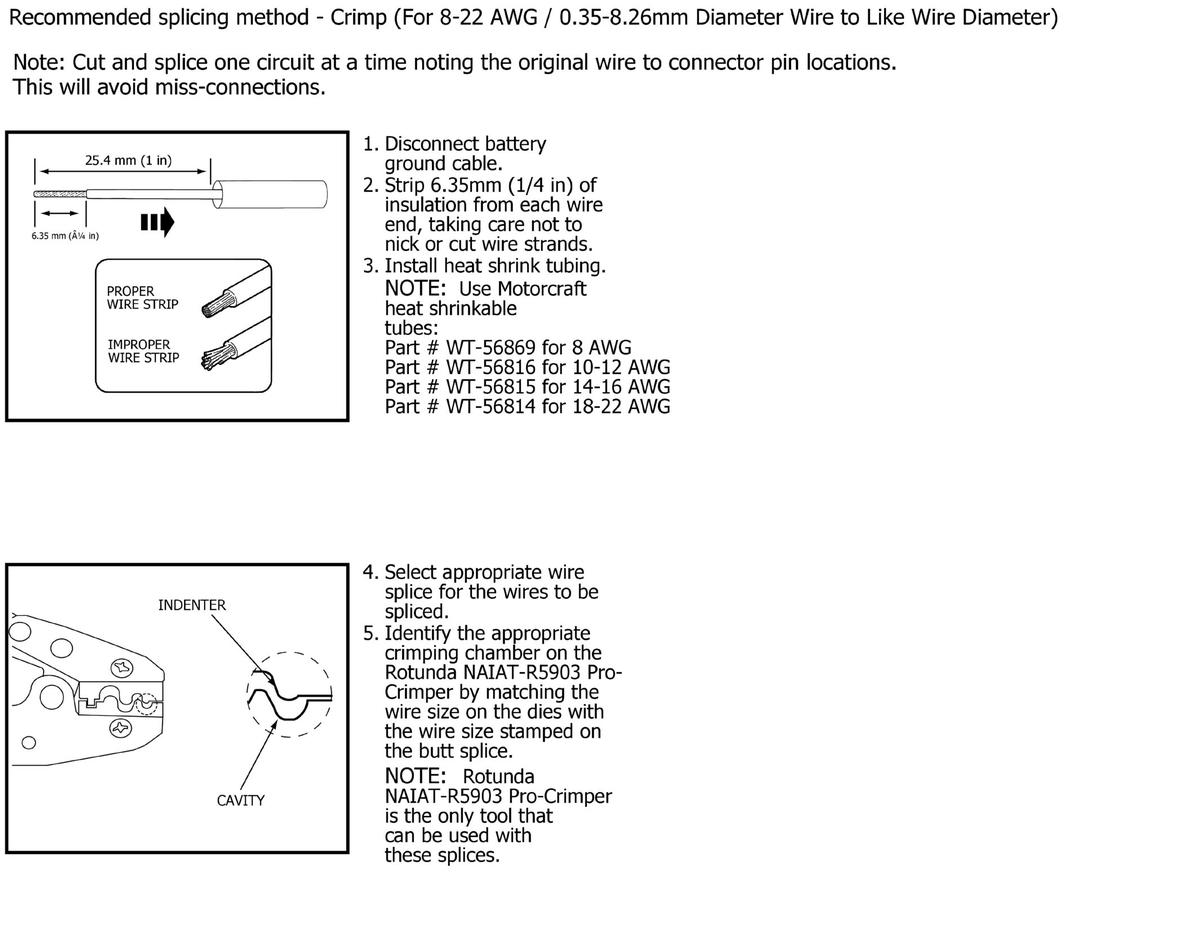

GFDWR151646Courtesy of FORD MOTOR COMPANY

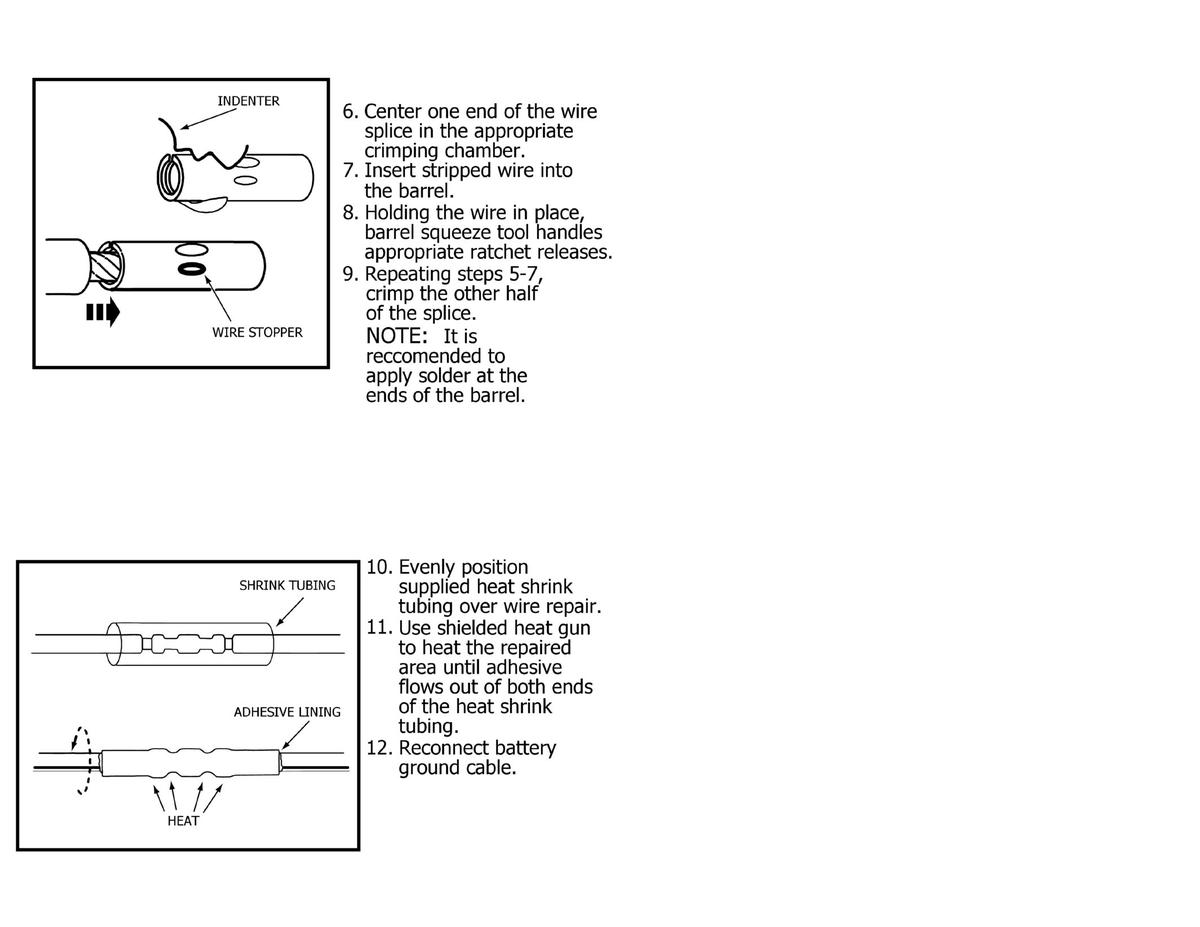

GFDWR151647Courtesy of FORD MOTOR COMPANY

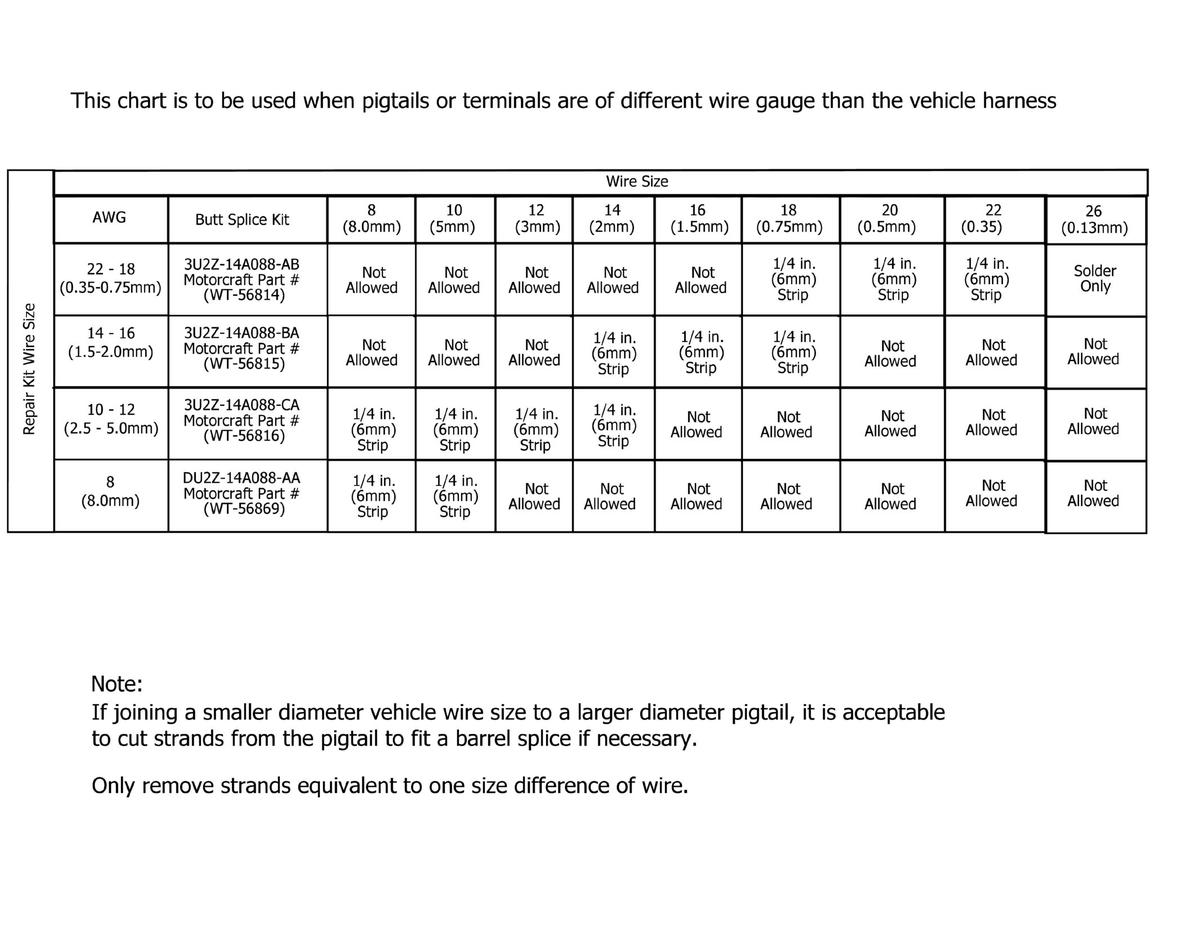

GFDWR151648Courtesy of FORD MOTOR COMPANY
