Powertrain Drivetrain Mount Neutralizing

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Powertrain/Drivetrain Mount Neutralizing

Adjustment

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting - Overview .

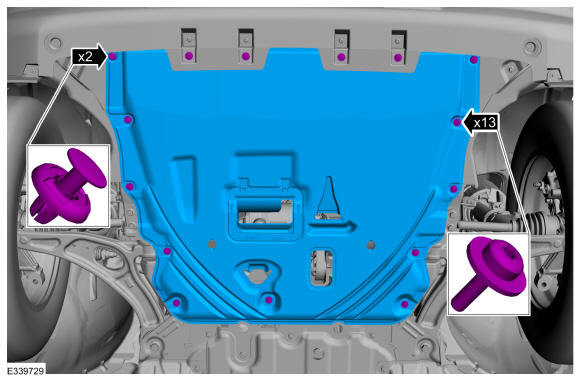

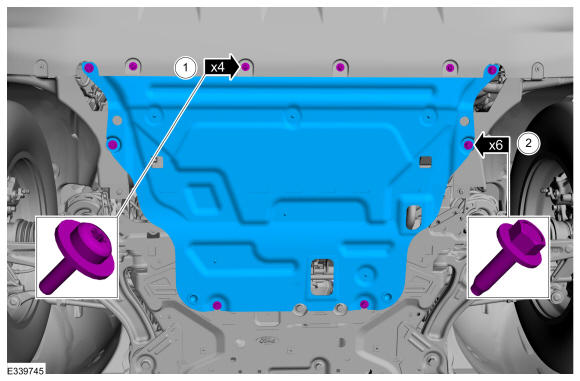

2. If equipped. Remove the fasteners and the undershield.

   Courtesy of FORD MOTOR COMPANY

3. If equipped. Remove the fasteners and the undershield.

   Courtesy of FORD MOTOR COMPANY

   1.5L and 2.0L

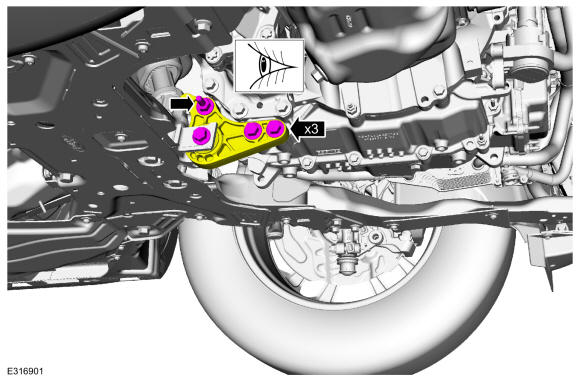

4. Loosen, but do not remove the roll restrictor fasteners. Verify that the roll restrictor is loose.

   Courtesy of FORD MOTOR COMPANY

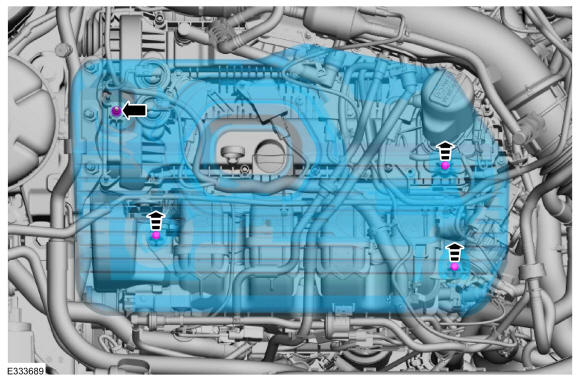

5. NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.
   1. Remove the engine appearance cover nut.
   2. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
   3. After all of the grommets have been released from the studs, remove the appearance cover from the engine.

   Courtesy of FORD MOTOR COMPANY

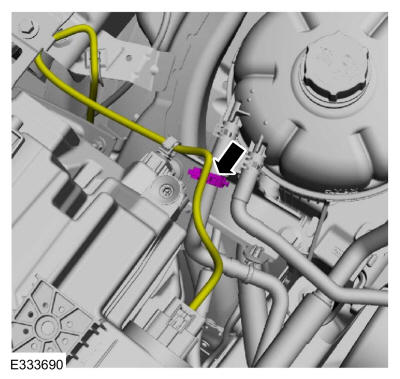

6. Detach the headlight wiring harness retainer from the degas bottle coolant hose.

   Courtesy of FORD MOTOR COMPANY

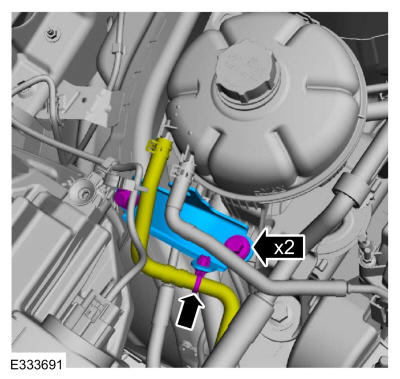

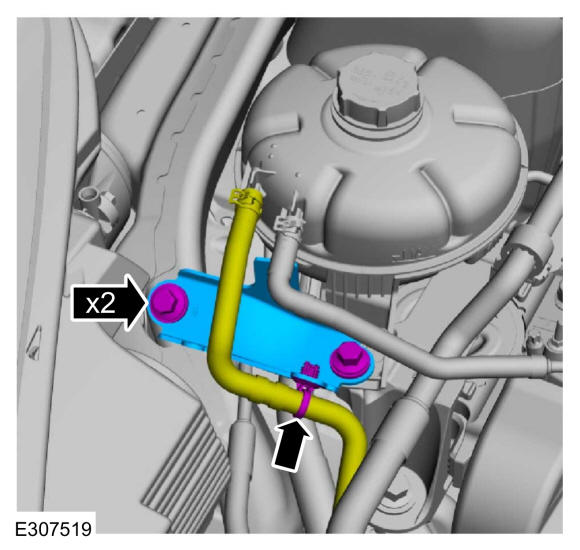

7. • Detach the coolant hose retainer.
   • Remove the bolts and the degas bottle support bracket.

   Courtesy of FORD MOTOR COMPANY

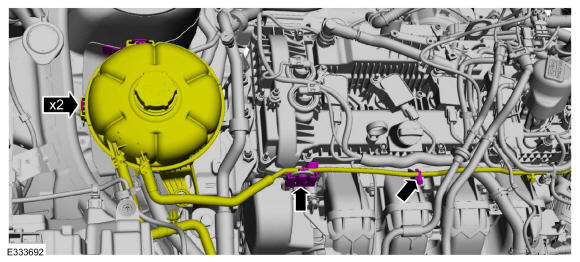

8. • Detach the coolant hose retainers.
   • Release the tabs and position the degas bottle aside.

   Courtesy of FORD MOTOR COMPANY

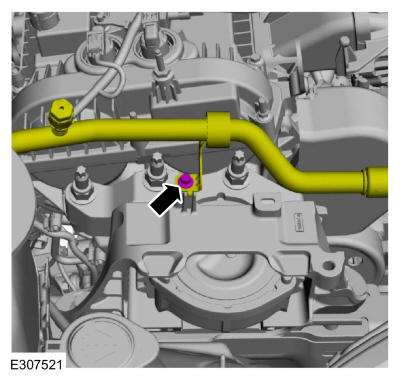

9. Remove the bolt and position the A/C line bracket aside.

   Courtesy of FORD MOTOR COMPANY

10. Remove the battery. Refer to Battery .
11. Remove the air cleaner. Refer to Air Cleaner 1.5L EcoBoost . Refer to Air Cleaner 2.0L EcoBoost .

    1.5L EcoBoost (132kW/180PS) - I3

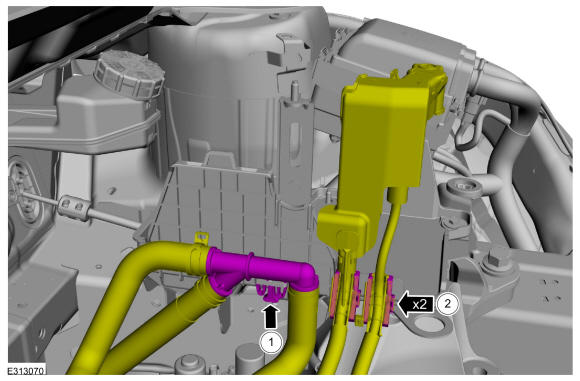

12. 1. Release the retainer and position the heater hoses aside.
    2. Detach the wire harness retainers from the battery tray.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

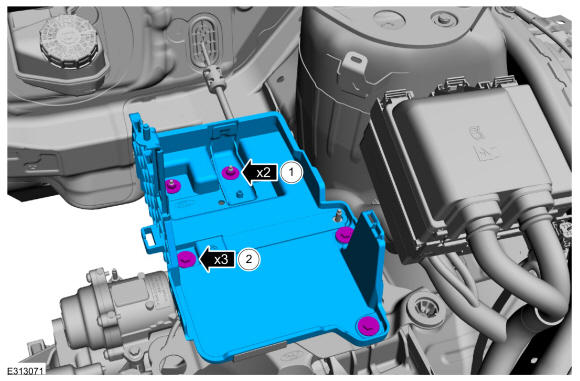

13. 1. Remove the battery tray nuts.

       Torque

       : 93 lb.in (10.5 Nm)

    2. Remove the bolts and the battery tray.

       Torque

       : 93 lb.in (10.5 Nm)

    Courtesy of FORD MOTOR COMPANY

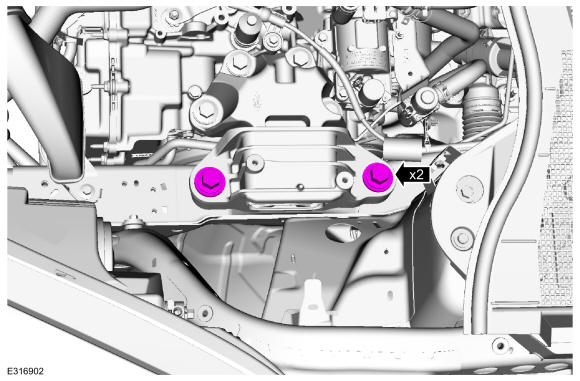

14. Loosen the transmission mount bolts.

    Courtesy of FORD MOTOR COMPANY

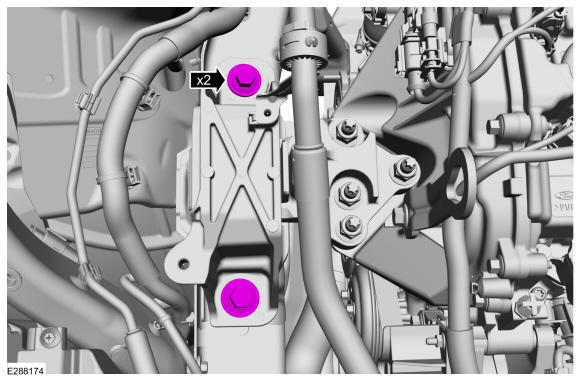

15. Loosen the engine mount bolts.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

16. 1. Install the battery tray and nuts.

       Torque

       : 93 lb.in (10.5 Nm)

    2. Install the bolts.

       Torque

       : 93 lb.in (10.5 Nm)

    Courtesy of FORD MOTOR COMPANY

    1.5L EcoBoost (132kW/180PS) - I3

17. 1. Position back the heater hose and install the retainer.
    2. Attach the wire harness retainers to the battery tray.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

18. Install the battery. Refer to Battery .
19. NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

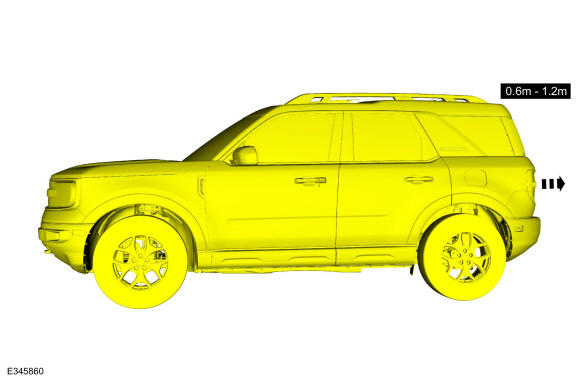

    Start the vehicle and move it forward 0.6 m (1.97 ft) - 1.2 m (3.94 ft).

    Courtesy of FORD MOTOR COMPANY

20. NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

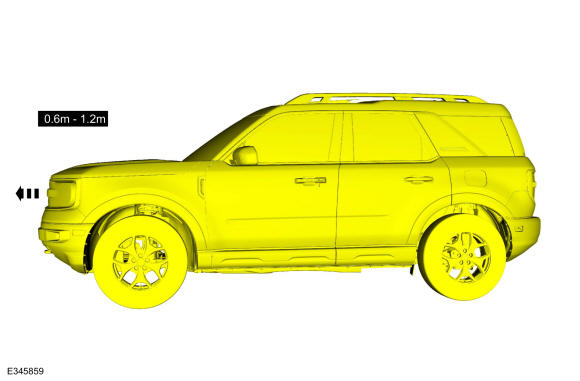

    Move the vehicle in reverse the same distance 0.6 m (1.97 ft) - 1.2 m (3.94 ft).

    Courtesy of FORD MOTOR COMPANY

21. Remove the battery. Refer to Battery .

    1.5L EcoBoost (132kW/180PS) - I3

22. 1. Release the retainer and position the heater hoses aside.
    2. Detach the wire harness retainers from the battery tray.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

23. 1. Remove the nuts.
    2. Remove the bolts and battery tray.

    Courtesy of FORD MOTOR COMPANY

    1.5L and 2.0L

24. Tighten the transmission mount bolts.

    Torque

    :Stage 1: 103 lb.ft (140 Nm)

    Stage 2: 120°

    Courtesy of FORD MOTOR COMPANY

25. Tighten the engine mount bolts.

    Torque

    : 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

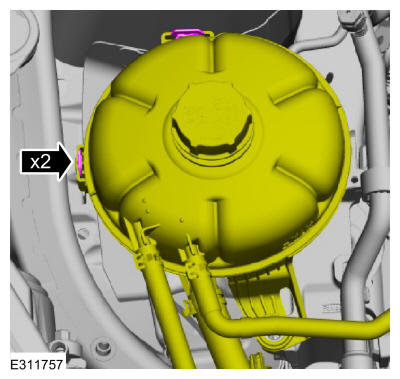

26. Position the degas bottle on the tabs.

    Courtesy of FORD MOTOR COMPANY

27. • Install the degas bottle support bracket and the bolts.
    • Attach the coolant hose retainer.

    Courtesy of FORD MOTOR COMPANY

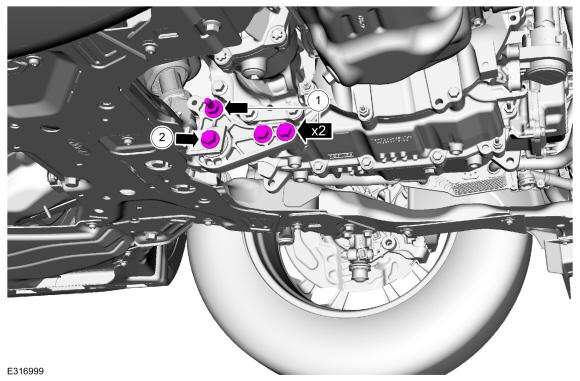

28. • Tighten the bolts and stud bolt.

      Torque

      : 81 lb.ft (110 Nm)

    • Tighten the bolt.

      Torque

      : 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

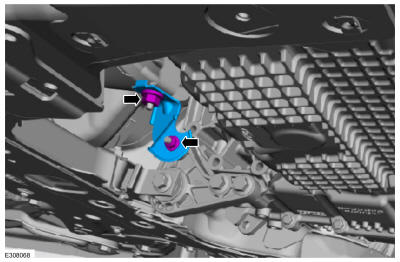

29. If equipped. Install the bracket and the nuts.

    Torque

    : 35 lb.ft (47 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

30. If equipped
    1. Install the screws and engine front undershield.

       Torque

       : 53 lb.in (6 Nm)

    2. Install the bolts.

       Torque

       : 177 lb.in (20 Nm)

    Courtesy of FORD MOTOR COMPANY

31. If equipped Install the engine front undershield and fasteners.

    Torque

    : 13 lb.in (1.5 Nm)

    Courtesy of FORD MOTOR COMPANY

    1.5L EcoBoost (132kW/180PS) - I3

32. 1. Position back the heater hose and install the retainer.
    2. Attach the wire harness retainers to the battery tray.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

33. 1. Install the battery tray and nuts.

       Torque

       : 93 lb.in (10.5 Nm)

    2. Install the bolts.

       Torque

       : 93 lb.in (10.5 Nm)

    Courtesy of FORD MOTOR COMPANY

34. Install the air cleaner. Refer to Air Cleaner 1.5L EcoBoost . Refer to Air Cleaner 2.0L EcoBoost .
35. Test the system for normal operation.
