Connector Repair Procedures

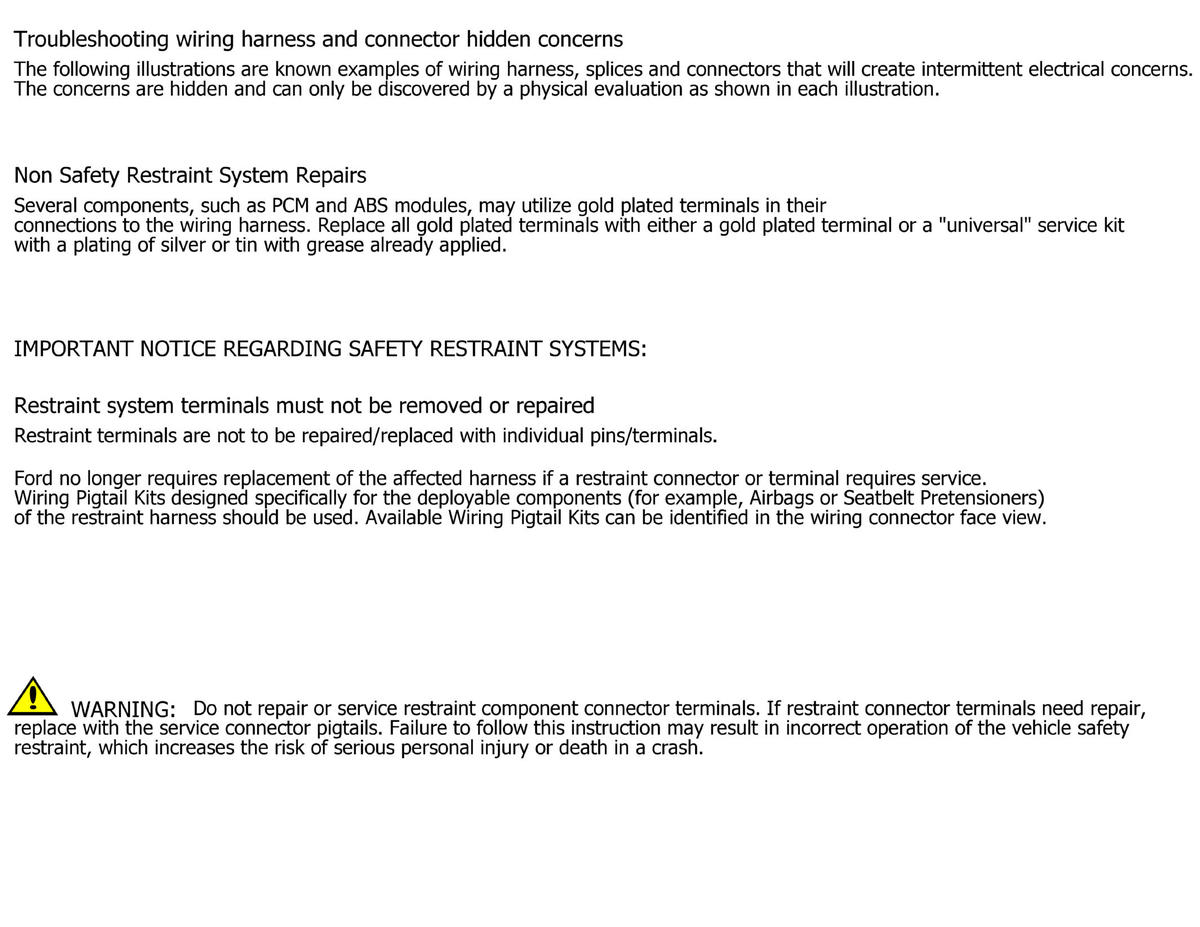

GFDWR131741Courtesy of FORD MOTOR COMPANY

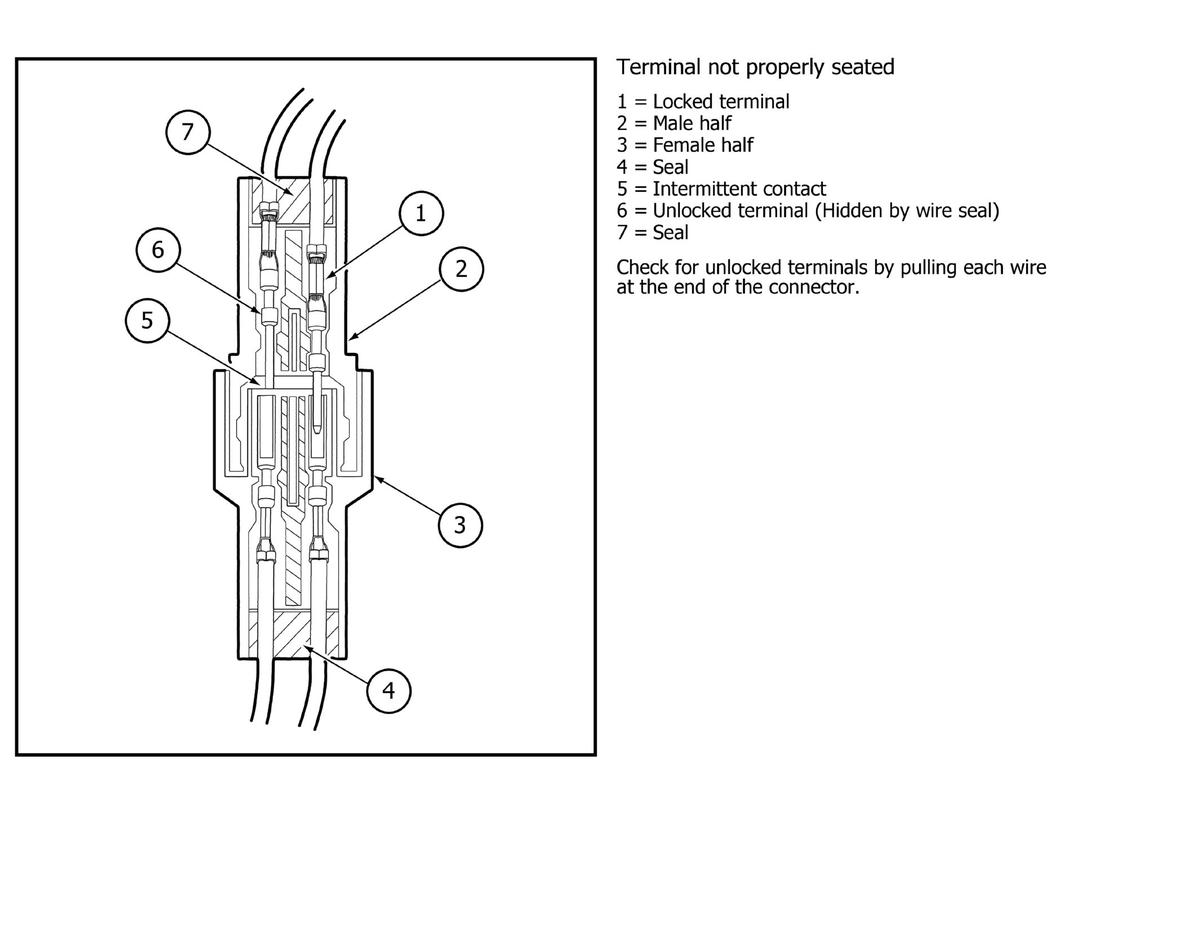

GFDWR131742Courtesy of FORD MOTOR COMPANY

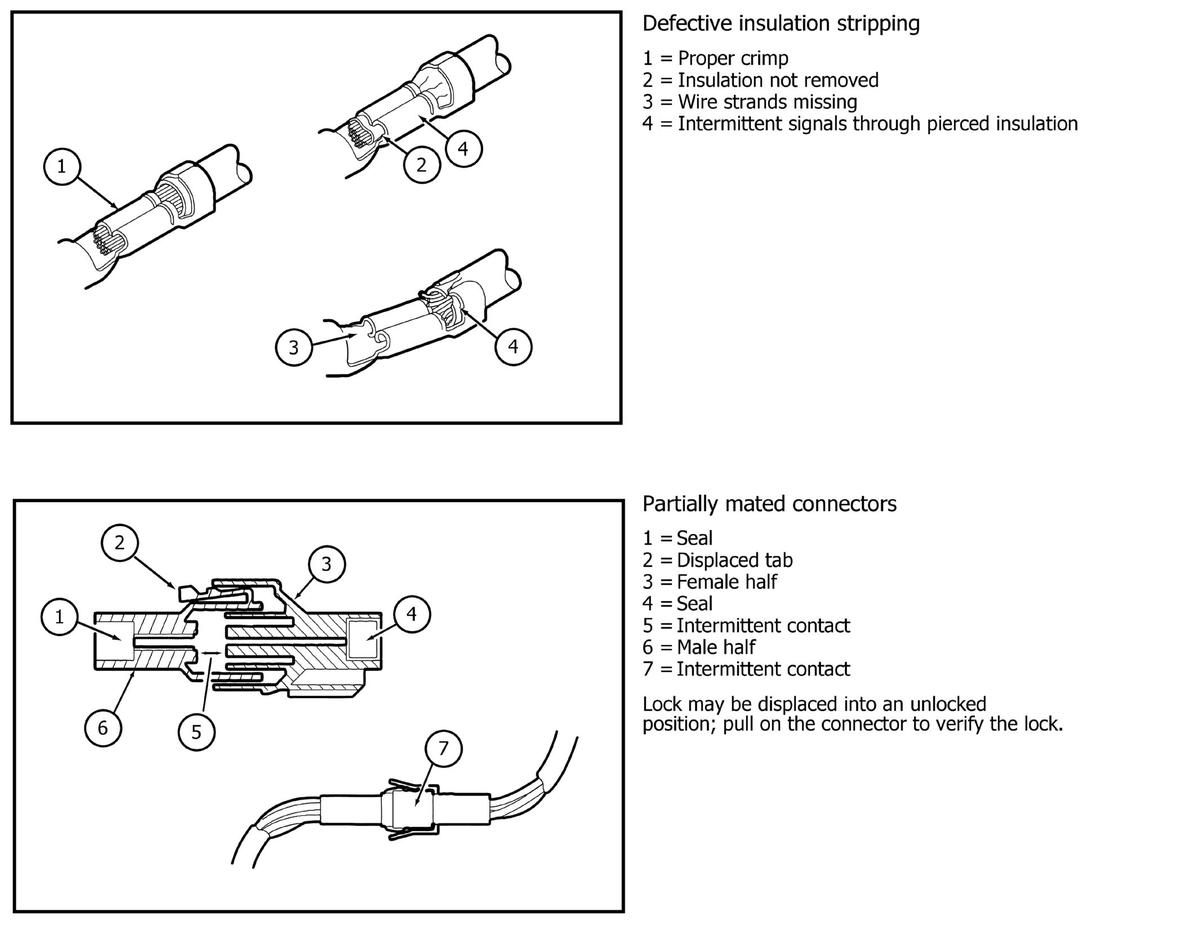

GFDWR131743Courtesy of FORD MOTOR COMPANY

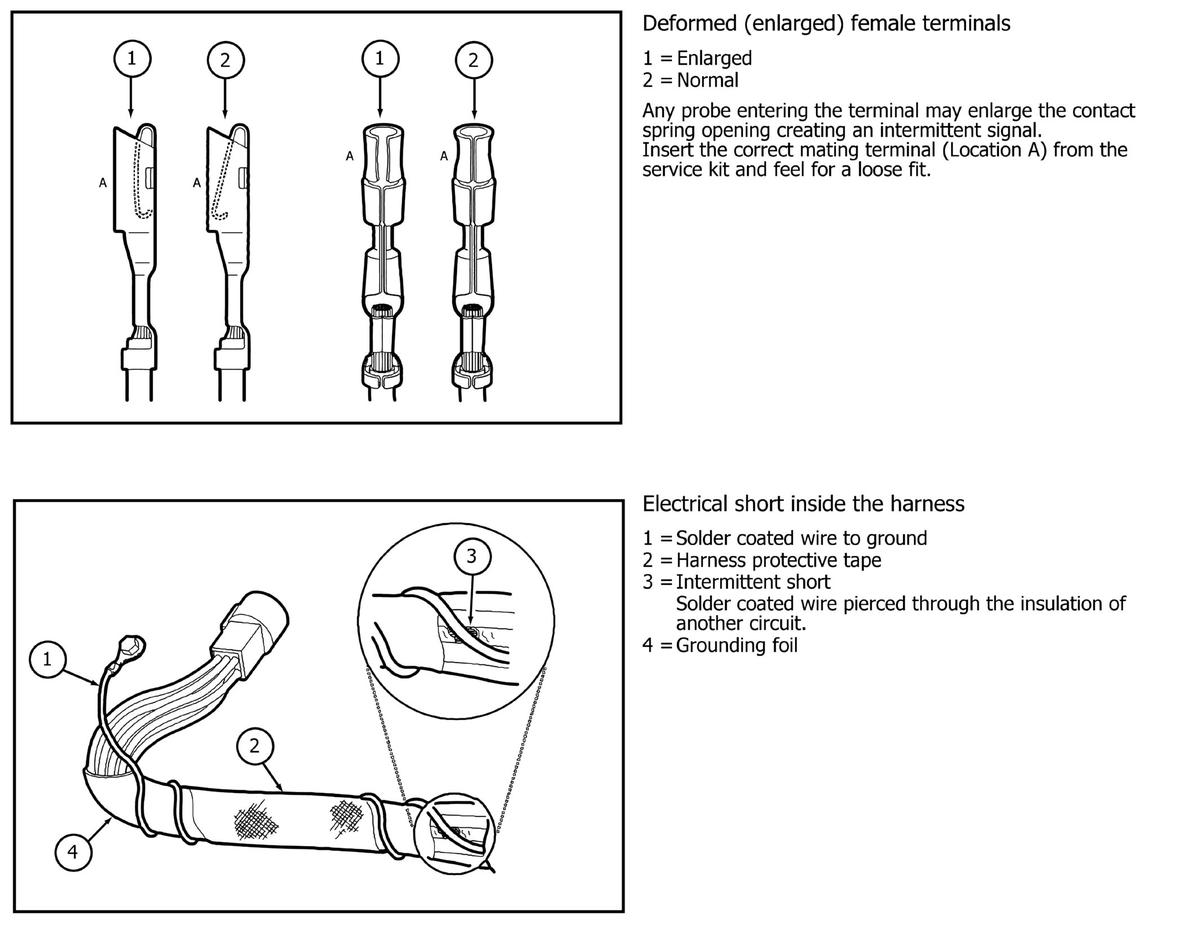

GFDWR131744Courtesy of FORD MOTOR COMPANY

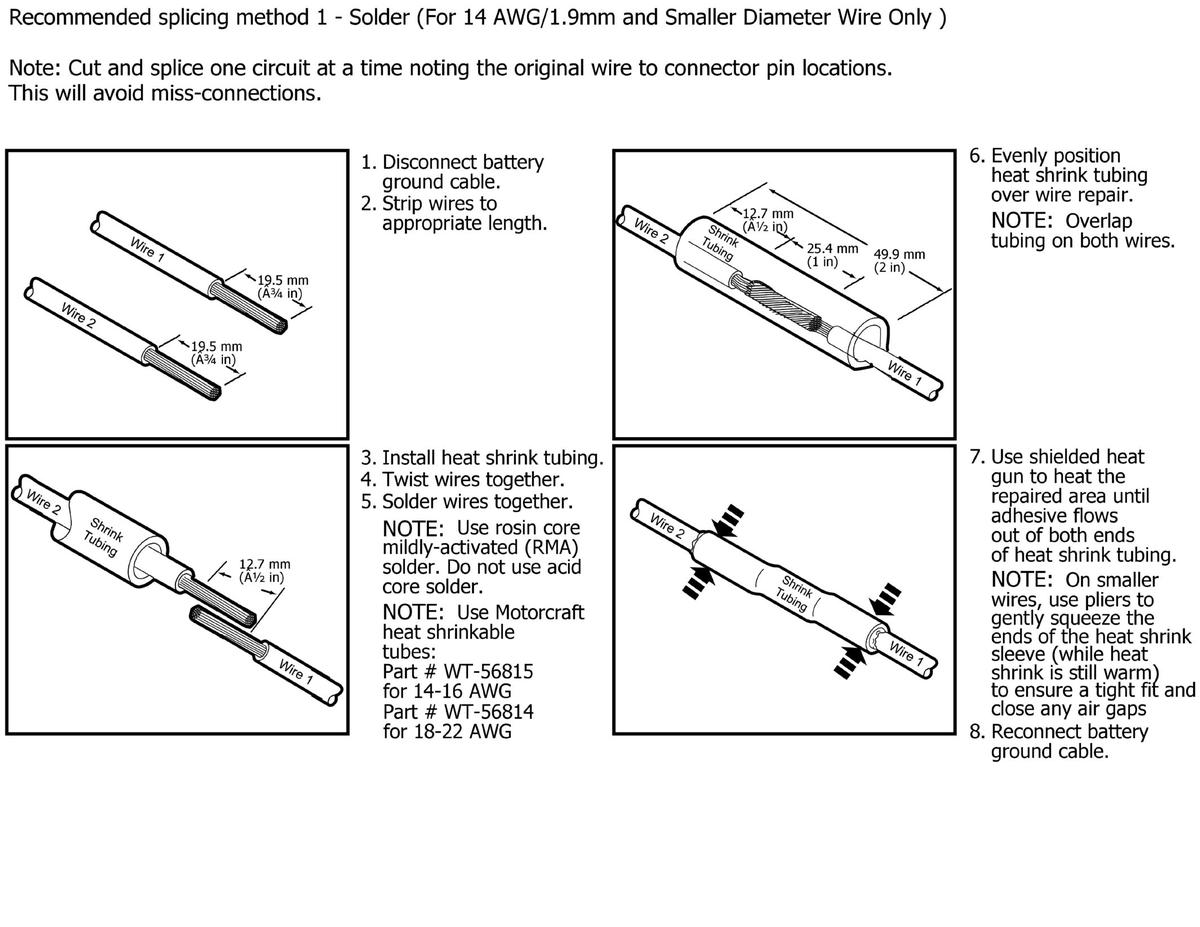

GFDWR131745Courtesy of FORD MOTOR COMPANY

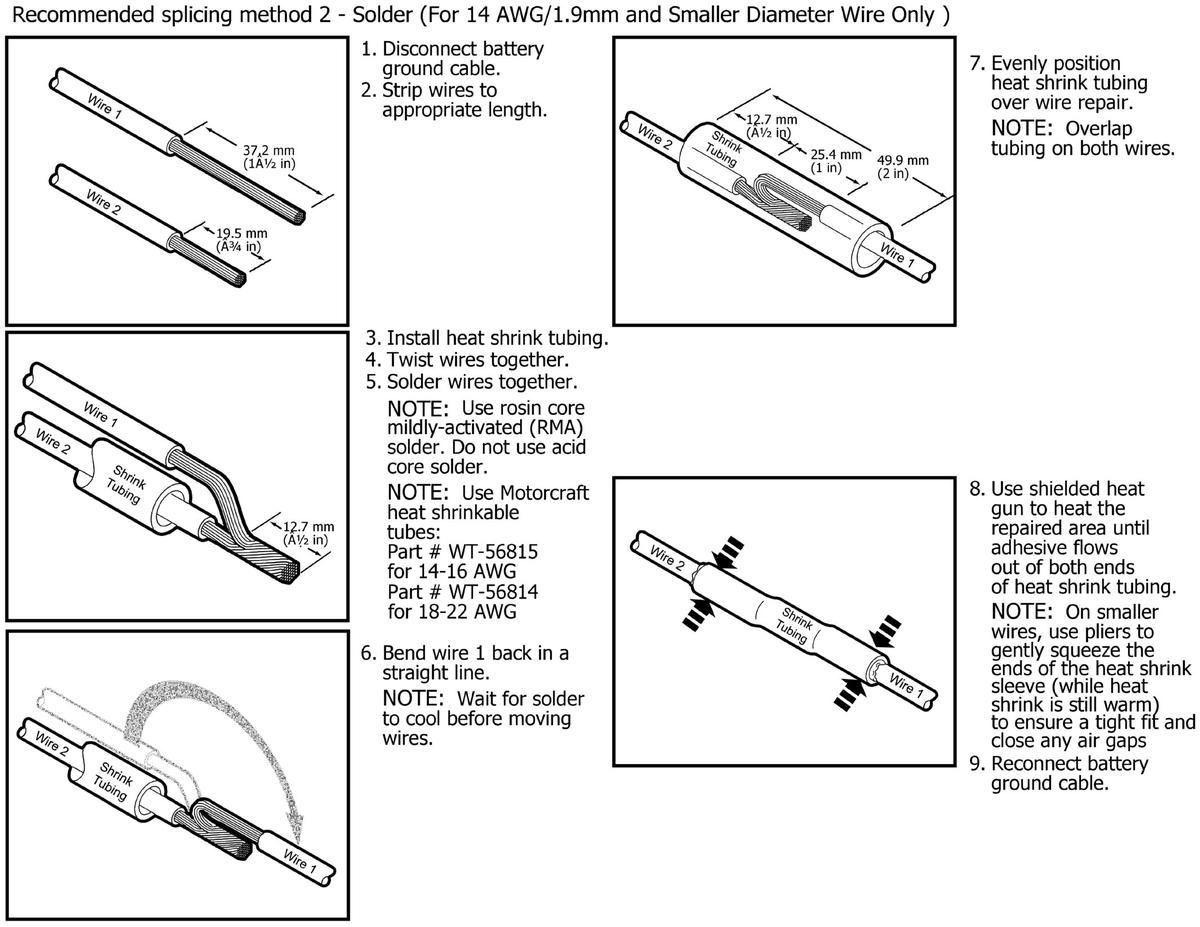

GFDWR131746Courtesy of FORD MOTOR COMPANY

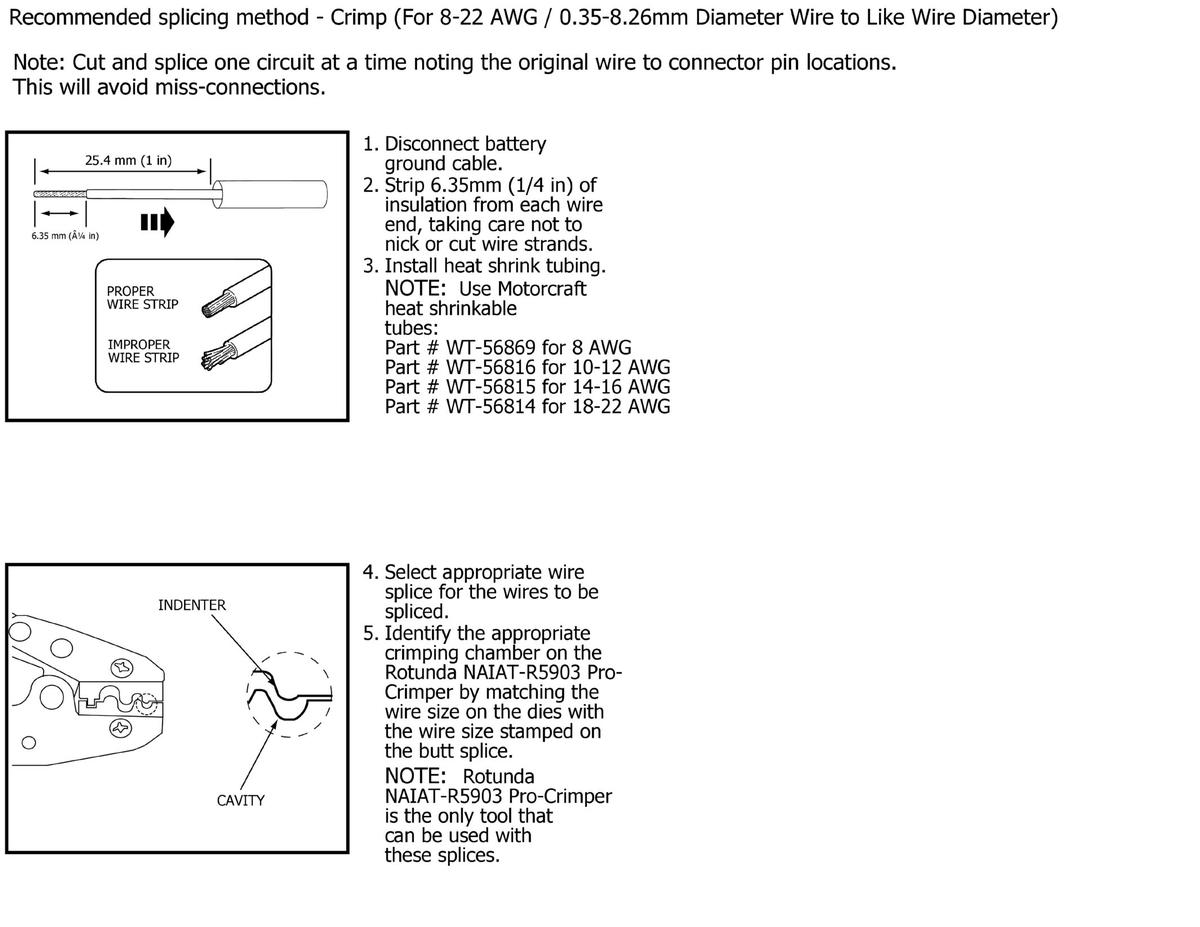

GFDWR131747Courtesy of FORD MOTOR COMPANY

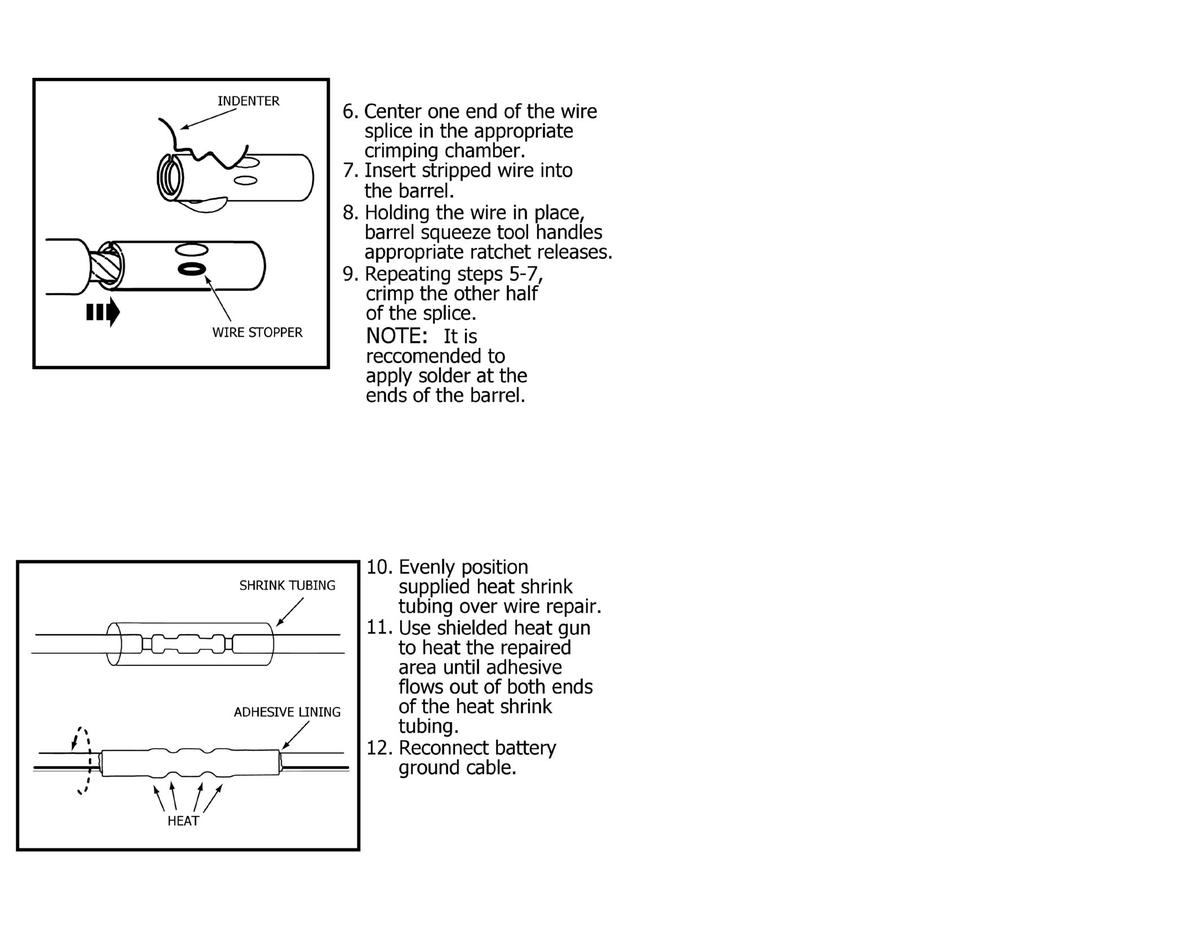

GFDWR131748Courtesy of FORD MOTOR COMPANY

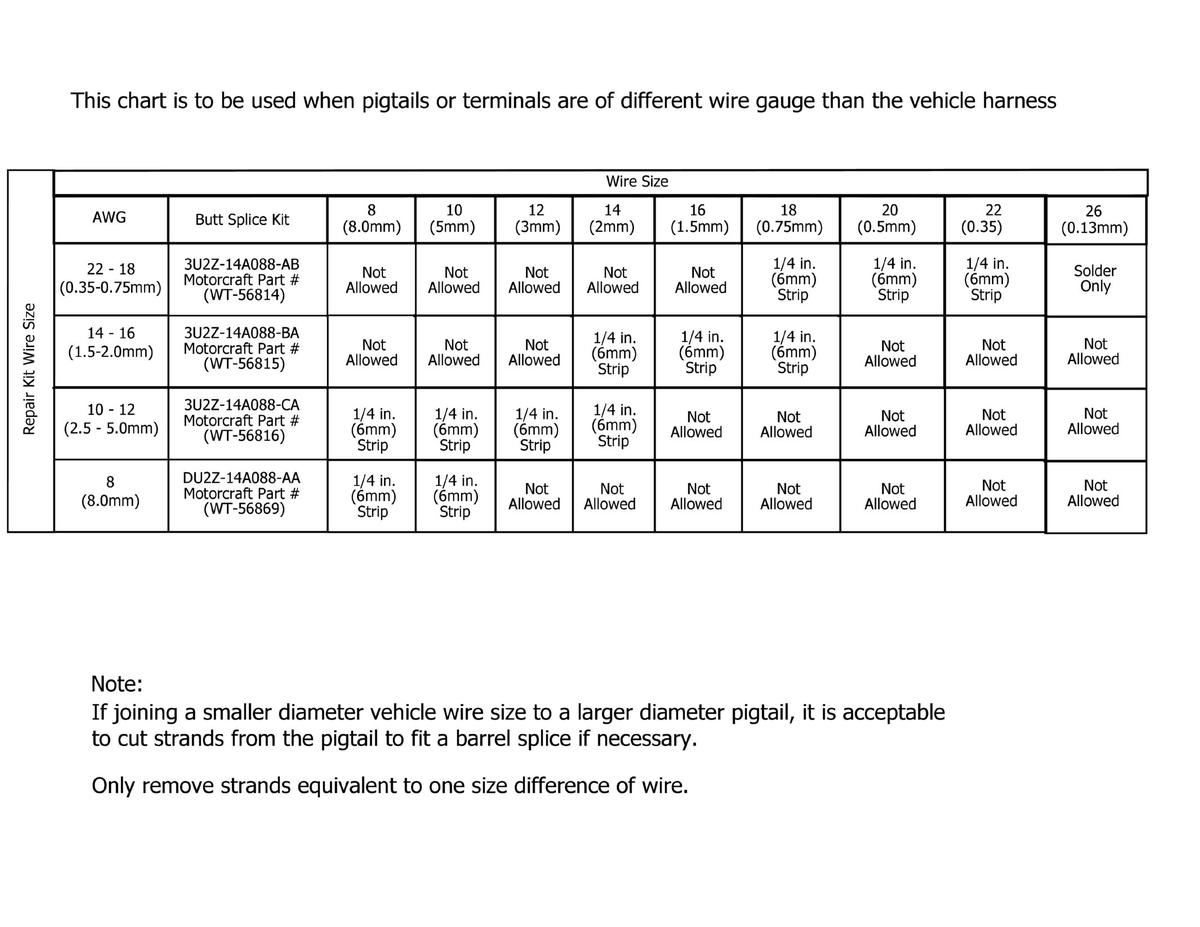

GFDWR131749Courtesy of FORD MOTOR COMPANY
