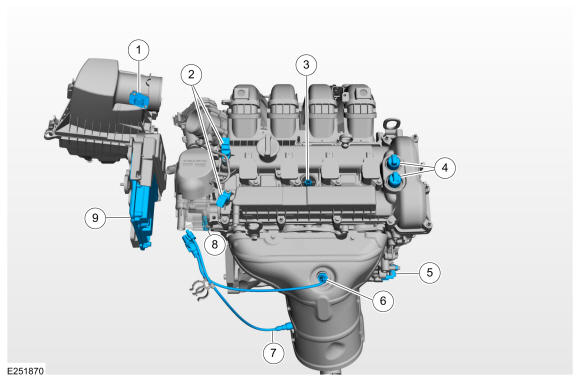

Electronic Engine Controls - Component Location: Notes
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
MAF sensor |
| 2 |
CMP sensor |
| 3 |
CHT sensor |
| 4 |
VCT oil control solenoid |
| 5 |
CKP sensor |
| 6 |
HO2S sensor |
| 7 |
Catalyst Monitor sensor |
| 8 |
ECT sensor |
| 9 |
PCM |
