Connector Repair Procedures

Fig 1: Connector Repair Procedures (1 Of 9)
GFDWR26903Courtesy of FORD MOTOR COMPANY

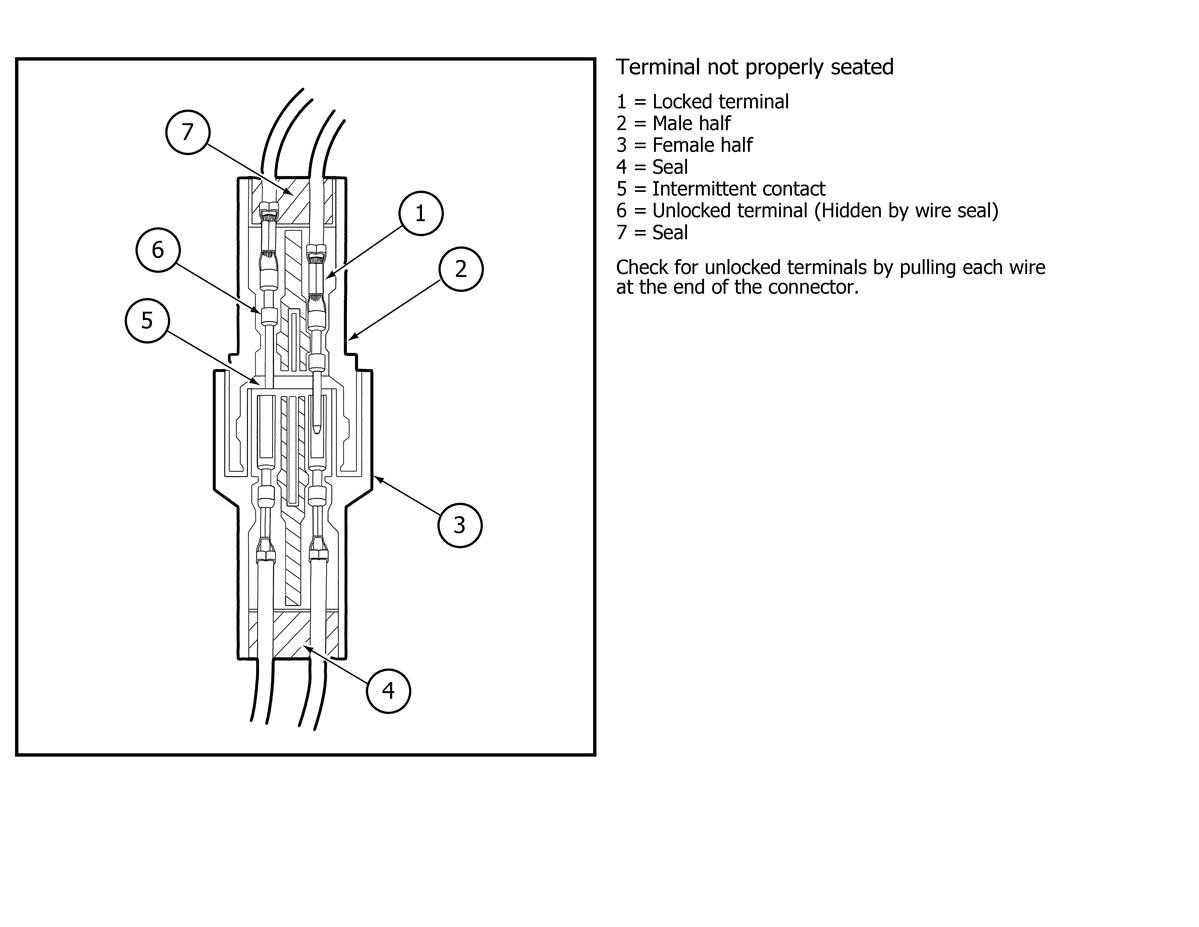

Fig 2: Connector Repair Procedures (2 Of 9)
GFDWR26904Courtesy of FORD MOTOR COMPANY

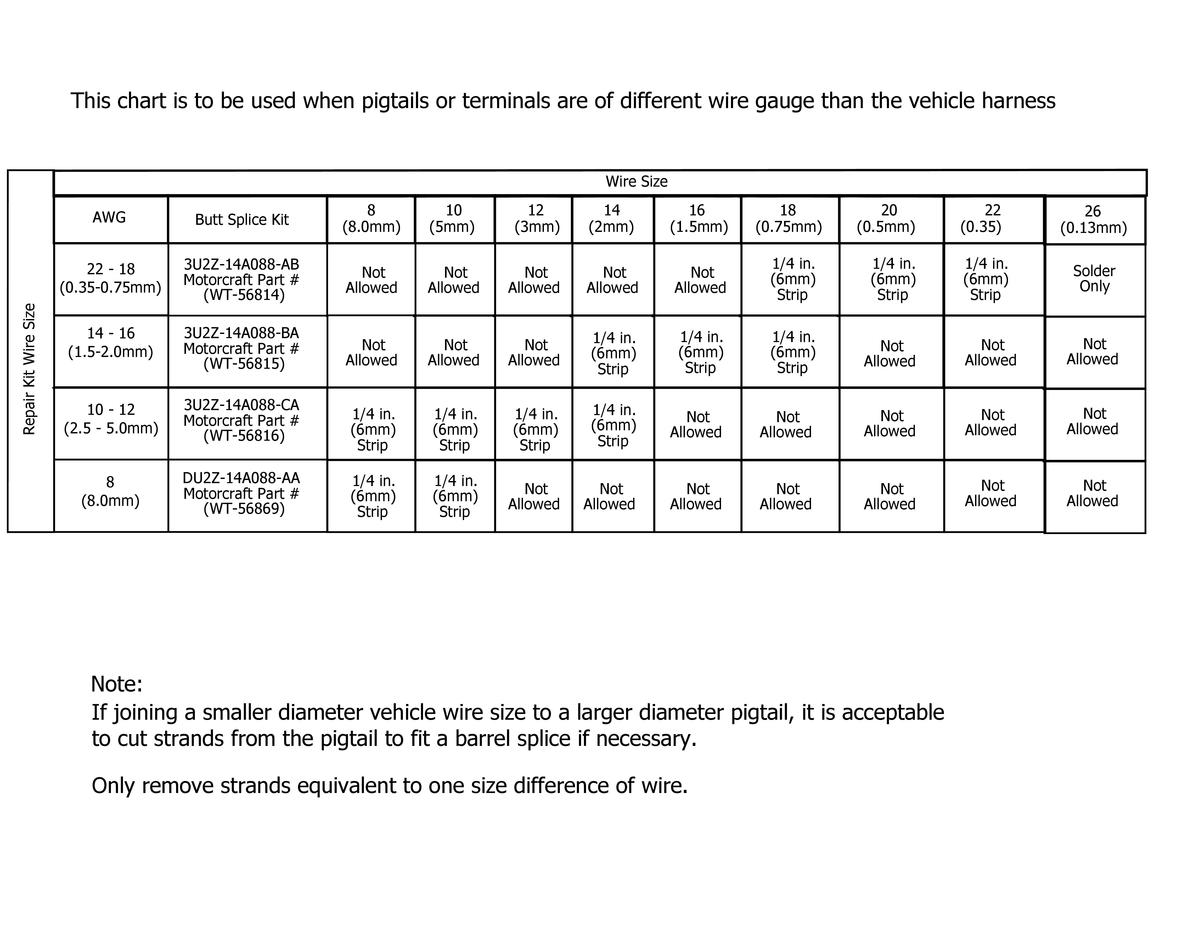

Fig 3: Connector Repair Procedures (3 Of 9)
GFDWR26905Courtesy of FORD MOTOR COMPANY

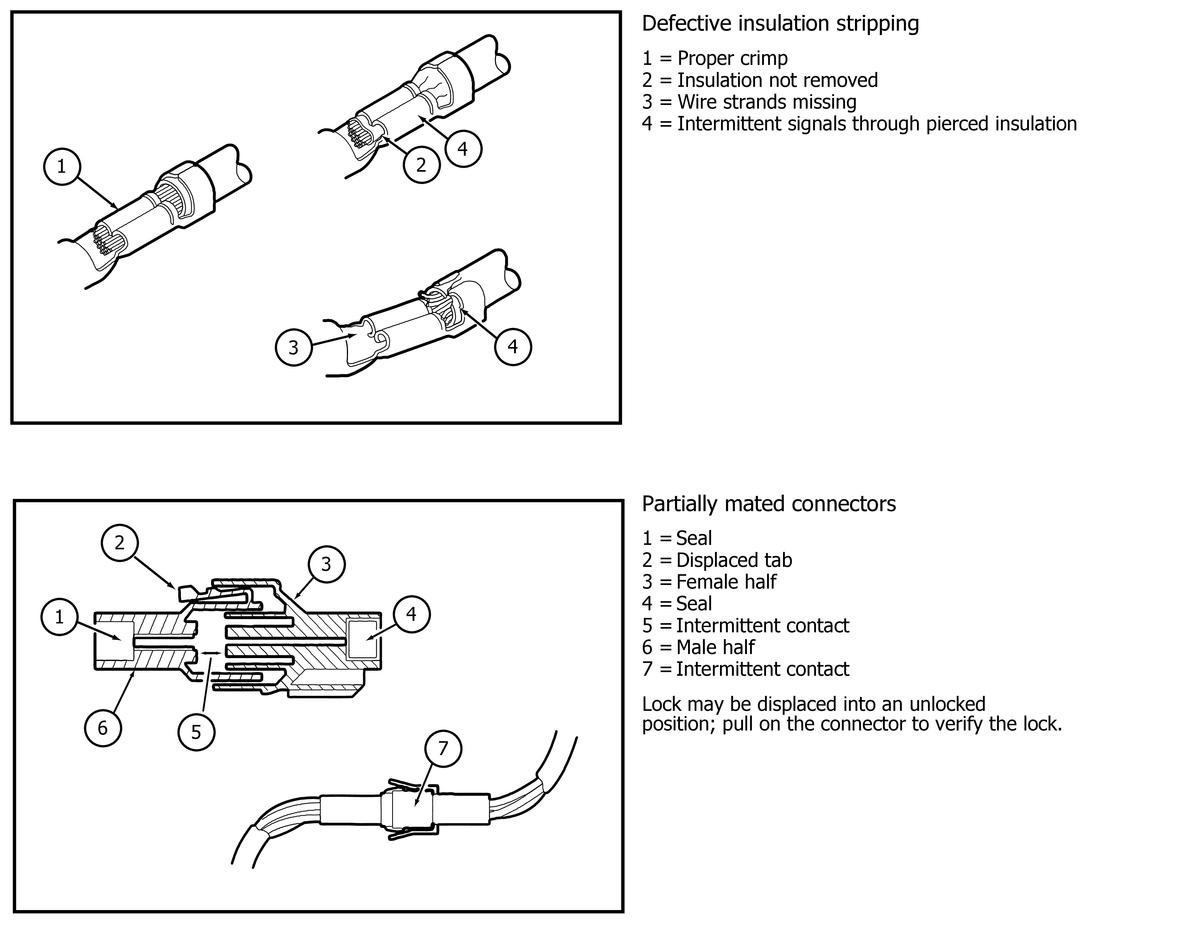

Fig 4: Connector Repair Procedures (4 Of 9)
GFDWR26906Courtesy of FORD MOTOR COMPANY

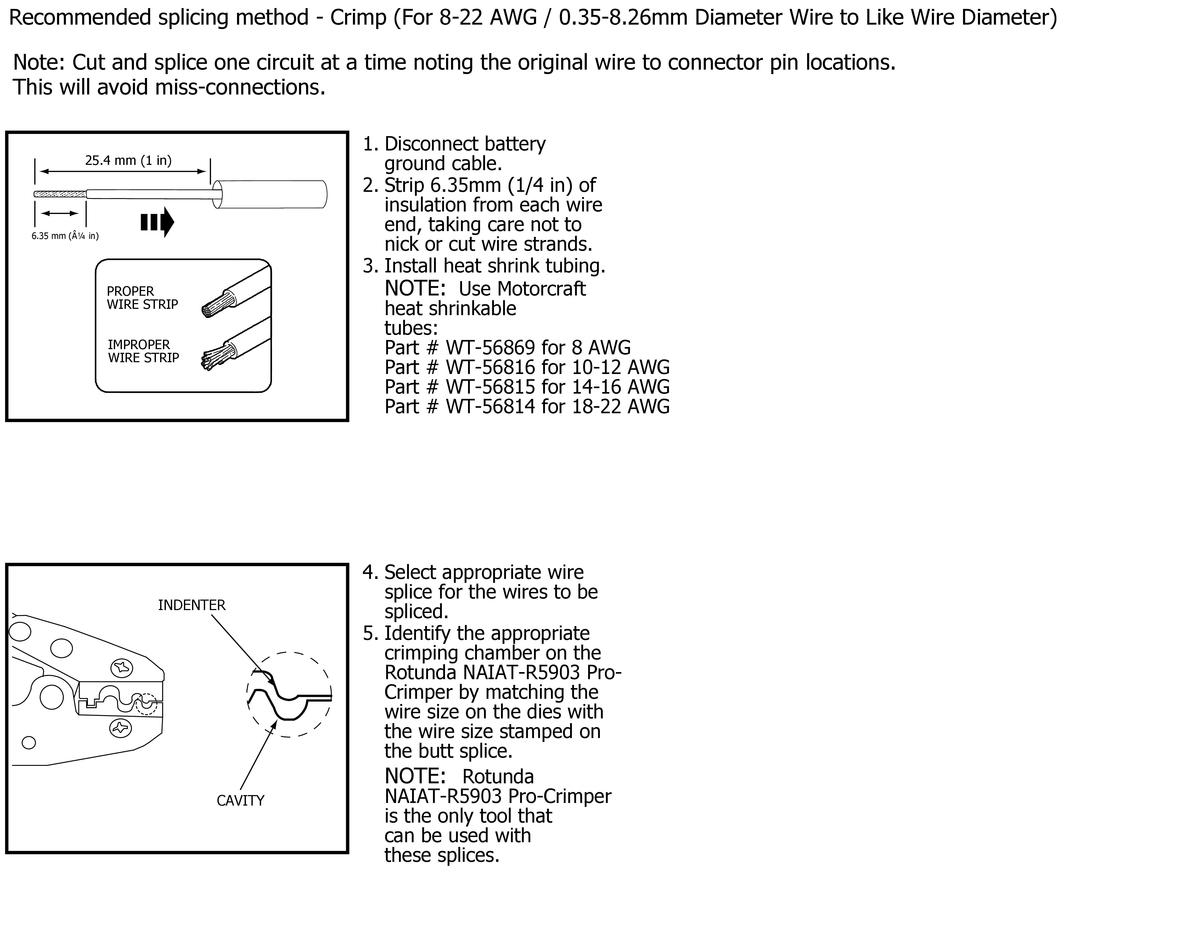

Fig 5: Connector Repair Procedures (5 Of 9)
GFDWR26907Courtesy of FORD MOTOR COMPANY

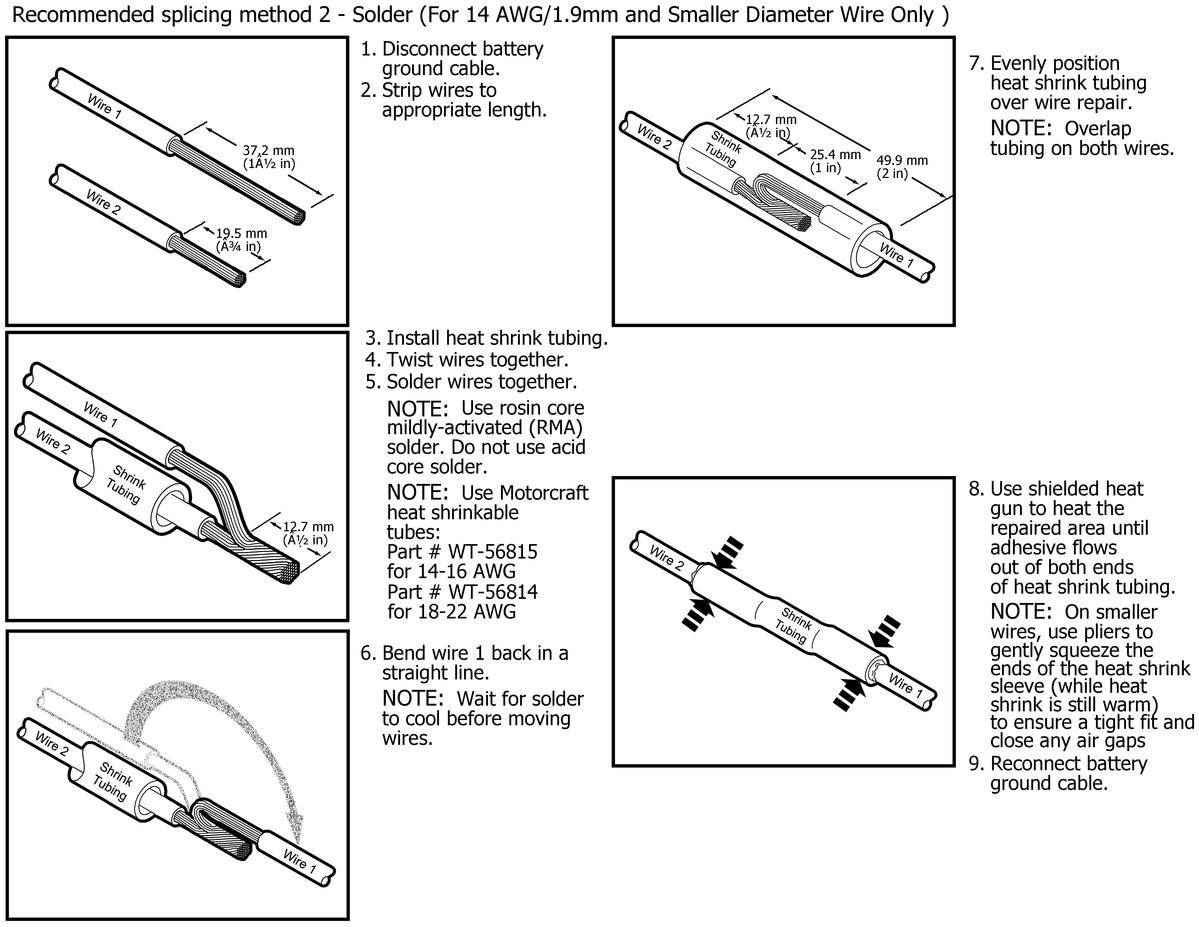

Fig 6: Connector Repair Procedures (6 Of 9)
GFDWR26908Courtesy of FORD MOTOR COMPANY

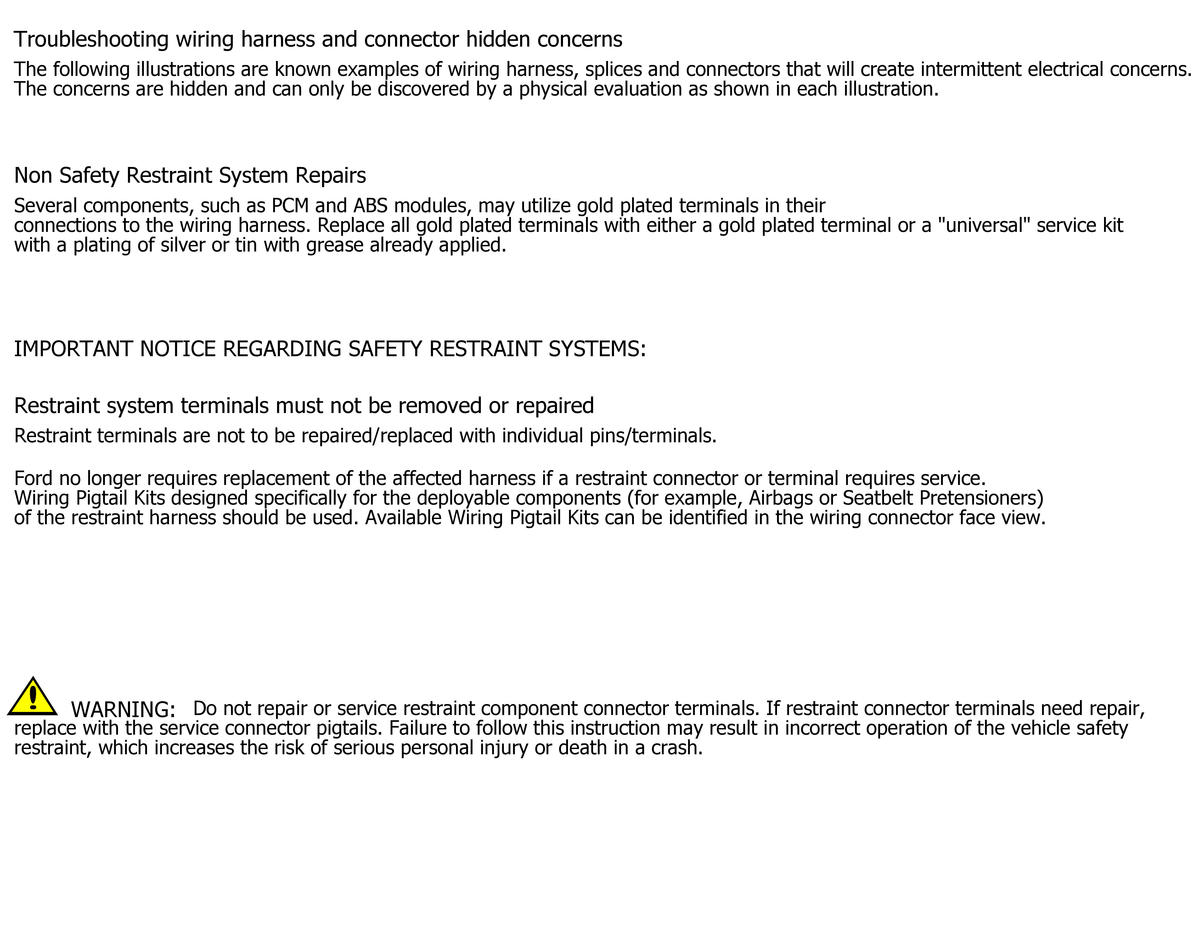

Fig 7: Connector Repair Procedures (7 Of 9)
GFDWR26909Courtesy of FORD MOTOR COMPANY

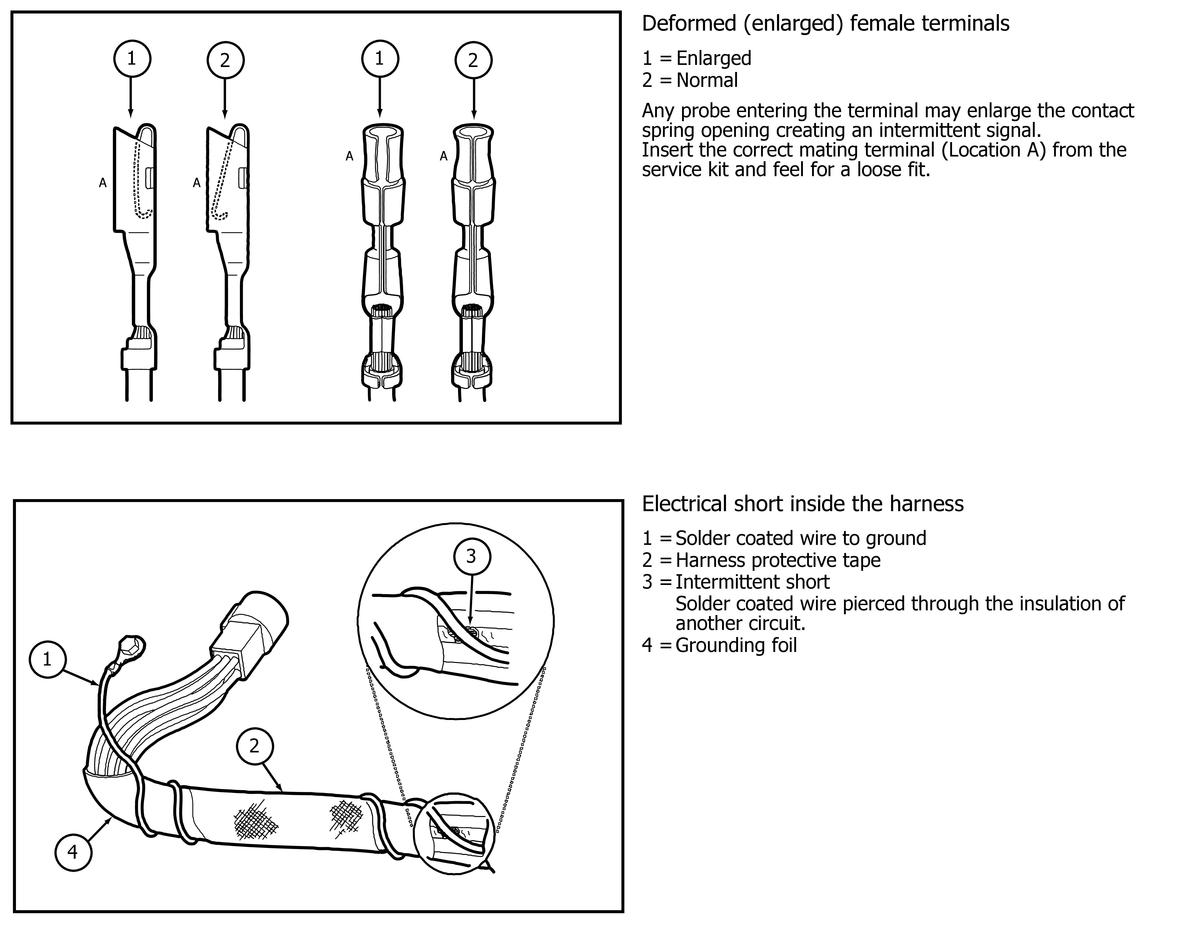

Fig 8: Connector Repair Procedures (8 Of 9)
GFDWR26910Courtesy of FORD MOTOR COMPANY

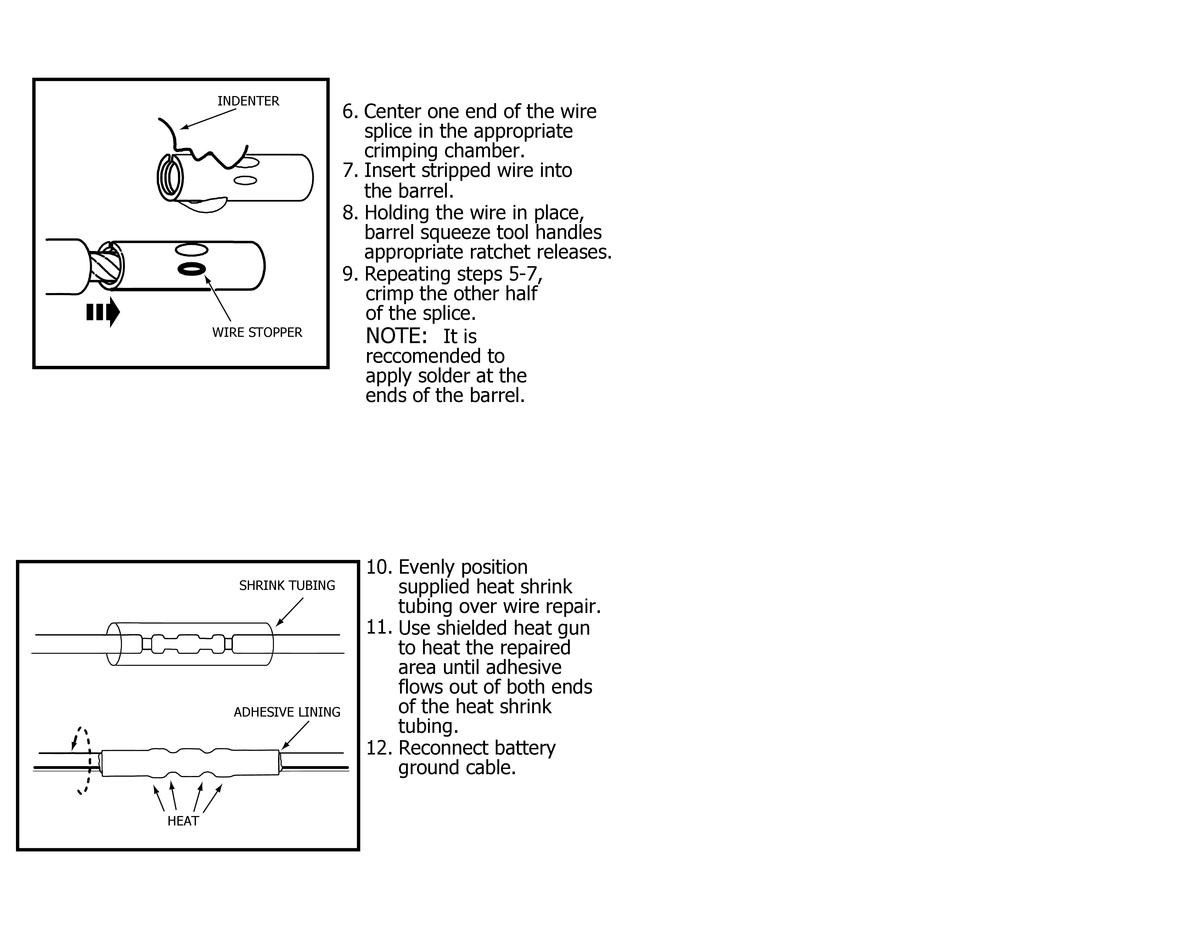

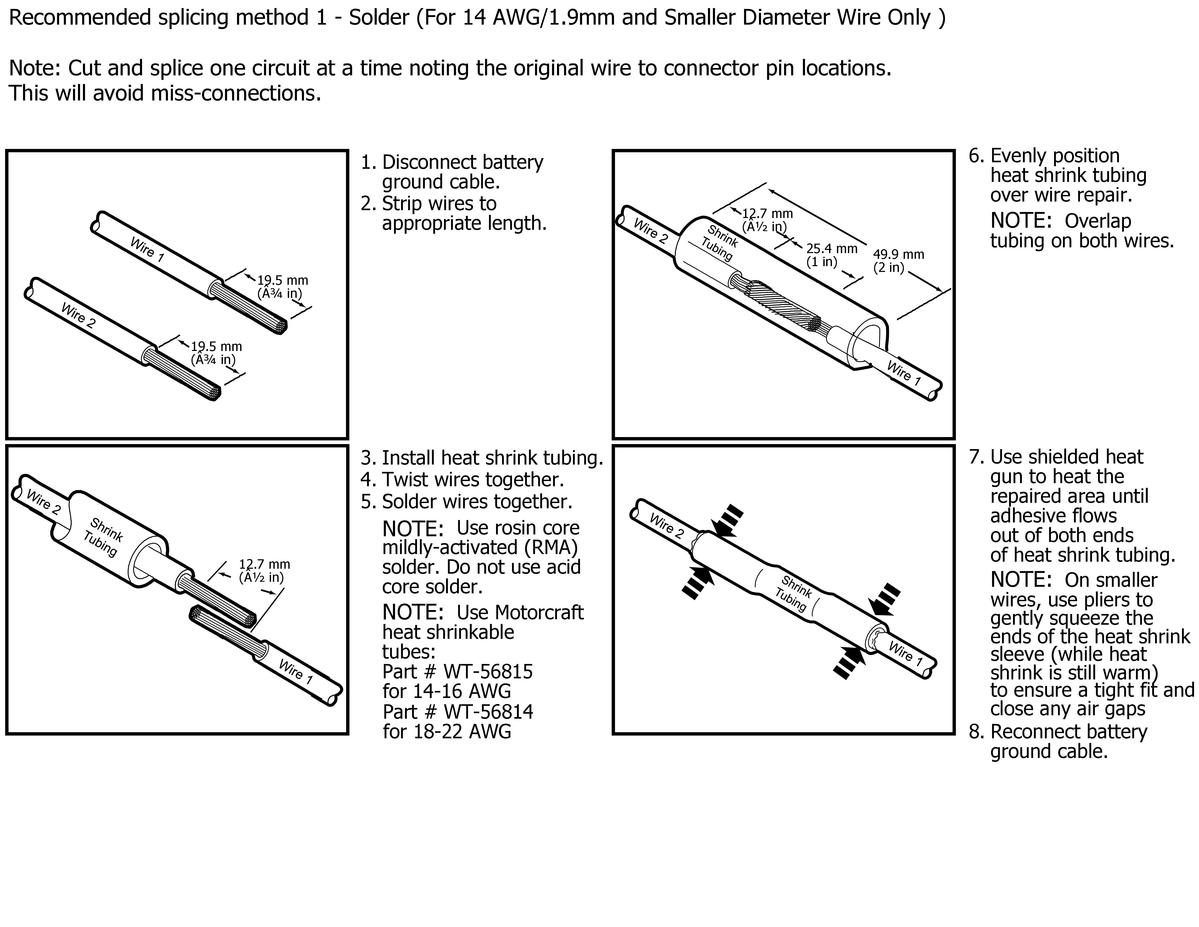

Fig 9: Connector Repair Procedures (9 Of 9)
GFDWR26911Courtesy of FORD MOTOR COMPANY
