System Diagram

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

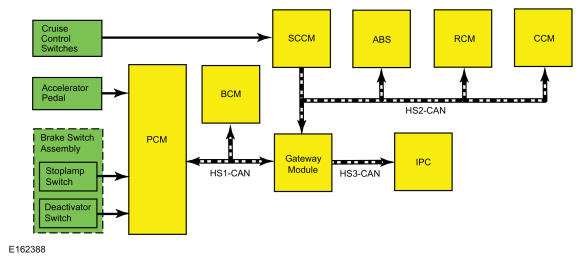

Adaptive Cruise Control Without Pre-Collision Assist

GFD466057Courtesy of FORD MOTOR COMPANY

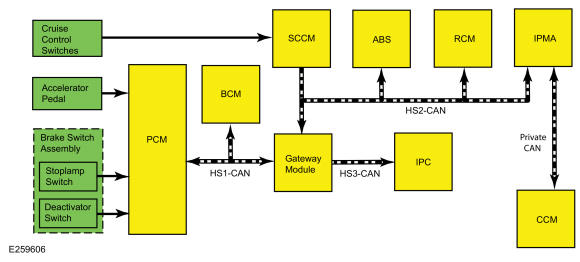

Adaptive Cruise Control With Pre-Collision Assist

GFD466058Courtesy of FORD MOTOR COMPANY
