Cruise Control Module (CCM): Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Cruise control module bracket

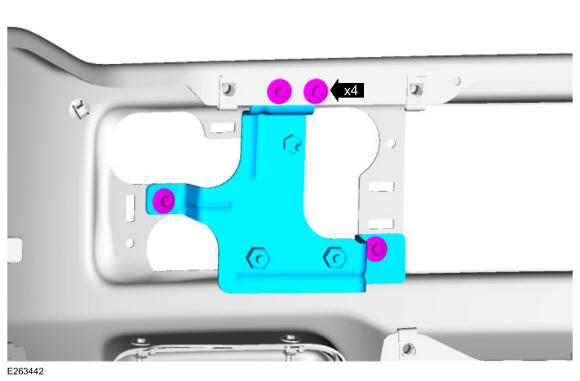

Install the bolts and the CCM bracket.
Torque: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY

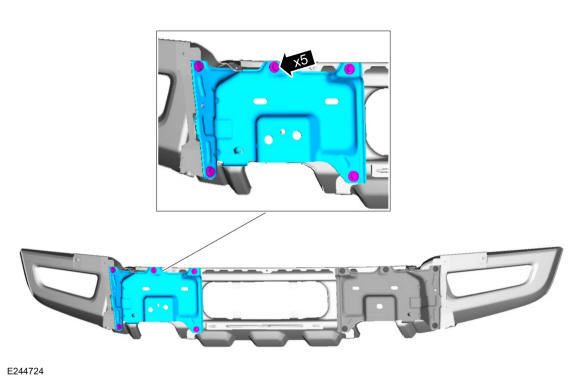

Install the bolts and the front bumper bracket.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the front bumper. Refer to: Front Bumper .
Cruise control module

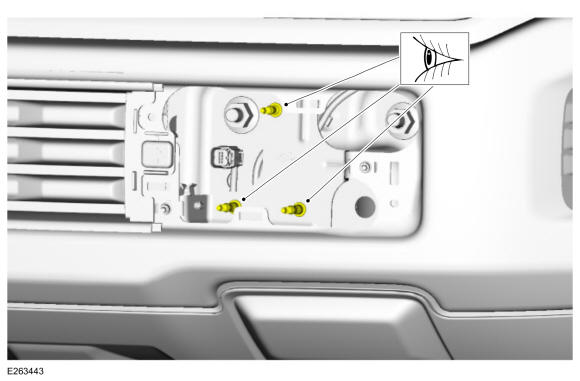

NOTE: Replace any damaged CCM ball studs.

Inspect the CCM ball studs for damage.

Courtesy of FORD MOTOR COMPANY

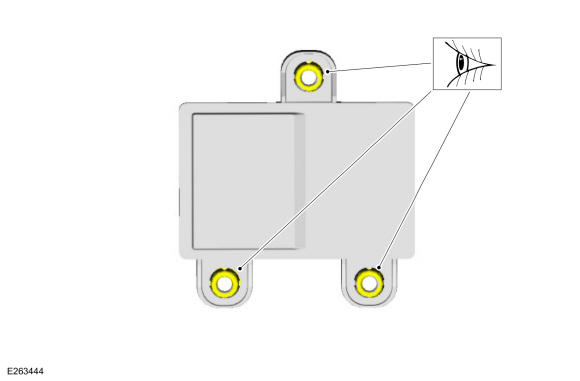

NOTE: Replace any damaged CCM grommets.

Inspect the CCM grommets for damage.

Courtesy of FORD MOTOR COMPANY

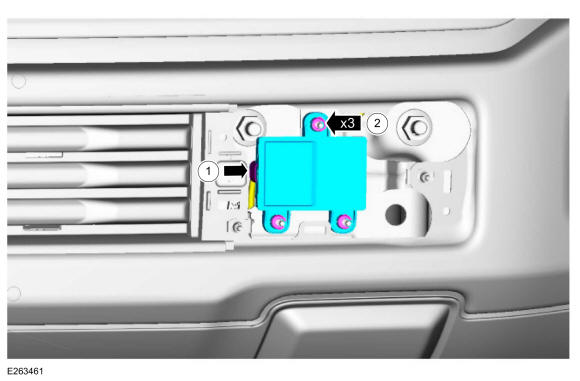

Install the CCM.
- Connect the CCM electrical connector.
- NOTE: Do not seat the grommets, they will be seated when the nuts are installed and torqued.

  Position the CCM grommets on the ball studs.
Courtesy of FORD MOTOR COMPANY

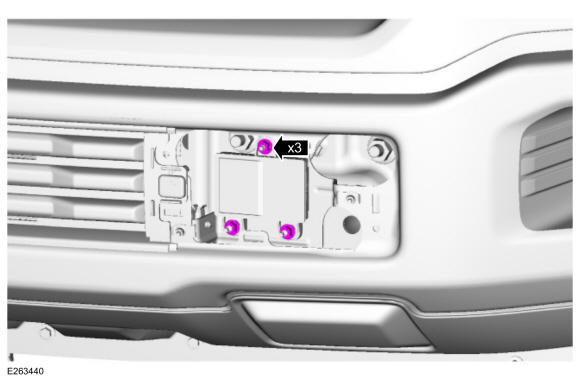

Install the CCM nuts.
Torque: 9 lb.in (1 Nm)

Courtesy of FORD MOTOR COMPANY

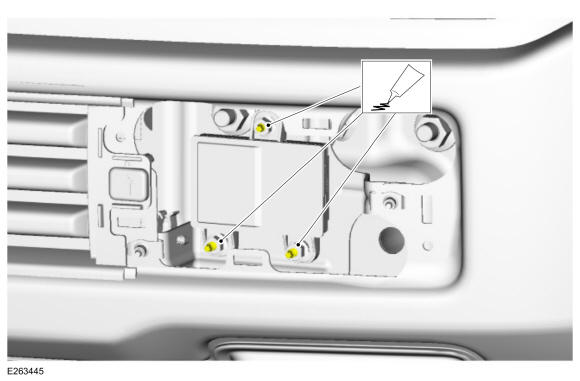

Apply thread locker to the CCM ball stud threads.
Material: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Using a diagnostic scan tool, complete the PMI process for the CCM following the on-screen instructions.
Align the CCM. Refer to: Cruise Control Radar Alignment .

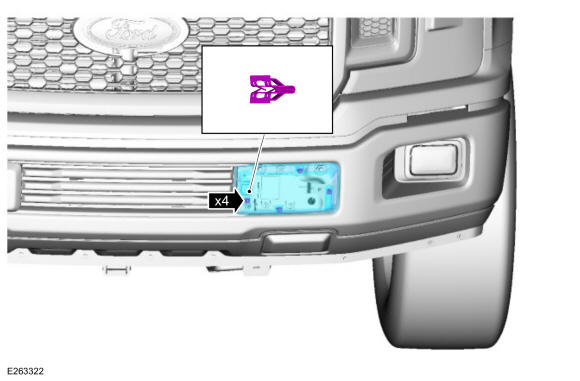

Install the front bumper trim panel.

Courtesy of FORD MOTOR COMPANY
